Here you will find all available parts and drawings of the 'Makita BFT124RZ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

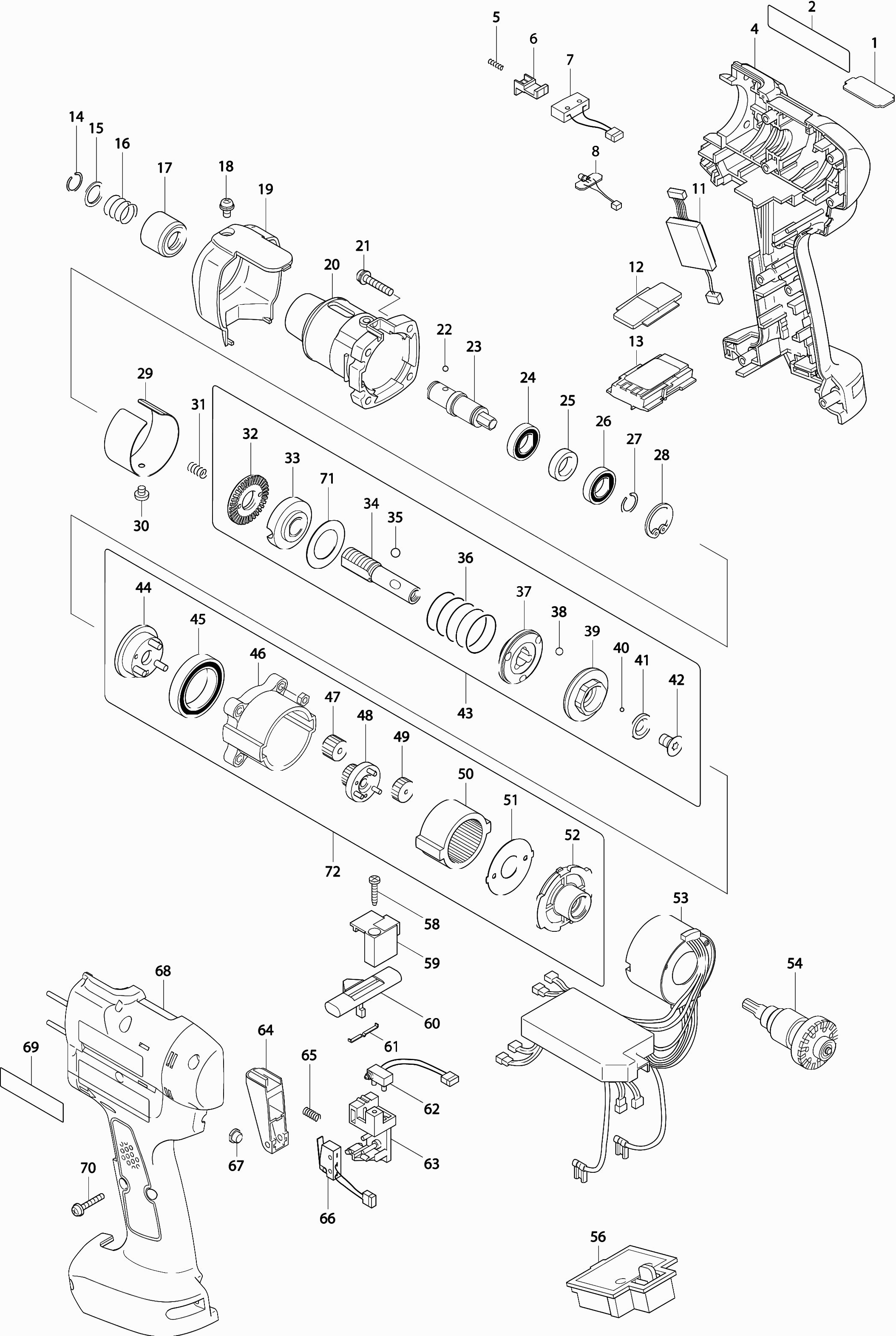

Technical drawing of model Makita BFT124RZ
Spare parts list of model Makita BFT124RZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Info plate 'p' | ||||
| 001 | 345792-7 | 8.40 | 10.16 | |
| Nameplate "bft124r" | ||||
| 002 | 864020-6 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 004A | 188888-9 | 104.50 | 126.44 | |
| No information available, not orderable | ||||
| 004B | 187857-7 | |||
| Pressure Spring 2 | ||||
| 005 | 233025-1 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 006 | 418002-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 007 | 638274-9 | |||
| LED Circuit | ||||
| 008 | 631513-6 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 011 | 631982-1 | |||
| Covering hood | ||||
| 012 | 419828-9 | 6.00 | 7.26 | |
| Control unit | ||||
| 013 | 631717-0 | 647.90 | 783.96 | |
| Spring Washer 10 | ||||
| 014 | 231965-7 | 1.00 | 1.21 | |
| Flat washer | ||||
| 015 | 267143-3 | 1.20 | 1.45 | |
| Compression Spring 13 | ||||
| 016 | 233005-7 | 1.00 | 1.21 | |
| Socket | ||||
| 017 | 162218-2 | 7.20 | 8.71 | |
| Screw M4x8 | ||||
| 018 | 265171-2 | 1.00 | 1.21 | |
| Clutch | ||||
| 019 | 418289-0 | 8.40 | 10.16 | |
| Clutch | ||||
| 020 | 317694-7 | 28.60 | 34.61 | |
| Screw 4x22 | ||||
| 021 | 265145-3 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 022 | 216019-1 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 023 | 324377-2 | 40.70 | 49.25 | |
| Ball Bearing 6801llb | ||||
| 024 | 210112-3 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 025 | 257011-8 | 1.20 | 1.45 | |
| Ball Bearing 6801llb | ||||
| 026 | 210112-3 | 6.00 | 7.26 | |
| Locking Ring 11 | ||||
| 027 | 231951-8 | 1.00 | 1.21 | |
| Lock Ring R-21 | ||||
| 028 | 962111-8 | 1.00 | 1.21 | |
| Washer 38p | ||||
| 029 | 345794-3 | 8.40 | 10.16 | |
| Screw Ph M4X4 Bfh/Bht-Series | ||||
| 030 | 265127-5 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 031 | 233019-6 | 1.00 | 1.21 | |
| Lock Ring M12 | ||||
| 032 | 324834-0 | 10.80 | 13.07 | |
| Clutch Dial | ||||
| 033 | 158408-3 | 6.00 | 7.26 | |
| Spindle Ass'y | ||||
| 034 | 324296-2 | 34.10 | 41.26 | |
| Steel ball 5.0 | ||||
| 035 | 216018-3 | 1.00 | 1.21 | |
| Compression Spring 19c | ||||
| 036 | 233358-4 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 037 | 223146-7 | |||
| Steel ball 4 | ||||
| 038 | 216024-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 039 | 223139-4 | |||
| Steel ball 3 | ||||
| 040 | 216019-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 041 | 267247-1 | |||
| Screw M5X10 | ||||
| 042 | 266305-0 | 1.20 | 1.45 | |
| Coupling 'g' | ||||
| 043 | 125394-3 | 97.90 | 118.46 | |
| Gear Carrier B | ||||
| 044 | 153444-4 | 10.80 | 13.07 | |
| Ball Bearing 6805llb | ||||
| 045 | 211375-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 046 | 418004-2 | |||
| Gear 18 | ||||
| 047 | 227052-8 | 1.20 | 1.45 | |
| Gear 9 | ||||
| 048 | 153447-8 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 049 | 227049-7 | |||
| No information available, not orderable | ||||
| 050 | 227048-9 | |||
| Spring retaining ring | ||||
| 051 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 052 | 418003-4 | 3.60 | 4.36 | |
| Motor control unit | ||||
| 053 | 631977-4 | 517.00 | 625.57 | |
| Armature | ||||
| 054 | 619208-1 | 234.30 | 283.50 | |
| Connection Unit (2 contacts) | ||||
| 056A | 643847-5 | 3.60 | 4.36 | |
| Connection Unit (2 contacts) | ||||
| 056B | 643828-9 | 4.80 | 5.81 | |
| Tapping Screw 3x16 | ||||
| 058 | 266130-9 | 1.00 | 1.21 | |
| Covering hood | ||||
| 059 | 418204-4 | 7.20 | 8.71 | |
| L/r adjusting lever | ||||
| 060 | 418201-0 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 061 | 232201-4 | 2.40 | 2.90 | |
| Switch | ||||
| 062 | 638276-5 | 8.40 | 10.16 | |
| Switch mounting plate compl. | ||||
| 063 | 418202-8 | 9.60 | 11.62 | |
| Switch handle | ||||
| 064 | 418203-6 | 9.60 | 11.62 | |
| Compression Spring 4 | ||||
| 065 | 231397-8 | 1.00 | 1.21 | |
| Switch | ||||
| 066 | 638275-7 | 11.00 | 13.31 | |
| Lens | ||||
| 067 | 419829-7 | 8.40 | 10.16 | |
| Motor Housing Set | ||||
| 068A | 188888-9 | 104.50 | 126.44 | |
| No information available, not orderable | ||||
| 068B | 187857-7 | |||
| No information available, not orderable | ||||
| 069 | 819216-4 | |||
| Phillips Screw 3x20 | ||||
| 070 | 265095-2 | 1.00 | 1.21 | |
| Flat Washer 18 | ||||
| 071 | 267276-4 | 1.20 | 1.45 | |
| Gear Set 'b' | ||||
| 072 | 125190-9 | 45.10 | 54.57 | |
