Here you will find all available parts and drawings of the 'Makita BFT123F'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

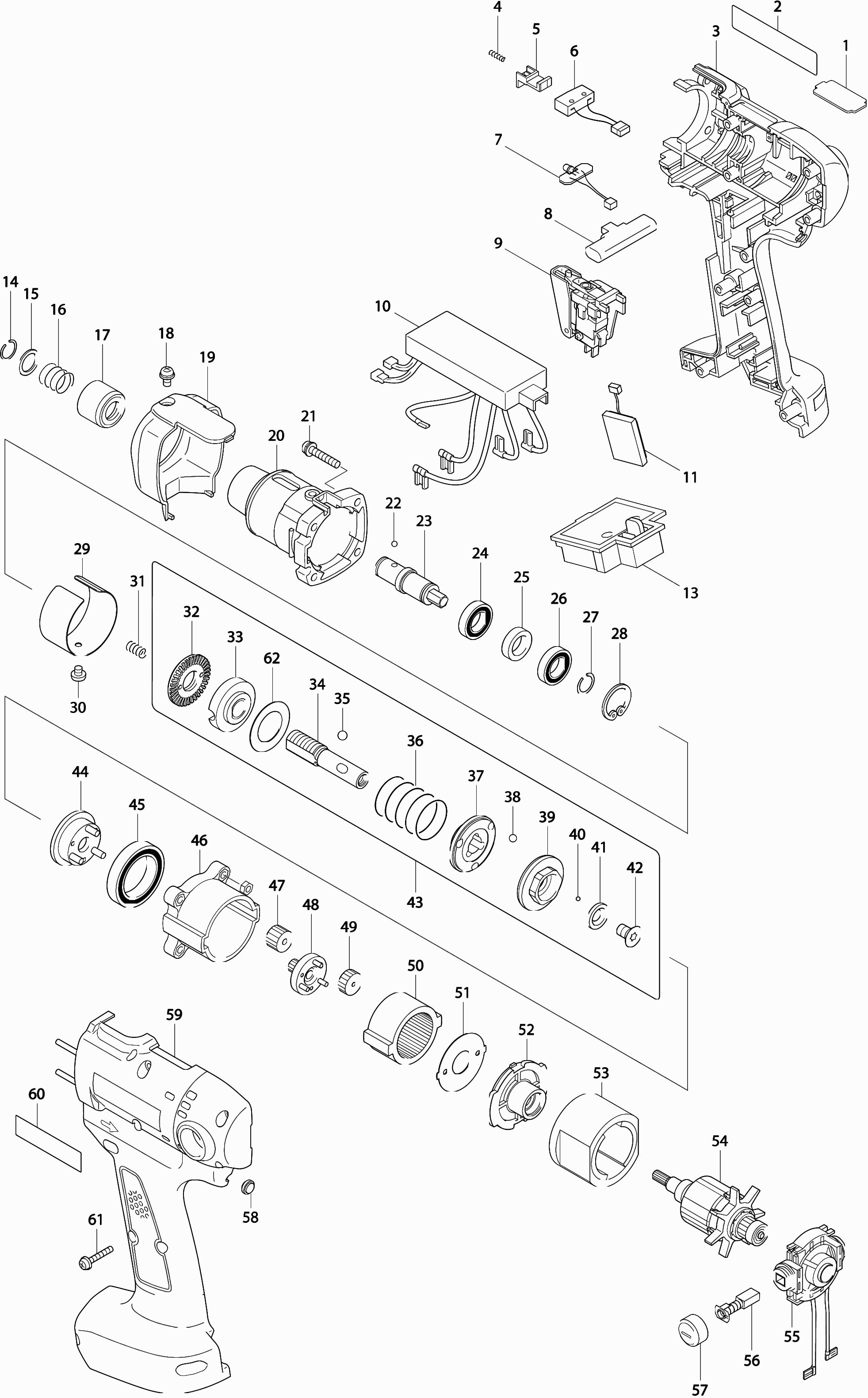

Technical drawing of model Makita BFT123F
Spare parts list of model Makita BFT123F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plate I 5-12nm (hard-torque) | ||||
| 001 | 345345-2 | 3.97 | 4.80 | |
| Label | ||||
| 002 | 850538-3 | 2.71 | 3.28 | |
| Motor Housing | ||||
| 003 | 183679-3 | 32.15 | 38.90 | |
| Pressure Spring 2 | ||||
| 004 | 233025-1 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 005 | 418002-6 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 006 | 638274-9 | |||
| LED Circuit | ||||
| 007 | 631513-6 | 12.80 | 15.49 | |
| L/r slide | ||||
| 008 | 417511-2 | 2.36 | 2.86 | |
| Switch | ||||
| 009 | 650536-5 | 28.02 | 33.90 | |
| No information available, not orderable | ||||
| 010 | 631559-2 | |||
| Buzzer circuit | ||||
| 011 | 631514-4 | 11.82 | 14.30 | |
| Connection unit | ||||
| 013 | 643983-7 | 3.96 | 4.79 | |
| Spring Washer 10 | ||||
| 014 | 231965-7 | 0.83 | 1.00 | |
| Flat washer | ||||
| 015 | 267143-3 | 0.83 | 1.00 | |
| Compression Spring 13 | ||||
| 016 | 233005-7 | 0.83 | 1.00 | |
| Socket | ||||
| 017 | 162218-2 | 6.70 | 8.11 | |
| Screw 4x8 | ||||
| 018 | 911109-2 | 0.83 | 1.00 | |
| Clutch | ||||
| 019 | 418289-0 | 7.22 | 8.74 | |
| Clutch | ||||
| 020 | 317694-7 | 27.90 | 33.76 | |
| Screw 4x22 | ||||
| 021 | 911143-2 | 0.83 | 1.00 | |
| Steel ball 3 | ||||
| 022 | 216019-1 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 023 | 324377-2 | 40.56 | 49.08 | |
| Ball Bearing 6801llb | ||||
| 024 | 210112-3 | 5.06 | 6.12 | |
| Washer 12 | ||||
| 025 | 257011-8 | 1.18 | 1.43 | |
| Ball Bearing 6801llb | ||||
| 026 | 210112-3 | 5.06 | 6.12 | |
| Locking Ring 11 | ||||
| 027 | 231951-8 | 0.83 | 1.00 | |
| Lock Ring R-21 | ||||
| 028 | 962111-8 | 0.83 | 1.00 | |
| Washer 38i | ||||
| 029 | 345351-7 | 7.57 | 9.16 | |
| Screw Ph M4X4 Bfh/Bht-Series | ||||
| 030 | 265127-5 | 0.83 | 1.00 | |
| Compression Spring 5 | ||||
| 031 | 233019-6 | 0.83 | 1.00 | |
| Coupling 'g' | ||||
| 043 | 125394-3 | 97.39 | 117.84 | |
| Magnet holder | ||||
| 053 | 638191-3 | 40.56 | 49.08 | |
| Armature | ||||
| 054 | 619127-1 | 28.02 | 33.90 | |
| Brush/bearing holder | ||||
| 055 | 638195-5 | 5.06 | 6.12 | |
| Rubber Pin 4 | ||||
| 055A | 263024-9 | 0.83 | 1.00 | |
| Brush Set Cb-434 | ||||
| 056 | 193466-2 | 3.96 | 4.79 | |
| Brush Cap | ||||
| 057 | 643933-2 | 0.83 | 1.00 | |
| VIEWING GLASS | ||||
| 058 | 416764-0 | 4.45 | 5.38 | |
| Motor Housing | ||||
| 059 | 183679-3 | 32.15 | 38.90 | |
| Label Makita | ||||
| 060 | 819063-3 | 2.71 | 3.28 | |
| Phillips Screw 3x20 | ||||
| 061 | 265095-2 | 0.83 | 1.00 | |
| Flat Washer 18 | ||||
| 062 | 267276-4 | 0.83 | 1.00 | |
| Gear set 'd' | ||||
| 063 | 125192-5 | 48.40 | 58.56 | |
