Here you will find all available parts and drawings of the 'Makita BFS451ZX'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

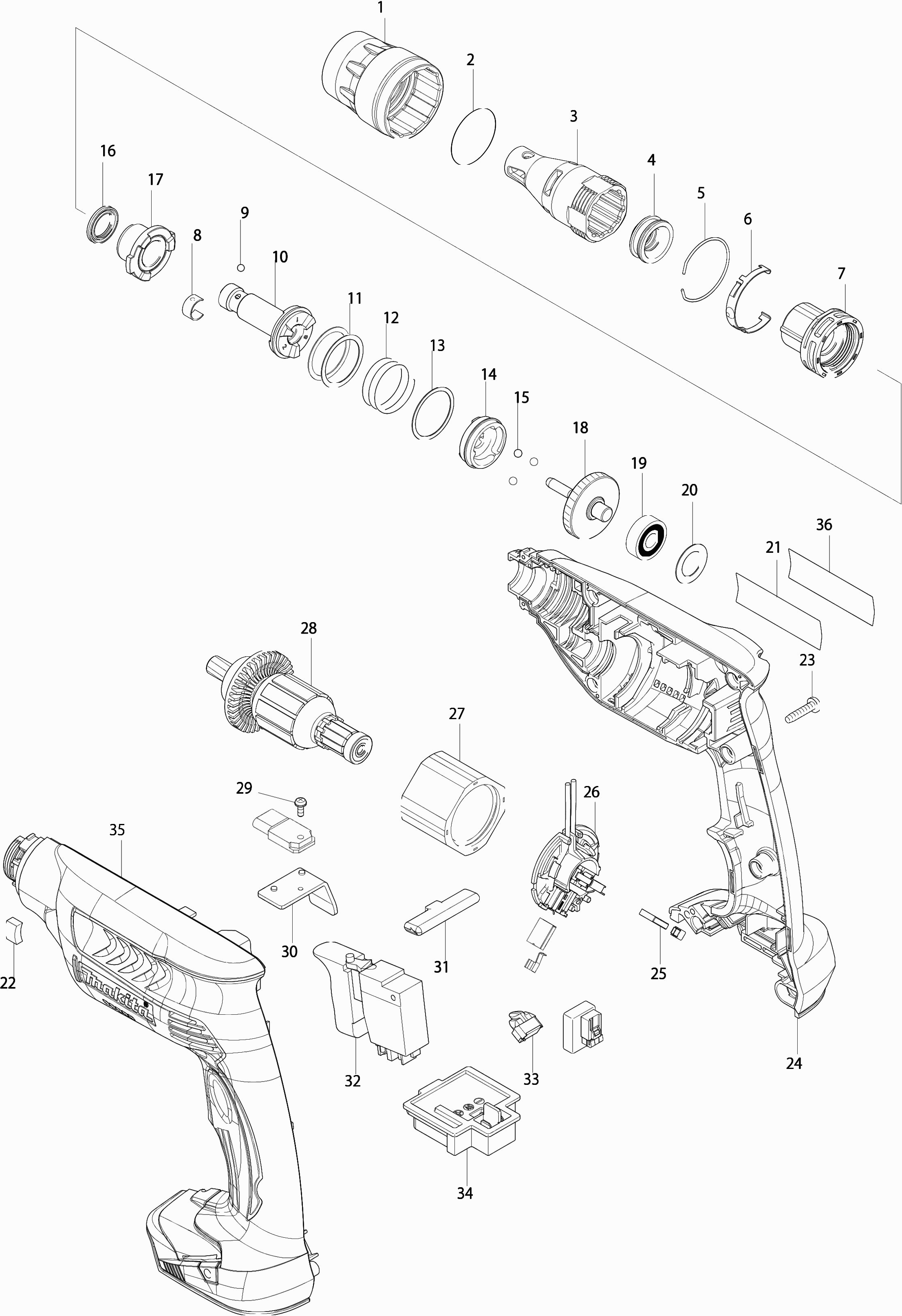

Technical drawing of model Makita BFS451ZX
Spare parts list of model Makita BFS451ZX
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Locking Ring | ||||
| 001 | 455591-0 | 3.12 | 3.78 | |
| Ring 30, Seal | ||||
| 002 | 424235-3 | 0.83 | 1.00 | |
| Nose piece S | ||||
| 003 | 158875-2 | 6.38 | 7.72 | |
| Rubber seal ring | ||||
| 004 | 424163-2 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 005 | 233974-2 | |||
| Leaf Spring | ||||
| 006 | 232245-4 | 5.71 | 6.91 | |
| Nose piece base | ||||
| 007 | 141100-8 | 11.34 | 13.72 | |
| Leaf Spring | ||||
| 008 | 232050-9 | 0.83 | 1.00 | |
| Steel ball 3.5 | ||||
| 009 | 216040-0 | 0.83 | 1.00 | |
| Shaft 125s comp | ||||
| 010 | 140771-8 | 25.36 | 30.69 | |
| Washer 25 | ||||
| 011 | 267331-2 | 0.98 | 1.19 | |
| Compression Spring 25 | ||||
| 012 | 234017-3 | 2.36 | 2.86 | |
| Washer 26 | ||||
| 013 | 267332-0 | 0.83 | 1.00 | |
| Clutch Knob 125s | ||||
| 014 | 223170-0 | 9.67 | 11.70 | |
| Steel ball 4 | ||||
| 015 | 216008-6 | 0.83 | 1.00 | |
| X-ring 14 | ||||
| 016 | 213184-7 | 0.98 | 1.19 | |
| Bearing Housing | ||||
| 017 | 142306-1 | 3.97 | 4.80 | |
| Gear set | ||||
| 018 | 140772-6 | 19.23 | 23.27 | |
| Ball Bearing 608Zz A | ||||
| 019 | 210046-0 | 0.83 | 1.00 | |
| Washer 14 | ||||
| 020 | 253192-6 | 0.83 | 1.00 | |
| Nameplate Bfs451 | ||||
| 021 | 869444-1 | 2.71 | 3.28 | |
| Rubber Ring | ||||
| 022 | 423413-2 | 0.98 | 1.19 | |
| Tap screw 4x18 | ||||
| 023 | 265A48-7 | 0.83 | 1.00 | |
| Motor Housing | ||||
| 024 | 187092-7 | 23.06 | 27.90 | |
| Rubber pen 6 | ||||
| 024A | 263005-3 | 0.83 | 1.00 | |
| Brush set Cb448 | ||||
| 025 | 196855-0 | 3.54 | 4.28 | |
| Brush Holder L+r | ||||
| 026 | 638868-0 | 5.30 | 6.41 | |
| Line filter | ||||
| 026A | 688163-8 | 0.83 | 1.00 | |
| Magnet Unit | ||||
| 027 | 638426-2 | 23.06 | 27.90 | |
| No information available, not orderable | ||||
| 028 | 619277-2 | |||
| Schroef 3x8 | ||||
| 029 | 652066-2 | 0.83 | 1.00 | |
| HEATSHIELD | ||||
| 030 | 689150-0 | 0.83 | 1.00 | |
| L/R Switch Button | ||||
| 031 | 452516-5 | 0.83 | 1.00 | |
| Switch | ||||
| 032 | 638869-8 | 30.70 | 37.15 | |
| Line filter | ||||
| 032A | 688164-6 | 0.83 | 1.00 | |
| Light circuit | ||||
| 033 | 620030-1 | 17.40 | 21.05 | |
| Connection unit 18v (3 contacts) | ||||
| 034 | 643852-2 | 3.12 | 3.78 | |
| Motor Housing | ||||
| 035 | 187092-7 | 23.06 | 27.90 | |
| Rubber pen 6 | ||||
| 035A | 263005-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 036 | 892812-3 | |||
