Here you will find all available parts and drawings of the 'Makita BFR440'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

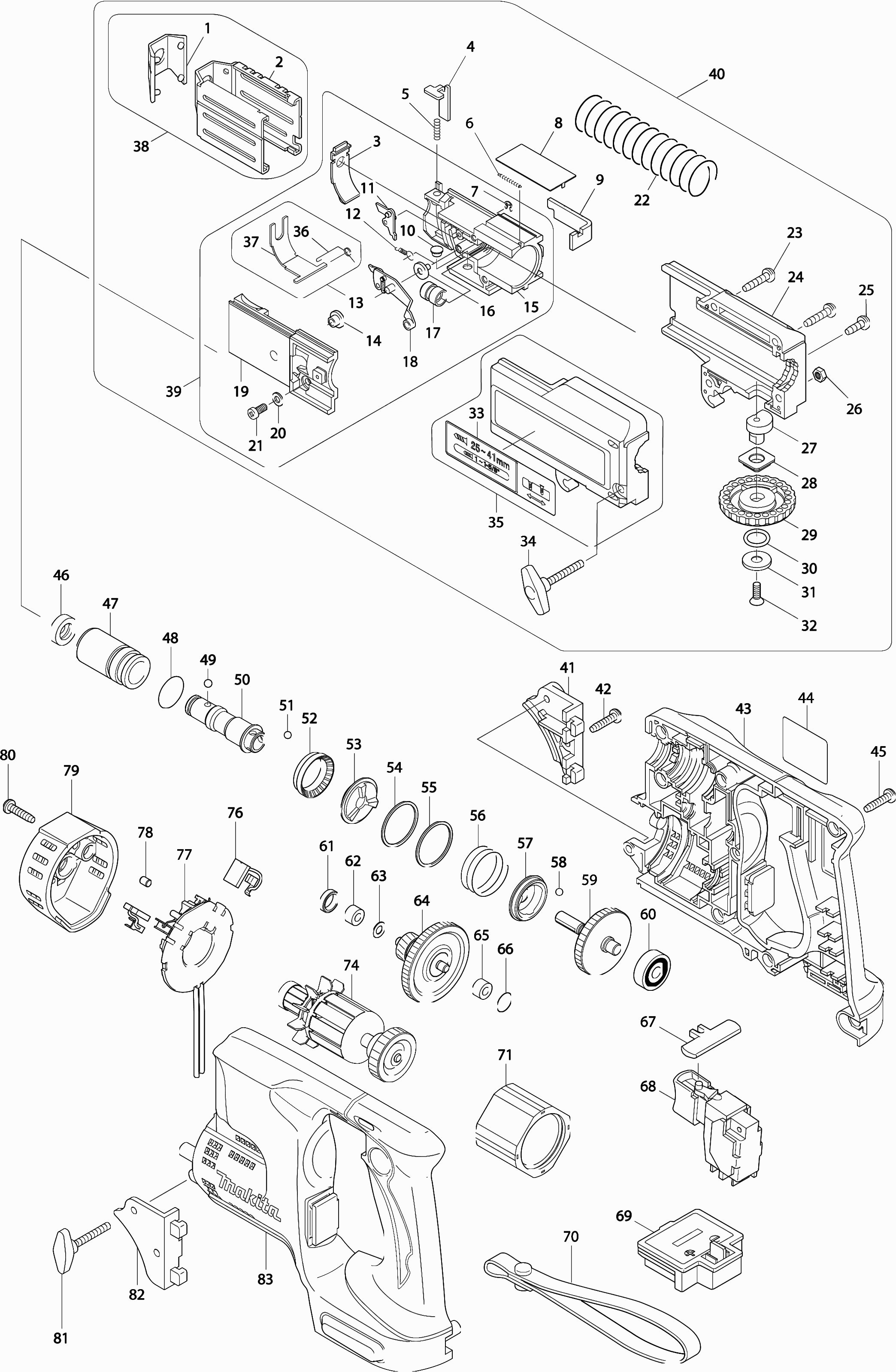

Technical drawing of model Makita BFR440
Spare parts list of model Makita BFR440
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap | ||||
| 001 | 421617-0 | 2.38 | 2.88 | |
| Stop base | ||||
| 002 | 344628-7 | 9.24 | 11.18 | |
| Dust seal Bfr440 | ||||
| 003 | TK00TSM105 | 2.10 | 2.54 | |
| Bow | ||||
| 004 | 344625-3 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 005 | 233211-4 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 006 | TK00TSM135 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 007 | TKOER02SCZ | |||
| Cover Plate | ||||
| 008 | TK00TSM116 | 1.24 | 1.50 | |
| End stop | ||||
| 009 | TK00TSM115 | 3.28 | 3.97 | |
| No information available, not orderable | ||||
| 010 | TK00TSM129 | |||
| No information available, not orderable | ||||
| 011 | TK00TSM052 | |||
| No information available, not orderable | ||||
| 012 | TK00TSM133 | |||
| Unlocking pawl | ||||
| 013 | TK00TSM051 | 3.12 | 3.78 | |
| Washer 6 6835D | ||||
| 014 | 267201-5 | 1.02 | 1.23 | |
| No information available, not orderable | ||||
| 015 | TK0TSM1031 | |||
| No information available, not orderable | ||||
| 016 | TK00TSM122 | |||
| Bus 5 6833/34/35/37 Grs A | ||||
| 017 | 257685-5 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 018 | TK00TSM056 | |||
| No information available, not orderable | ||||
| 019 | TK00TSM104 | |||
| No information available, not orderable | ||||
| 020 | TK00TSM144 | |||
| No information available, not orderable | ||||
| 021 | TKP4012SCB | |||
| Pressure Spring 21 | ||||
| 022 | 233209-1 | 1.18 | 1.43 | |
| Tapping screw Pt4x20 | ||||
| 023 | 266045-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 024 | TK00TSM101 | |||
| No information available, not orderable | ||||
| 025 | 266020-6 | |||
| No information available, not orderable | ||||
| 026 | TKHN204SCZ | |||
| Setting pin 14.5mm | ||||
| 027 | 310091-6 | 6.70 | 8.11 | |
| Bus 8 | ||||
| 028 | 257686-3 | 3.28 | 3.97 | |
| Button 42mm | ||||
| 029 | 417056-0 | 1.39 | 1.68 | |
| O-ring 11 | ||||
| 030 | 213105-9 | 0.83 | 1.00 | |
| Washer 6 6835D | ||||
| 031 | 267201-5 | 1.02 | 1.23 | |
| Countersunk screw 4x12 | ||||
| 032 | 912117-6 | 0.83 | 1.00 | |
| Label Nose piece Bfr440 * | ||||
| 033 | TKOOTSM147 | 2.71 | 3.28 | |
| Screw 4x28 | ||||
| 034 | 265779-2 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 035 | TK00TSM061 | |||
| No information available, not orderable | ||||
| 036 | TK00TSM134 | |||
| No information available, not orderable | ||||
| 037 | TK00TSM110 | |||
| Stop base | ||||
| 038 | 152676-0 | 19.79 | 23.95 | |
| Feeder house | ||||
| 039 | TK0TSM0501 | 43.75 | 52.94 | |
| Nose piece cpl. | ||||
| 040 | 125537-7 | 124.80 | 151.01 | |
| Belt Guide Set | ||||
| 041 | 188040-9 | 4.67 | 5.65 | |
| Tap screw 4x18 | ||||
| 042 | 265A48-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 043A | 188557-2 | |||
| Motor Housing (3 contacts) | ||||
| 043B | 187475-1 | 29.35 | 35.51 | |
| Tap screw 4x18 | ||||
| 045 | 265A48-7 | 0.83 | 1.00 | |
| Dust Ring | ||||
| 046 | 421467-3 | 0.98 | 1.19 | |
| Slide bearing 14 | ||||
| 047 | 214173-5 | 4.45 | 5.38 | |
| O-ring 18 | ||||
| 048 | 213262-3 | 0.98 | 1.19 | |
| Steel ball 3.5 | ||||
| 049 | 216040-0 | 0.83 | 1.00 | |
| Axle Bfr440 * | ||||
| 050 | 223160-3 | 38.75 | 46.89 | |
| Steel ball 4 | ||||
| 051 | 216008-6 | 0.83 | 1.00 | |
| Washer | ||||
| 052 | 421927-5 | 0.83 | 1.00 | |
| Clutch Plate A | ||||
| 053 | 223164-5 | 14.48 | 17.52 | |
| Washer 25 | ||||
| 054 | 267331-2 | 0.98 | 1.19 | |
| Washer 25 | ||||
| 055 | 267331-2 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 056 | 233451-4 | |||
| Clutch Knob 125s | ||||
| 057 | 223170-0 | 9.67 | 11.70 | |
| Steel ball 4 | ||||
| 058 | 216008-6 | 0.83 | 1.00 | |
| Gear | ||||
| 059 | 154980-3 | 30.69 | 37.13 | |
| Ball Bearing 627Zz A | ||||
| 060 | 210050-9 | 0.98 | 1.19 | |
| Sleeve 10 | ||||
| 061 | 165115-1 | 2.48 | 3.00 | |
| Slide Bearing 5 | ||||
| 062 | 214017-9 | 0.83 | 1.00 | |
| Lock washer 5 | ||||
| 063 | 253811-4 | 0.83 | 1.00 | |
| Gear | ||||
| 064 | 154937-4 | 25.36 | 30.69 | |
| Slide Bearing 5 | ||||
| 065 | 214017-9 | 0.83 | 1.00 | |
| O-ring 10 | ||||
| 066 | 213055-8 | 0.83 | 1.00 | |
| L/r adjusting lever | ||||
| 067 | 419304-3 | 1.67 | 2.02 | |
| Switch Bfr540/50 (2 Cont.) | ||||
| 068A | 650575-5 | 15.60 | 18.88 | |
| Switch (3 contacts) | ||||
| 068B | 650670-1 | 13.82 | 16.72 | |
| Connection Unit (2 contacts) | ||||
| 069A | 643847-5 | 3.54 | 4.28 | |
| Connection unit (3 contacts) | ||||
| 069B | 643850-6 | 4.45 | 5.38 | |
| Magnet Unit | ||||
| 071 | 638426-2 | 23.06 | 27.90 | |
| Armature | ||||
| 074 | 619180-7 | 33.36 | 40.37 | |
| Brush set Cb448 | ||||
| 076 | 196855-0 | 3.54 | 4.28 | |
| Brush Holder | ||||
| 077 | 638433-5 | 3.12 | 3.78 | |
| Torsion spring 'r' | ||||
| 077A | 231696-8 | 0.83 | 1.00 | |
| Torsion spring 'l' | ||||
| 077B | 231697-6 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 078 | 263032-0 | 0.83 | 1.00 | |
| Motor Hood | ||||
| 079 | 419307-7 | 5.06 | 6.12 | |
| Tap screw 4x18 | ||||
| 080 | 265A48-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 081 | 265732-8 | |||
| Belt Guide Set | ||||
| 082 | 188040-9 | 4.67 | 5.65 | |
| No information available, not orderable | ||||
| 083A | 188557-2 | |||
| Motor Housing (3 contacts) | ||||
| 083B | 187475-1 | 29.35 | 35.51 | |
| Washer 26 | ||||
| 084 | 267332-0 | 0.83 | 1.00 | |
