Here you will find all available parts and drawings of the 'Makita BFL200F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

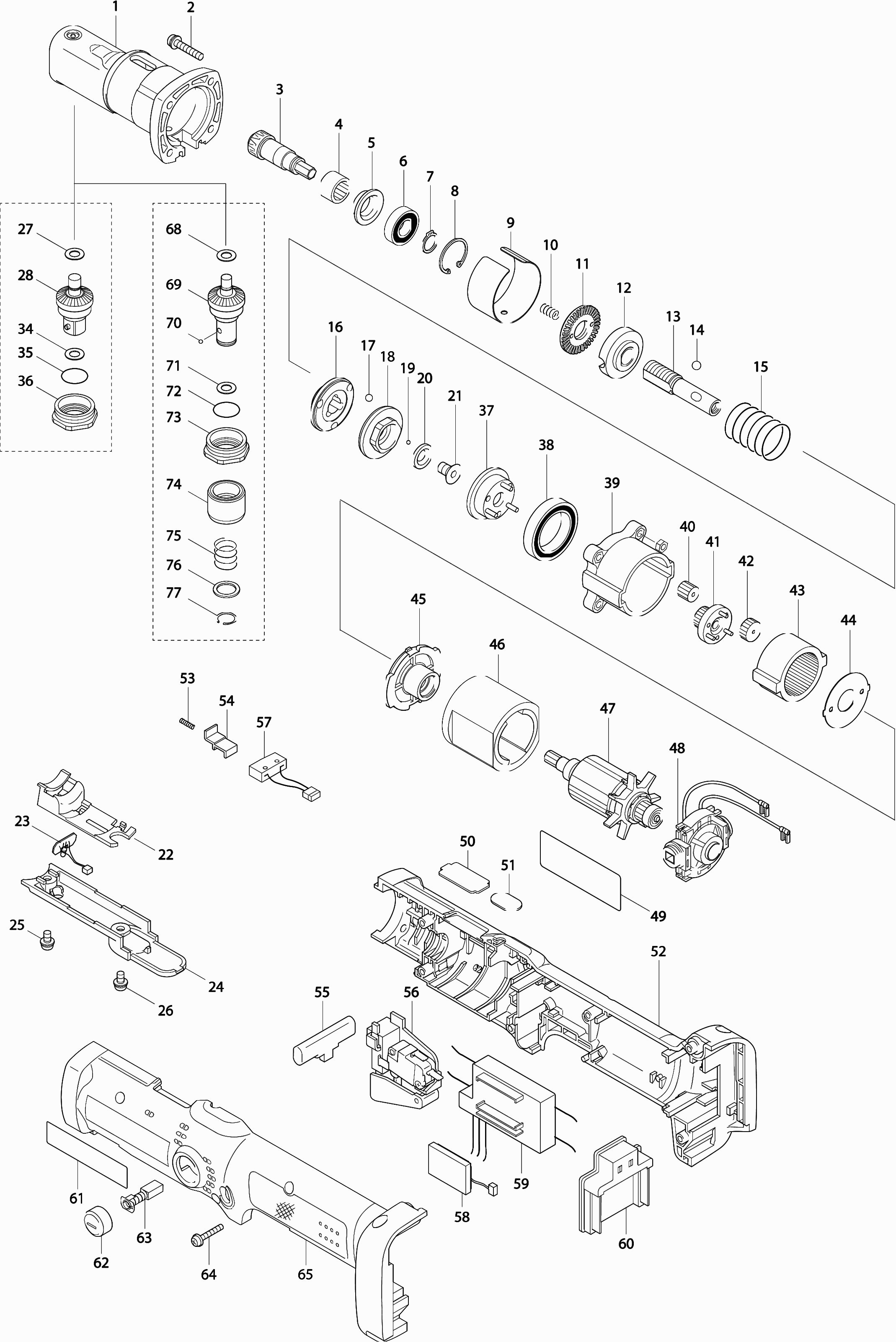

Technical drawing of model Makita BFL200F
Spare parts list of model Makita BFL200F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Single Gearbox Bfl080 A | ||||
| 001 | 144082-3 | 59.40 | 71.87 | |
| Screw 4x22 | ||||
| 002 | 265145-3 | 1.00 | 1.21 | |
| Gear 9 | ||||
| 003 | 227469-5 | 19.80 | 23.96 | |
| Needle Bearing 1210 | ||||
| 004 | 212123-4 | 3.60 | 4.36 | |
| WASHER SHIM | ||||
| 005 | 345281-2 | 2.40 | 2.90 | |
| Ball Bearing 6900llb | ||||
| 006 | 210057-5 | 3.60 | 4.36 | |
| Locking Ring S-10 | ||||
| 007 | 961026-6 | 1.00 | 1.21 | |
| Lock Ring R-22 | ||||
| 008 | 962112-6 | 1.00 | 1.21 | |
| Washer 38c | ||||
| 009 | 345287-0 | 7.20 | 8.71 | |
| Compression Spring 5 | ||||
| 010 | 233019-6 | 1.00 | 1.21 | |
| Light Holder | ||||
| 022 | 418011-5 | 3.60 | 4.36 | |
| LED Circuit | ||||
| 023 | 631513-6 | 13.20 | 15.97 | |
| Cover Plate | ||||
| 024 | 418005-0 | 3.60 | 4.36 | |
| Screw 4x8 | ||||
| 025 | 911109-2 | 1.00 | 1.21 | |
| Screw 4x8 | ||||
| 026 | 911109-2 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 027 | 253726-5 | 1.00 | 1.21 | |
| Spindle (a) | ||||
| 028 | 154725-9 | 59.40 | 71.87 | |
| Washer 14 | ||||
| 034 | 253842-3 | 1.00 | 1.21 | |
| O-ring 14 | ||||
| 035 | 213162-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036 | 285707-1 | |||
| Magnetic holder KL 65 | ||||
| 046 | 638183-2 | 51.70 | 62.56 | |
| Armature | ||||
| 047 | 619095-8 | 34.10 | 41.26 | |
| Brush holder Bfl080 A | ||||
| 048 | 638928-8 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 049 | 853883-5 | |||
| Plate C 8-20nm (hard torque) | ||||
| 050A | 345284-6 | 4.80 | 5.81 | |
| Plate C 8-18nm (soft torque) | ||||
| 050B | 345401-8 | 4.80 | 5.81 | |
| Lens | ||||
| 051 | 418001-8 | 1.20 | 1.45 | |
| Motorhuis set | ||||
| 052 | 183510-3 | 22.00 | 26.62 | |
| Pressure Spring 2 | ||||
| 053 | 233025-1 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 054 | 418002-6 | 2.40 | 2.90 | |
| L/r slide | ||||
| 055 | 417511-2 | 2.40 | 2.90 | |
| Switch | ||||
| 056 | 650536-5 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 057 | 638184-0 | |||
| Buzzer circuit | ||||
| 058 | 631514-4 | 11.00 | 13.31 | |
| Speed Controller | ||||
| 059 | 638961-0 | 100.10 | 121.12 | |
| Connection unit | ||||
| 060 | 643983-7 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 061 | 819003-1 | |||
| Brush Cap | ||||
| 062 | 643933-2 | 2.40 | 2.90 | |
| Brush Set Cb-434 | ||||
| 063 | 193466-2 | 4.80 | 5.81 | |
| Phillips Screw 3x20 | ||||
| 064 | 265095-2 | 1.00 | 1.21 | |
| Motorhuis set | ||||
| 065 | 183510-3 | 22.00 | 26.62 | |
| Gear Set 'a' | ||||
| 066 | 125189-4 | 47.30 | 57.23 | |
| Coupling set 'c' | ||||
| 067 | 125390-1 | 82.50 | 99.82 | |
| Flat Washer 18 | ||||
| 067A | 267276-4 | 1.20 | 1.45 | |
