Here you will find all available parts and drawings of the 'Makita BFL082F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

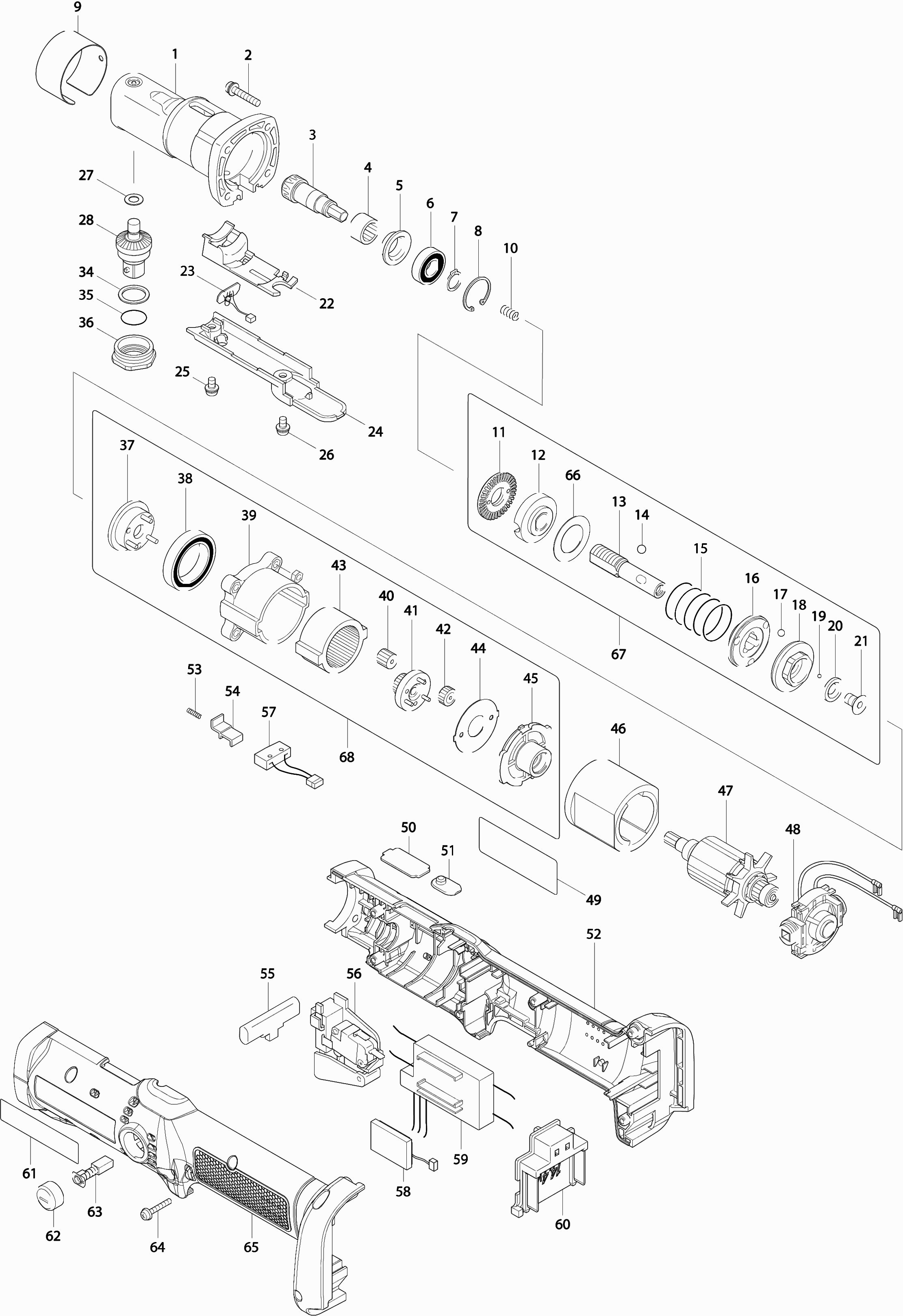

Technical drawing of model Makita BFL082F
Spare parts list of model Makita BFL082F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Single Gearbox Bfl080 A | ||||
| 001 | 144082-3 | 59.40 | 71.87 | |
| Screw 4x22 | ||||
| 002 | 265145-3 | 1.00 | 1.21 | |
| Gear 9 | ||||
| 003 | 227469-5 | 19.80 | 23.96 | |
| Needle Bearing 1210 | ||||
| 004 | 212123-4 | 3.60 | 4.36 | |
| WASHER SHIM | ||||
| 005 | 345281-2 | 2.40 | 2.90 | |
| Ball Bearing 6900llb | ||||
| 006 | 210057-5 | 3.60 | 4.36 | |
| Locking Ring S-10 | ||||
| 007 | 961026-6 | 1.00 | 1.21 | |
| Lock Ring R-22 | ||||
| 008 | 962112-6 | 1.00 | 1.21 | |
| Washer 38j | ||||
| 009 | 345442-4 | 7.20 | 8.71 | |
| Compression Spring 5 | ||||
| 010 | 233019-6 | 1.00 | 1.21 | |
| Lock Ring M12 | ||||
| 011 | 324834-0 | 10.80 | 13.07 | |
| Clutch Dial | ||||
| 012 | 158408-3 | 6.00 | 7.26 | |
| Spindle Ass'y | ||||
| 013 | 324296-2 | 34.10 | 41.26 | |
| Steel ball 5.0 | ||||
| 014 | 216018-3 | 1.00 | 1.21 | |
| Compression Spring 19c | ||||
| 015 | 233358-4 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 016 | 223146-7 | |||
| Steel ball 4 | ||||
| 017 | 216024-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018 | 223143-3 | |||
| Steel ball 3 | ||||
| 019 | 216019-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 020 | 267247-1 | |||
| Screw M5X10 | ||||
| 021 | 266305-0 | 1.20 | 1.45 | |
| Light Holder | ||||
| 022 | 418011-5 | 3.60 | 4.36 | |
| LED Circuit | ||||
| 023 | 631513-6 | 13.20 | 15.97 | |
| Cover Plate | ||||
| 024 | 418005-0 | 3.60 | 4.36 | |
| Screw M4x8 | ||||
| 025 | 265171-2 | 1.00 | 1.21 | |
| Screw M4x8 | ||||
| 026 | 265171-2 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 027 | 253726-5 | 1.00 | 1.21 | |
| Spindle (a) | ||||
| 028 | 154725-9 | 59.40 | 71.87 | |
| Washer 14 | ||||
| 034 | 253842-3 | 1.00 | 1.21 | |
| O-ring 14 | ||||
| 035 | 213162-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 036 | 285707-1 | |||
| No information available, not orderable | ||||
| 037 | 153443-6 | |||
| Ball Bearing 6805llb | ||||
| 038 | 211375-4 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 039 | 418004-2 | |||
| No information available, not orderable | ||||
| 040 | 227050-2 | |||
| No information available, not orderable | ||||
| 041 | 153684-4 | |||
| No information available, not orderable | ||||
| 042 | 227104-5 | |||
| No information available, not orderable | ||||
| 043 | 227048-9 | |||
| Spring retaining ring | ||||
| 044 | 267774-8 | 1.20 | 1.45 | |
| Motor mount | ||||
| 045 | 418003-4 | 3.60 | 4.36 | |
| Magnetic holder KL 65 | ||||
| 046 | 638183-2 | 51.70 | 62.56 | |
| Armature | ||||
| 047 | 619316-8 | 46.20 | 55.90 | |
| Brush holder Bfl080 A | ||||
| 048 | 638928-8 | 6.00 | 7.26 | |
| Line filter | ||||
| 048A | 688172-7 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 049 | 897717-2 | |||
| Label A 2-8nm (hard-torque) | ||||
| 050 | 345282-0 | 3.60 | 4.36 | |
| Lens Bfl402F A | ||||
| 051 | 457975-8 | 6.00 | 7.26 | |
| Motor Housing Set | ||||
| 052 | 187487-4 | 22.00 | 26.62 | |
| Pressure Spring 2 | ||||
| 053 | 233025-1 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 054 | 418002-6 | 2.40 | 2.90 | |
| L/r slide | ||||
| 055 | 417511-2 | 2.40 | 2.90 | |
| Switch | ||||
| 056 | 650536-5 | 28.60 | 34.61 | |
| SCHAKELAAR DFL201F A | ||||
| 057 | 632T52-9 | 9.60 | 11.62 | |
| Buzzer circuit | ||||
| 058 | 631514-4 | 11.00 | 13.31 | |
| Control Unit 14.4V Bfl061F A | ||||
| 059 | 632M45-4 | 78.10 | 94.50 | |
| Line filter | ||||
| 059A | 688164-6 | 1.00 | 1.21 | |
| Connection Unit (2 contacts) | ||||
| 060 | 643828-9 | 4.80 | 5.81 | |
| Makita logo label | ||||
| 061 | 819284-7 | 2.40 | 2.90 | |
| Brush Cap | ||||
| 062 | 643933-2 | 2.40 | 2.90 | |
| Brush Set Cb-434 | ||||
| 063 | 193466-2 | 4.80 | 5.81 | |
| Phillips Screw 3x20 | ||||
| 064 | 265095-2 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 065 | 187487-4 | 22.00 | 26.62 | |
| Flat Washer 18 | ||||
| 066 | 267276-4 | 1.20 | 1.45 | |
| Coupling 'h' | ||||
| 067 | 125395-1 | 99.00 | 119.79 | |
| Gear set 'e' | ||||
| 068 | 125231-1 | 48.40 | 58.56 | |
