Here you will find all available parts and drawings of the 'Makita BFH040F'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

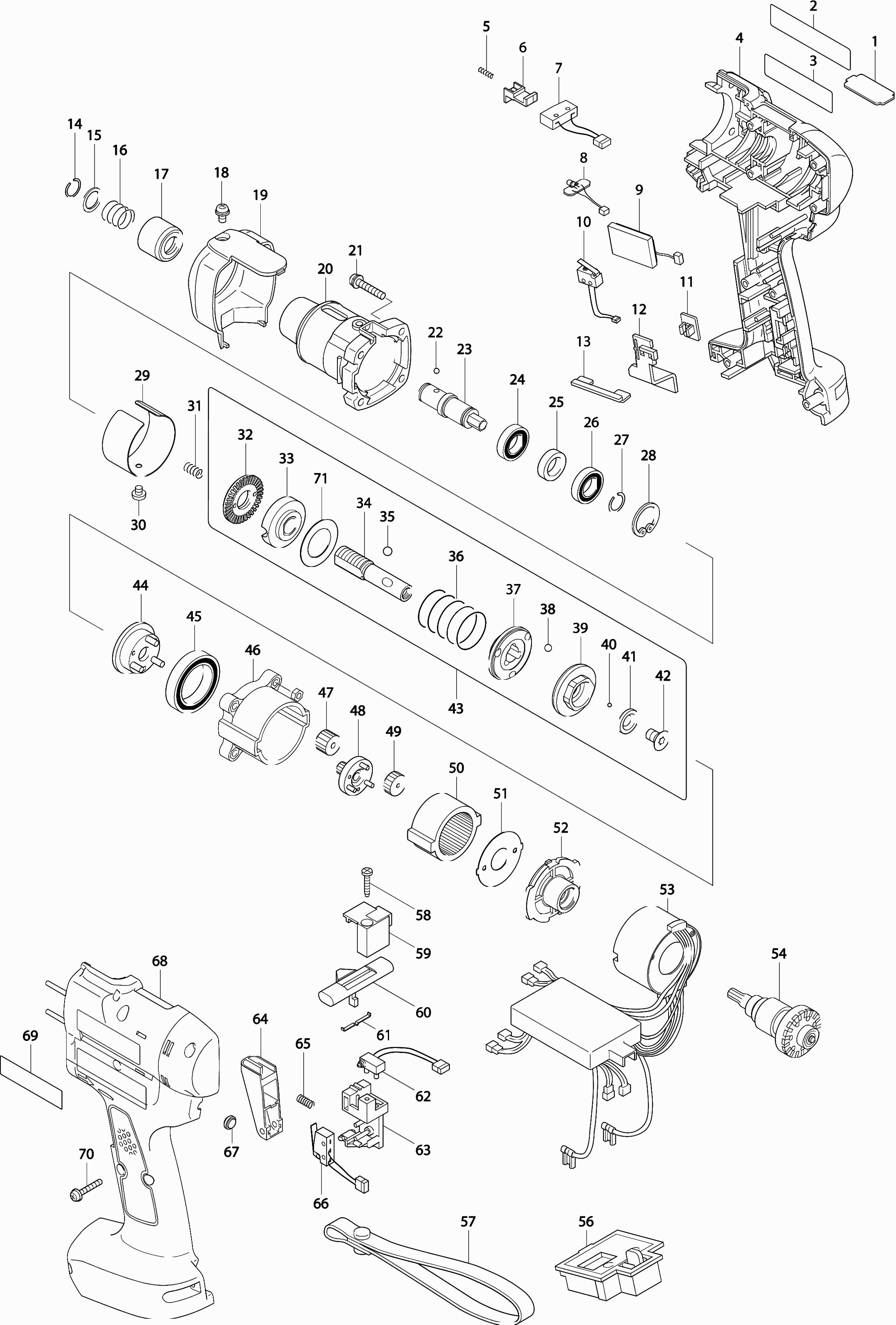

Technical drawing of model Makita BFH040F
Spare parts list of model Makita BFH040F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plate D | ||||
| 001 | 345330-5 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 002 | 850561-8 | |||
| Motor Housing | ||||
| 004 | 183622-2 | 59.40 | 71.87 | |
| Warning Label | ||||
| 004A | 810033-5 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 005 | 233025-1 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 006 | 418002-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 007 | 638274-9 | |||
| LED Circuit | ||||
| 008 | 631513-6 | 13.20 | 15.97 | |
| Buzzer circuit | ||||
| 009 | 631514-4 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 010 | 638273-1 | |||
| Switch handle | ||||
| 011 | 418210-9 | 6.00 | 7.26 | |
| Switch guide | ||||
| 012 | 418208-6 | 7.20 | 8.71 | |
| Spacer | ||||
| 013 | 418209-4 | 6.00 | 7.26 | |
| Spring Washer 10 | ||||
| 014 | 231965-7 | 1.00 | 1.21 | |
| Flat washer | ||||
| 015 | 267143-3 | 1.20 | 1.45 | |
| Compression Spring 13 | ||||
| 016 | 233005-7 | 1.00 | 1.21 | |
| Socket | ||||
| 017 | 162218-2 | 7.20 | 8.71 | |
| Screw 4x8 | ||||
| 018 | 911109-2 | 1.00 | 1.21 | |
| Clutch | ||||
| 019 | 418289-0 | 8.40 | 10.16 | |
| Clutch | ||||
| 020 | 317694-7 | 28.60 | 34.61 | |
| Screw 4x22 | ||||
| 021 | 911143-2 | 1.00 | 1.21 | |
| Screw 4x22 | ||||
| 021A | 265145-3 | 1.00 | 1.21 | |
| Steel ball 3 | ||||
| 022 | 216019-1 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 023 | 324377-2 | 40.70 | 49.25 | |
| Ball Bearing 6801llb | ||||
| 024 | 210112-3 | 6.00 | 7.26 | |
| Washer 12 | ||||
| 025 | 257011-8 | 1.20 | 1.45 | |
| Ball Bearing 6801llb | ||||
| 026 | 210112-3 | 6.00 | 7.26 | |
| Locking Ring 11 | ||||
| 027 | 231951-8 | 1.00 | 1.21 | |
| Lock Ring R-21 | ||||
| 028 | 962111-8 | 1.00 | 1.21 | |
| Washer 38d | ||||
| 029 | 345346-0 | 7.20 | 8.71 | |
| Screw Ph M4X4 Bfh/Bht-Series | ||||
| 030 | 265127-5 | 1.00 | 1.21 | |
| Compression Spring 5 | ||||
| 031 | 233019-6 | 1.00 | 1.21 | |
| Coupling 'd' | ||||
| 043 | 125391-9 | 106.70 | 129.11 | |
| Motor control unit | ||||
| 053 | 631544-5 | 522.50 | 632.22 | |
| Armature | ||||
| 054 | 619123-9 | 147.40 | 178.35 | |
| Connection unit | ||||
| 056 | 643983-7 | 4.80 | 5.81 | |
| Carrying cord | ||||
| 057 | 163400-6 | 1.20 | 1.45 | |
| Tapping Screw 3x16 | ||||
| 058 | 266130-9 | 1.00 | 1.21 | |
| Covering hood | ||||
| 059 | 418204-4 | 7.20 | 8.71 | |
| L/r adjusting lever | ||||
| 060 | 418201-0 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 061 | 232201-4 | 2.40 | 2.90 | |
| Switch | ||||
| 062 | 638276-5 | 8.40 | 10.16 | |
| Switch mounting plate compl. | ||||
| 063 | 418202-8 | 9.60 | 11.62 | |
| Switch handle | ||||
| 064 | 418203-6 | 9.60 | 11.62 | |
| Compression Spring 4 | ||||
| 065 | 231397-8 | 1.00 | 1.21 | |
| Switch | ||||
| 066 | 638275-7 | 11.00 | 13.31 | |
| VIEWING GLASS | ||||
| 067 | 416764-0 | 4.80 | 5.81 | |
| Motor Housing | ||||
| 068 | 183622-2 | 59.40 | 71.87 | |
| Warning Label | ||||
| 068A | 810033-5 | 2.40 | 2.90 | |
| Label Makita | ||||
| 069 | 819063-3 | 2.40 | 2.90 | |
| Phillips Screw 3x20 | ||||
| 070 | 265095-2 | 1.00 | 1.21 | |
| Gear set 'd' | ||||
| 072 | 125192-5 | 48.40 | 58.56 | |
| Switch compl. | ||||
| 073 | 125220-6 | 39.60 | 47.92 | |
