Here you will find all available parts and drawings of the 'Makita BDF458'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

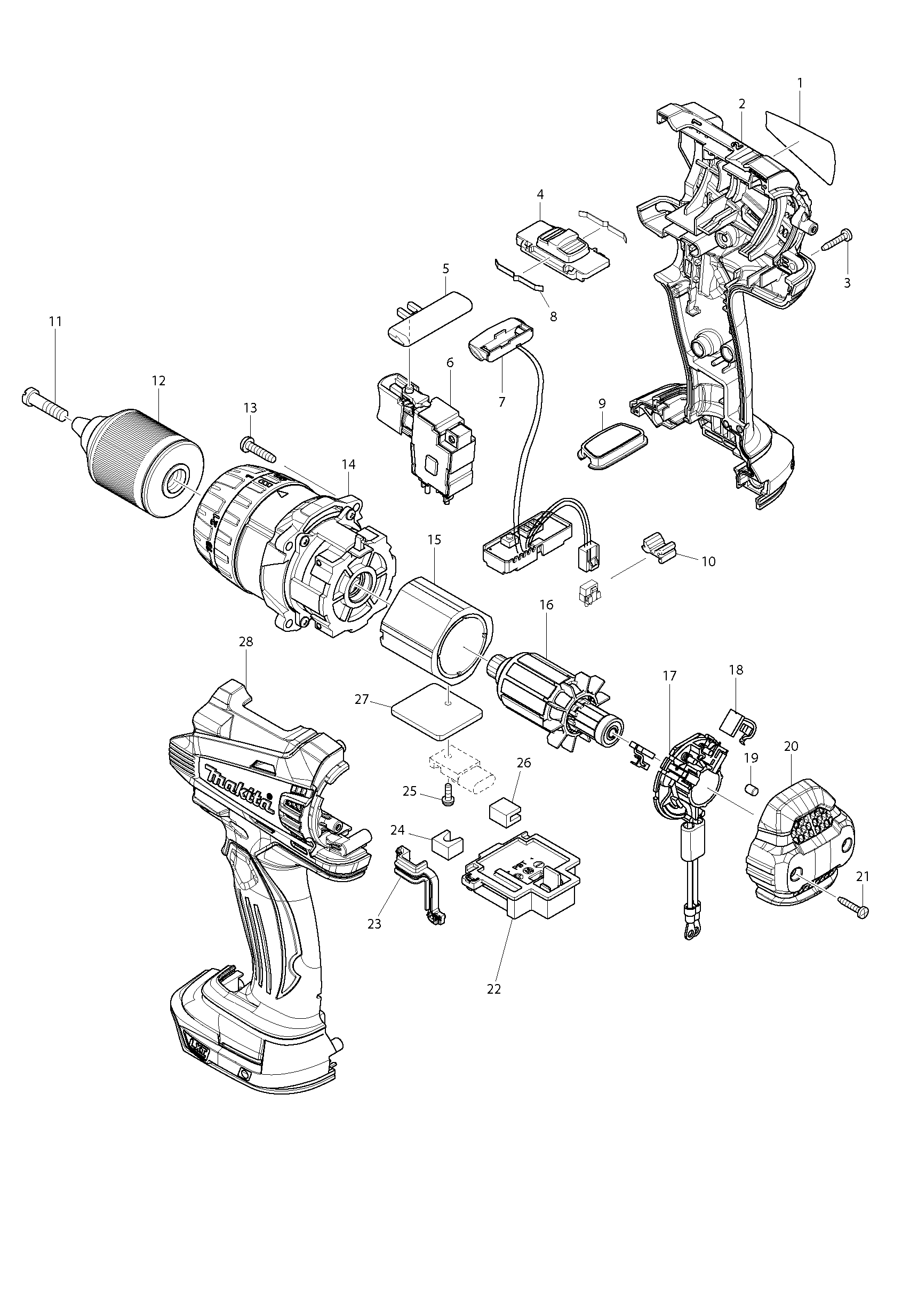

Technical drawing of model Makita BDF458
Spare parts list of model Makita BDF458
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| A01 | 126130-0 | |||
| HANDGREEP COMPLEET | ||||
| A01-1 | 123258-5 | 13.00 | 15.73 | |
| Screw,M4x12 | ||||
| A02 | 251314-2 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| A03 | 346317-0 | |||
| Bit Holder | ||||
| A04 | 452947-8 | 2.00 | 2.42 | |
| No information available, not orderable | ||||
| A05 | 784637-8 | |||
| No information available, not orderable | ||||
| A06 | ***DC18RC | |||
| No information available, not orderable | ||||
| A07 | 194204-5 | |||
| No information available, not orderable | ||||
| A07-1 | 194204-5 | |||
| No information available, not orderable | ||||
| A07-2 | 197600-6 | |||
| No information available, not orderable | ||||
| A07-3 | 197600-6 | |||
| AFDEKKAP LXT 14,4V/18V ACCU'S | ||||
| A08 | 450128-8 | 2.00 | 2.42 | |
| MBOX2 | ||||
| A09 | 821550-0 | 38.00 | 45.98 | |
| MBOX2 | ||||
| A09-1 | 821550-0 | 38.00 | 45.98 | |
| Plastic tool case | ||||
| A09A | 821524-1 | 26.00 | 31.46 | |
| MBOX3 | ||||
| A09J | 821551-8 | 39.00 | 47.19 | |
| No information available, not orderable | ||||
| A10 | 837679-2 | |||
| KOFFERINZET/INLAY ALUMINIUM KOFFER BLAUW BOVEN | ||||
| A10-1 | 837916-4 | 7.00 | 8.47 | |
| No information available, not orderable | ||||
| A10-1J | 837893-0 | |||
| No information available, not orderable | ||||
| A10A | 898573-3 | |||
| No information available, not orderable | ||||
| A10J | 837913-0 | |||
| No information available, not orderable | ||||
| A11F | 800N48-4 | |||
| No information available, not orderable | ||||
| A11G | 800N50-7 | |||
| No information available, not orderable | ||||
| A11J | 800X11-7 | |||
| No information available, not orderable | ||||
| A12F | 800N49-2 | |||
| No information available, not orderable | ||||
| A12G | 800N51-5 | |||
| No information available, not orderable | ||||
| A12J | 800X12-5 | |||
| Battery clamp plate | ||||
| A13J | 345261-8 | 3.60 | 4.36 | |
| Carrying cord | ||||
| A14J | 417926-3 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| A15-1J | DEADML185 | |||
| No information available, not orderable | ||||
| A15J | STEXBML185 | |||
| Case closure | ||||
| C10 | 162302-3 | 3.60 | 4.36 | |
| MBOX SLUITING ZWART | ||||
| C10 | 453974-8 | 2.00 | 2.42 | |
| Line filter | ||||
| C10 | 688172-7 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| C10 | 233438-6 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| C10 | 263005-3 | 1.00 | 1.21 | |
| Line filter | ||||
| C11 | 688172-7 | 1.20 | 1.45 | |
| Nut bolt M8X140mm | ||||
| C20 | 266899-5 | 3.60 | 4.36 | |
| Shaft HM0870C | ||||
| C20 | 325809-2 | 2.40 | 2.90 | |
| Lock Nut M4x7mm | ||||
| C20 | 252126-6 | 1.00 | 1.21 | |
| Case handle * | ||||
| C30 | 451749-9 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| C31 | 346566-9 | |||
| No information available, not orderable | ||||
| C40 | 455189-3 | |||
| No information available, not orderable | ||||
| F02 | 1917P9-8 | |||
| STOF/WATER BESCHERMKAP VOOR LXT 18 V ACCU'S | ||||
| F05 | 195798-3 | 30.00 | 36.30 | |
| No information available, not orderable | ||||
| F07-3 | 197606-4 | |||
| No information available, not orderable | ||||
| F08-3 | 197267-0 | |||
| ACCU BL1840B LXT 18 V 4,0AH | ||||
| F09-3 | 197265-4 | 63.00 | 76.23 | |
| No information available, not orderable | ||||
| F10-3 | 197273-5 | |||
| No information available, not orderable | ||||
| F14 | 196448-3 | |||
| ACCU BL1815N LXT 18 V 1,5AH | ||||
| F14-2 | 196235-0 | 49.00 | 59.29 | |
| No information available, not orderable | ||||
| F15-1 | 196449-1 | |||
| No information available, not orderable | ||||
| F16 | 196450-6 | |||
| No information available, not orderable | ||||
| F16-2 | 196449-1 | |||
| No information available, not orderable | ||||
| F23 | 1918P3-6 | |||
| Label | ||||
| 001 | 897125-7 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 002 | 187430-3 | 13.20 | 15.97 | |
| Motor Housing Set | ||||
| 002-1 | 187430-3 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 002A | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 002B | 252126-6 | 1.00 | 1.21 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| High/low speed slide | ||||
| 004 | 126100-9 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 004A | 233438-6 | 1.00 | 1.21 | |
| L/r slide | ||||
| 005 | 419250-0 | 1.20 | 1.45 | |
| Switch | ||||
| 006 | 650724-4 | 36.30 | 43.92 | |
| Switch | ||||
| 006-1 | 650724-4 | 36.30 | 43.92 | |
| Switch | ||||
| 006-2 | 650724-4 | 36.30 | 43.92 | |
| Light circuit | ||||
| 007 | 620138-1 | 15.40 | 18.63 | |
| Light circuit | ||||
| 007 | 620137-3 | 14.30 | 17.30 | |
| Leaf Spring | ||||
| 008 | 232220-0 | 1.00 | 1.21 | |
| Dust cover for switch | ||||
| 009 | 140963-9 | 2.40 | 2.90 | |
| Damping felt | ||||
| 010 | 424476-1 | 1.00 | 1.21 | |
| Damping felt | ||||
| 010-1 | 424476-1 | 1.00 | 1.21 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 011 | 251468-5 | 1.00 | 1.21 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 012 | 763252-1 | 20.00 | 24.20 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 012-1 | 763252-1 | 20.00 | 24.20 | |
| BOORKOP SNELSPAN 1,5-13MM | ||||
| 012-2 | 763252-1 | 20.00 | 24.20 | |
| Tap screw 4x18 | ||||
| 013 | 265A48-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 013-1 | 266326-2 | |||
| Gear set | ||||
| 014 | 126098-0 | 63.80 | 77.20 | |
| Magnet holder | ||||
| 015 | 638989-8 | 20.90 | 25.29 | |
| Armature | ||||
| 016 | 619299-2 | 17.60 | 21.30 | |
| Armature | ||||
| 016 | 619496-0 | 17.60 | 21.30 | |
| Armature | ||||
| 016-1 | 619496-0 | 17.60 | 21.30 | |
| BRUSH-HOLDER | ||||
| 017 | 632K64-8 | 6.00 | 7.26 | |
| BRUSH-HOLDER | ||||
| 017-1 | 632K64-8 | 6.00 | 7.26 | |
| Line filter | ||||
| 017A | 688172-7 | 1.20 | 1.45 | |
| Brush set Cb448 | ||||
| 018 | 196855-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 018-1 | 195021-6 | |||
| Rubber Pin 4 | ||||
| 019 | 263032-0 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 020 | 453394-6 | 2.40 | 2.90 | |
| Tapping Screw 3x16 | ||||
| 021 | 266130-9 | 1.00 | 1.21 | |
| Connection unit (3 contacts) | ||||
| 022 | 643866-1 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 022 | 644808-8 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 022-1 | 644808-8 | 3.60 | 4.36 | |
| Seal | ||||
| 023 | 424430-5 | 1.00 | 1.21 | |
| Sponge "a" | ||||
| 024 | 423422-1 | 1.00 | 1.21 | |
| Schroef 3x8 | ||||
| 025 | 652066-2 | 1.00 | 1.21 | |
| SCHROEF M3X10 DFL303 | ||||
| 025 | 911013-5 | 1.00 | 1.21 | |
| Sponge "b" | ||||
| 026 | 423423-9 | 1.00 | 1.21 | |
| HEATSHIELD | ||||
| 027 | 689176-2 | 3.60 | 4.36 | |
| Motor Housing Set | ||||
| 028 | 187430-3 | 13.20 | 15.97 | |
| Motor Housing Set | ||||
| 028-1 | 187430-3 | 13.20 | 15.97 | |
| Rubber pen 6 | ||||
| 028A | 263005-3 | 1.00 | 1.21 | |
| Lock Nut M4x7mm | ||||
| 028B | 252126-6 | 1.00 | 1.21 | |
