Here you will find all available parts and drawings of the 'Makita BDF456'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

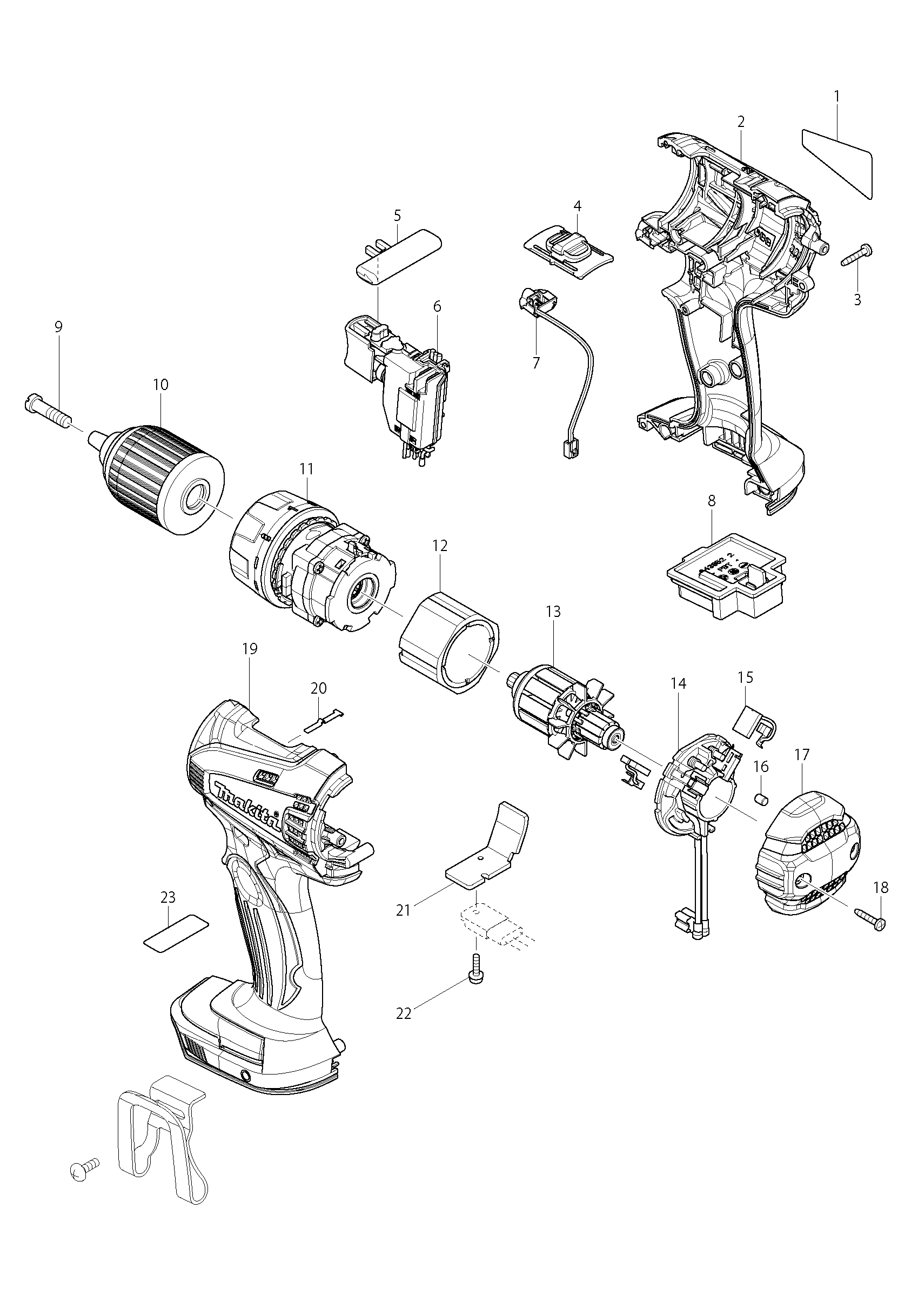

Technical drawing of model Makita BDF456
Spare parts list of model Makita BDF456
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Label | ||||
| 001 | 868487-0 | 2.84 | 3.44 | |
| Housing | ||||
| 002 | 188932-2 | 10.50 | 12.70 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| High/low speed slide | ||||
| 004 | 126289-3 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 004 | 233438-6 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 004A | 233438-6 | 0.83 | 1.00 | |
| L/r slide | ||||
| 005 | 419250-0 | 0.83 | 1.00 | |
| Switch (3 cont) | ||||
| 006 | 650747-2 | 28.02 | 33.90 | |
| Light Circuit Bdf456 A | ||||
| 007 | 620388-8 | 3.54 | 4.28 | |
| Connection unit 18v (3 contacts) | ||||
| 008 | 643852-2 | 3.12 | 3.78 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 0.83 | 1.00 | |
| Boorkop snelspan 1,5-13mm | ||||
| 010 | 766027-7 | 26.00 | 31.46 | |
| Gear set | ||||
| 011 | 126459-4 | 23.06 | 27.90 | |
| No information available, not orderable | ||||
| 012 | 638611-7 | |||
| Armature | ||||
| 013 | 619263-3 | 19.23 | 23.27 | |
| Brush Holder | ||||
| 014 | 638845-2 | 9.24 | 11.18 | |
| Brush set Cb448 | ||||
| 015 | 196855-0 | 3.54 | 4.28 | |
| Rubber Pin 4 | ||||
| 016 | 263032-0 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 017 | 452205-2 | 1.39 | 1.68 | |
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 0.83 | 1.00 | |
| Housing | ||||
| 019 | 188932-2 | 10.50 | 12.70 | |
| Leaf Spring | ||||
| 020 | 232182-2 | 0.83 | 1.00 | |
| HEATSHIELD | ||||
| 021 | 689170-4 | 0.83 | 1.00 | |
| Schroef M3X10 DFL303 | ||||
| 022 | 911013-5 | 0.83 | 1.00 | |
| Schroef 3x8 | ||||
| 022 | 652066-2 | 0.83 | 1.00 | |
