Here you will find all available parts and drawings of the 'Makita BDF445'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

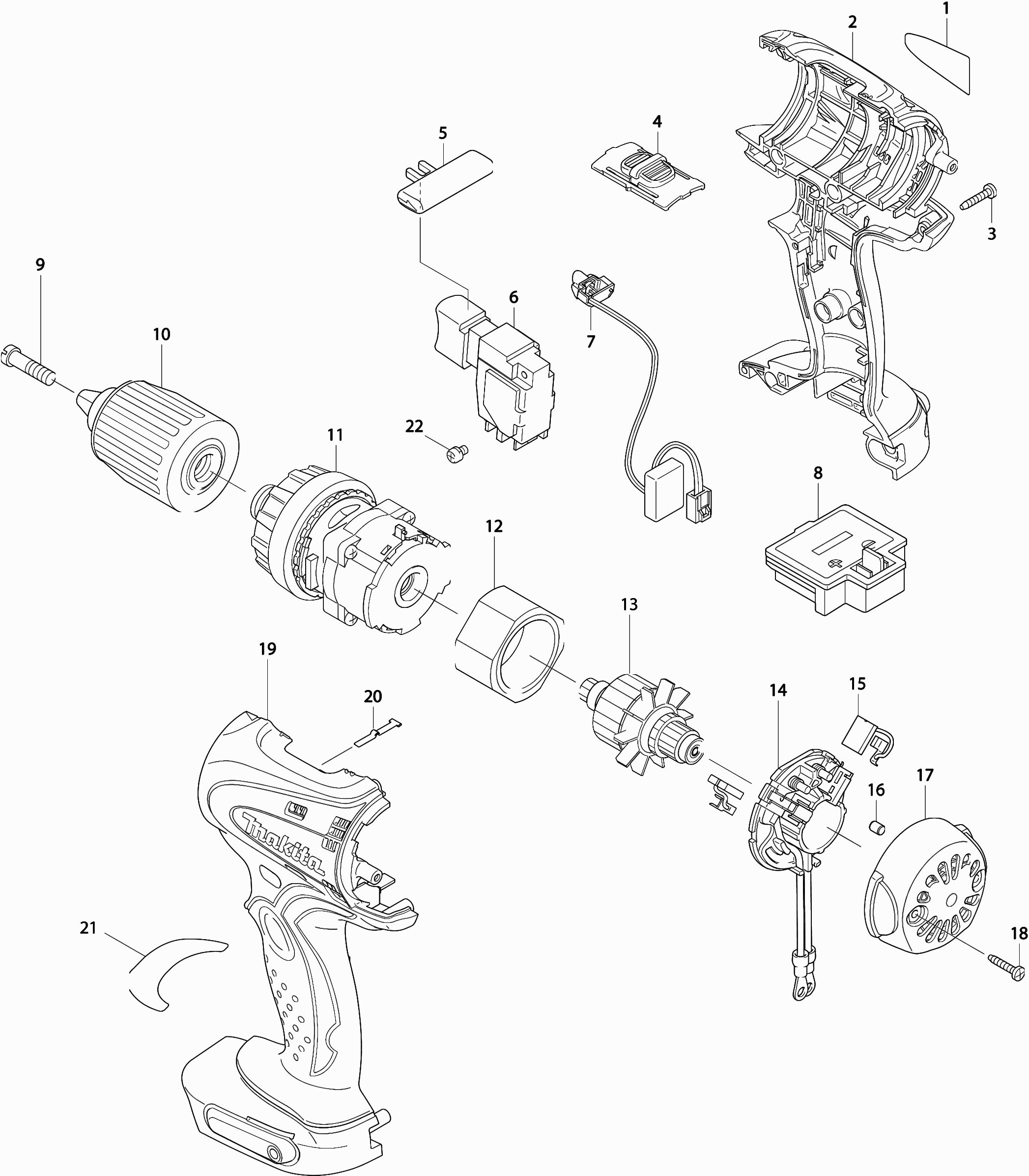

Technical drawing of model Makita BDF445
Spare parts list of model Makita BDF445
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Label | ||||
| 001 | 865882-5 | 3.60 | 4.36 | |
| Motor housing of Bdf445 | ||||
| 002 | 188575-0 | 23.10 | 27.95 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| High/low speed slide | ||||
| 004 | 125310-5 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 004A | 231433-0 | 1.00 | 1.21 | |
| L/R Switch Button | ||||
| 005 | 419041-9 | 1.20 | 1.45 | |
| Switch (2 contacts) | ||||
| 006 | 650564-0 | 26.40 | 31.94 | |
| LED Circuit | ||||
| 007 | 631631-0 | 14.30 | 17.30 | |
| Connection Unit (2 contacts) | ||||
| 008 | 643828-9 | 4.80 | 5.81 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| Keyless chuck 1-13mm | ||||
| 010 | 763268-6 | 21.50 | 26.02 | |
| Gear set | ||||
| 011 | 125528-8 | 34.10 | 41.26 | |
| Magnet Unit | ||||
| 012 | 638423-8 | 17.60 | 21.30 | |
| Armature | ||||
| 013 | 619221-9 | 23.10 | 27.95 | |
| Brush Holder | ||||
| 014 | 638857-5 | 8.40 | 10.16 | |
| Torsion spring 'r' | ||||
| 014A | 231696-8 | 1.00 | 1.21 | |
| Torsion spring 'l' | ||||
| 014B | 231697-6 | 1.00 | 1.21 | |
| Brush set Cb448 | ||||
| 015 | 196855-0 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 016 | 263032-0 | 1.00 | 1.21 | |
| Motor Housing Cover | ||||
| 017 | 418981-8 | 8.40 | 10.16 | |
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 1.00 | 1.21 | |
| Motor housing of Bdf445 | ||||
| 019 | 188575-0 | 23.10 | 27.95 | |
| Leaf Spring | ||||
| 020 | 232182-2 | 1.00 | 1.21 | |
| Screw 3.5x5 | ||||
| 022 | 652045-0 | 1.00 | 1.21 | |
