Here you will find all available parts and drawings of the 'Makita BDF444'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

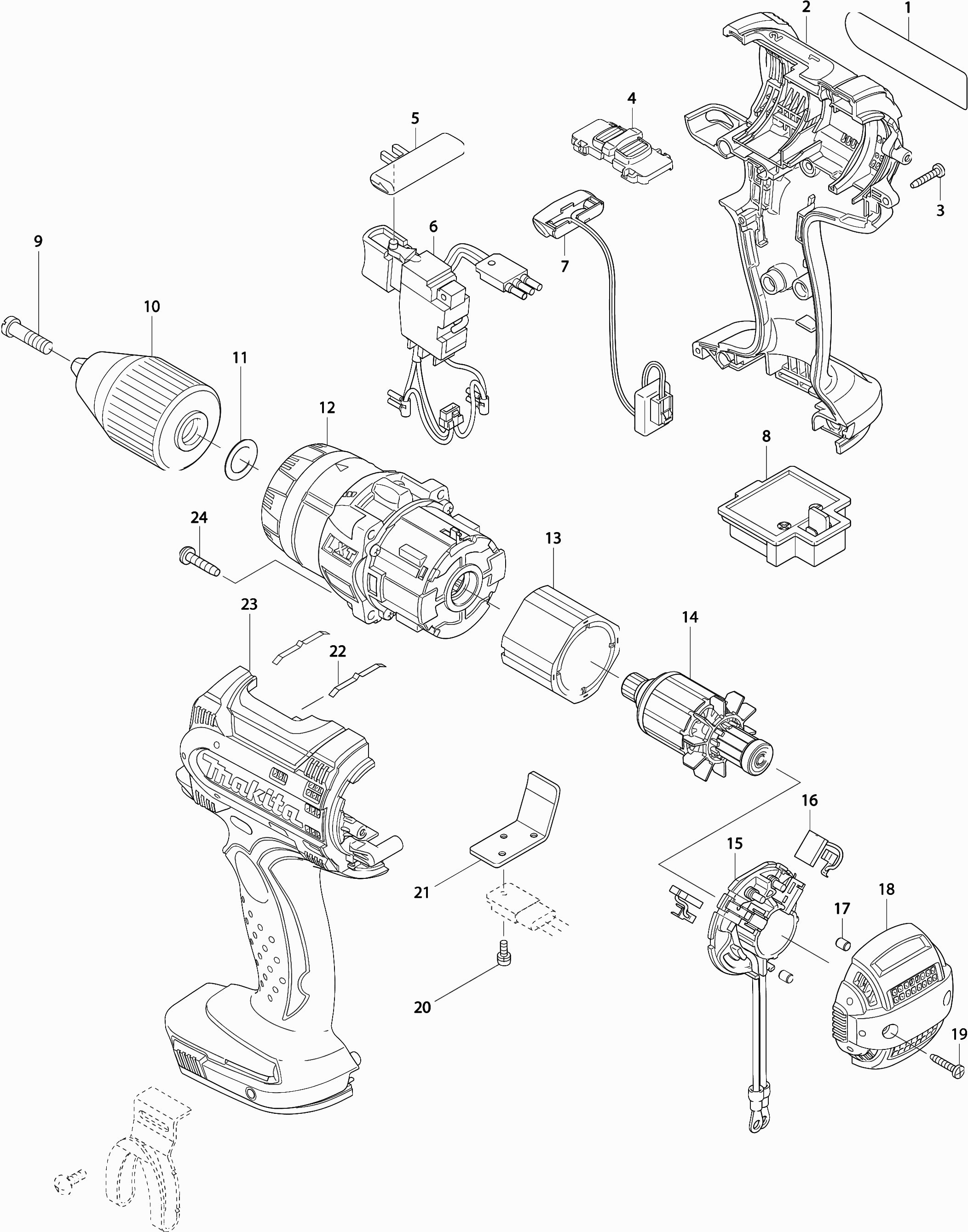

Technical drawing of model Makita BDF444
Spare parts list of model Makita BDF444
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 865312-6 | |||
| No information available, not orderable | ||||
| 002 | 188514-0 | |||
| Motor housing (3 contacts) | ||||
| 002A | 187356-9 | 13.20 | 15.97 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 1.00 | 1.21 | |
| High/low speed slide | ||||
| 004 | 125488-4 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 004A | 233438-6 | 1.00 | 1.21 | |
| L/r slide | ||||
| 005 | 419250-0 | 1.20 | 1.45 | |
| Switch (2 contacts) | ||||
| 006A | 650573-9 | 30.80 | 37.27 | |
| Switch (3 contacts) | ||||
| 006B | 650693-9 | 36.30 | 43.92 | |
| Light Circuit | ||||
| 007 | 631688-1 | 22.00 | 26.62 | |
| Connection Unit (2 contacts) | ||||
| 008A | 643847-5 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 008B | 643866-1 | 3.60 | 4.36 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 763196-5 | |||
| Rivet 13 | ||||
| 011 | 253798-0 | 1.00 | 1.21 | |
| Gear set | ||||
| 012 | 125575-9 | 63.80 | 77.20 | |
| Magnet holder | ||||
| 013 | 638613-3 | 23.10 | 27.95 | |
| Armature | ||||
| 014 | 619228-5 | 17.60 | 21.30 | |
| Carbon Brush Holder <02-2012 A | ||||
| 015A | 632K62-2 | 4.80 | 5.81 | |
| Brush holder > Febr. 2012 | ||||
| 015B | 638993-7 | 4.80 | 5.81 | |
| Brush set Cb448 | ||||
| 016 | 196855-0 | 3.60 | 4.36 | |
| Rubber Pin 4 | ||||
| 017 | 263032-0 | 1.00 | 1.21 | |
| Tail Cover | ||||
| 018 | 450644-0 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 019 | 266130-9 | 1.00 | 1.21 | |
| Schroef 3x8 | ||||
| 020 | 652066-2 | 1.00 | 1.21 | |
| HEATSHIELD | ||||
| 021 | 689150-0 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 022 | 232220-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 023A | 188514-0 | |||
| Motor housing (3 contacts) | ||||
| 023B | 187356-9 | 13.20 | 15.97 | |
| Tapping screw Pt4x20 | ||||
| 024 | 266045-0 | 1.00 | 1.21 | |
