Here you will find all available parts and drawings of the 'Makita BDF441ZX'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

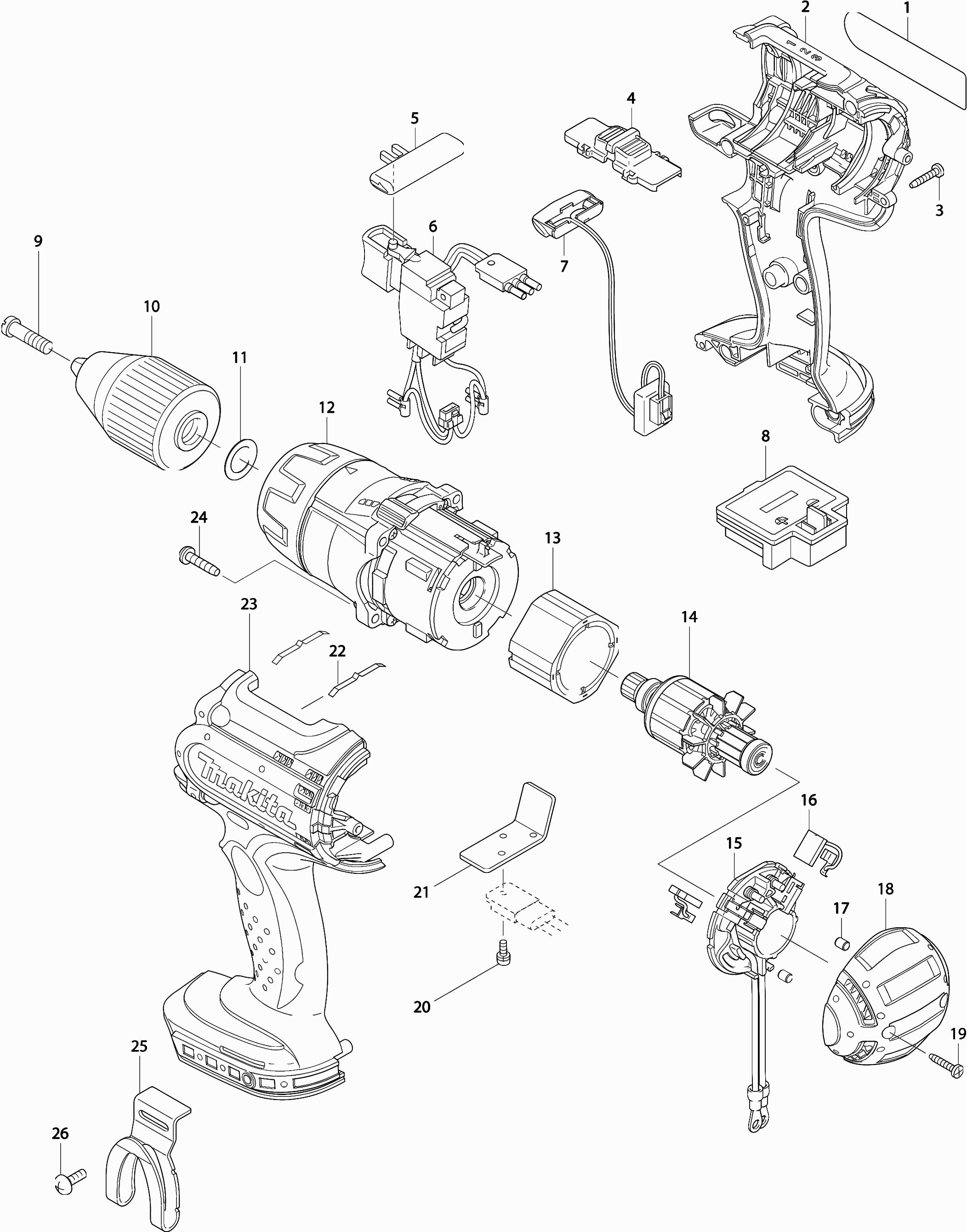

Technical drawing of model Makita BDF441ZX
Spare parts list of model Makita BDF441ZX
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 862653-1 | |||
| Motor Housing 2 contacts | ||||
| 002A | 188036-0 | 23.18 | 28.05 | |
| No information available, not orderable | ||||
| 002B | 187142-8 | |||
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| H/L Gear Shift Bdf441 A | ||||
| 004 | 125435-5 | 0.83 | 1.00 | |
| Compression Spring 4 | ||||
| 004A | 233438-6 | 0.83 | 1.00 | |
| L/r slide | ||||
| 005 | 419250-0 | 0.83 | 1.00 | |
| Switch (2 contacts) | ||||
| 006A | 650573-9 | 30.69 | 37.13 | |
| Switch (3 contacts) | ||||
| 006B | 650653-1 | 28.02 | 33.90 | |
| Light Circuit | ||||
| 007 | 631688-1 | 21.23 | 25.69 | |
| Connection Unit (2 contacts) | ||||
| 008A | 643847-5 | 3.54 | 4.28 | |
| Connection unit (3 contacts) | ||||
| 008B | 643866-1 | 3.12 | 3.78 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 010 | 763196-5 | |||
| Rivet 13 | ||||
| 011 | 253798-0 | 0.83 | 1.00 | |
| Gear set | ||||
| 012 | 125433-9 | 72.58 | 87.82 | |
| Control Fork | ||||
| 012A | 450385-8 | 3.12 | 3.78 | |
| Pin 1.4mm | ||||
| 012B | 268199-9 | 1.18 | 1.43 | |
| Clutch Sleeve | ||||
| 012C | 419558-2 | 2.71 | 3.28 | |
| Magnet Unit | ||||
| 013 | 632J71-5 | 21.08 | 25.51 | |
| Armature | ||||
| 014 | 619164-5 | 19.23 | 23.27 | |
| Brush Holder | ||||
| 015 | 638431-9 | 3.12 | 3.78 | |
| Brush set Cb448 | ||||
| 016 | 196855-0 | 3.54 | 4.28 | |
| Rubber Pin 4 | ||||
| 017 | 263032-0 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 018 | 419642-3 | 8.21 | 9.93 | |
| Tapping Screw 3x16 | ||||
| 019 | 266130-9 | 0.83 | 1.00 | |
| Schroef 3x8 | ||||
| 020 | 652066-2 | 0.83 | 1.00 | |
| HEATSHIELD | ||||
| 021 | 689145-3 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 022 | 232220-0 | 0.83 | 1.00 | |
| Motor Housing 2 contacts | ||||
| 023A | 188036-0 | 23.18 | 28.05 | |
| No information available, not orderable | ||||
| 023B | 187142-8 | |||
| Tapping screw Pt4x20 | ||||
| 024 | 266045-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 025 | 194654-4 | |||
| Screw,M4x12 | ||||
| 026 | 251314-2 | 0.83 | 1.00 | |
