Here you will find all available parts and drawings of the 'Makita BDF430F'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

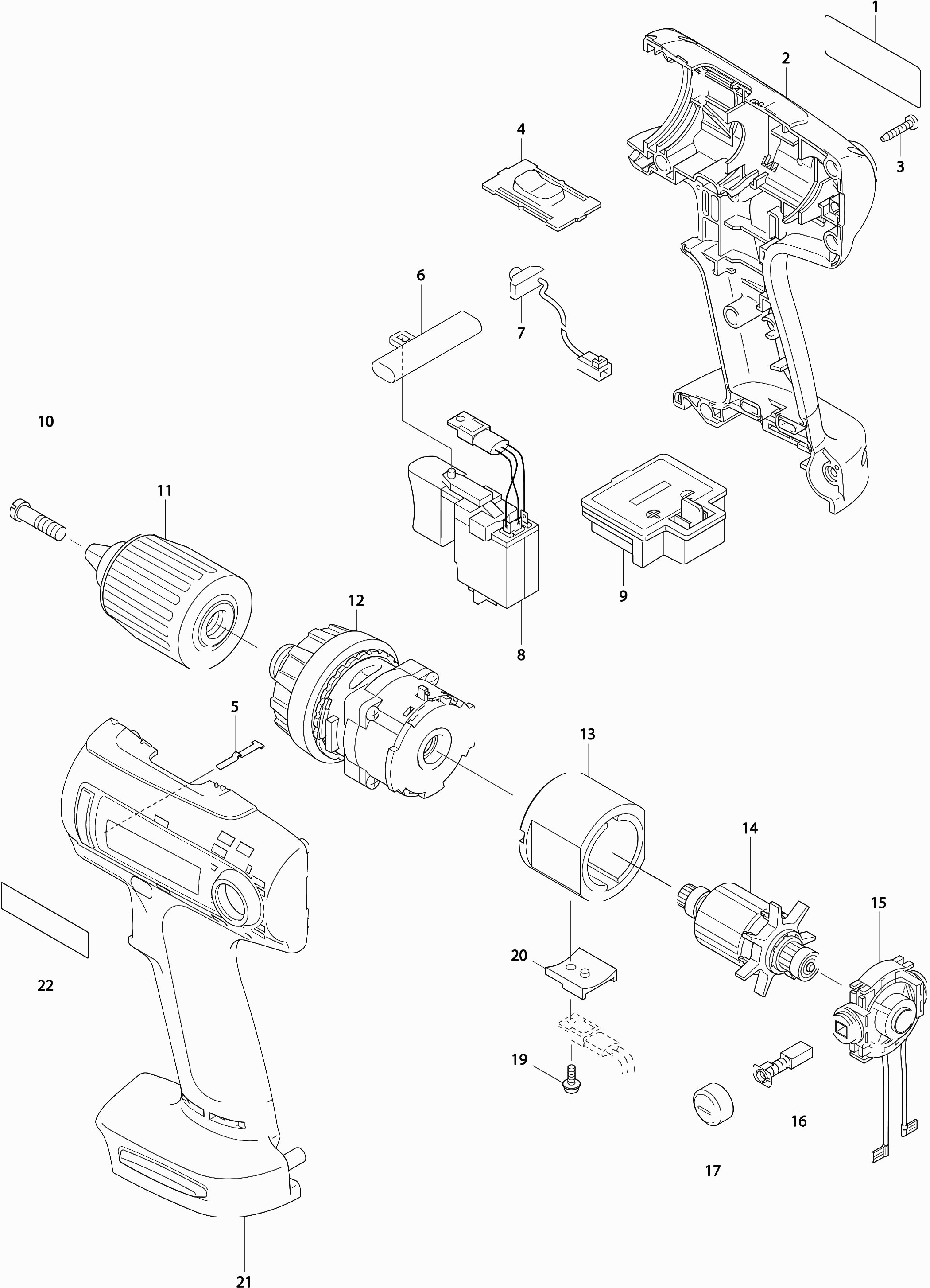

Technical drawing of model Makita BDF430F
Spare parts list of model Makita BDF430F
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 860715-9 | |||
| Motorhuis set | ||||
| 002 | 183593-3 | 21.08 | 25.51 | |
| Tapping Screw 3x16 | ||||
| 003 | 266130-9 | 0.83 | 1.00 | |
| High/Low-speed Slider | ||||
| 004 | 125102-2 | 1.18 | 1.43 | |
| Compression Spring 4 | ||||
| 004A | 231433-0 | 0.83 | 1.00 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 0.83 | 1.00 | |
| L/r adjusting lever | ||||
| 006 | 416079-5 | 0.83 | 1.00 | |
| Light circuit Bdf430F * | ||||
| 007 | 631537-2 | 12.22 | 14.79 | |
| Switch | ||||
| 008 | 650542-0 | 45.48 | 55.03 | |
| Connection unit | ||||
| 009 | 643983-7 | 3.96 | 4.79 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 010 | 251468-5 | 0.83 | 1.00 | |
| Boorkop snelspan 1,5-13mm | ||||
| 011 | 766027-7 | 26.00 | 31.46 | |
| Gear set | ||||
| 012 | 125182-8 | 44.96 | 54.40 | |
| Magnet Holder Bdf430F * | ||||
| 013 | 638200-8 | 42.34 | 51.23 | |
| No information available, not orderable | ||||
| 014 | 619112-4 | |||
| Brush/bearing holder | ||||
| 015 | 638219-7 | 5.71 | 6.91 | |
| Brush Set Cb-434 | ||||
| 016 | 193466-2 | 3.96 | 4.79 | |
| Brush Cap | ||||
| 017 | 643933-2 | 0.83 | 1.00 | |
| Tapping Screw St3x10 | ||||
| 019 | 266282-6 | 0.83 | 1.00 | |
| Spacer Bdf430F * | ||||
| 020 | 689106-3 | 2.02 | 2.44 | |
| Motorhuis set | ||||
| 021 | 183593-3 | 21.08 | 25.51 | |
| Label Makita | ||||
| 022 | 819063-3 | 2.71 | 3.28 | |
