Here you will find all available parts and drawings of the 'Makita BDF343RHJ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

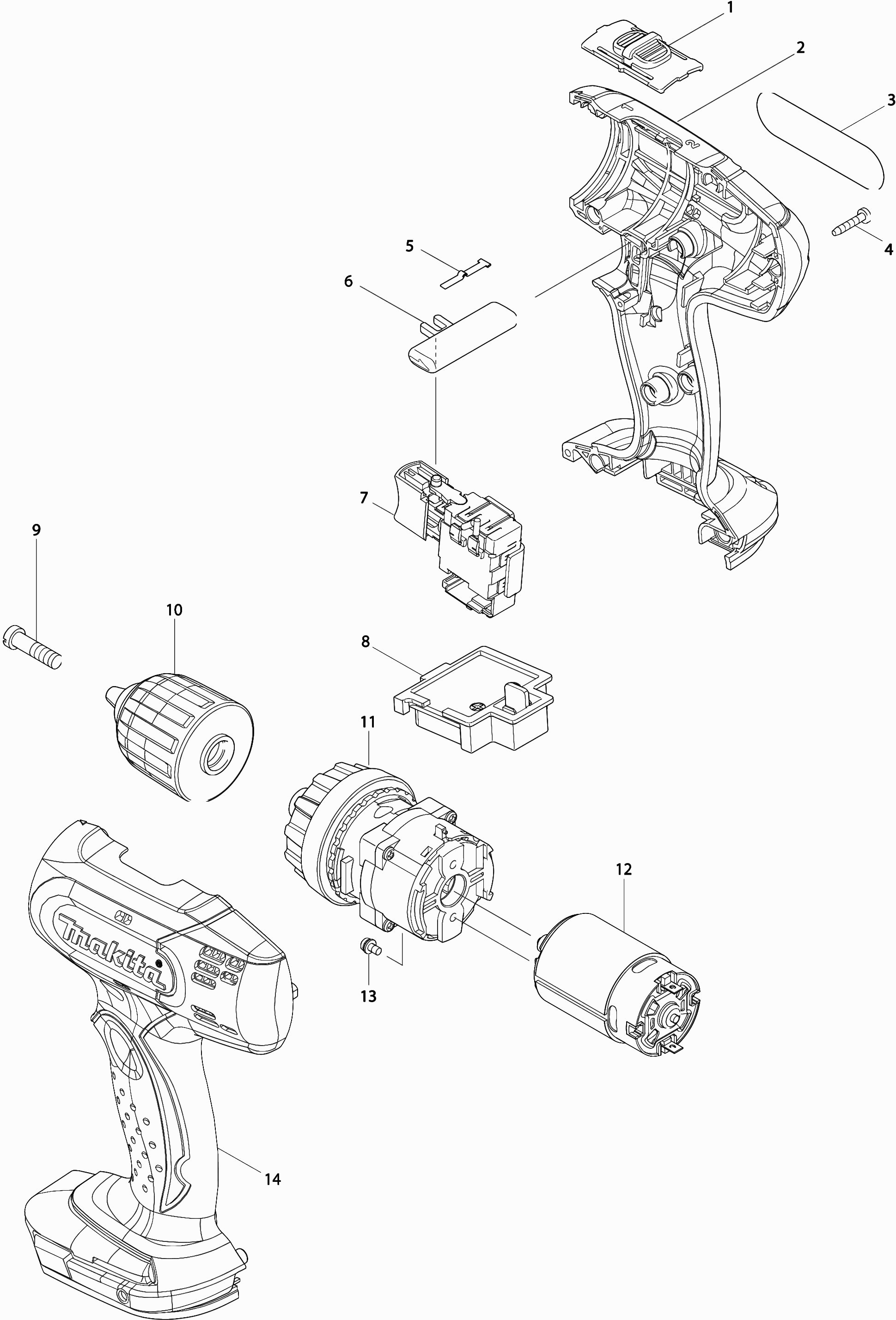

Technical drawing of model Makita BDF343RHJ
Spare parts list of model Makita BDF343RHJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| High/low speed slide | ||||
| 001 | 125310-5 | 1.20 | 1.45 | |
| Motor housing 3 contacts | ||||
| 002-1 | 187722-0 | 13.20 | 15.97 | |
| Nameplate "bda343" | ||||
| 003 | 865428-7 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 004 | 266130-9 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 005 | 232182-2 | 1.00 | 1.21 | |
| L/r slide | ||||
| 006 | 419250-0 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 007-1A | 650605-2 | |||
| No information available, not orderable | ||||
| 007-1B | 650605-2 | |||
| No information available, not orderable | ||||
| 007-1C | 650605-2 | |||
| No information available, not orderable | ||||
| 007-1F | 650605-2 | |||
| Switch | ||||
| 007-2A | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2B | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2C | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2F | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2I | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2J | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2M | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2O | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2P | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-2Q | 650662-0 | 17.60 | 21.30 | |
| Switch | ||||
| 007-3 | 632A24-0 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 007A | 650605-2 | |||
| No information available, not orderable | ||||
| 007B | 650605-2 | |||
| No information available, not orderable | ||||
| 007C | 650605-2 | |||
| No information available, not orderable | ||||
| 007F | 650605-2 | |||
| Connection unit (3 contacts) | ||||
| 008-1 | 643854-8 | 3.60 | 4.36 | |
| Drill Chuck Screw M6x22mm Li | ||||
| 009 | 251468-5 | 1.00 | 1.21 | |
| Gear set (black lock plate) | ||||
| 011-1A | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1B | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1C | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1F | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1I | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1J | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1M | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1O | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1P | 126000-3 | 23.10 | 27.95 | |
| Gear set (black lock plate) | ||||
| 011-1Q | 126000-3 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011A | 125482-6 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011B | 125482-6 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011C | 125482-6 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011F | 125482-6 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011I | 125482-6 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011J | 125482-6 | 23.10 | 27.95 | |
| Gear set (white locking plate) | ||||
| 011M | 125482-6 | 23.10 | 27.95 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1A | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1B | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1C | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1F | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1I | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1J | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1M | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1O | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1P | 629898-2 | 11.00 | 13.31 | |
| Motor 14.4v (black locking plate) | ||||
| 012-1Q | 629898-2 | 11.00 | 13.31 | |
| No information available, not orderable | ||||
| 012A | 629819-4 | |||
| No information available, not orderable | ||||
| 012B | 629819-4 | |||
| No information available, not orderable | ||||
| 012C | 629819-4 | |||
| No information available, not orderable | ||||
| 012F | 629819-4 | |||
| No information available, not orderable | ||||
| 012I | 629819-4 | |||
| No information available, not orderable | ||||
| 012J | 629819-4 | |||
| No information available, not orderable | ||||
| 012M | 629819-4 | |||
| Screw 3x6 | ||||
| 013 | 911003-8 | 1.00 | 1.21 | |
| Motor housing 3 contacts | ||||
| 014-1 | 187722-0 | 13.20 | 15.97 | |
