Here you will find all available parts and drawings of the 'Makita BDA351ZJ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

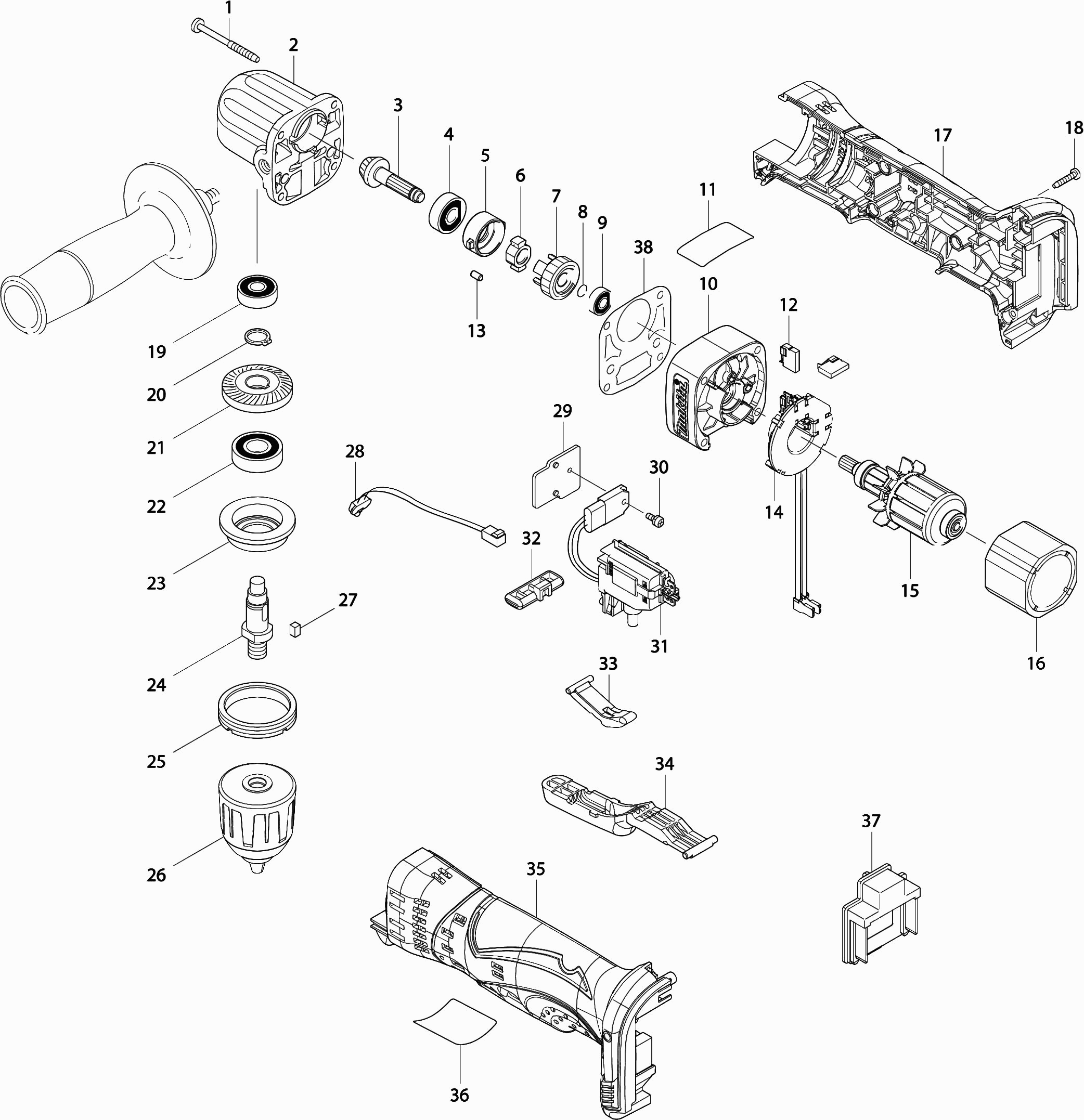

Technical drawing of model Makita BDA351ZJ
Spare parts list of model Makita BDA351ZJ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapschroef 4x45 | ||||
| 001 | 266069-6 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 002 | 317634-5 | 29.70 | 35.94 | |
| Gear 9 | ||||
| 003 | 227538-2 | 22.00 | 26.62 | |
| Ball Bearing 608Zz A | ||||
| 004 | 210046-0 | 1.20 | 1.45 | |
| Locking Ring | ||||
| 005 | 324930-4 | 6.00 | 7.26 | |
| Circlip | ||||
| 006 | 331647-2 | 2.40 | 2.90 | |
| Gear 29 | ||||
| 007 | 227221-1 | 3.60 | 4.36 | |
| Spring Washer 6 | ||||
| 008 | 231956-8 | 1.20 | 1.45 | |
| Ball bearing 696ZZ A | ||||
| 009 | 210026-6 | 2.40 | 2.90 | |
| Inner Cover | ||||
| 010 | 450607-6 | 7.20 | 8.71 | |
| Brush set Cb448 | ||||
| 012 | 196855-0 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 012-1A | 194427-5 | |||
| No information available, not orderable | ||||
| 012-1B | 194427-5 | |||
| No information available, not orderable | ||||
| 012-1C | 194427-5 | |||
| No information available, not orderable | ||||
| 012-1F | 194427-5 | |||
| No information available, not orderable | ||||
| 012-1G | 194427-5 | |||
| No information available, not orderable | ||||
| 012A | 194427-5 | |||
| No information available, not orderable | ||||
| 012B | 194427-5 | |||
| No information available, not orderable | ||||
| 012C | 194427-5 | |||
| Pin 3.5 | ||||
| 013 | 268100-4 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 014 | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-1A | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-1B | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-1C | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-2A | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-2B | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-2C | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-2F | 539202-6 | 9.60 | 11.62 | |
| Brush Holder | ||||
| 014-2G | 539202-6 | 9.60 | 11.62 | |
| Brush holder Bda341 | ||||
| 014A | 638615-9 | 4.80 | 5.81 | |
| Brush holder Bda341 | ||||
| 014B | 638615-9 | 4.80 | 5.81 | |
| Brush holder Bda341 | ||||
| 014C | 638615-9 | 4.80 | 5.81 | |
| Armature | ||||
| 015 | 619234-0 | 34.10 | 41.26 | |
| Magnet holder | ||||
| 016 | 638613-3 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 017 | 187130-5 | |||
| No information available, not orderable | ||||
| 017-1A | 187130-5 | |||
| No information available, not orderable | ||||
| 017-1B | 187130-5 | |||
| No information available, not orderable | ||||
| 017-1C | 187130-5 | |||
| No information available, not orderable | ||||
| 017-1F | 187130-5 | |||
| No information available, not orderable | ||||
| 017-1G | 187130-5 | |||
| No information available, not orderable | ||||
| 017A | 188532-8 | |||
| No information available, not orderable | ||||
| 017B | 188532-8 | |||
| No information available, not orderable | ||||
| 017C | 188532-8 | |||
| Tapping Screw 3x16 | ||||
| 018 | 266130-9 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 019 | 210046-0 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 020 | 961052-5 | 1.00 | 1.21 | |
| Gear 26 | ||||
| 021 | 227537-4 | 14.30 | 17.30 | |
| Ball Bearing 6001dw | ||||
| 022 | 211131-2 | 9.60 | 11.62 | |
| Bearing Housing | ||||
| 023 | 317633-7 | 12.10 | 14.64 | |
| Spindle Ass'y | ||||
| 024 | 324329-3 | 24.20 | 29.28 | |
| Bearing lock ring 36-43 | ||||
| 025 | 285842-5 | 3.60 | 4.36 | |
| BOORKOP SNELSPAN 1-10MM | ||||
| 026 | 766005-7 | 13.00 | 15.73 | |
| Feather Key 4 | ||||
| 027 | 254201-4 | 1.00 | 1.21 | |
| Light Circuit | ||||
| 028 | 631814-2 | 8.40 | 10.16 | |
| Cooling Sheet | ||||
| 029 | 689098-6 | 2.40 | 2.90 | |
| Schroef 3x8 | ||||
| 030 | 652066-2 | 1.00 | 1.21 | |
| Switch | ||||
| 031 | 632B90-3 | 36.30 | 43.92 | |
| No information available, not orderable | ||||
| 031-1A | 638880-0 | |||
| No information available, not orderable | ||||
| 031-1B | 638880-0 | |||
| No information available, not orderable | ||||
| 031-1C | 638880-0 | |||
| No information available, not orderable | ||||
| 031-1F | 638880-0 | |||
| No information available, not orderable | ||||
| 031-1G | 638880-0 | |||
| Switch | ||||
| 031-2 | 632B90-3 | 36.30 | 43.92 | |
| Switch | ||||
| 031A | 650606-0 | 30.80 | 37.27 | |
| Switch | ||||
| 031B | 650606-0 | 30.80 | 37.27 | |
| Switch | ||||
| 031C | 650606-0 | 30.80 | 37.27 | |
| F/r switch button | ||||
| 032 | 450610-7 | 2.40 | 2.90 | |
| Lever | ||||
| 033 | 450609-2 | 2.40 | 2.90 | |
| Rotary knob ABB OHYS2AJ | ||||
| 034 | 450608-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 035 | 187130-5 | |||
| No information available, not orderable | ||||
| 035-1A | 187130-5 | |||
| No information available, not orderable | ||||
| 035-1B | 187130-5 | |||
| No information available, not orderable | ||||
| 035-1C | 187130-5 | |||
| No information available, not orderable | ||||
| 035-1F | 187130-5 | |||
| No information available, not orderable | ||||
| 035-1G | 187130-5 | |||
| No information available, not orderable | ||||
| 035A | 188532-8 | |||
| No information available, not orderable | ||||
| 035B | 188532-8 | |||
| No information available, not orderable | ||||
| 035C | 188532-8 | |||
| No longer available, no replacement | ||||
| 036 | 865498-6 | |||
| Nameplate "dda351" | ||||
| 036A | 815P82-3 | 3.60 | 4.36 | |
| Connection unit (3 contacts) | ||||
| 037 | 644808-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 037-1A | 643859-8 | |||
| No information available, not orderable | ||||
| 037-1B | 643859-8 | |||
| No information available, not orderable | ||||
| 037-1C | 643859-8 | |||
| No information available, not orderable | ||||
| 037-1F | 643859-8 | |||
| No information available, not orderable | ||||
| 037-1G | 643859-8 | |||
| Connection unit (3 contacts) | ||||
| 037-2 | 644808-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 037A | 643812-4 | |||
| No information available, not orderable | ||||
| 037B | 643812-4 | |||
| No information available, not orderable | ||||
| 037C | 643812-4 | |||
| Gasket | ||||
| 038 | 418036-9 | 2.40 | 2.90 | |
