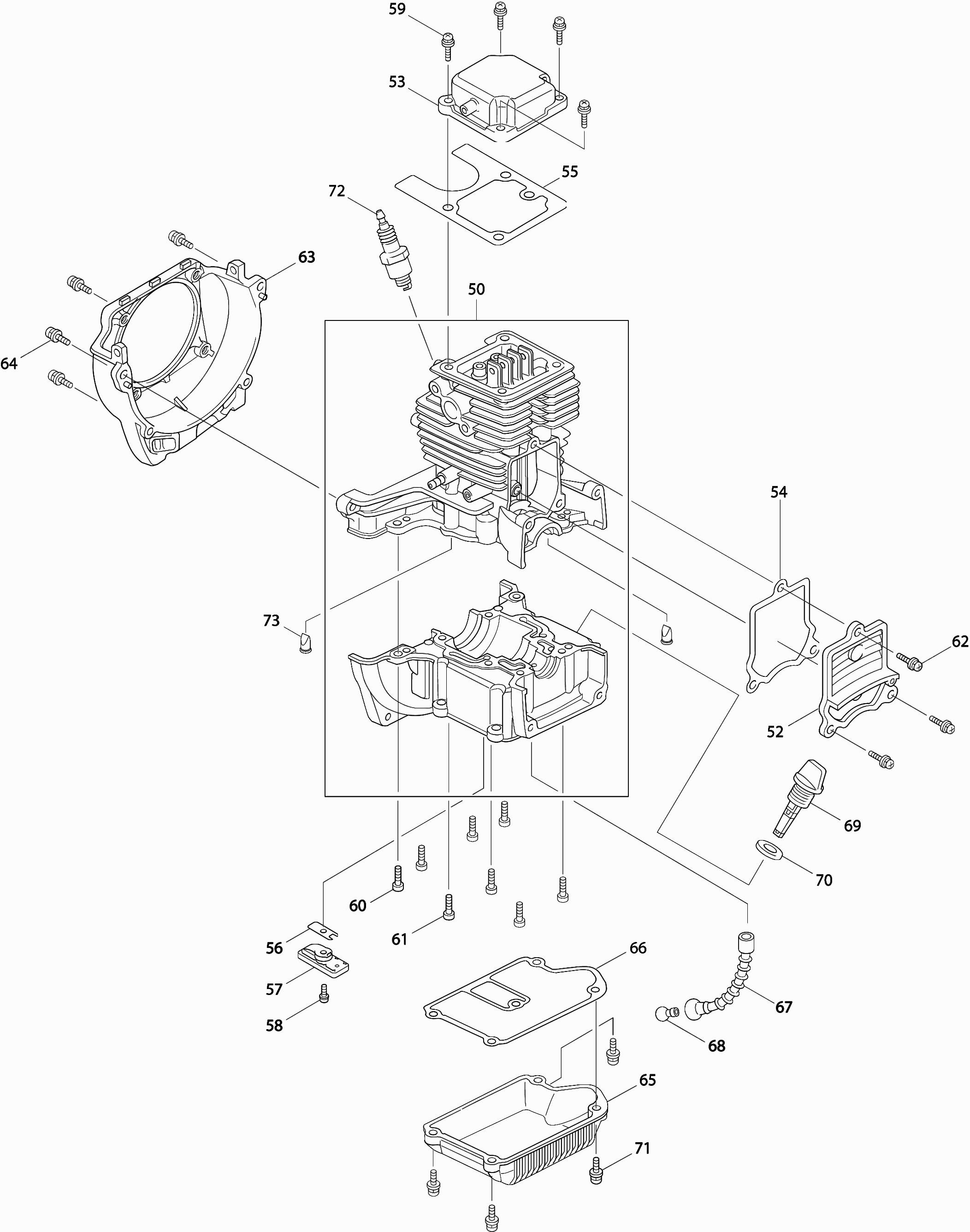

Technical drawing of model Makita BCX3400

Spare parts list of model Makita BCX3400

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No information available, not orderable
050 5931021000
Cylinder
050-3 135373-3 66.70 80.71
Housing Cover
052 318443-5 4.14 5.01
Housing Cover
052-1 318443-5 4.14 5.01
Valve cover Ms335.4U A
053 140419-2 9.24 11.18
Valve cover Ms335.4U A
053-1 140419-2 9.24 11.18
Crankcase cover gasket
054 162274-2 1.67 2.02
Crankcase cover gasket
054-1 162274-2 1.67 2.02
Valve cover gasket
055 162307-3 2.71 3.28
Valve cover gasket
055-1 162307-3 2.71 3.28
Feed valve
056 346083-9 1.39 1.68
Feed valve
056-1 346083-9 1.39 1.68
Holding Plate
057 318440-1 1.67 2.02
Holding Plate
057-1 318440-1 1.67 2.02
Screw M4X10 P
058 0119049960 0.83 1.00
No information available, not orderable
058-1 266810-7
No information available, not orderable
059 0043605160
No information available, not orderable
059-1 266494-1
Screw M5x18mm
060 266812-3 0.83 1.00
Screw M5x18mm
060-2 266812-3 0.83 1.00
Metric screw Ck Inb M5x33mm
061 266573-5 0.83 1.00
Metric screw Ck Inb M5x33mm
061-2 266573-5 0.83 1.00
Screw 5X14 P
062 0043605140 0.83 1.00
Fan Housing Ms335.4U A
063 318614-4 11.22 13.58
Fan Housing Ms335.4U A
063-1 318614-4 11.22 13.58
Met. Screw Ph2 M5X16Mm Ck A
064 922223-9 0.83 1.00
No information available, not orderable
064-1 266813-1
Karter Cover Ms335.4U A
065 318612-8 5.71 6.91
Crankcase gasket
066 162308-1 2.36 2.86
Crankcase gasket
066-1 162308-1 2.36 2.86
Oil Pipe
067 5926500200 5.30 6.41
No information available, not orderable
067-1 424202-8
Weight for oil hose
068 5926500300 1.67 2.02
No information available, not orderable
068-1 325666-8
No information available, not orderable
069 5926500600
Oil Dipstick
069-1 450565-6 1.67 2.02
O-ring for oil dipstick A
070 424100-6 0.83 1.00
O-ring for oil dipstick A
070-1 424100-6 0.83 1.00
Screw Bhx2500
071 0043605180 0.83 1.00
No information available, not orderable
072 965603030
BOUGIE CMR6A A
072-1 168401-9 13.48 16.31
Control valve
073 424201-0 1.67 2.02
Control valve
073-2 424201-0 1.67 2.02
Crank Shaft
087 125756-5 58.04 70.23
Crank Shaft
087-2 125756-5 58.04 70.23
Seal Ring 12mm
088 213537-0 2.71 3.28
Seal Ring 12mm
088-1 213537-0 2.71 3.28
No longer available, no replacement
089 213148-1
No longer available, no replacement
089-2 213148-1
Washer 26 Ms335.4U A
090 267425-3 0.83 1.00
Washer 26 Ms335.4U A
090-1 267425-3 0.83 1.00
Piston Ms335.4U A
091 318613-6 11.82 14.30
Piston Ms335.4U A
091-1 318613-6 11.82 14.30
Piston Ring Set
092 195141-6 12.80 15.49
Piston Ring Set
092-1 195141-6 12.80 15.49
No information available, not orderable
093 0565099990
Spring retaining ring
093-1 233983-1 0.83 1.00
Piston Pin Ms335.4U A
094 257796-6 2.36 2.86
Piston Pin Ms335.4U A
094-1 257796-6 2.36 2.86
Spacer Ebh253U A
095 424200-2 0.83 1.00
Spacer Ebh253U A
095-2 424200-2 0.83 1.00
Cam Tiller
096 313169-4 2.71 3.28
Cam Tiller
096-1 313169-4 2.71 3.28
Rocker gear
097 125552-1 23.06 27.90
Rocker gear
097-1 125552-1 23.06 27.90
Pen 5Mm Ebh253U A
098 268238-5 0.83 1.00
Pen 5Mm Ebh253U A
098-1 268238-5 0.83 1.00
Pin 4mm Ebh253U A
099 268239-3 0.83 1.00
Pin 4mm Ebh253U A
099-1 268239-3 0.83 1.00
No information available, not orderable
100 5933500000
Valve pin
100-1 256866-8 0.83 1.00
Valve arm
101 125554-7 4.45 5.38
Valve arm
101-1 125554-7 4.45 5.38
Pen 5mm
102 256200-2 0.83 1.00
Pen 5mm
102-1 256200-2 0.83 1.00
Valve spring
103 5933500200 1.20 1.45
No information available, not orderable
103-2 234181-0
Latch retaining ring Ms335.4U A
104 325912-9 1.39 1.68
Latch retaining ring Ms335.4U A
104-1 325912-9 1.39 1.68
Exhaust Valve Ms335.4U A
105 325913-7 3.54 4.28
Exhaust Valve Ms335.4U A
105-1 325913-7 3.54 4.28
Intake valve Ms335.4U A
106 325914-5 3.72 4.50
Intake valve Ms335.4U A
106-1 325914-5 3.72 4.50
Starting device Assy Ms335 A
107 126475-6 19.23 23.27
Starting device Assy Ms335 A
107-1 126475-6 19.23 23.27
Cord reel
108 451923-9 3.96 4.79
Cord reel
108-1 451923-9 3.96 4.79
Set screw
109 5425003010 1.75 2.12
No information available, not orderable
109-1 266580-8
Coil Spring
110 232257-7 9.67 11.70
Coil Spring
110-1 232257-7 9.67 11.70
Start Cord
113 444018-5 2.71 3.28
Start Cord
113-1 444018-5 2.71 3.28
Starter Handle Ms335.4U A
114 424317-1 2.71 3.28
Starter Handle Ms335.4U A
114-1 424317-1 2.71 3.28
Pulley
115 165606-2 4.67 5.65
No information available, not orderable
115-2 168827-5
Metal screw Ph M5x14mm Ck
116 266809-2 0.83 1.00
Tank support Ms335.4U A
118 162310-4 3.54 4.28
Tank support Ms335.4U A
118-1 162310-4 3.54 4.28
Metal screw Ph M5x14mm Ck
119 266809-2 0.83 1.00
Model label
120 6349505200 8.21 9.93
No information available, not orderable
121 5936004000
Carburetor
121-1 168561-7 44.96 54.40
No information available, not orderable
122 5926002140
Pomphuis Ebh253U A
122-2 140437-0 39.23 47.47
Air Purifier Case Ebh253U A
123 140438-8 10.50 12.70
Air Purifier Case Ebh253U A
123-1 140438-8 10.50 12.70
Pump cover Ebh253U A
124 346270-0 3.54 4.28
Pump cover Ebh253U A
124-1 346270-0 3.54 4.28
Booster pump
125 424314-7 3.54 4.28
Booster pump
125-1 424314-7 3.54 4.28
Diaphragm
126 168620-7 13.82 16.72
Diaphragm
126-1 WJ00095586 10.50 12.70
Diaphragm Gasket
127 442154-1 2.36 2.86
Diaphragm Gasket
127-1 442154-1 2.36 2.86
Pump diaphragm
128 WJ00009599 3.96 4.79
Pump diaphragm
128-2 WJ00009599 3.96 4.79
Diaphragm Gasket
129 442155-9 2.36 2.86
Diaphragm Gasket
129-1 442155-9 2.36 2.86
Needle Ms335.4U A
130 325921-8 7.57 9.16
Needle Ms335.4U A
130-1 325921-8 7.57 9.16
O-ring 2
131 213538-8 2.02 2.44
O-ring 2
131-1 213538-8 2.02 2.44
Seegering E-3 A
132 257964-1 2.02 2.44
Seegering E-3 A
132-1 257964-1 2.02 2.44
No information available, not orderable
133 5236018040
Swivel element
133-1 325922-6 4.14 5.01
No information available, not orderable
135 5206008030
No information available, not orderable
135-2 WJ00096364
Parker 3X24Mm Ck A
137 266582-4 0.83 1.00
Parker 3X24Mm Ck A
137-1 266582-4 0.83 1.00
No information available, not orderable
138 5926002020
Compression Spring 5-9mm
138-1 234183-6 2.84 3.44
Rivet for adjusting needle
139 5426005030 2.36 2.86
No information available, not orderable
139-1 413140-9
No information available, not orderable
140 352010-6
Inlet strainer
140-2 WJ00014070 1.67 2.02
No information available, not orderable
141 5933018000
Manifold
141-4 451874-6 3.96 4.79
Hex Nut M5
142 931202-6 0.83 1.00
Nut M6 Htr5600 A
143 0022706000 0.83 1.00
Nut M6 Htr5600 A
144 0022706000 0.83 1.00
No information available, not orderable
145 5923504700
Insulator gasket
145-2 413120-5 1.18 1.43
Gasket "carburetor"
146 413138-6 1.18 1.43
Gasket "carburetor"
146-1 413138-6 1.18 1.43
No information available, not orderable
147 5933500600
Carburetor manifold
147-1 346261-1 3.12 3.78
No information available, not orderable
148 0119059870
Allen bolt M5x18mm
148-2 266787-6 0.83 1.00
Adjusting screw P
149 0149069961 3.11 3.76
No information available, not orderable
149-2 325663-4
Vent pipe Ms335.4U A
152 422055-9 2.02 2.44
Vent pipe Ms335.4U A
152-1 422055-9 2.02 2.44
No information available, not orderable
153 5933001000
Air Filter Housing Ebh253U A
153-1 123845-0 17.45 21.11
No information available, not orderable
154 5933005000
Air Filter Housing Ebh253U A
154-1 123845-0 17.45 21.11
Overpressure valve
155 424315-5 0.83 1.00
Overpressure valve
155-1 424315-5 0.83 1.00
Overpressure valve
156 424316-3 2.71 3.28
Overpressure valve
156-1 424316-3 2.71 3.28
Overpressure valve plate
157 451924-7 0.83 1.00
Overpressure valve plate
157-1 451924-7 0.83 1.00
No longer available, no replacement
158 168576-4
No longer available, no replacement
158-1 168576-4
No longer available, no replacement
159 451925-5
No longer available, no replacement
159-1 451925-5
No information available, not orderable
160 5923503500
Separation Gasket
160-1 168577-2 1.20 1.45
O-ring 14
161 213539-6 0.83 1.00
O-ring 14
161-1 213539-6 0.83 1.00
O-ring 15
162 213540-1 0.83 1.00
O-ring 15
162-1 213540-1 0.83 1.00
Choke plate
163 450560-6 0.83 1.00
Choke plate
163-1 450560-6 0.83 1.00
Mounting plate Ebh253U A
164 346647-9 1.67 2.02
Mounting plate Ebh253U A
164-1 346647-9 1.67 2.02
Washer
165 423376-2 0.83 1.00
Washer
165-1 423376-2 0.83 1.00
Cleaner Cover
166 450561-4 5.71 6.91
Cleaner Cover
166-1 450561-4 5.71 6.91
Vent pipe Ebh253U A
167 422042-8 1.67 2.02
Vent pipe Ebh253U A
167-1 422042-8 1.67 2.02
Metal screw Ph M5x14mm Ck
168 266809-2 0.83 1.00
Metric screw Ph2 M5x68mm Ck
169 265188-5 0.83 1.00
Metric screw Ph2 M5x68mm Ck
169-1 265188-5 0.83 1.00
Hose clamp IAS 3
170 345918-1 0.83 1.00
Hose clamp IAS 3
170-1 345918-1 0.83 1.00
Muffler
171 168469-5 12.22 14.79
Muffler
171-1 168469-5 12.22 14.79
Exhaust Gasket
172 345916-5 1.46 1.77
Exhaust Gasket
172-1 345916-5 1.46 1.77
Exhaust Cap
173 5923503400 3.54 4.28
No information available, not orderable
173-1 345915-7
Allen bolt M5x40mm Ck
174 266440-4 1.02 1.23
Allen bolt M5x40mm Ck
174-1 266440-4 1.02 1.23
Screw 5x8
175 911601-8 0.83 1.00
FUEL TANK
176 451877-0 15.24 18.44
FUEL TANK
176-1 451877-0 15.24 18.44
Gas hose
177 162309-9 3.96 4.79
Gas hose
177-1 162309-9 3.96 4.79
Fuel filter
178 163447-0 3.11 3.76
Fuel filter
178-2 163447-0 3.11 3.76
Hose clamp IAS 3
179 345920-4 0.83 1.00
Hose clamp IAS 3
179-1 345920-4 0.83 1.00
Fuel Cap
181 5926013000 6.70 8.11
Warning label "fuel"
182 810455-9 2.84 3.44
Damper Ebh253U A
183 424102-2 0.83 1.00
Damper Ebh253U A
183-1 424102-2 0.83 1.00
Damper Ebh253U A
184 424103-0 0.83 1.00
Damper Ebh253U A
184-1 424103-0 0.83 1.00
Damper
185 424104-8 1.67 2.02
Damper
185-2 424104-8 1.67 2.02
No information available, not orderable
186 168501-5
No information available, not orderable
186-3 168501-5
Flywheel Ms335.4U A
187 319035-3 12.22 14.79
Flywheel Ms335.4U A
187-2 319035-3 12.22 14.79
Spark plug cap Ebh253U A
188 424105-6 2.71 3.28
Spark plug cap Ebh253U A
188-1 424105-6 2.71 3.28
No information available, not orderable
189 0654009931
Bougieveer Ebh253U A
189-1 324891-8 1.18 1.43
Connecting cable
190 638664-6 1.39 1.68
Connecting cable
190-1 638664-6 1.39 1.68
Connection Cable Ebh253U P
191 638665-4 2.46 2.98
Connection Cable Ebh253U P
191-1 638665-4 2.46 2.98
Feedthrough Eh561 15X7X2Mm *
192 5257500300 1.46 1.77
No information available, not orderable
192-1 424313-9
No information available, not orderable
193 0011306160
Rivet RBC230-G24-350 P
194 0031206000 0.83 1.00
Screw 4x20
195 911138-5 0.83 1.00
No information available, not orderable
196 168563-3
Coupling Cmpl Ms335.4U A
196-2 125757-3 10.99 13.30
Coupling Cmpl Ms335.4U A
197 125757-3 10.99 13.30
No information available, not orderable
197-3 AN02010C00
Metric Screw M8X23Mm Ms335.4U *
198 266571-9 1.75 2.12
Metric Screw M8X23Mm Ms335.4U *
198-2 266571-9 1.75 2.12
Washer 8
199 253762-1 0.98 1.19
No information available, not orderable
199-1 267424-5
No information available, not orderable
200 5935500802
No information available, not orderable
200-3 451875-4
No information available, not orderable
201 0140059370
Screw m5x12
201-2 266808-4 0.83 1.00
No information available, not orderable
202 0140059370
Screw m5x12
202-2 266808-4 0.83 1.00
No information available, not orderable
203 5935500500
Spark plug cap
203-1 451876-2 2.84 3.44
Clamp
204 345963-6 0.83 1.00
Clamp
204-1 345963-6 0.83 1.00
Label Makita Em4250 *
205 5929501001 3.12 3.78
Screw 5x8
214 911601-8 0.83 1.00
Metric screw Ck
214-2 266572-7 0.83 1.00
Allen Bolt M5x12mm Ck
216 922213-2 0.83 1.00
Allen Bolt M5x12mm Ck
216-3 922213-2 0.83 1.00
Cleaner Element
217 443141-3 2.71 3.28
Cleaner Element
217-1 443141-3 2.71 3.28
Cleaner Element
218 443140-5 2.71 3.28
Cleaner Element
218-1 443140-5 2.71 3.28
Felt ring 8mm
233 443146-3 0.83 1.00
No information available, not orderable
236 0323039990
Spring Washer 10
237 253385-5 2.36 2.86
Air intake Ms335.4U A
238 325915-3 2.71 3.28
O-Ring 10 Ebh253U A
239 213078-6 0.83 1.00

There are 0 items in your shopping basket.
