Here you will find all available parts and drawings of the 'Makita BCL182'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

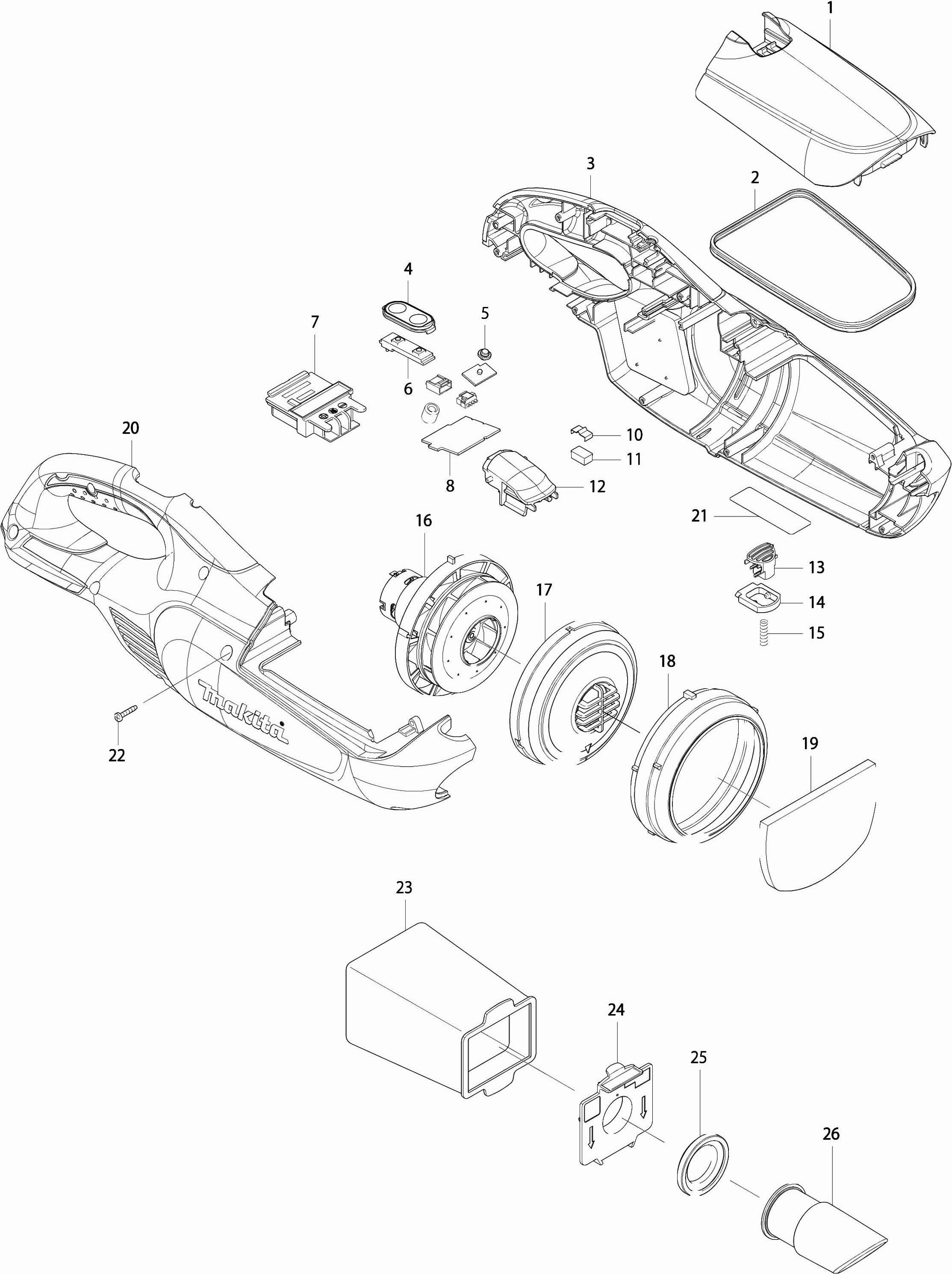

Technical drawing of model Makita BCL182
Spare parts list of model Makita BCL182
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover | ||||
| 001 | 452349-8 | 4.80 | 5.81 | |
| Seal | ||||
| 002 | 424093-7 | 1.20 | 1.45 | |
| Motor Housing Set | ||||
| 003 | 188998-2 | 17.60 | 21.30 | |
| Sponge rubber seal | ||||
| 003A | 424209-4 | 1.00 | 1.21 | |
| Switch Slider Bub360 | ||||
| 004 | 140463-9 | 3.60 | 4.36 | |
| Switch label | ||||
| 004A | 816528-6 | 2.40 | 2.90 | |
| VIEWING GLASS | ||||
| 005 | 450522-4 | 1.00 | 1.21 | |
| Switching unit Bub360 | ||||
| 006 | 631973-2 | 7.20 | 8.71 | |
| Connection unit Bcl182D(3 Cont) A | ||||
| 007 | 643523-1 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 008 | 539195-7 | |||
| Line filter | ||||
| 008A | 688161-2 | 1.00 | 1.21 | |
| Motor connection | ||||
| 008B | 654069-2 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 010 | 232264-0 | 1.00 | 1.21 | |
| Leg | ||||
| 011 | 424367-6 | 1.00 | 1.21 | |
| Covering hood | ||||
| 012 | 452347-2 | 1.20 | 1.45 | |
| Torsion Spring | ||||
| 012A | 233580-3 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 012B | 268271-7 | 1.20 | 1.45 | |
| Pushing Button | ||||
| 012C | 452351-1 | 1.20 | 1.45 | |
| Blocking frame | ||||
| 014 | 452352-9 | 1.00 | 1.21 | |
| Compression Spring 4 HR2450 black | ||||
| 015 | 233344-5 | 1.00 | 1.21 | |
| Motor cpl | ||||
| 016 | 125932-1 | 14.30 | 17.30 | |
| Fan 82 | ||||
| 016A | 240102-2 | 6.00 | 7.26 | |
| Screw M3x8 | ||||
| 016B | 265199-0 | 1.00 | 1.21 | |
| Motor Plate Cl102D A | ||||
| 016C | 452455-9 | 1.20 | 1.45 | |
| Fan cover | ||||
| 017 | 416030-5 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 018 | 424320-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 019 | 424804-0 | |||
| Motor Housing Set | ||||
| 020 | 188998-2 | 17.60 | 21.30 | |
| Sponge rubber seal | ||||
| 020A | 424209-4 | 1.00 | 1.21 | |
| Label | ||||
| 021 | 868823-0 | 3.60 | 4.36 | |
| Tapping Screw 3x16 | ||||
| 022 | 266130-9 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 023 | 194566-1 | |||
| No information available, not orderable | ||||
| 024 | 143677-9 | |||
| Gasket | ||||
| 025 | 424094-5 | 1.00 | 1.21 | |
| Inlet | ||||
| 026 | 452345-6 | 3.60 | 4.36 | |
