Here you will find all available parts and drawings of the 'Makita BBX7600'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

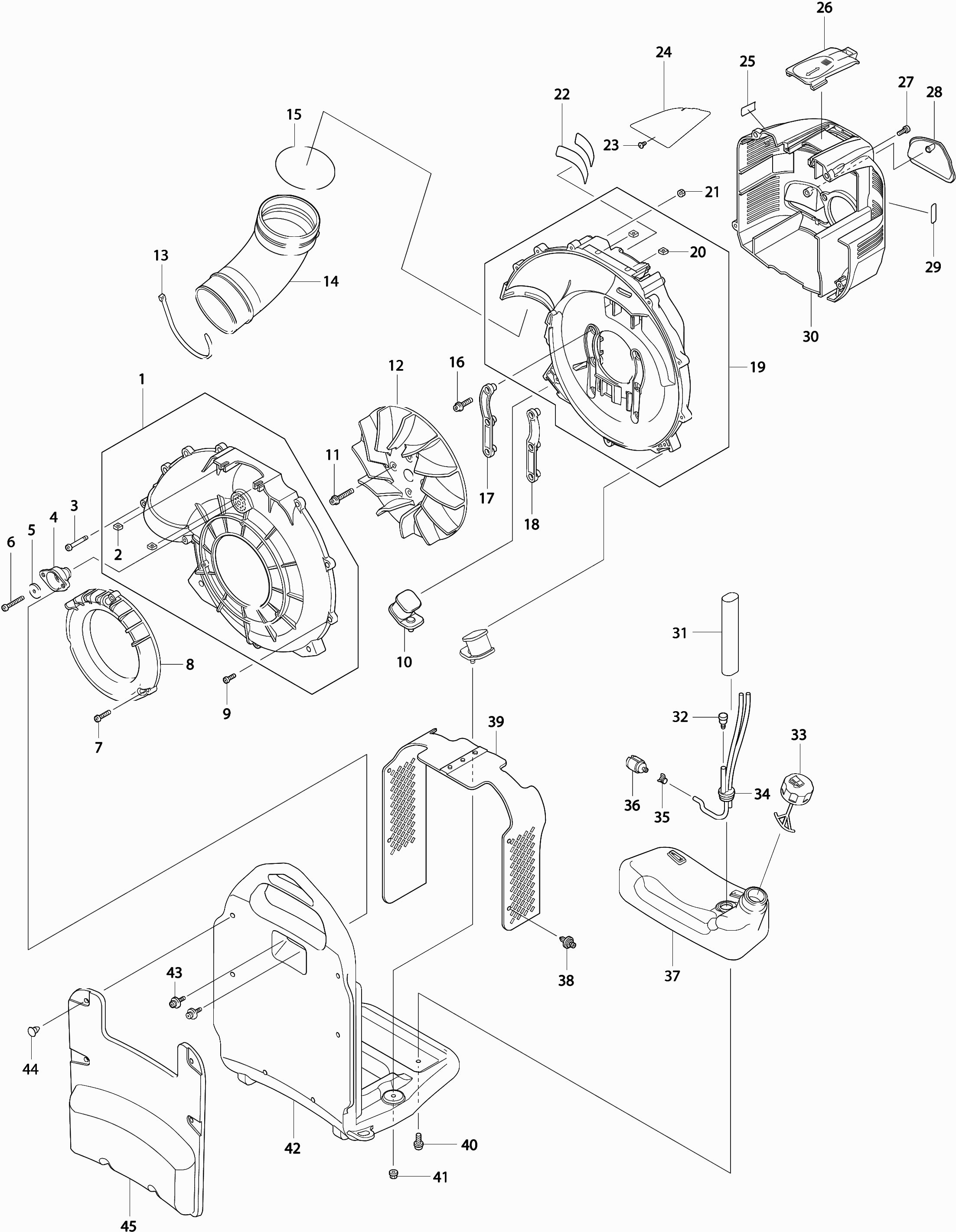

Technical drawing of model Makita BBX7600

Spare parts list of model Makita BBX7600

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Fan Housing
001 6671007001 71.70 86.76
Fan Housing
001-1 6671007001 71.70 86.76
No information available, not orderable
002 6671005010
Nut
002-1 6671005011 3.74 4.53
Screw Assy M5X65Mm Bbx7600
003 0140059220 0.98 1.19
Damper 1
004 6671002000 32.27 39.05
No information available, not orderable
005 0200059910
Screw M5X40MM Bbx7600
006 0043105400 0.83 1.00
Screw 5X25mm Bbx7600
007 0150059730 0.83 1.00
Inlet cap
008 6671001000 10.50 12.70
No information available, not orderable
009 0150059760
Screw M5X18 Htr5600
009-1 0150059800 0.83 1.00
Damper 2
010 6671003000 11.82 14.30
Hex Socket Screw M6x40mm Bbx7600 P
011 0119069690 1.39 1.68
No information available, not orderable
011-1 0119069691
Fan
012 6671004000 38.61 46.72
Fan
012-1 240138-1 27.90 33.76
No information available, not orderable
013 0563379990
Elbow
014 6671500400 9.67 11.70
O-Ring Bbx7600 A
015 213645-7 2.71 3.28
O-Ring Bbx7600 A
015-1 213645-7 2.71 3.28
Hex Socket Screw M6x30mm Bbx7600 P
016 0119069680 1.39 1.68
No information available, not orderable
016-1 266649-8
Bracket 1
017 6671500200 5.06 6.12
Bracket 2
018 6671500300 5.06 6.12
Fan housing 2
019 6671008003 41.84 50.63
Fan housing 2
019-3 6671008003 41.84 50.63
No information available, not orderable
020 6671005010
Nut
020-1 6671005011 3.74 4.53
No information available, not orderable
021 0170059950
Hex Nut M5
021-1 931202-6 0.83 1.00
Danger label Bhx2500 A
022 810451-7 2.71 3.28
Danger label Bhx2500 A
022-1 892460-8 1.07 1.29
Schroef 4X6Mm Bbx7600
023 0150049820 0.83 1.00
Exhaust cover
024 6676500700 6.41 7.76
No information available, not orderable
025 0736309870
No information available, not orderable
025-1 898343-0
Spark plug cap
026 450964-2 1.67 2.02
Spark plug cap
026-1 450964-2 1.67 2.02
No information available, not orderable
027 0150059760
Screw M5X18 Htr5600
027-1 0150059800 0.83 1.00
Oil Cover
028 424504-2 5.06 6.12
Choke label
029 898454-1 2.84 3.44
Choke label
029-1 898454-1 2.84 3.44
Engine hood Bbx7600 A
030-5 141521-4 21.08 25.51
No information available, not orderable
030A 6676500803
No information available, not orderable
030B 6676500804
No information available, not orderable
031 0851159861
Slang Bbx7600 A
031-1 412119-7 2.48 3.00
No information available, not orderable
032 5316503300
Vent Valve
032-1 168396-6 5.06 6.12
No information available, not orderable
033 125472-9
No information available, not orderable
033-1 125472-9
Fuel Line Bbx7600
034 0851339960 9.24 11.18
Hose clamp IAS 3
035 345920-4 0.83 1.00
Hose clamp IAS 3
035-1 345920-4 0.83 1.00
No information available, not orderable
036 5806502900
Gasoline filter
036-1 163532-9 6.38 7.72
No information available, not orderable
037 6673002001
Gas tank Bbx7600 A
037-1 453618-0 21.23 25.69
Mounting sleeve Bbx7600 A
038 458158-3 1.18 1.43
Mounting sleeve Bbx7600 A
038-1 458158-3 1.18 1.43
Cover
039 6672002000 12.22 14.79
Screw Assy M6X12Mm Bbx7600
040 0043706120 0.83 1.00
Flange nut P
041 0023706000 0.83 1.00
No information available, not orderable
041-1 264092-5
Frame
042 6672001000 45.48 55.03
No information available, not orderable
043 0140059210
Mounting bushing
044 6672500200 1.39 1.68
Carrying cushion
045 6672003000 12.22 14.79
Carrying cushion
045-1 6672003000 12.22 14.79
No information available, not orderable
046 6675001001
Control Handle
046-4 198218-6 63.68 77.05
Inbusbout M6X20
047 6675001010 1.20 1.45
No information available, not orderable
047-1 922317-0
Corrugated washer
048 267841-9 0.98 1.19
Corrugated washer
048-1 267841-9 0.98 1.19
Ring P
049 0031106000 0.83 1.00
No information available, not orderable
049-1 267459-6
Throttle Lever 2
050 453717-8 11.34 13.72
Throttle Lever 2
050-1 453717-8 11.34 13.72
Hex Nut M6
051 931302-2 0.83 1.00
Hex Nut M6
051-1 931302-2 0.83 1.00
Throttle Lever 1
052 453716-0 12.22 14.79
Throttle Lever 1
052-1 453716-0 12.22 14.79
Torsion Spring
053 233602-9 2.38 2.88
Torsion Spring
053-1 233602-9 2.38 2.88
Screw M5X25Mm
054 911242-0 0.83 1.00
Screw M5X25Mm
054-1 911242-0 0.83 1.00
No information available, not orderable
055 6675004000
Switch
055-1 168745-7 9.67 11.70
Screw 4X16Mm Bbx7600 A
056 266768-0 0.83 1.00
Screw 4X16Mm Bbx7600 A
056-1 266768-0 0.83 1.00
No information available, not orderable
057 0170059950
Hex lock nut 5x8
057-2 252103-8 0.83 1.00
Cable Guide Bbx7600 A
058 453715-2 12.22 14.79
Cable Guide Bbx7600 A
058-1 453715-2 12.22 14.79
No information available, not orderable
059 0630139820
Throttle Wire Comp.
059-1 168744-9 10.50 12.70
Screw 5x30
060 911253-5 0.83 1.00
Valve Cover
061 5971500700 7.22 8.74
Valve cover Bbx7600 A
061-2 144766-3 9.24 11.18
Valve cover gasket
062 5971500900 2.02 2.44
Valve cover gasket
062-1 5971500900 2.02 2.44
No information available, not orderable
063 5971003001
Cylinder head Pb7650 A
063-3 126943-9 45.48 55.03
No information available, not orderable
063A 5971003002
Head Gasket
064 442167-2 3.54 4.28
Head Gasket
064-2 442167-2 3.54 4.28
No information available, not orderable
065 965603030
BOUGIE CMR6A A
065-1 168401-9 13.48 16.31
Hex Socket Screw M6x35mm Bbx7600 P
066 0119069670 0.83 1.00
No information available, not orderable
066-1 922357-8
No information available, not orderable
067 5971007001
Complete motor PM7651H #
067-3 123580-0 272.87 330.17
Control valve
068 424201-0 1.67 2.02
Control valve
068-1 424201-0 1.67 2.02
Bolt 6X30
069 0119069930 0.83 1.00
Hex Socket Bolt M6x30mm
069-1 922352-8 0.83 1.00
Crankcase gasket
070 442168-0 2.71 3.28
Crankcase gasket
070-2 442168-0 2.71 3.28
Housing Cover
071 318725-5 5.30 6.41
Housing Cover
071-1 318725-5 5.30 6.41
Met. Screw Ph2 M5X16Mm Ck A
072 922223-9 0.83 1.00
Met. Screw Ph2 M5X16Mm Ck A
072-3 922223-9 0.83 1.00
Oil Cap
073 6676005000 4.45 5.38
Gasket Bbx7600
074 0213229980 5.09 6.16
Feed valve
075 346083-9 1.39 1.68
Feed valve
075-1 346083-9 1.39 1.68
Holding Plate
076 5931501300 2.71 3.28
No information available, not orderable
077 0119049980
Crankcase cover gasket
078 5976500100 5.71 6.91
Housing Cover
079 5976500000 13.17 15.94
Housing Cover
079-1 319008-6 8.21 9.93
Gasket
080 346452-4 0.83 1.00
Gasket
080-1 346452-4 0.83 1.00
Drain Bolt M8X12 Bbx7600
081 0016608120 0.83 1.00
Hex Bolt 8x12
081-2 921412-3 0.83 1.00
No information available, not orderable
082 266700-4
No information available, not orderable
082-2 922243-3
Overflow Hose 3x80mm BBX600 A
083 422420-2 0.83 1.00
Piston Ring Set
084 197040-8 15.60 18.88
Piston Ring Set
084-1 197040-8 15.60 18.88
No information available, not orderable
085 5972500001
No information available, not orderable
085-3 197456-7
Seal ring 17
086 213091-4 5.06 6.12
No information available, not orderable
086-2 213599-8
No information available, not orderable
087 5802500701
No information available, not orderable
087-2 257344-1
No information available, not orderable
088 0565119990
Spring retaining ring
088-1 233995-4 0.83 1.00
Needle Bearing Bbx7600
089 0610129940 5.71 6.91
No information available, not orderable
090 0323049950
Borgring Bbx7600 A
091 267448-1 1.67 2.02
Borgring Bbx7600 A
091-1 267448-1 1.67 2.02
Keerring
092 213090-6 3.96 4.79
Keerring
092-1 213090-6 3.96 4.79
Crank Shaft
093 126576-0 76.04 92.01
Crank Shaft
093-3 126576-0 76.04 92.01
No information available, not orderable
094 5973500100
Intake valve
094-1 331964-0 10.50 12.70
Intake valve
094A 331964-0 10.50 12.70
No information available, not orderable
095 5973500202
Exhaust valve
095-3 331965-8 11.82 14.30
Exhaust valve
095A 331965-8 11.82 14.30
No longer available, no replacement
096 5973500301
Valve spring
096-1 234212-5 0.83 1.00
Valve spring
096A 234212-5 0.83 1.00
No information available, not orderable
097 5973500400
Valve Locking Ring
097-1 331966-6 2.36 2.86
Valve Locking Ring
097A 331966-6 2.36 2.86
No information available, not orderable
098 5973500500
No information available, not orderable
098-2 268310-3
Valve stem
098A 5973500501 0.98 1.19
No information available, not orderable
099 5973004000
Valve arm
099-2 126005-3 10.50 12.70
Pressure rod Bbx7600 A
100 256526-2 0.98 1.19
Pressure rod Bbx7600 A
100-1 256526-2 0.98 1.19
Pin 5
101 256186-0 0.98 1.19
Pin 5
101-1 256186-0 0.98 1.19
No information available, not orderable
102 5973500601
Rocker
102-3 310715-4 1.18 1.43
Tuimelaartandwiel Bbx7600 A
103 126622-9 21.23 25.69
Tuimelaartandwiel Bbx7600 A
103-1 126622-9 21.23 25.69
Pen 5mm
104 256200-2 0.83 1.00
Pen 5mm
104-1 256200-2 0.83 1.00
No information available, not orderable
105 5975001000
Start Pulley Bbx7600 A
106 161599-1 6.38 7.72
Screw set
107 5195002060 2.38 2.88
No information available, not orderable
107-1 266585-8
Inner Bush
108 5975002040 1.39 1.68
Drive sleeve
108-1 424516-5 5.06 6.12
Carrier
109 5975002050 1.39 1.68
Carrier
109-1 326200-7 3.96 4.79
Friction spring
110 5975002030 2.02 2.44
Compression Spring
110-1 234257-3 5.71 6.91
Stopper
111 5315001030 2.02 2.44
No information available, not orderable
111-1 424360-0
No information available, not orderable
112 5315001020
Start Knop Rbc310 *
112-1 424361-8 4.92 5.95
Starter cord
113 5975002110 5.06 6.12
Starter cord
113-1 444043-6 2.71 3.28
Startinrichting
114 126165-1 17.38 21.03
No information available, not orderable
114-1 441075-4
Starter Spring Bbx7600 A
115 SG00000014 5.06 6.12
Starter Spring Bbx7600 A
115-1 SG00000014 5.06 6.12
No information available, not orderable
116 266700-4
Screw
116-1 266788-4 0.83 1.00
Model label
117 6679500702 2.84 3.44
No information available, not orderable
117-1 6679500703
Inlet Manifold Gasket
118 5973501200 2.71 3.28
No information available, not orderable
119 266700-4
Metal Screw Ck M5x25mm
119-3 266749-4 1.67 2.02
Spacer Bbx7600 A
120 453858-0 7.22 8.74
Spacer Bbx7600 A
120-1 453858-0 7.22 8.74
Spacer gasket
121 162333-2 2.02 2.44
Spacer gasket
121-1 162333-2 2.02 2.44
No information available, not orderable
122 0119059490
No information available, not orderable
122-1 0119059490
Carburetor Bbx7600
123 5976001000 72.58 87.82
Pump Housing
124 5976001010 33.36 40.37
Pump Housing
124-1 5976001010 33.36 40.37
No information available, not orderable
125 352010-6
Inlet strainer
125-2 WJ00014070 1.67 2.02
Diaphragm Gasket
126 442154-1 2.36 2.86
Diaphragm Gasket
126-1 442154-1 2.36 2.86
Diaphragm
127 168620-7 13.82 16.72
Diaphragm
127-1 WJ00095586 10.50 12.70
Air Purifier Case Ebh253U A
128 140438-8 10.50 12.70
Air Purifier Case Ebh253U A
128-1 140438-8 10.50 12.70
Booster pump
129 424314-7 3.54 4.28
Booster pump
129-1 424314-7 3.54 4.28
Pump cover Ebh253U A
130 346270-0 3.54 4.28
Pump cover Ebh253U A
130-1 346270-0 3.54 4.28
Parker 3X24Mm Ck A
131 266582-4 0.83 1.00
Parker 3X24Mm Ck A
131-1 266582-4 0.83 1.00
No information available, not orderable
132 5216008010
Set screw
132-1 266795-7 2.48 3.00
No information available, not orderable
133 5316005450
No information available, not orderable
133-1 264065-8
No information available, not orderable
134 5236018040
Swivel element
134-1 325922-6 4.14 5.01
Rivet for adjusting needle
135 5426005030 2.36 2.86
No information available, not orderable
135-1 413140-9
Adjustment Screw Rbc230 A
136 266704-6 0.83 1.00
Adjustment Screw Rbc230 A
136-1 266704-6 0.83 1.00
CABLE SUPPORT
137 5236052020 10.50 12.70
No information available, not orderable
137-1 346491-4
Seegering E-3 A
138 257964-1 2.02 2.44
Seegering E-3 A
138-1 257964-1 2.02 2.44
Packing Washer
139 424444-4 2.36 2.86
Packing Washer
139-1 424444-4 2.36 2.86
No information available, not orderable
140 5926002020
Compression Spring 5-9mm
140-1 234183-6 2.84 3.44
O-ring 2
141 213538-8 2.02 2.44
O-ring 2
141-1 213538-8 2.02 2.44
Nozzle #60 Bbx7600 A
142 WJ00112478 3.22 3.90
Nozzle #60 Bbx7600 A
142-1 WJ00112478 3.22 3.90
No information available, not orderable
143 5926002040
Diaphragm Gasket
143-1 442155-9 2.36 2.86
Pump diaphragm
144 WJ00009599 3.96 4.79
Pump diaphragm
144-2 WJ00009599 3.96 4.79
Knob screw
145 6676501200 5.98 7.24
Air filter cover
146 6676002002 13.83 16.73
Air filter cover
146-1 6676002002 13.83 16.73
Air Filter
147 6676500201 13.82 16.72
Air Filter
147-1 6676500201 13.82 16.72
Met. Screw Ph2 M5X16Mm Ck A
148 922223-9 0.83 1.00
No information available, not orderable
148-1 266494-1
Air Filter House
149 126377-6 86.92 105.17
Air Filter House
149-3 126377-6 86.92 105.17
Covering hood
150 162358-6 19.29 23.34
Covering hood
150-2 162358-6 19.29 23.34
Overpressure valve
151 424315-5 0.83 1.00
Overpressure valve
151-1 424315-5 0.83 1.00
Overpressure valve
152 424316-3 2.71 3.28
Overpressure valve
152-1 424316-3 2.71 3.28
Control valve
153 454834-7 7.21 8.72
No information available, not orderable
154 0851139920
Hose 3x105mm
154-2 412129-4 1.67 2.02
Hose clamp IAS 3
155 282027-4 1.18 1.43
Hose clamp IAS 3
155-2 282027-4 1.18 1.43
Hose 3X25Mm Bbx7600/Pb7600 P
156 0851029930 1.00 1.21
Hose 3X25Mm Bbx/Pb7600 A
156-1 422096-5 0.83 1.00
Hose connector
157 452952-5 2.10 2.54
Hose connector
157-1 452952-5 2.10 2.54
Hose 3x240mm
158 412122-8 2.36 2.86
No information available, not orderable
158-1 0851199960
Inlet House Bbx7600 A
159 126724-1 7.22 8.74
Choke lever Bbx7600 A
160 458169-8 1.39 1.68
Choke plate
161 5973501700 1.18 1.43
Screw 4x12mm
162 5973006010 0.83 1.00
Inlet plate
163 5973501900 1.24 1.50
Screw 5x65
164 911288-6 0.83 1.00
Screw 5x65
164-1 911288-6 0.83 1.00
No information available, not orderable
165 0561679990
Hose Clamp Bbx7600
166 0561439990 2.71 3.28
Air Mover
167 6676500400 12.80 15.49
Air Mover
167-1 6676500400 12.80 15.49
Exhaust gasket Bbx7600 A
168 346682-7 9.24 11.18
Exhaust gasket Bbx7600 A
168-2 346682-7 9.24 11.18
No information available, not orderable
169 5973001002
Exhaust Bbx7600 A
169-3 168807-1 12.19 14.75
Exhaust Bbx7600 A
169A 168807-1 12.19 14.75
Washer 6x12mm
170 941151-9 0.83 1.00
Hex Socket Screw M6x70mm Bbx7600
171 0119069650 1.75 2.12
Hexagon bolt M6x18
171-1 266771-1 1.39 1.68
Hexagon bolt M6x18
171A 266771-1 1.39 1.68
Spark plug cap Ebh253U A
172 424105-6 2.71 3.28
Spark plug cap Ebh253U A
172-1 424105-6 2.71 3.28
No information available, not orderable
173 0654009931
Bougieveer Ebh253U A
173-1 324891-8 1.18 1.43
Hexagon socket screw M4x20 Ck
174 922138-0 0.83 1.00
No information available, not orderable
175 6165500201
No information available, not orderable
175-1 638784-6
Cable 2 Bhx2500 A
176 632F45-2 0.98 1.19
No information available, not orderable
176-1 638710-5
Ignition Bbx7600 A
177 161837-1 19.23 23.27
Magneto Rotor Comp.
178 5977001020 40.41 48.90
No information available, not orderable
178-1 319170-7
No information available, not orderable
179 0023710000
Flywheel Nut
179-1 264054-3 0.98 1.19
No information available, not orderable
180 168746-5
No information available, not orderable
181 0561769990
No information available, not orderable
182 6679500000
No information available, not orderable
182-1 412115-5
Hose Clamp Fl-H7500
183 0561009990 2.84 3.44
No information available, not orderable
184 6679501801
No information available, not orderable
185 6679501900
Shoulder strap
186 6679001000 14.00 16.94
Fan plate
188 6672500400 2.71 3.28
Mounting sleeve Bbx7600 A
189 458158-3 1.18 1.43
Insulation Plate Upper Bbx/Pb7600 A
190 443174-8 2.04 2.47
Insulation Plate Middle Bbx/Pb7600 A
191 443175-6 1.74 2.11
Insulation Plate Lower Bbx/Pb7600 A
192 443176-4 1.20 1.45
Split Pin
198 331967-4 0.98 1.19
Spacer
199 331937-3 1.02 1.23
No information available, not orderable
200 412123-6
No information available, not orderable
201 412127-8
Hose 10x220mm
202 412124-4 3.72 4.50

There are 0 items in your shopping basket.
