Here you will find all available parts and drawings of the 'Makita BBO180'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

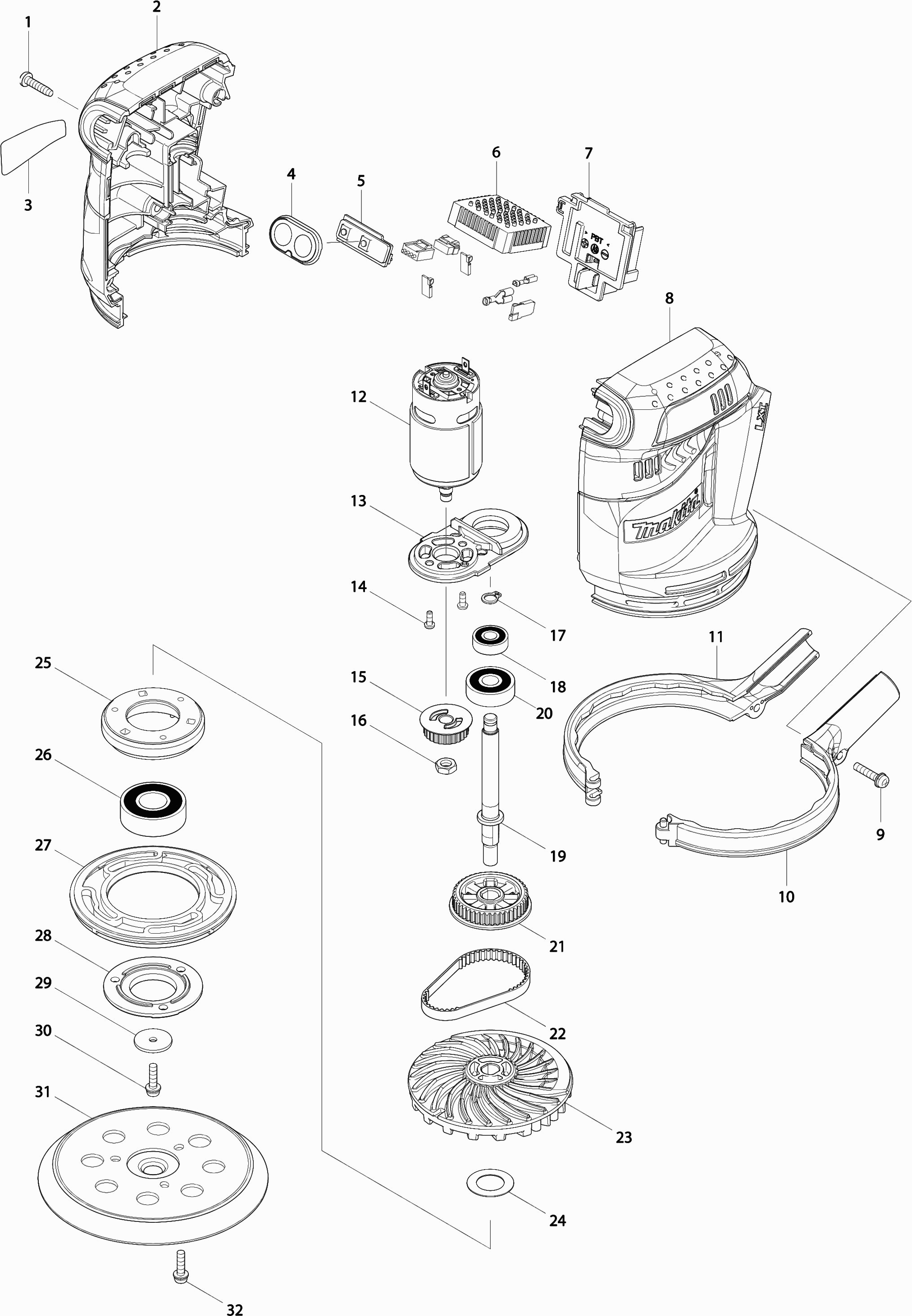

Technical drawing of model Makita BBO180
Spare parts list of model Makita BBO180
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 002 | 187423-0 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 002A | 263005-3 | 1.00 | 1.21 | |
| Label | ||||
| 003 | 897244-9 | 3.60 | 4.36 | |
| Shift Plate | ||||
| 004 | 141419-5 | 3.60 | 4.36 | |
| Switch | ||||
| 005 | 620115-3 | 13.20 | 15.97 | |
| Control Unit Bbo180 | ||||
| 006 | 632M23-4 | 38.50 | 46.58 | |
| Line filter | ||||
| 006A | 688172-7 | 1.20 | 1.45 | |
| Connection unit (3 contacts) | ||||
| 007 | 644808-8 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 008 | 187423-0 | 22.00 | 26.62 | |
| Rubber pen 6 | ||||
| 008A | 263005-3 | 1.00 | 1.21 | |
| Screw 4x20 | ||||
| 009 | 911138-5 | 1.00 | 1.21 | |
| Dust Ring Set | ||||
| 010 | 187360-8 | 4.80 | 5.81 | |
| Dust Ring Set | ||||
| 011 | 187360-8 | 4.80 | 5.81 | |
| Motor | ||||
| 012 | 629952-2 | 22.00 | 26.62 | |
| Motor mount | ||||
| 013 | 453632-6 | 2.40 | 2.90 | |
| Screw M3x8 | ||||
| 014 | 265199-0 | 1.00 | 1.21 | |
| Pulley | ||||
| 015 | 222175-7 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 016 | 931303-0 | |||
| Lock ring S-7 | ||||
| 017 | 961003-8 | 1.00 | 1.21 | |
| Ball bearing 607Zz A | ||||
| 018 | 211382-7 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 019 | 326168-7 | 6.00 | 7.26 | |
| Ball bearing 629ddw | ||||
| 020 | 211092-6 | 4.80 | 5.81 | |
| Pulley | ||||
| 021 | 222176-5 | 14.30 | 17.30 | |
| V-belt 6x174mm | ||||
| 022 | 225095-4 | 6.00 | 7.26 | |
| Fan 88 | ||||
| 023 | 240136-5 | 7.20 | 8.71 | |
| Flat Washer 15 | ||||
| 024 | 267164-5 | 1.00 | 1.21 | |
| Bearing Housing | ||||
| 025 | 318304-9 | 3.60 | 4.36 | |
| Ball bearing 6202llb | ||||
| 026 | 211228-7 | 8.40 | 10.16 | |
| Intermediate Ring | ||||
| 027 | 424131-5 | 6.00 | 7.26 | |
| Bearing Housing | ||||
| 028 | 318303-1 | 1.20 | 1.45 | |
| 4 Washer | ||||
| 029 | 253739-6 | 1.00 | 1.21 | |
| Screw 4x16 A | ||||
| 030 | 911526-6 | 1.00 | 1.21 | |
| STEUNSCHIJF 125MM | ||||
| 031 | 743081-8 | 23.00 | 27.83 | |
| Screw 4x16 A | ||||
| 032 | 911526-6 | 1.00 | 1.21 | |
