Here you will find all available parts and drawings of the 'Makita BBC231U'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

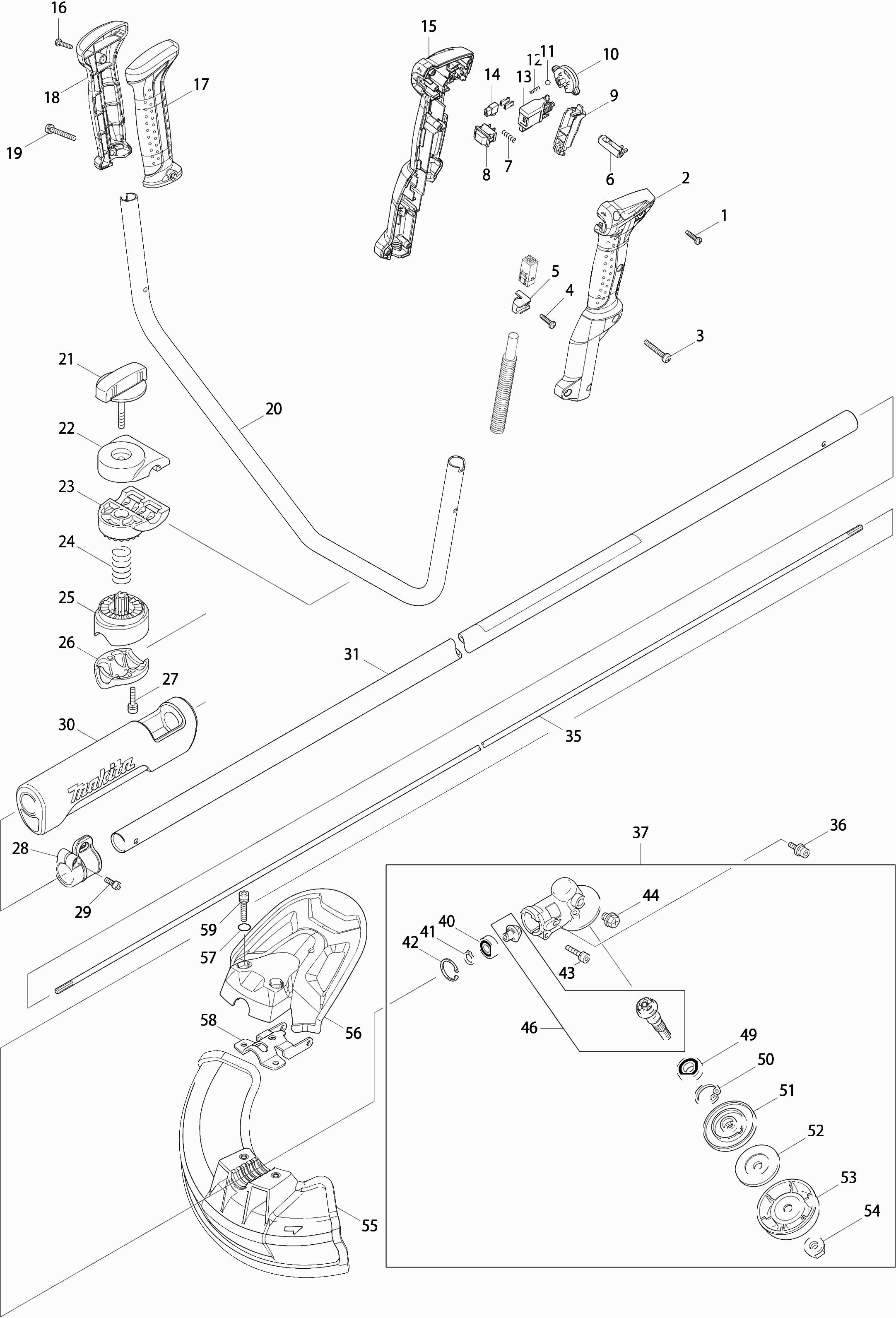

Technical drawing of model Makita BBC231U
Spare parts list of model Makita BBC231U
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap screw 4x18 | ||||
| 001 | 265A48-7 | 0.83 | 1.00 | |
| Handle set | ||||
| 002 | 188839-2 | 33.00 | 39.93 | |
| Screw 5x35 | ||||
| 003 | 911256-9 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 005 | 687261-5 | |||
| Lock button | ||||
| 006 | 451571-4 | 4.45 | 5.38 | |
| Compression Spring 4 | ||||
| 007 | 234079-1 | 0.83 | 1.00 | |
| Switch sle6a2-33 | ||||
| 008 | 651533-4 | 3.72 | 4.50 | |
| Switch Button | ||||
| 009 | 451573-0 | 6.41 | 7.76 | |
| Power indicator | ||||
| 010 | 451574-8 | 4.45 | 5.38 | |
| Steel ball 5.0 | ||||
| 011 | 216018-3 | 0.83 | 1.00 | |
| Pressure Spring 2 | ||||
| 012 | 233211-4 | 0.83 | 1.00 | |
| Switch tgr3-2 | ||||
| 013 | 650629-8 | 13.83 | 16.73 | |
| Socket | ||||
| 014 | 686015-7 | 0.83 | 1.00 | |
| Handle set | ||||
| 015 | 188839-2 | 33.00 | 39.93 | |
| Tap screw 4x18 | ||||
| 016 | 265A48-7 | 0.83 | 1.00 | |
| Handle set | ||||
| 017 | 188659-4 | 12.22 | 14.79 | |
| Handle set | ||||
| 018 | 188659-4 | 12.22 | 14.79 | |
| Screw 5x35 | ||||
| 019 | 911256-9 | 0.83 | 1.00 | |
| Handle Tube | ||||
| 020 | 331862-8 | 12.22 | 14.79 | |
| No information available, not orderable | ||||
| 021 | 168524-3 | |||
| Handle Bracket | ||||
| 022 | 318429-9 | 3.96 | 4.79 | |
| Handgreephouder | ||||
| 023 | 318428-1 | 4.44 | 5.37 | |
| Compression Spring 20 | ||||
| 024 | 233202-5 | 0.83 | 1.00 | |
| Tube Mounting | ||||
| 025 | 318427-3 | 4.45 | 5.38 | |
| Tube Grip Bracket | ||||
| 026 | 318426-5 | 3.96 | 4.79 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 027 | 922241-7 | 0.83 | 1.00 | |
| Hanger | ||||
| 028 | 168478-4 | 3.96 | 4.79 | |
| No information available, not orderable | ||||
| 029 | 922228-9 | |||
| Protection AF-DW | ||||
| 030 | 424290-5 | 23.04 | 27.88 | |
| Rod cpl | ||||
| 031 | 141091-3 | 37.75 | 45.68 | |
| Warning Label | ||||
| 031A | 810558-9 | 5.06 | 6.12 | |
| Spindle Ass'y | ||||
| 035 | 325812-3 | 20.15 | 24.38 | |
| Allen bolt Ck M5x14mm | ||||
| 036 | 922218-2 | 0.83 | 1.00 | |
| Gearbox Housing Set Ebh253U A | ||||
| 037 | 123833-7 | 55.40 | 67.03 | |
| Ball Bearing 609zz | ||||
| 040 | 210049-4 | 3.28 | 3.97 | |
| Lock ring S-9 | ||||
| 041 | 961005-4 | 0.83 | 1.00 | |
| Seeger Ring R24 | ||||
| 042 | 962113-4 | 0.83 | 1.00 | |
| Hex Socket Bolt Ck M5x25mm | ||||
| 043 | 922241-7 | 0.83 | 1.00 | |
| Metal screw Ck M8x10mm | ||||
| 044 | 265590-2 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 046 | 188902-1 | |||
| Ball Bearing 6001llu | ||||
| 049 | 211138-8 | 4.45 | 5.38 | |
| Lock washer R-28 | ||||
| 050 | 962106-1 | 0.83 | 1.00 | |
| Protective Washer | ||||
| 051 | 331861-0 | 7.22 | 8.74 | |
| Spring retaining ring | ||||
| 052 | 346355-2 | 9.24 | 11.18 | |
| No information available, not orderable | ||||
| 053 | 168526-9 | |||
| NUT M10 | ||||
| 054 | 264025-0 | 2.02 | 2.44 | |
| No information available, not orderable | ||||
| 055 | 451566-7 | |||
| Covering hood | ||||
| 056 | 451565-9 | 12.22 | 14.79 | |
| O-ring 11 | ||||
| 057 | 213105-9 | 0.83 | 1.00 | |
| Assembly Bracket | ||||
| 058 | 346073-2 | 2.84 | 3.44 | |
| Allen Bolt m6x30 | ||||
| 059 | 922353-6 | 0.83 | 1.00 | |
| Screw Vk 20mm | ||||
| 060 | 911233-1 | 0.83 | 1.00 | |
| Steel Holder | ||||
| 061 | 451578-0 | 11.82 | 14.30 | |
| Damper | ||||
| 062 | 424307-4 | 2.02 | 2.44 | |
| Hexagonal bolt 5X20 LF1000 A | ||||
| 063 | 265550-4 | 0.83 | 1.00 | |
| Steel Holder | ||||
| 064 | 318560-1 | 27.90 | 33.76 | |
| Screw Vk 20mm | ||||
| 065 | 911233-1 | 0.83 | 1.00 | |
| Rubber Pin 4 | ||||
| 066 | 263002-9 | 0.83 | 1.00 | |
| O-Ring 6 An250/Bo3711 | ||||
| 067 | 213045-1 | 0.83 | 1.00 | |
| Axle Holder | ||||
| 068 | 325811-5 | 17.12 | 20.72 | |
| Ball Bearing 6001zz | ||||
| 069 | 211148-5 | 8.21 | 9.93 | |
| Washer 12 | ||||
| 070 | 253744-3 | 0.83 | 1.00 | |
| Gear 33 | ||||
| 071 | 227720-3 | 41.84 | 50.63 | |
| Washer 12 | ||||
| 072 | 253744-3 | 0.83 | 1.00 | |
| Ball Bearing 6901zz | ||||
| 073 | 211150-8 | 5.06 | 6.12 | |
| Gear Cover | ||||
| 074 | 318559-6 | 33.36 | 40.37 | |
| Tap screw 4x18 | ||||
| 075 | 265A48-7 | 0.83 | 1.00 | |
| Tap Screw 5X25 | ||||
| 076 | 266041-8 | 0.83 | 1.00 | |
| Pedal | ||||
| 077 | 451572-2 | 8.21 | 9.93 | |
| Screw Vk 20mm | ||||
| 078 | 911233-1 | 0.83 | 1.00 | |
| Power cord set | ||||
| 079 | 699045-9 | 21.23 | 25.69 | |
| Tap screw 4x18 | ||||
| 080 | 265A48-7 | 0.83 | 1.00 | |
| Nameplate Bbc231U A | ||||
| 081 | 896445-6 | 0.83 | 1.00 | |
| Screw,M4x12 | ||||
| 082 | 251314-2 | 0.83 | 1.00 | |
| Battery Holder | ||||
| 083 | 346194-0 | 24.24 | 29.33 | |
| Motor Housing Set | ||||
| 084 | 188836-8 | 30.70 | 37.15 | |
| Tap screw 4x18 | ||||
| 085 | 265A48-7 | 0.83 | 1.00 | |
| Motor Housing Set | ||||
| 086 | 188838-4 | 9.82 | 11.88 | |
| O-ring 22 | ||||
| 087 | 213961-7 | 0.83 | 1.00 | |
| Armature | ||||
| 088 | 619254-4 | 71.38 | 86.37 | |
| Field | ||||
| 089 | 629880-1 | 62.04 | 75.07 | |
| Motor Housing Set | ||||
| 090 | 188838-4 | 9.82 | 11.88 | |
| Tap screw 4x18 | ||||
| 091 | 265A48-7 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 092 | 687261-5 | |||
| Support Plate | ||||
| 093 | 346039-2 | 1.00 | 1.21 | |
| Motor Housing Set | ||||
| 094 | 188836-8 | 30.70 | 37.15 | |
| Connection unit | ||||
| 095 | 643849-1 | 3.96 | 4.79 | |
| Speed control circuit | ||||
| 096 | 620497-3 | 161.72 | 195.68 | |
| Speed control circuit | ||||
| 097 | 620497-3 | 161.72 | 195.68 | |
| Indicator label | ||||
| 098 | 140285-7 | 7.22 | 8.74 | |
