Here you will find all available parts and drawings of the 'Makita AT-1827H'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

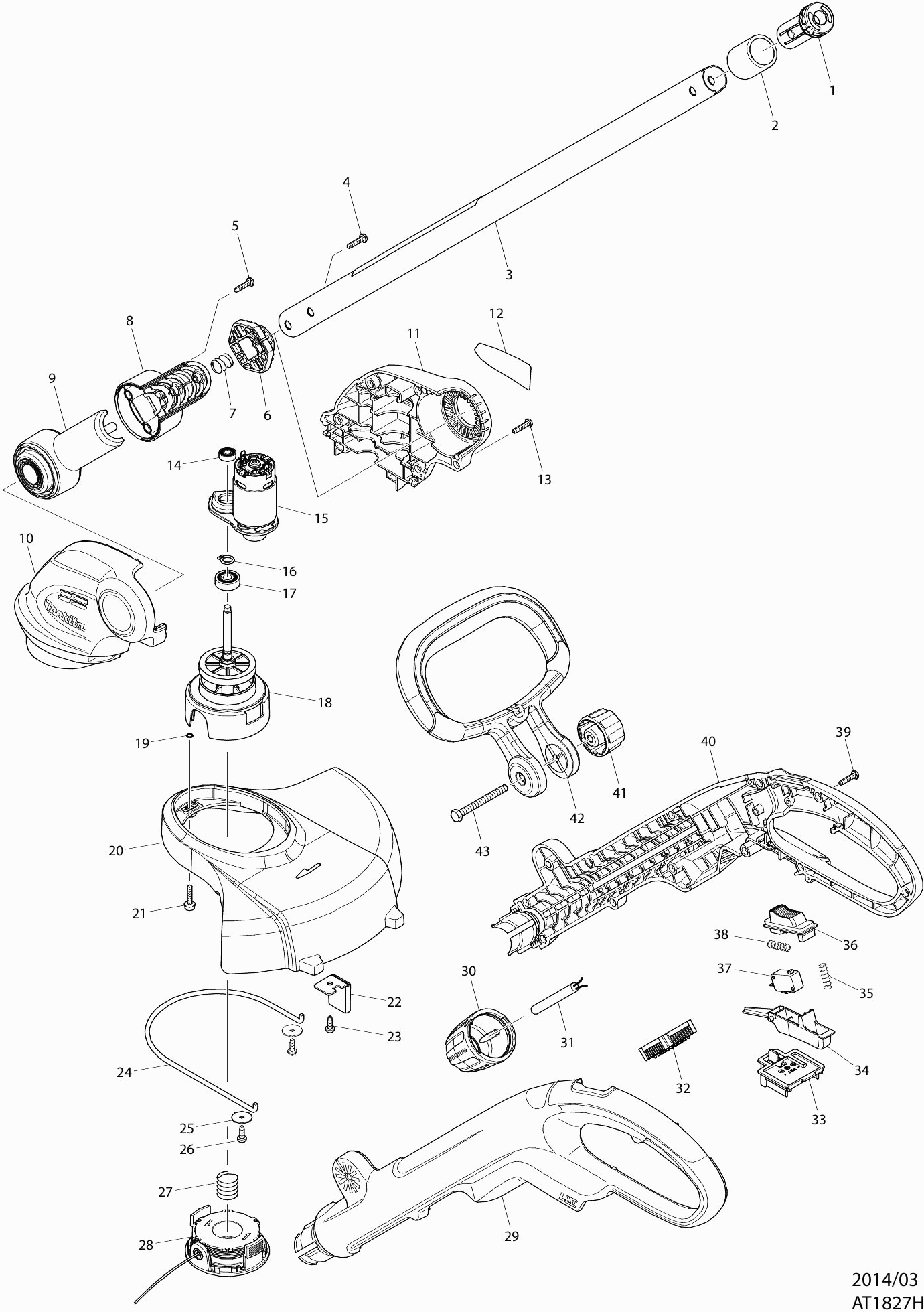

Technical drawing of model Makita AT-1827H
Spare parts list of model Makita AT-1827H
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Covering hood | ||||
| 001 | 453357-2 | 1.20 | 1.45 | |
| Covering hood | ||||
| 1 | 453357-2 | 1.20 | 1.45 | |
| Rubber Sleeve | ||||
| 002 | 422089-2 | 2.40 | 2.90 | |
| Rubber Sleeve | ||||
| 2 | 422089-2 | 2.40 | 2.90 | |
| Rod cpl | ||||
| 003 | 141339-3 | 10.80 | 13.07 | |
| Warning Label | ||||
| 003A | 890862-2 | 2.40 | 2.90 | |
| Rod cpl | ||||
| 3 | 141339-3 | 10.80 | 13.07 | |
| Tap screw 4x18 | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 4 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 005 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 5 | 265A48-7 | 1.00 | 1.21 | |
| Pushing Button | ||||
| 006 | 451896-6 | 3.60 | 4.36 | |
| Pushing Button | ||||
| 6 | 451896-6 | 3.60 | 4.36 | |
| Compression spring 12 | ||||
| 007 | 231113-8 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 7 | 231113-8 | 1.00 | 1.21 | |
| Steel Holder | ||||
| 008 | 188870-8 | 9.60 | 11.62 | |
| Steel Holder | ||||
| 8 | 188870-8 | 9.60 | 11.62 | |
| Steel Holder | ||||
| 009 | 188870-8 | 9.60 | 11.62 | |
| Steel Holder | ||||
| 9 | 188870-8 | 9.60 | 11.62 | |
| Motor Housing | ||||
| 010 | 187414-1 | 13.20 | 15.97 | |
| Rubber Pin 4 | ||||
| 010A | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 010B | 263005-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 010C | 931102-0 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 10 | 187414-1 | 13.20 | 15.97 | |
| Motor Housing | ||||
| 011 | 187414-1 | 13.20 | 15.97 | |
| Rubber Pin 4 | ||||
| 011A | 263002-9 | 1.00 | 1.21 | |
| Rubber pen 6 | ||||
| 011B | 263005-3 | 1.00 | 1.21 | |
| Hex nut M4 | ||||
| 011C | 931102-0 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 11 | 187414-1 | 13.20 | 15.97 | |
| Nameplate At-1827h | ||||
| 012 | 815V45-5 | 3.60 | 4.36 | |
| Nameplate At-1827h | ||||
| 12 | 815V45-5 | 3.60 | 4.36 | |
| Tap screw 4x18 | ||||
| 013 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 13 | 265A48-7 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 014 | 210026-6 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 14 | 210006-2 | |||
| Motor 18v | ||||
| 015 | 629932-8 | 16.50 | 19.96 | |
| Motor 18v | ||||
| 15 | 629932-8 | 16.50 | 19.96 | |
| Lock ring S-8 | ||||
| 016 | 961004-6 | 1.00 | 1.21 | |
| Lock ring S-8 | ||||
| 16 | 961004-6 | 1.00 | 1.21 | |
| Ball Bearing 608Zz A | ||||
| 017 | 210046-0 | 1.20 | 1.45 | |
| Ball Bearing 608Zz A | ||||
| 17 | 210046-0 | 1.20 | 1.45 | |
| Gear Shaft | ||||
| 018 | 141338-5 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 018A | 227283-9 | |||
| No information available, not orderable | ||||
| 018B | 266744-4 | |||
| No information available, not orderable | ||||
| 018C | 326159-8 | |||
| No information available, not orderable | ||||
| 018D | 453360-3 | |||
| Gear Shaft | ||||
| 18 | 141338-5 | 10.80 | 13.07 | |
| Screw 4x12 | ||||
| 023 | 265C54-4 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 23 | 265C54-4 | 1.00 | 1.21 | |
| Guide Piece | ||||
| 024 | 326128-9 | 2.40 | 2.90 | |
| Guide Piece | ||||
| 24 | 326128-9 | 2.40 | 2.90 | |
| 4 Washer | ||||
| 025 | 267071-2 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 25 | 267071-2 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 026 | 265C54-4 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 26 | 265C54-4 | 1.00 | 1.21 | |
| Compression Spring 17 | ||||
| 027 | 231352-0 | 1.00 | 1.21 | |
| Compression Spring 17 | ||||
| 27 | 231352-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 028 | 195859-9 | |||
| No information available, not orderable | ||||
| 28 | 195859-9 | |||
| Set Of Handles | ||||
| 029 | 187418-3 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 029A | 263005-3 | 1.00 | 1.21 | |
| Set Of Handles | ||||
| 29 | 187418-3 | 17.60 | 21.30 | |
| Locking Ring | ||||
| 030 | 453344-1 | 2.40 | 2.90 | |
| Locking Ring | ||||
| 30 | 453344-1 | 2.40 | 2.90 | |
| KABEL AT1826H A | ||||
| 031 | 699058-0 | 14.30 | 17.30 | |
| Kabel At1826H A | ||||
| 031 | 660260-2 | 7.21 | 8.72 | |
| KABEL AT1826H A | ||||
| 31 | 699058-0 | 14.30 | 17.30 | |
| Speed control circuit AT1826H | ||||
| 032 | 632M91-7 | 34.10 | 41.26 | |
| No information available, not orderable | ||||
| 32 | 620112-9 | |||
| Connection unit 18v (3 contacts) | ||||
| 033 | 643852-2 | 3.60 | 4.36 | |
| Connection unit 18v (3 contacts) | ||||
| 33 | 643852-2 | 3.60 | 4.36 | |
| Rotary knob ABB OHYS2AJ | ||||
| 034 | 453338-6 | 1.20 | 1.45 | |
| Rotary knob ABB OHYS2AJ | ||||
| 34 | 453338-6 | 1.20 | 1.45 | |
| Compression spring 6mm | ||||
| 035 | 233068-3 | 1.00 | 1.21 | |
| Compression spring 6mm | ||||
| 35 | 233068-3 | 1.00 | 1.21 | |
| Safety Lock Button | ||||
| 036 | 453339-4 | 1.20 | 1.45 | |
| Safety Lock Button | ||||
| 36 | 453339-4 | 1.20 | 1.45 | |
| Switch D3V-16-3C26 A | ||||
| 037 | 650744-8 | 2.40 | 2.90 | |
| Switch D3V-16-3C26 A | ||||
| 37 | 650744-8 | 2.40 | 2.90 | |
| Compression spring 6mm | ||||
| 038 | 233068-3 | 1.00 | 1.21 | |
| Compression spring 6mm | ||||
| 38 | 233068-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 039 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 39 | 265A48-7 | 1.00 | 1.21 | |
| Set Of Handles | ||||
| 040 | 187418-3 | 17.60 | 21.30 | |
| Rubber pen 6 | ||||
| 040A | 263005-3 | 1.00 | 1.21 | |
| Set Of Handles | ||||
| 40 | 187418-3 | 17.60 | 21.30 | |
| Star Knob M6 | ||||
| 041 | 264072-1 | 1.20 | 1.45 | |
| Star Knob M6 | ||||
| 41 | 264072-1 | 1.20 | 1.45 | |
| Handle | ||||
| 042 | 453340-9 | 8.40 | 10.16 | |
| Handle | ||||
| 42 | 453340-9 | 8.40 | 10.16 | |
| Hex head bolt M6x60mm | ||||
| 043 | 921382-6 | 1.20 | 1.45 | |
| Hex head bolt M6x60mm | ||||
| 43 | 921382-6 | 1.20 | 1.45 | |
