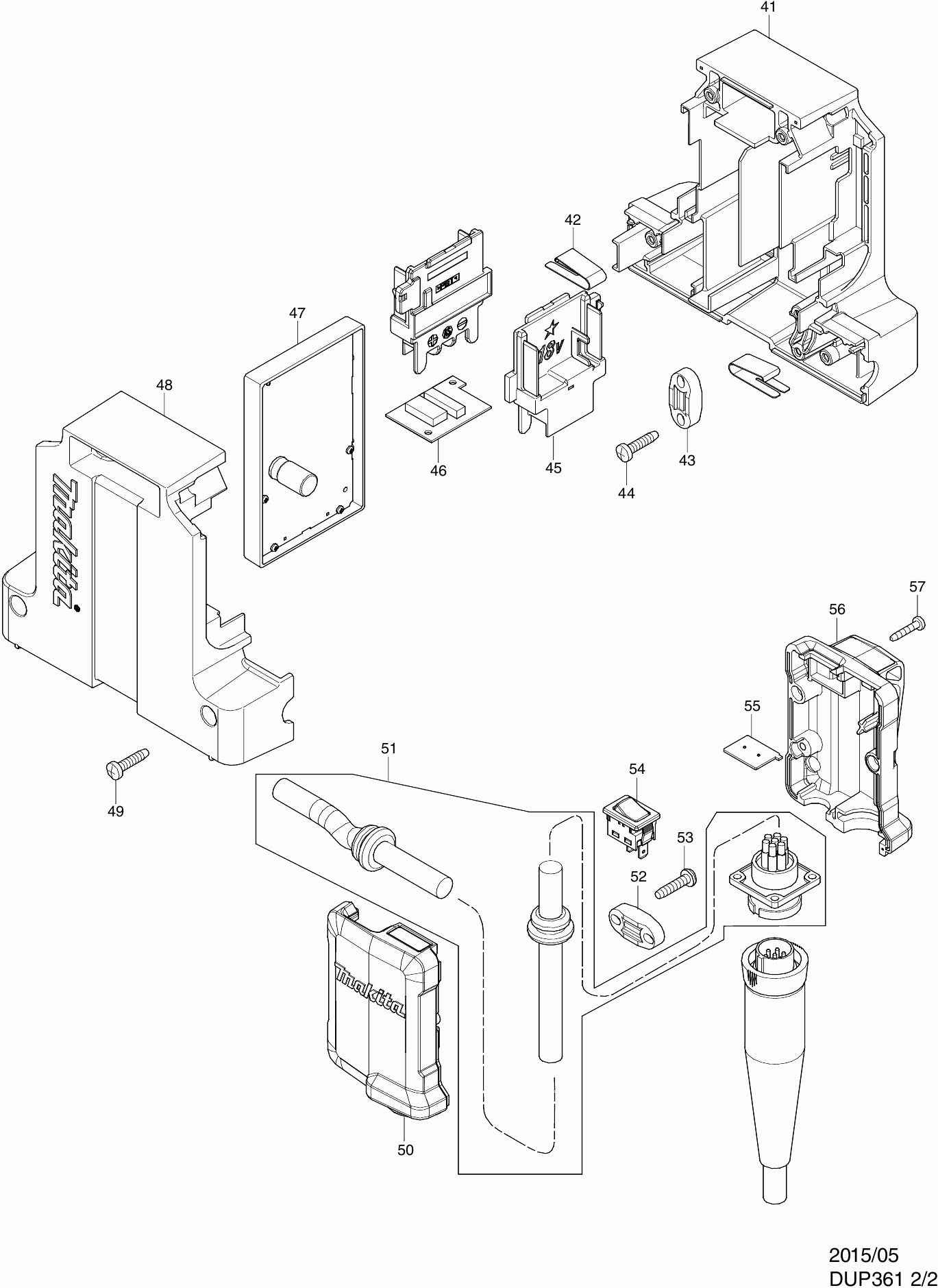

Technical drawing of model Makita AR-3733

Spare parts list of model Makita AR-3733

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Hexagon bolt M5X14mm Dup361D A
001 251490-2 0.83 1.00
Nameplate "dub361"
002 851F32-4 2.71 3.28
Name plate "ar-3733"
002 851F33-2 2.71 3.28
Motor Housing Part
003 456209-6 27.90 33.76
Motor Housing Part
003 456210-1 27.90 33.76
Screw M8
005A 251474-0 7.57 9.16
Screw with flange H+T M8 DUP361
005B 251573-8 19.23 23.27
Bovenmes snoeischaar standaard
006 197588-0 49.00 59.29
Ondermes snoeischaar standaard
007 197367-6 45.00 54.45
O-ring 3
008 213034-6 0.83 1.00
Blocking Plate
009 346940-1 1.39 1.68
Allen bolt M3x8mm
010A 266557-3 0.83 1.00
Hex Bolt H+T M3X8MM DUP361
010B 266183-8 0.83 1.00
NUT M8
011 264118-3 2.71 3.28
Inbusbout M2x10mm
012 266786-8 0.83 1.00
Cover cap B
013 456218-5 2.38 2.88
Retaining Ring E-4
014 961011-9 0.83 1.00
Coupling Arm Dup361 A
015 347165-0 5.71 6.91
Flat pin 5mm
016 256568-6 2.71 3.28
Flange bolt
017 251484-7 5.70 6.90
Lever
018 456215-1 2.02 2.44
Steel ball 2.3
019 216031-1 0.83 1.00
Pressure Spring 2
020 233491-2 0.83 1.00
Field
021 688189-0 7.50 9.08
Adjusting Screw M3x4mm
022 266999-1 0.83 1.00
Compression Spring 4
023 231397-8 0.83 1.00
Switch Lever Set
024 123536-3 13.82 16.72
Cover Cap A
025 456217-7 2.02 2.44
Hydraulic Dup361 A
026 127418-1 713.10 862.85
Screw M3x10mm
027 912012-0 0.83 1.00
Gear 48
028 227390-8 2.71 3.28
Gear 48
029 227389-3 0.83 1.00
Flat washer 12
030 253810-6 0.83 1.00
Schroef 3x8
031 652066-2 0.83 1.00
Motor mount
032 319349-0 11.84 14.33
Motor 2x18v
033 629160-5 613.66 742.53
Sub controller
034 620459-1 105.70 127.90
Motor Housing Part
035 456212-7 10.52 12.73
Motor Housing Part
035 456211-9 9.24 11.18
Screw 3x16
036 911028-2 0.83 1.00
Front Case
037 143935-3 10.50 12.70
Indicator label
037A 807L80-7 0.83 1.00
Metal. screw M3
038 266980-2 0.83 1.00
Motor Housing
041 183B69-2 21.23 25.69
Motor Housing
041 183B70-7 19.29 23.34
Leaf Spring
042 232267-4 0.98 1.19
Clamp Bracket
043 687053-2 0.83 1.00
Tap screw 4x18
044 265A48-7 0.83 1.00
Connection unit Bcl182D(3 Cont) A
045 643523-1 5.06 6.12
Connection unit
046 620461-4 28.02 33.90
Controller
047 620458-3 154.08 186.44
Motor Housing
048 183B69-2 21.23 25.69
Motor Housing
048 183B70-7 19.29 23.34
Tap screw 4x18
049 265A48-7 0.83 1.00
Switch Housing
050 183B75-7 13.83 16.73
Switch Housing
050 183B76-5 13.83 16.73
Label "info"
050A 807E89-7 2.71 3.28
Warning Label
050B 807F74-6 2.71 3.28
No information available, not orderable
051 699070-0
Clamp Bracket
052 687053-2 0.83 1.00
Tap screw 4x18
053 265A48-7 0.83 1.00
Switch
054 651536-8 8.57 10.37
LED Circuit
055 620460-6 8.21 9.93
Switch Housing
056 183B76-5 13.83 16.73
Switch Housing
056 183B75-7 13.83 16.73
Label "info"
056A 807E89-7 2.71 3.28
Warning Label
056B 807F74-6 2.71 3.28
Tapping Screw 3x16
057 266130-9 0.83 1.00
Inbusbout M2x10mm
058 266786-8 0.83 1.00
