Here you will find all available parts and drawings of the 'Makita AN943'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

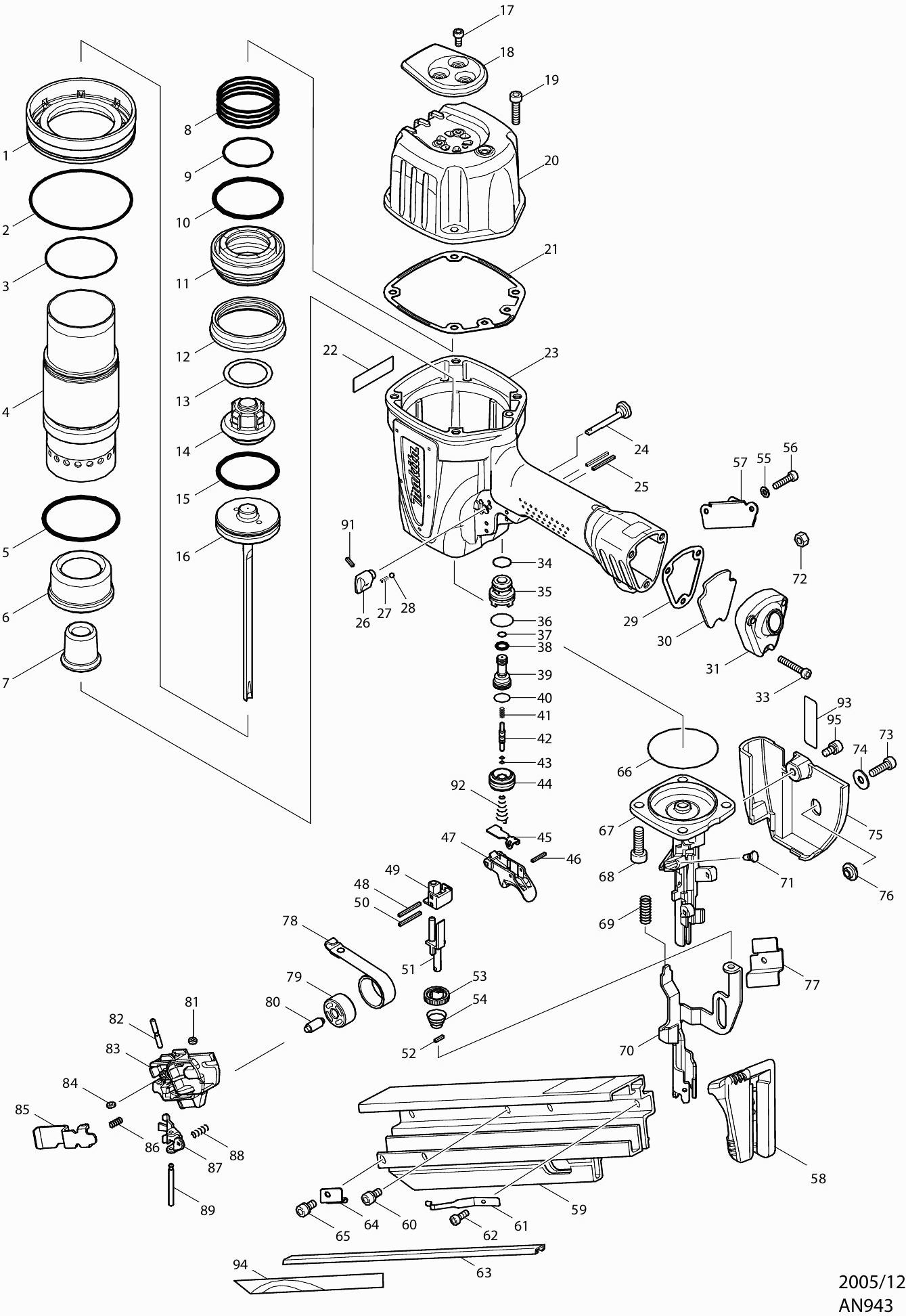

Technical drawing of model Makita AN943
Spare parts list of model Makita AN943
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder plate AN943 | ||||
| 001 | 419115-6 | 8.27 | 10.01 | |
| O-ring 100 | ||||
| 002 | 213809-3 | 3.12 | 3.78 | |
| O-ring 60 | ||||
| 003 | 213668-5 | 0.83 | 1.00 | |
| Cylinder AN943 | ||||
| 004 | 331700-4 | 48.40 | 58.56 | |
| O-ring 60 | ||||
| 005 | 213667-7 | 11.34 | 13.72 | |
| O-ring 40 | ||||
| 009 | 213504-5 | 1.39 | 1.68 | |
| O-ring 56 | ||||
| 010 | 213669-3 | 0.83 | 1.00 | |
| Main valve AN943 | ||||
| 011 | 419114-8 | 10.52 | 12.73 | |
| Valve Seat AN943 | ||||
| 012 | 421925-9 | 3.11 | 3.76 | |
| Bump plate AN943 | ||||
| 014 | 421924-1 | 9.26 | 11.20 | |
| Guide AN943 | ||||
| 016 | 154652-0 | 105.51 | 127.67 | |
| No information available, not orderable | ||||
| 018 | 345618-3 | |||
| Hex Bolt M6x25mm | ||||
| 019 | 266087-4 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 020 | 317950-5 | |||
| Cover Gasket AN943 | ||||
| 021 | 162238-6 | 13.83 | 16.73 | |
| Housing cpl AN943 | ||||
| 023 | 154820-5 | 123.71 | 149.69 | |
| No information available, not orderable | ||||
| 023C10 | 421921-7 | |||
| No information available, not orderable | ||||
| 023C20 | 421922-5 | |||
| No information available, not orderable | ||||
| 023C30 | 421923-3 | |||
| No information available, not orderable | ||||
| 023C40 | 817592-0 | |||
| Locking pin 3-28 | ||||
| 025 | 951075-1 | 0.83 | 1.00 | |
| Compression Spring 3 AN943 | ||||
| 027 | 233368-1 | 0.83 | 1.00 | |
| Steel ball 4 | ||||
| 028 | 216008-6 | 0.83 | 1.00 | |
| Inlet gasket AN943 | ||||
| 029 | 162239-4 | 5.70 | 6.90 | |
| Inlet filter AN943 | ||||
| 030 | 419356-4 | 6.41 | 7.76 | |
| Inlet cap AN943 | ||||
| 031 | 318005-9 | 19.29 | 23.34 | |
| Allen Bolt M5x30 | ||||
| 033 | 922252-2 | 0.83 | 1.00 | |
| O-ring 14 | ||||
| 034 | 213176-6 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 036 | 213262-3 | 0.98 | 1.19 | |
| O-ring 6 | ||||
| 037 | 213039-6 | 0.83 | 1.00 | |
| Valve AN943 | ||||
| 039 | 317959-7 | 8.27 | 10.01 | |
| No information available, not orderable | ||||
| 040 | 213122-9 | |||
| Valve AN943 | ||||
| 042 | 324591-0 | 2.38 | 2.88 | |
| O-Ring 3 blw A | ||||
| 043 | 213A17-2 | 0.83 | 1.00 | |
| Valve housing AN943 | ||||
| 044 | 318010-6 | 11.84 | 14.33 | |
| Tension Pin 2.5-16 | ||||
| 046 | 258004-8 | 0.83 | 1.00 | |
| Switch Button AN943 | ||||
| 047 | 419418-8 | 2.38 | 2.88 | |
| Locking pin 3-28 | ||||
| 048 | 951075-1 | 0.83 | 1.00 | |
| Switch knob holder AN943 | ||||
| 049 | 310165-3 | 15.65 | 18.94 | |
| Locking pin 3-28 | ||||
| 050 | 951075-1 | 0.83 | 1.00 | |
| Stop AN943 | ||||
| 051 | 310166-1 | 17.40 | 21.05 | |
| Spring pin 3-10 | ||||
| 052 | 951054-9 | 0.83 | 1.00 | |
| Adjusting knob AN943 | ||||
| 053 | 310163-7 | 7.21 | 8.72 | |
| Compression spring con 9-16 AN943 | ||||
| 054 | 231978-8 | 0.83 | 1.00 | |
| Washer 5 AN943 | ||||
| 055 | 267300-3 | 0.83 | 1.00 | |
| Inbusbout 5X20 | ||||
| 056 | 266369-4 | 0.83 | 1.00 | |
| Connecting Plate AN943 | ||||
| 057 | 345626-4 | 5.70 | 6.90 | |
| Cover cap AN943 | ||||
| 058 | 419117-2 | 5.70 | 6.90 | |
| Warehouse cpl AN943 | ||||
| 059 | 154823-9 | 82.47 | 99.79 | |
| Warning label A AN943 | ||||
| 059C10 | 810022-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 059C11 | 816R52-7 | |||
| Allen screw M6x12mm AN943 | ||||
| 060 | 266370-9 | 0.83 | 1.00 | |
| Nail Stop AN943 | ||||
| 061 | 345619-1 | 3.11 | 3.76 | |
| No information available, not orderable | ||||
| 062 | 922217-4 | |||
| Magazine Rail AN943 | ||||
| 063 | 345620-6 | 10.52 | 12.73 | |
| Holder AN943 | ||||
| 064 | 344765-7 | 1.39 | 1.68 | |
| Allen screw M6x12mm AN943 | ||||
| 065 | 266370-9 | 0.83 | 1.00 | |
| O-ring 60 | ||||
| 066 | 213654-6 | 1.39 | 1.68 | |
| Strike guide AN943 | ||||
| 067 | 310164-5 | 111.57 | 135.00 | |
| Allen screw M8x25mm AN943 | ||||
| 068 | 266368-6 | 2.38 | 2.88 | |
| Compression Spring 10 An943 * | ||||
| 069 | 233463-7 | 0.83 | 1.00 | |
| Connecting Plate AN943 | ||||
| 070 | 345622-2 | 17.40 | 21.05 | |
| Rubber pen 9.5 | ||||
| 071 | 421418-6 | 0.83 | 1.00 | |
| Hex Nut M6 | ||||
| 072 | 931302-2 | 0.83 | 1.00 | |
| Allen screw M6x20mm AN943 | ||||
| 073 | 265498-0 | 2.71 | 3.28 | |
| Washer 7 AN943 | ||||
| 074 | 267314-2 | 1.00 | 1.21 | |
| Cover cap AN943 | ||||
| 075 | 419118-0 | 5.09 | 6.16 | |
| No information available, not orderable | ||||
| 078 | 163456-9 | |||
| Spring guide AN943 | ||||
| 079 | 419112-2 | 1.00 | 1.21 | |
| Urethane Washer 3 | ||||
| 081 | 262054-7 | 0.98 | 1.19 | |
| Pin 4 AN943 | ||||
| 082 | 256770-1 | 2.38 | 2.88 | |
| Pressure guide AN943 | ||||
| 083 | 419116-4 | 10.52 | 12.73 | |
| Urethane Washer 3 | ||||
| 084 | 262054-7 | 0.98 | 1.19 | |
| Locking Plate AN943 | ||||
| 085 | 345673-5 | 3.44 | 4.16 | |
| Compression Spring 5 | ||||
| 086 | 231309-1 | 0.83 | 1.00 | |
| Press Pin AN943 | ||||
| 087 | 345621-4 | 10.52 | 12.73 | |
| Compression Spring 5 | ||||
| 088 | 233038-2 | 0.83 | 1.00 | |
| Pin 4 AN943 | ||||
| 089 | 256490-7 | 1.99 | 2.41 | |
| Spring pin 3-10 | ||||
| 091 | 951054-9 | 0.83 | 1.00 | |
| Label AN943 | ||||
| 093 | 810097-9 | 1.00 | 1.21 | |
| Label AN943 | ||||
| 094 | 819181-7 | 1.99 | 2.41 | |
| Allen screw M6x12mm AN943 | ||||
| 095 | 266370-9 | 0.83 | 1.00 | |
