Here you will find all available parts and drawings of the 'Makita AN935H'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

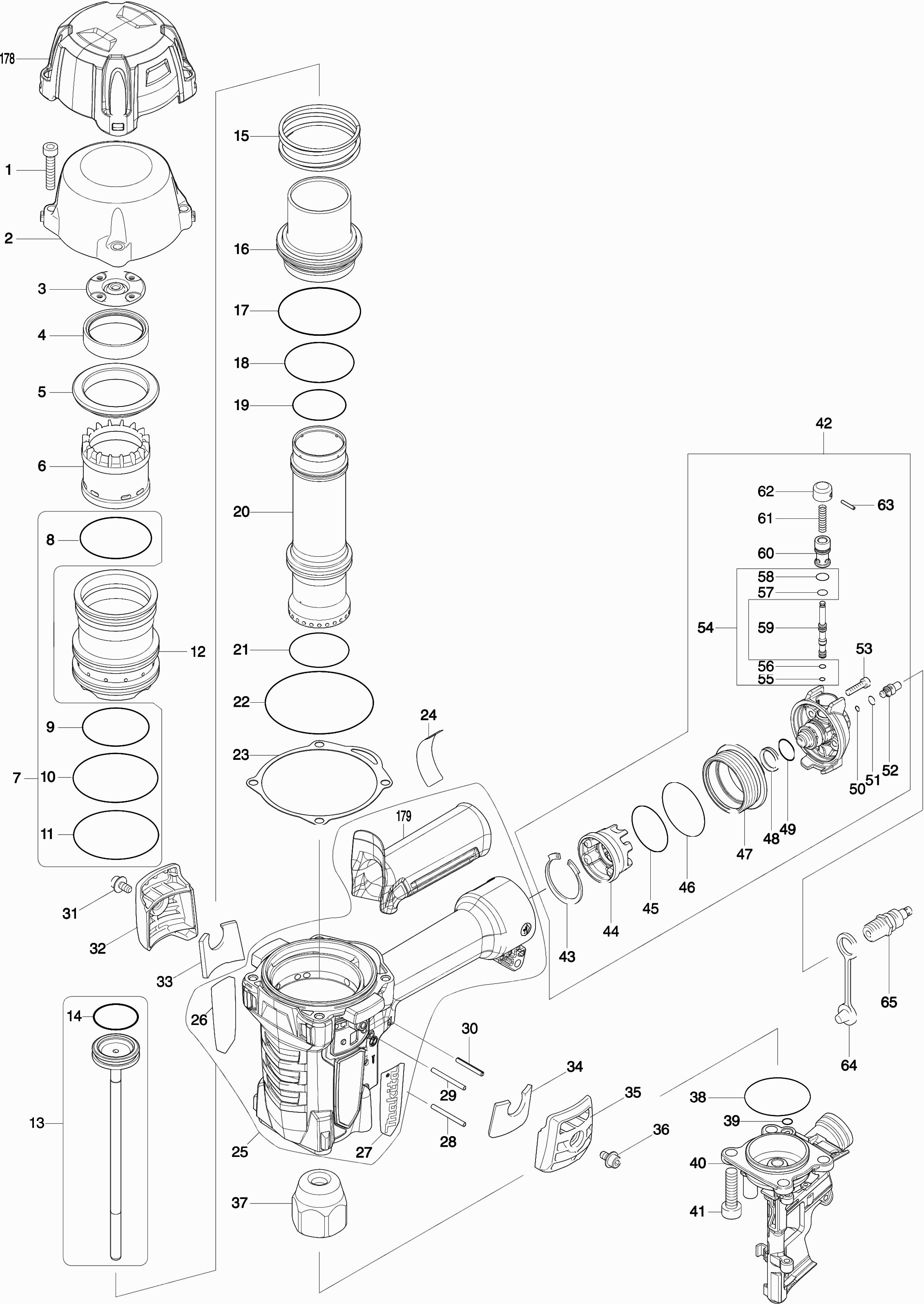

Technical drawing of model Makita AN935H
Spare parts list of model Makita AN935H
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex Socket Bolt M6x30mm | ||||
| 001 | 266913-7 | 3.60 | 4.36 | |
| Top cover | ||||
| 002 | 319360-2 | 42.90 | 51.91 | |
| Rear Bumper | ||||
| 003 | 424649-6 | 3.60 | 4.36 | |
| Valve Guide An935H | ||||
| 004 | 332118-2 | 3.60 | 4.36 | |
| Valve Seat | ||||
| 005 | 424648-8 | 8.40 | 10.16 | |
| Main Valve Guide | ||||
| 006 | 455320-1 | 46.20 | 55.90 | |
| Revision set An935H | ||||
| 007 | 197788-2 | 8.40 | 10.16 | |
| O-ring 48 | ||||
| 008 | 213791-6 | 1.20 | 1.45 | |
| O-ring 45 | ||||
| 009 | 213792-4 | 1.20 | 1.45 | |
| O-ring 58 | ||||
| 010 | 213790-8 | 1.20 | 1.45 | |
| O-ring 58 | ||||
| 011 | 213790-8 | 1.20 | 1.45 | |
| MAIN VALVE | ||||
| 012 | 332120-5 | 30.80 | 37.27 | |
| Strike pin set | ||||
| 013 | 135719-3 | 112.20 | 135.76 | |
| O-ring 28 | ||||
| 014 | 213588-3 | 4.80 | 5.81 | |
| Pressure spring 52 | ||||
| 015 | 234341-4 | 3.60 | 4.36 | |
| Distributor | ||||
| 016 | 332117-4 | 23.10 | 27.95 | |
| O-ring 56 | ||||
| 017 | 213658-8 | 1.20 | 1.45 | |
| O-ring 45 | ||||
| 018 | 213086-7 | 2.40 | 2.90 | |
| O-ring 36 | ||||
| 019 | 213510-0 | 1.20 | 1.45 | |
| Cilinder An935H A | ||||
| 020 | 327091-9 | 28.60 | 34.61 | |
| O-ring 40 | ||||
| 021 | 213509-5 | 1.00 | 1.21 | |
| O-ring 75 | ||||
| 022 | 213755-0 | 3.60 | 4.36 | |
| Gasket, top cover- | ||||
| 023 | 162368-3 | 4.80 | 5.81 | |
| Label | ||||
| 024 | 852K50-5 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 025 | 183E68-2 | |||
| Makita logo label R | ||||
| 026 | 809M90-6 | 6.00 | 7.26 | |
| Makita logo label L | ||||
| 027 | 809M89-1 | 6.00 | 7.26 | |
| Slotted Spring Pin | ||||
| 028 | 951078-5 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 029 | 951078-5 | 1.00 | 1.21 | |
| Expansion pin 3-24 | ||||
| 030 | 951072-7 | 1.00 | 1.21 | |
| Hex Socket Screw M5 x 10 mm | ||||
| 031 | 266912-9 | 2.40 | 2.90 | |
| Exhaust Cap | ||||
| 032 | 455322-7 | 2.40 | 2.90 | |
| Filter | ||||
| 033 | 455319-6 | 2.40 | 2.90 | |
| Filter | ||||
| 034 | 455319-6 | 2.40 | 2.90 | |
| Exhaust Cap | ||||
| 035 | 455321-9 | 2.40 | 2.90 | |
| Hex Socket Screw M5 x 10 mm | ||||
| 036 | 266912-9 | 2.40 | 2.90 | |
| Front Bumper | ||||
| 037 | 424387-0 | 13.20 | 15.97 | |
| O-Ring 45 Hm1214C | ||||
| 038 | 213569-7 | 1.00 | 1.21 | |
| O-Ring 6 An250/Bo3711 | ||||
| 039 | 213045-1 | 1.00 | 1.21 | |
| Strike pin guide | ||||
| 040 | 143408-6 | 325.60 | 393.98 | |
| Allen screw M8 x 30 mm | ||||
| 041 | 266914-5 | 4.80 | 5.81 | |
| Inlet | ||||
| 042 | 196452-2 | 82.50 | 99.82 | |
| Spring retaining ring | ||||
| 043 | 962165-5 | 1.20 | 1.45 | |
| Inlet Holder | ||||
| 044 | 318983-3 | 8.40 | 10.16 | |
| O-ring 33 | ||||
| 045 | 213462-5 | 1.00 | 1.21 | |
| O-ring 40 | ||||
| 046 | 213509-5 | 1.00 | 1.21 | |
| Inlet flange | ||||
| 047 | 331929-2 | 9.60 | 11.62 | |
| D-ring 14 | ||||
| 048 | 424455-9 | 1.00 | 1.21 | |
| O-ring 14 | ||||
| 049 | 213154-6 | 1.00 | 1.21 | |
| O-ring 3 | ||||
| 050 | 213034-6 | 1.00 | 1.21 | |
| O-ring 5mm | ||||
| 051 | 213005-3 | 1.00 | 1.21 | |
| Relief valve | ||||
| 052 | 452107-2 | 2.40 | 2.90 | |
| Hex bolt 4x16 | ||||
| 053 | 922127-5 | 1.00 | 1.21 | |
| Revision Set | ||||
| 054 | 197789-0 | 7.20 | 8.71 | |
| O-ring 3 | ||||
| 055 | 213034-6 | 1.00 | 1.21 | |
| O-ring 3 | ||||
| 056 | 213979-8 | 2.40 | 2.90 | |
| O-ring 5.5 | ||||
| 057 | 213545-1 | 1.00 | 1.21 | |
| O-ring 8 | ||||
| 058 | 213030-4 | 1.00 | 1.21 | |
| Valve adjuster | ||||
| 059 | 325930-7 | 6.00 | 7.26 | |
| Valve guide | ||||
| 060 | 326042-9 | 8.40 | 10.16 | |
| Compression Spring 5 | ||||
| 061 | 234003-4 | 2.40 | 2.90 | |
| Switch push button | ||||
| 062 | 452473-7 | 3.60 | 4.36 | |
| Cotter pin 2-8 | ||||
| 063 | 951001-0 | 1.00 | 1.21 | |
| Baffle | ||||
| 064 | 286280-4 | 2.40 | 2.90 | |
| Insert nipple Orion | ||||
| 065 | 243105-5 | 16.50 | 19.96 | |
| Hex socket screw 5x35 | ||||
| 066 | 922257-2 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 067 | 941102-2 | 1.00 | 1.21 | |
| Magazine complete | ||||
| 068 | 135820-4 | 52.80 | 63.89 | |
| Magazine | ||||
| 069 | 453086-7 | 11.00 | 13.31 | |
| Pen 4 | ||||
| 070 | 256773-5 | 2.40 | 2.90 | |
| Torsion Spring 7 | ||||
| 071 | 233505-7 | 3.60 | 4.36 | |
| Stopring E-3 | ||||
| 072 | 259042-3 | 1.00 | 1.21 | |
| Complete cover for magazine | ||||
| 078 | 143916-7 | 28.60 | 34.61 | |
| Warehouse label | ||||
| 078A | 809M88-3 | 8.40 | 10.16 | |
| Pen 3 | ||||
| 079 | 268168-0 | 1.20 | 1.45 | |
| ADJUSTING SHAFT AN911H * | ||||
| 080 | 454691-3 | 1.20 | 1.45 | |
| Lock Ring S-25 | ||||
| 081 | 961105-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 082 | 268272-5 | |||
| Steel ball 4 | ||||
| 083 | 216008-6 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 084 | 233492-0 | 1.20 | 1.45 | |
| Adjustment Sleeve | ||||
| 085 | 419859-8 | 2.40 | 2.90 | |
| Exchange Plate | ||||
| 086 | 419860-3 | 4.80 | 5.81 | |
| holder for carrying hook | ||||
| 087 | 455324-3 | 3.60 | 4.36 | |
| Compression Spring 7 | ||||
| 088 | 233343-7 | 1.00 | 1.21 | |
| Expansion pin 3-16 | ||||
| 089 | 951063-8 | 1.00 | 1.21 | |
| Hook | ||||
| 090 | 168583-7 | 17.60 | 21.30 | |
| Inbusbout 5X20 | ||||
| 091 | 266369-4 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 092 | 941102-2 | 1.00 | 1.21 | |
| Cover | ||||
| 093 | 456258-3 | 4.80 | 5.81 | |
| Contact plate | ||||
| 094 | 310504-7 | 11.00 | 13.31 | |
| Contact arm | ||||
| 095 | 346386-1 | 4.80 | 5.81 | |
| Nut M6-10 | ||||
| 096 | 264027-6 | 1.00 | 1.21 | |
| Washer 6mm A | ||||
| 097 | 267214-6 | 1.00 | 1.21 | |
| Steel ball 3.5 | ||||
| 098 | 216040-0 | 1.00 | 1.21 | |
| Pressure spring 3 An935 A | ||||
| 099 | 232417-1 | 1.00 | 1.21 | |
| Adjuster | ||||
| 100 | 451949-1 | 4.80 | 5.81 | |
| Axis, Adjuster | ||||
| 101 | 326751-0 | 9.60 | 11.62 | |
| O-ring 5mm | ||||
| 102 | 213005-3 | 1.00 | 1.21 | |
| Contact point | ||||
| 103 | 310673-4 | 29.70 | 35.94 | |
| O-ring 5mm | ||||
| 104 | 213005-3 | 1.00 | 1.21 | |
| Rivet | ||||
| 105 | 255174-4 | 1.20 | 1.45 | |
| 4 Washer | ||||
| 106 | 941051-3 | 1.00 | 1.21 | |
| 4 Washer | ||||
| 107 | 941051-3 | 1.00 | 1.21 | |
| Rivet | ||||
| 108 | 255174-4 | 1.20 | 1.45 | |
| Covering hood | ||||
| 109 | 413152-2 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 110 | 234225-6 | 1.20 | 1.45 | |
| Urethane Washer 3 | ||||
| 111 | 262054-7 | 1.20 | 1.45 | |
| Feed claw | ||||
| 112 | 310466-9 | 24.20 | 29.28 | |
| Pin 4-4.5 | ||||
| 113 | 256432-1 | 2.40 | 2.90 | |
| Clamp | ||||
| 114 | 346387-9 | 1.20 | 1.45 | |
| Torsion spring 4 | ||||
| 115 | 233581-1 | 2.40 | 2.90 | |
| Urethane Washer 3 | ||||
| 116 | 262054-7 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 117 | 256517-3 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 118 | 234186-0 | 1.20 | 1.45 | |
| O-ring 15 | ||||
| 119 | 213233-0 | 1.00 | 1.21 | |
| O-ring 18 | ||||
| 120 | 213275-4 | 1.00 | 1.21 | |
| O-ring 7 | ||||
| 121 | 213968-3 | 2.40 | 2.90 | |
| O-ring 12.5 | ||||
| 122 | 213185-5 | 1.20 | 1.45 | |
| O-Ring 3 blw A | ||||
| 123 | 213A17-2 | 1.20 | 1.45 | |
| O-ring 3 | ||||
| 124 | 213640-7 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 125 | 213275-4 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 126 | 197787-4 | |||
| Switch Valve Guide | ||||
| 127 | 455318-8 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 128 | 412156-1 | |||
| No information available, not orderable | ||||
| 129 | 234188-6 | |||
| Switch Valve Stem | ||||
| 130 | 326476-6 | 6.00 | 7.26 | |
| Schakelklephuis | ||||
| 131 | 326765-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 132 | 310503-9 | |||
| No information available, not orderable | ||||
| 133 | 310434-2 | |||
| No information available, not orderable | ||||
| 134 | 233570-6 | |||
| Spring pin 2-12 | ||||
| 135 | 951007-8 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 136 | 123204-8 | 26.40 | 31.94 | |
| Switch mounting plate | ||||
| 141 | 451963-7 | 6.00 | 7.26 | |
| Washer | ||||
| 144 | 261118-4 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 145 | 268262-8 | 3.60 | 4.36 | |
| Blokkeerpen 6mm | ||||
| 146 | 325928-4 | 8.40 | 10.16 | |
| Unlocking pawl | ||||
| 147 | 451953-0 | 3.60 | 4.36 | |
| Steel ball 3.5 | ||||
| 148 | 216040-0 | 1.00 | 1.21 | |
| Pressure spring 3 An935 A | ||||
| 149 | 232417-1 | 1.00 | 1.21 | |
| Cotter pin 2-8 | ||||
| 150 | 951001-0 | 1.00 | 1.21 | |
| O-ring 9 | ||||
| 152 | 213054-0 | 1.00 | 1.21 | |
| Piston | ||||
| 153 | 326438-4 | 14.30 | 17.30 | |
| O-ring 16mm DTW181 | ||||
| 154 | 213882-3 | 1.00 | 1.21 | |
| Compression Spring 9 | ||||
| 155 | 234045-8 | 4.80 | 5.81 | |
| Compression spring 10 | ||||
| 156 | 234046-6 | 4.80 | 5.81 | |
| Rubber ring 14 | ||||
| 157 | 262123-4 | 2.40 | 2.90 | |
| Cup ring | ||||
| 158 | 345781-2 | 2.40 | 2.90 | |
| Seeger Ring R24 | ||||
| 159 | 257395-4 | 1.20 | 1.45 | |
| Urethane Washer 3 | ||||
| 161 | 262054-7 | 1.20 | 1.45 | |
| Pen 4 | ||||
| 166 | 256570-9 | 1.20 | 1.45 | |
| Compression Spring 4 | ||||
| 167 | 234009-2 | 2.40 | 2.90 | |
| Nail Holder | ||||
| 168 | 310444-9 | 10.80 | 13.07 | |
| Door | ||||
| 169 | 310684-9 | 72.60 | 87.85 | |
| Switch valve complete | ||||
| 170 | 135654-5 | 82.50 | 99.82 | |
| No information available, not orderable | ||||
| 171 | 162320-1 | |||
| Pen 3 | ||||
| 172 | 268274-1 | 3.60 | 4.36 | |
| Compression Spring 7 | ||||
| 173 | 231401-3 | 1.00 | 1.21 | |
| Door cap | ||||
| 174 | 452553-9 | 3.60 | 4.36 | |
| 4 Washer | ||||
| 175 | 941051-3 | 1.00 | 1.21 | |
| Hex bolt M4X8 A | ||||
| 176 | 265911-8 | 1.00 | 1.21 | |
| O-ring 6 | ||||
| 177 | 213771-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 178 | 424771-9 | |||
| Handle | ||||
| 179 | 424770-1 | 7.20 | 8.71 | |
