Here you will find all available parts and drawings of the 'Makita AN250HC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

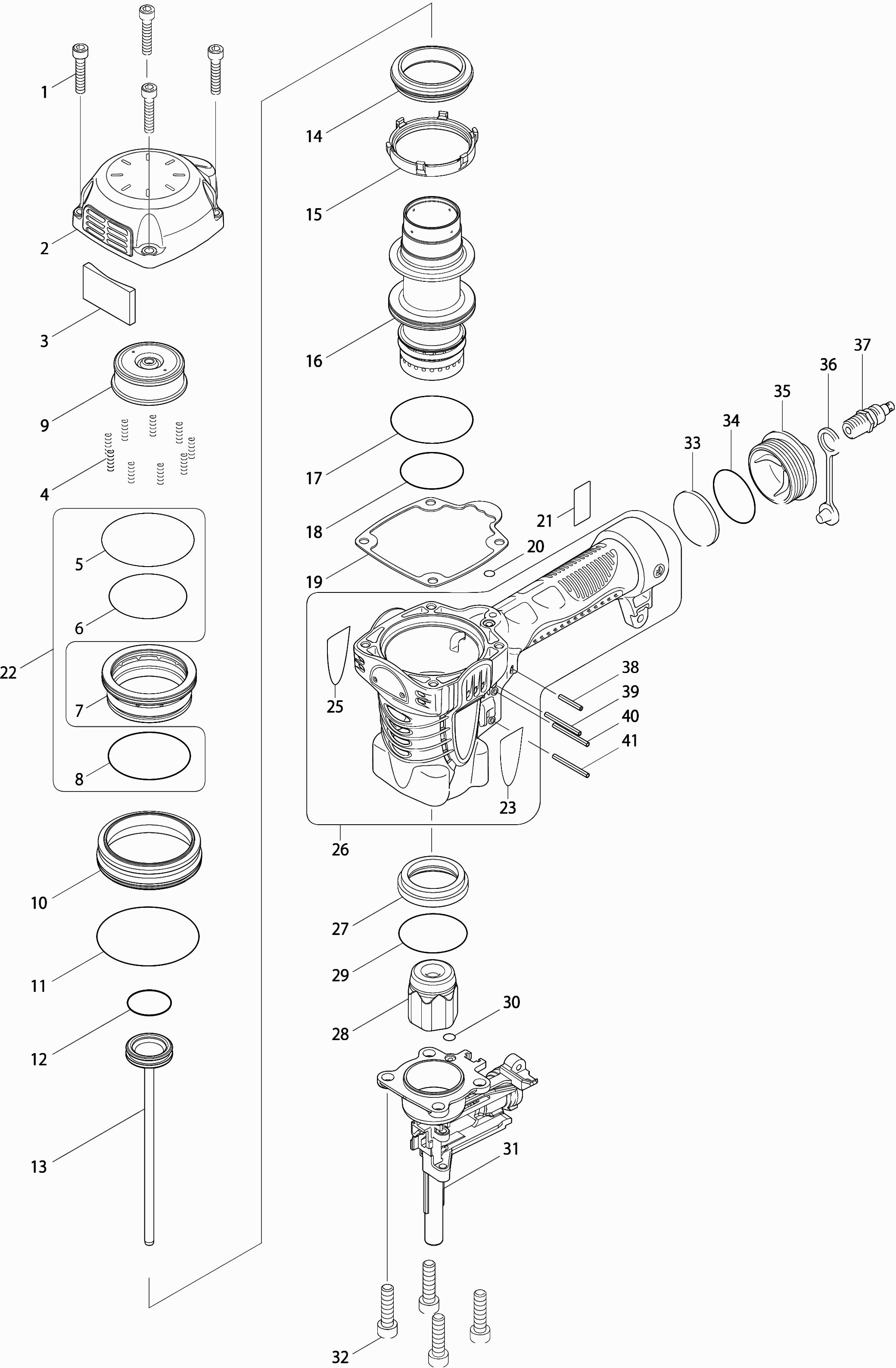

Technical drawing of model Makita AN250HC
Spare parts list of model Makita AN250HC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Allen Bolt m6x30 | ||||
| 001 | 265566-9 | 1.20 | 1.45 | |
| Top Cover Complete | ||||
| 002 | 158219-6 | 78.10 | 94.50 | |
| Filter | ||||
| 003 | 413112-4 | 11.00 | 13.31 | |
| Compression Spring 4 | ||||
| 004 | 233484-9 | 1.20 | 1.45 | |
| O-ring 60 | ||||
| 005 | 213668-5 | 1.20 | 1.45 | |
| O-ring 50 | ||||
| 006 | 213612-2 | 1.20 | 1.45 | |
| MAIN VALVE | ||||
| 007 | 419842-5 | 22.00 | 26.62 | |
| O-ring 53 | ||||
| 008 | 213657-0 | 1.20 | 1.45 | |
| Rear Bumper | ||||
| 009 | 424012-3 | 17.60 | 21.30 | |
| Main Valve Guide | ||||
| 010 | 331764-8 | 15.40 | 18.63 | |
| O-ring 67 | ||||
| 011 | 213720-9 | 2.40 | 2.90 | |
| O-ring 26 | ||||
| 012 | 213982-9 | 4.80 | 5.81 | |
| Striking pin | ||||
| 013 | 168538-2 | 125.40 | 151.73 | |
| Valve Seat | ||||
| 014 | 424013-1 | 11.00 | 13.31 | |
| Cylinder Holder | ||||
| 015 | 331759-1 | 11.00 | 13.31 | |
| Cylinder | ||||
| 016 | 331763-0 | 55.00 | 66.55 | |
| O-ring 53 | ||||
| 017 | 213657-0 | 1.20 | 1.45 | |
| O-ring 39 | ||||
| 018 | 213531-2 | 1.00 | 1.21 | |
| Gasket, top cover- | ||||
| 019 | 162254-8 | 8.40 | 10.16 | |
| O-Ring 6 An250/Bo3711 | ||||
| 020 | 213045-1 | 1.00 | 1.21 | |
| Label | ||||
| 021 | 867290-6 | 3.60 | 4.36 | |
| Revision kit An911h | ||||
| 022 | 194737-0 | 35.20 | 42.59 | |
| Label "makita" | ||||
| 023 | 819324-1 | 10.80 | 13.07 | |
| Label "makita" | ||||
| 025 | 819323-3 | 10.80 | 13.07 | |
| Housing | ||||
| 026 | 188777-8 | 184.80 | 223.61 | |
| Indicator label | ||||
| 026 | 816921-4 | 2.40 | 2.90 | |
| Cylinder guide | ||||
| 027 | 331758-3 | 9.60 | 11.62 | |
| Front Bumper | ||||
| 028 | 424011-5 | 16.50 | 19.96 | |
| O-ring 44 | ||||
| 029 | 213554-0 | 2.40 | 2.90 | |
| O-ring 5 | ||||
| 030 | 213021-5 | 1.00 | 1.21 | |
| Strike pin guide | ||||
| 031 | 310318-4 | 210.10 | 254.22 | |
| Allen Screw m8x30 | ||||
| 032 | 265565-1 | 1.20 | 1.45 | |
| Inlet filter | ||||
| 033 | 413105-1 | 3.60 | 4.36 | |
| O-Ring 38 For 3/4 Socket A | ||||
| 034 | 213514-2 | 1.20 | 1.45 | |
| Inlet cover | ||||
| 035 | 318108-9 | 20.90 | 25.29 | |
| Baffle | ||||
| 036 | 286280-4 | 2.40 | 2.90 | |
| Insert nipple Orion | ||||
| 037 | 243105-5 | 16.50 | 19.96 | |
| Cotter Pin 3-22 A | ||||
| 038 | 258033-1 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 039 | 951078-5 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 040 | 951078-5 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 041 | 951078-5 | 1.00 | 1.21 | |
| Bolt | ||||
| 042 | 265919-2 | 3.60 | 4.36 | |
| Bus 5 | ||||
| 043 | 325725-8 | 3.60 | 4.36 | |
| Inbusbout 5X20 | ||||
| 044 | 266369-4 | 1.00 | 1.21 | |
| Flat washer 5 | ||||
| 045 | 267343-5 | 1.00 | 1.21 | |
| Magazine | ||||
| 046 | 451377-0 | 11.00 | 13.31 | |
| Urethane Washer 3 | ||||
| 047 | 262120-0 | 1.20 | 1.45 | |
| Pen 4 | ||||
| 049 | 256678-9 | 2.40 | 2.90 | |
| Complete cover for magazine | ||||
| 050 | 140304-9 | 19.80 | 23.96 | |
| Hook connection | ||||
| 060 | 162255-6 | 3.60 | 4.36 | |
| Hex Nut M5 | ||||
| 061 | 931202-6 | 1.00 | 1.21 | |
| Hook | ||||
| 062 | 168499-6 | 8.40 | 10.16 | |
| Screw | ||||
| 063 | 265176-2 | 1.20 | 1.45 | |
| Cover, contact arm- | ||||
| 064 | 451379-6 | 8.40 | 10.16 | |
| Urethane Washer 3 | ||||
| 065 | 262120-0 | 1.20 | 1.45 | |
| Feed claw | ||||
| 066 | 310320-7 | 19.80 | 23.96 | |
| Compression Spring 3 | ||||
| 068 | 234150-1 | 4.80 | 5.81 | |
| Pin 4-4.5 | ||||
| 068 | 256432-1 | 2.40 | 2.90 | |
| Contact arm | ||||
| 074 | 165584-6 | 67.10 | 81.19 | |
| Pen 5 | ||||
| 075 | 256782-4 | 1.20 | 1.45 | |
| Urethane Washer 3 | ||||
| 076 | 262120-0 | 1.20 | 1.45 | |
| O-ring 9 | ||||
| 077 | 213054-0 | 1.00 | 1.21 | |
| Piston | ||||
| 078 | 325718-5 | 6.00 | 7.26 | |
| O-ring 14 | ||||
| 079 | 213154-6 | 1.00 | 1.21 | |
| Rubber ring 14 | ||||
| 080 | 262123-4 | 2.40 | 2.90 | |
| Compression Spring 9 | ||||
| 081 | 234045-8 | 4.80 | 5.81 | |
| Compression spring 10 | ||||
| 082 | 234046-6 | 4.80 | 5.81 | |
| Cup ring | ||||
| 083 | 345781-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 084 | 962103-7 | |||
| Urethane Washer 3 | ||||
| 087 | 262120-0 | 1.20 | 1.45 | |
| Door | ||||
| 088 | 310319-2 | 46.20 | 55.90 | |
| Locking Bolt | ||||
| 089 | 325721-6 | 2.40 | 2.90 | |
| Compression Spring 6 | ||||
| 090 | 233201-7 | 1.00 | 1.21 | |
| Lock Lever | ||||
| 091 | 310050-0 | 11.00 | 13.31 | |
| Hexagon bolt M5x10 | ||||
| 092 | 266167-6 | 1.00 | 1.21 | |
| Allen Bolt 5x12 | ||||
| 093 | 922211-6 | 1.00 | 1.21 | |
| Clamping Plate | ||||
| 094 | 346127-5 | 1.20 | 1.45 | |
| O-ring 15 | ||||
| 101 | 213233-0 | 1.00 | 1.21 | |
| O-ring 18 | ||||
| 102 | 213275-4 | 1.00 | 1.21 | |
| Switch Valve Guide | ||||
| 103 | 419841-7 | 27.50 | 33.28 | |
| O-ring 7 | ||||
| 104 | 213968-3 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 105 | 419958-6 | |||
| O-ring 12.5 | ||||
| 106 | 213185-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 107 | 234187-8 | |||
| O-Ring 3 blw A | ||||
| 108 | 213A17-2 | 1.20 | 1.45 | |
| O-ring 3 | ||||
| 108 | 213034-6 | 1.00 | 1.21 | |
| O-Ring 3 blw A | ||||
| 108A | 213A17-2 | 1.20 | 1.45 | |
| Switch Valve Stem | ||||
| 109 | 324743-3 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 109A | 326189-9 | |||
| O-ring 3 | ||||
| 110 | 213979-8 | 2.40 | 2.90 | |
| O-ring 3 | ||||
| 110A | 213640-7 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 111 | 213275-4 | 1.00 | 1.21 | |
| Revision kit An911h | ||||
| 112 | 194737-0 | 35.20 | 42.59 | |
| Schakelklephuis | ||||
| 113 | 331741-0 | 14.30 | 17.30 | |
| Torsion spring 5 | ||||
| 114 | 233501-5 | 1.20 | 1.45 | |
| Spacer | ||||
| 115 | 310199-6 | 6.00 | 7.26 | |
| Torsion spring 6 | ||||
| 116 | 233576-4 | 2.40 | 2.90 | |
| Unlocking pawl | ||||
| 117 | 310310-0 | 6.00 | 7.26 | |
| Switch mounting plate | ||||
| 118 | 419844-1 | 4.80 | 5.81 | |
| Steel ball 4 | ||||
| 119 | 216024-8 | 1.00 | 1.21 | |
| Pressure Spring 2 | ||||
| 120 | 233490-4 | 1.00 | 1.21 | |
| Cover plate for starter spring | ||||
| 121 | 419743-7 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 122 | 268168-0 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 123 | 268168-0 | 1.20 | 1.45 | |
| Spring pin 2-12 | ||||
| 124 | 951007-8 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 125 | 310190-4 | 17.60 | 21.30 | |
| Torsion spring 4 | ||||
| 126 | 231699-2 | 1.20 | 1.45 | |
| Lever | ||||
| 127 | 310196-2 | 7.20 | 8.71 | |
| Rotary knob ABB OHYS2AJ | ||||
| 130 | 135188-8 | 56.10 | 67.88 | |
| Shifter Rod | ||||
| 131 | 310187-3 | 7.20 | 8.71 | |
| Compression Spring 6 | ||||
| 132 | 233489-9 | 1.00 | 1.21 | |
| Adjustment block (top) | ||||
| 133 | 310227-7 | 13.20 | 15.97 | |
| Axis, Adjuster | ||||
| 134 | 324767-9 | 2.40 | 2.90 | |
| Pressure Spring 2 | ||||
| 135 | 233491-2 | 1.20 | 1.45 | |
| Steel ball 2.3 | ||||
| 136 | 216031-1 | 1.00 | 1.21 | |
| Complete adjuster | ||||
| 137 | 158747-1 | 1.20 | 1.45 | |
| Spring pin 2-14 | ||||
| 139 | 951010-9 | 1.00 | 1.21 | |
| Spring pin 2-14 | ||||
| 141 | 951010-9 | 1.00 | 1.21 | |
| Actuator | ||||
| 142 | 310201-5 | 6.00 | 7.26 | |
| Clamping Plate | ||||
| 143 | 345801-2 | 2.40 | 2.90 | |
| Adjuster set | ||||
| 144 | 135228-2 | 38.50 | 46.58 | |
| Schakelklep Cmpl. An711H A | ||||
| 145 | 136098-2 | 72.60 | 87.85 | |
