Here you will find all available parts and drawings of the 'Makita AF550H'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

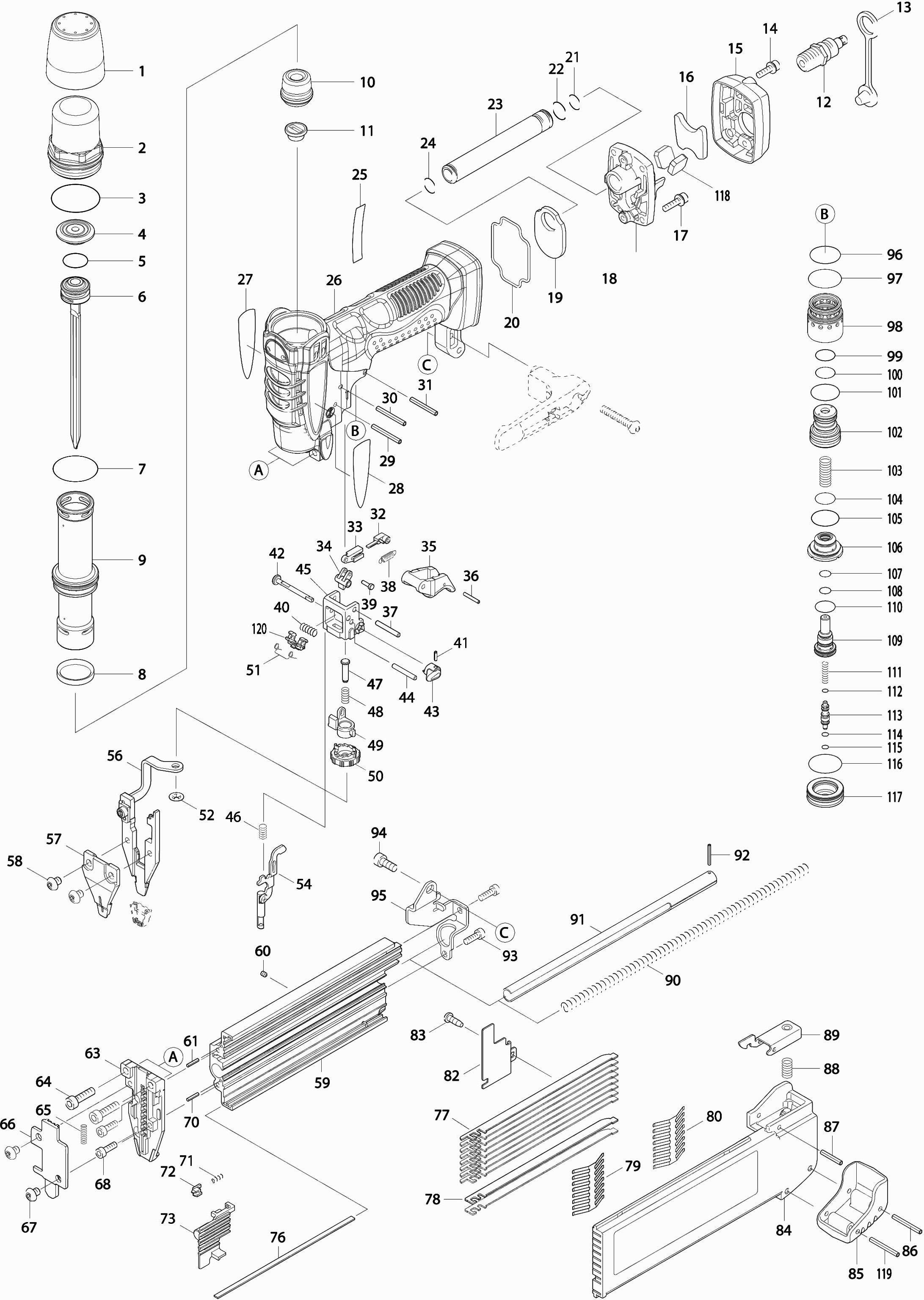

Technical drawing of model Makita AF550H
Spare parts list of model Makita AF550H
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Covering hood | ||||
| 001 | 450630-1 | 6.00 | 7.26 | |
| Top cover | ||||
| 002 | 318286-5 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 003 | 213487-9 | |||
| Rear Bumper | ||||
| 004 | 424120-0 | 12.10 | 14.64 | |
| No information available, not orderable | ||||
| 004-1 | 424947-8 | |||
| O-ring 14 | ||||
| 005 | 213189-7 | 6.00 | 7.26 | |
| Striking pin | ||||
| 006 | 158686-5 | 59.40 | 71.87 | |
| O-Ring 29 Af500Hp/Sr2600 | ||||
| 007 | 213412-0 | 1.20 | 1.45 | |
| D-ring | ||||
| 008 | 424116-1 | 2.40 | 2.90 | |
| Cylinder | ||||
| 009 | 331830-1 | 28.60 | 34.61 | |
| Front Bumper | ||||
| 010 | 424119-5 | 11.00 | 13.31 | |
| Sealing plug A | ||||
| 011 | 424233-7 | 3.60 | 4.36 | |
| Sealing plug A | ||||
| 011-1 | 424233-7 | 3.60 | 4.36 | |
| Insert nipple Orion | ||||
| 012 | 243105-5 | 16.50 | 19.96 | |
| Baffle | ||||
| 013 | 286280-4 | 2.40 | 2.90 | |
| Hexagon socket screw 4x12 | ||||
| 014 | 265353-6 | 1.20 | 1.45 | |
| Exhaust Cap | ||||
| 015 | 450632-7 | 4.80 | 5.81 | |
| Filter | ||||
| 016 | 413123-9 | 3.60 | 4.36 | |
| Hex bolt 4x16 | ||||
| 017 | 922127-5 | 1.00 | 1.21 | |
| Intake Cover Af500Hp | ||||
| 018 | 318287-3 | 6.00 | 7.26 | |
| Inlet filter | ||||
| 019 | 413122-1 | 3.60 | 4.36 | |
| Washer | ||||
| 020 | 424117-9 | 2.40 | 2.90 | |
| O-ring 9.5 | ||||
| 021 | 213194-4 | 2.40 | 2.90 | |
| O-ring 9.5 | ||||
| 021-1 | 213194-4 | 2.40 | 2.90 | |
| O-ring 11 | ||||
| 022 | 213105-9 | 1.00 | 1.21 | |
| Pipe | ||||
| 023 | 331832-7 | 8.40 | 10.16 | |
| O-ring 9.5 | ||||
| 024 | 213194-4 | 2.40 | 2.90 | |
| O-ring 9.5 | ||||
| 024-1 | 213194-4 | 2.40 | 2.90 | |
| Name Plate "af550h" | ||||
| 025 | 865254-4 | 3.60 | 4.36 | |
| Housing | ||||
| 026 | 188601-5 | 105.60 | 127.78 | |
| Housing | ||||
| 026-1 | 188601-5 | 105.60 | 127.78 | |
| Makita logo label R | ||||
| 027 | 819313-6 | 3.60 | 4.36 | |
| Makita logo label R | ||||
| 027-1 | 819313-6 | 3.60 | 4.36 | |
| Makita logo label L | ||||
| 028 | 819314-4 | 2.40 | 2.90 | |
| Makita logo label L | ||||
| 028-1 | 819314-4 | 2.40 | 2.90 | |
| Locking pin 3-28 | ||||
| 029 | 951075-1 | 1.00 | 1.21 | |
| Locking pin 3-28 | ||||
| 030 | 951075-1 | 1.00 | 1.21 | |
| Tension pin 3-26 | ||||
| 031 | 258037-3 | 1.00 | 1.21 | |
| Tension pin 3-26 | ||||
| 031-1 | 258037-3 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 032 | 310263-3 | 3.60 | 4.36 | |
| Lock pin guide | ||||
| 033 | 310296-8 | 3.60 | 4.36 | |
| Lock pin guide | ||||
| 033-1 | 310296-8 | 3.60 | 4.36 | |
| Connection block | ||||
| 034 | 310312-6 | 3.60 | 4.36 | |
| Connection block | ||||
| 034-1 | 310312-6 | 3.60 | 4.36 | |
| Rotary knob ABB OHYS2AJ | ||||
| 035 | 450633-5 | 4.80 | 5.81 | |
| Spring pin 2-14 | ||||
| 036 | 951010-9 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 037 | 256221-4 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 038 | 231856-2 | 1.20 | 1.45 | |
| Pen 2 | ||||
| 039 | 268218-1 | 4.80 | 5.81 | |
| Compression Spring 5 | ||||
| 040 | 231309-1 | 1.00 | 1.21 | |
| Cotter pin 2-8 | ||||
| 041 | 951001-0 | 1.00 | 1.21 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 042 | 324948-5 | 4.80 | 5.81 | |
| Knob | ||||
| 043 | 450786-0 | 4.80 | 5.81 | |
| Pen 3 | ||||
| 044 | 256221-4 | 1.00 | 1.21 | |
| Switch mounting plate | ||||
| 045 | 451332-2 | 2.40 | 2.90 | |
| Switch mounting plate | ||||
| 045-2 | 451332-2 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 046 | 234067-8 | 1.00 | 1.21 | |
| Pen 4 | ||||
| 047 | 268243-2 | 1.20 | 1.45 | |
| Pen 4 | ||||
| 047-1 | 268243-2 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 048 | 234069-4 | 4.80 | 5.81 | |
| Compression Spring 5 | ||||
| 048-1 | 234100-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049 | 310313-4 | |||
| No information available, not orderable | ||||
| 049-1 | 310313-4 | |||
| Adjuster | ||||
| 050 | 310266-7 | 14.30 | 17.30 | |
| Torsion Spring | ||||
| 051 | 233533-2 | 10.80 | 13.07 | |
| Pressure nut M3 | ||||
| 052 | 259009-1 | 1.00 | 1.21 | |
| Arm | ||||
| 054 | 165568-4 | 10.80 | 13.07 | |
| Contact arm, complete | ||||
| 056 | 158687-3 | 30.80 | 37.27 | |
| Strike pin guide front | ||||
| 057 | 310268-3 | 17.60 | 21.30 | |
| Met.screw Ck Inb M5x6mm | ||||
| 058 | 266577-7 | 1.20 | 1.45 | |
| Met.screw Ck Inb M5x6mm | ||||
| 058-1 | 266577-7 | 1.20 | 1.45 | |
| Magazine | ||||
| 059 | 331833-5 | 26.40 | 31.94 | |
| Adjusting Screw M3x4mm | ||||
| 060 | 266999-1 | 1.00 | 1.21 | |
| Adjusting Screw M3x4mm | ||||
| 060-1 | 266999-1 | 1.00 | 1.21 | |
| Spring pin 2-10 | ||||
| 061 | 951004-4 | 1.00 | 1.21 | |
| Nose plate | ||||
| 063 | 310270-6 | 41.80 | 50.58 | |
| Inbusbout 5X20 | ||||
| 064 | 266369-4 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 065 | 234099-5 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 065-1 | 234099-5 | 1.00 | 1.21 | |
| Strike pin guide rear | ||||
| 066 | 310271-4 | 20.90 | 25.29 | |
| Met.screw Ck Inb M5x6mm | ||||
| 067 | 266577-7 | 1.20 | 1.45 | |
| Met.screw Ck Inb M5x6mm | ||||
| 067-1 | 266577-7 | 1.20 | 1.45 | |
| Hexagon socket screw 4x12 | ||||
| 068 | 265353-6 | 1.20 | 1.45 | |
| Spring pin 2-10 | ||||
| 070 | 951004-4 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 071 | 233018-8 | 1.00 | 1.21 | |
| Output Bpt350 | ||||
| 072 | 310176-8 | 3.60 | 4.36 | |
| Pressure Plate | ||||
| 073 | 310269-1 | 23.10 | 27.95 | |
| Nail plate | ||||
| 076 | 345955-5 | 4.80 | 5.81 | |
| Nail guide plate A | ||||
| 077 | 345951-3 | 4.80 | 5.81 | |
| Nail Guide Plate B | ||||
| 078 | 345956-3 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 079 | 232244-6 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 080 | 232244-6 | 4.80 | 5.81 | |
| Cover Plate | ||||
| 082 | 345952-1 | 4.80 | 5.81 | |
| Self-tapping screw 4x12 | ||||
| 083 | 266451-9 | 0.83 | 1.00 | |
| Screw 4x12 | ||||
| 083-1 | 265C54-4 | 1.00 | 1.21 | |
| Slide cover complete | ||||
| 084 | 158750-2 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 084-1 | 142806-1 | |||
| Magazine bumper | ||||
| 085 | 424122-6 | 4.80 | 5.81 | |
| Locking pin 3-28 | ||||
| 086 | 951075-1 | 1.00 | 1.21 | |
| Cotter Pin 3-22 A | ||||
| 087 | 258033-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 088 | 233097-6 | |||
| Lock Lever | ||||
| 089 | 345954-7 | 4.80 | 5.81 | |
| Compression Spring 6 | ||||
| 090 | 234071-7 | 4.80 | 5.81 | |
| Guide Bushing | ||||
| 091 | 345957-1 | 11.00 | 13.31 | |
| Locking pin 2-16 | ||||
| 092 | 951013-3 | 1.00 | 1.21 | |
| Hexagon socket screw 4x12 | ||||
| 093 | 265353-6 | 1.20 | 1.45 | |
| Hex bolt m5x14 | ||||
| 094 | 265909-5 | 2.40 | 2.90 | |
| Coupling plate | ||||
| 095 | 345953-9 | 4.80 | 5.81 | |
| O-ring 20 | ||||
| 096 | 213310-8 | 1.20 | 1.45 | |
| O-ring 22 | ||||
| 097 | 213373-4 | 1.20 | 1.45 | |
| Switch Valve Guide | ||||
| 098 | 331831-9 | 8.40 | 10.16 | |
| O-ring 11.2 | ||||
| 099 | 213137-6 | 2.40 | 2.90 | |
| O-ring 12.5 | ||||
| 100 | 213191-0 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 101 | 213262-3 | 1.20 | 1.45 | |
| MAIN VALVE | ||||
| 102 | 412091-3 | 39.60 | 47.92 | |
| Compression Spring 7 | ||||
| 103 | 234070-9 | 1.20 | 1.45 | |
| O-ring 14 | ||||
| 104 | 213162-7 | 1.00 | 1.21 | |
| O-ring 18 | ||||
| 105 | 213275-4 | 1.00 | 1.21 | |
| Switch Valve Guide | ||||
| 106 | 324912-6 | 9.60 | 11.62 | |
| O-ring 6 | ||||
| 107 | 213998-4 | 2.40 | 2.90 | |
| O-ring 6 | ||||
| 108 | 213998-4 | 2.40 | 2.90 | |
| Control valve | ||||
| 109 | 451026-9 | 36.30 | 43.92 | |
| Control valve | ||||
| 109-1 | 451026-9 | 36.30 | 43.92 | |
| O-ring 14 | ||||
| 110 | 213162-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 111 | 234068-6 | |||
| O-ring 3 | ||||
| 112 | 213034-6 | 1.00 | 1.21 | |
| Switch Valve Stem | ||||
| 113 | 325634-1 | 6.00 | 7.26 | |
| Switch Valve Stem | ||||
| 113-1 | 325634-1 | 6.00 | 7.26 | |
| O-ring 3 | ||||
| 114 | 213979-8 | 2.40 | 2.90 | |
| O-ring 3 | ||||
| 115 | 213979-8 | 2.40 | 2.90 | |
| O-ring 22 | ||||
| 116 | 213373-4 | 1.20 | 1.45 | |
| Schakelklephuis | ||||
| 117 | 325633-3 | 13.20 | 15.97 | |
| Schakelklephuis | ||||
| 117-1 | 325633-3 | 13.20 | 15.97 | |
| Filter | ||||
| 118 | 413125-5 | 2.40 | 2.90 | |
| Locking pin 3-28 | ||||
| 119 | 951075-1 | 1.00 | 1.21 | |
| Connecting link | ||||
| 120 | 310284-5 | 16.50 | 19.96 | |
