Here you will find all available parts and drawings of the 'Makita AF505'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

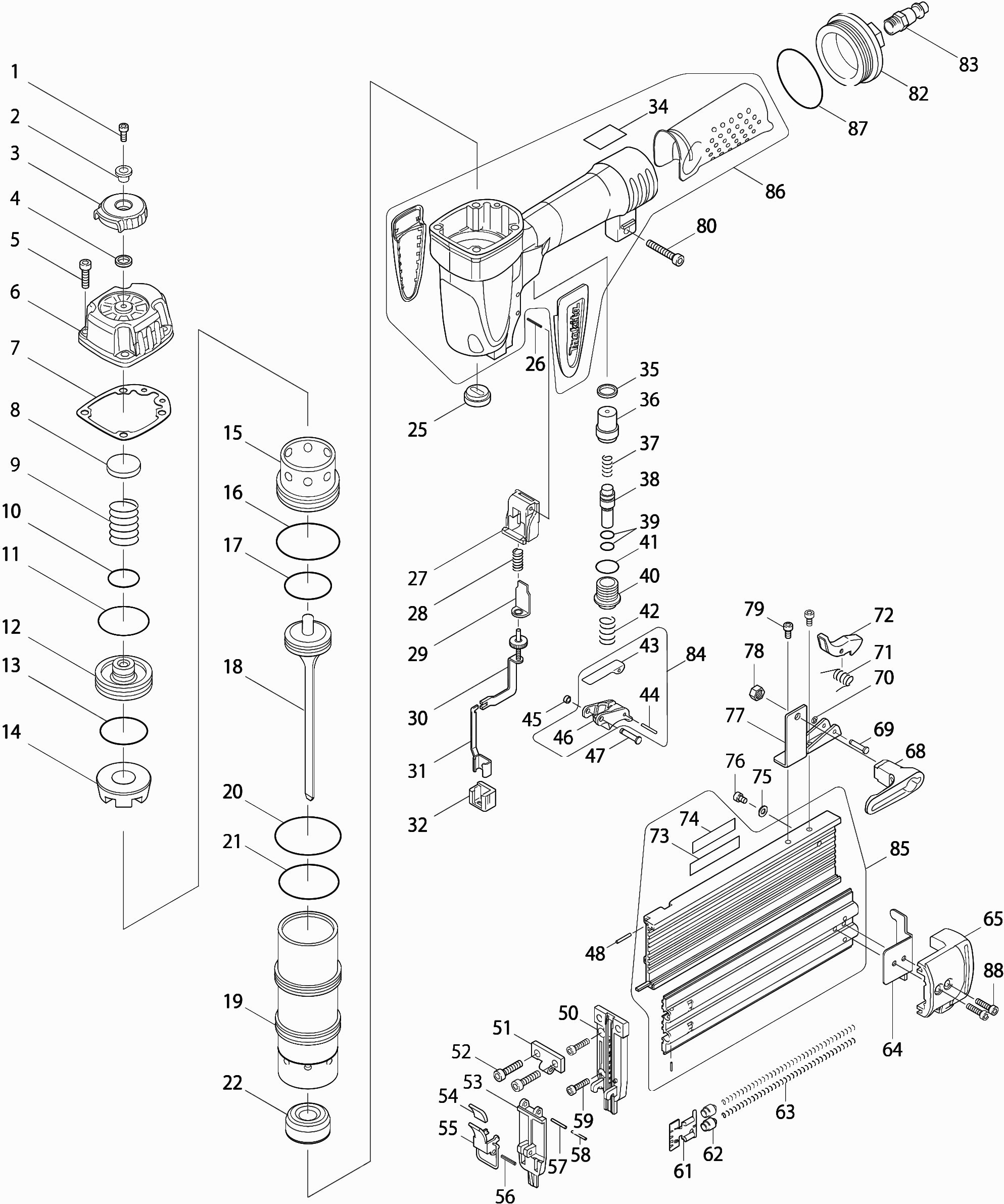

Technical drawing of model Makita AF505
Spare parts list of model Makita AF505
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| A01 | HY00000090 | |||
| No information available, not orderable | ||||
| A02 | 192517-8 | |||
| No information available, not orderable | ||||
| A02-1 | 195246-2 | |||
| TACKEROLIE 18ML | ||||
| A03 | 194381-3 | 3.00 | 3.63 | |
| Allen Screw M4 x 10 mm | ||||
| 001 | HY00000001 | 1.00 | 1.21 | |
| Sleeve 4 | ||||
| 002 | HY00000002 | 1.00 | 1.21 | |
| Exhaust Cap | ||||
| 003 | HY00000003 | 1.20 | 1.45 | |
| Rubber Ring 7 | ||||
| 004 | HY00000004 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 005 | HY00000005 | |||
| Top cover | ||||
| 006 | HY00000006 | 8.40 | 10.16 | |
| Gasket, top cover- | ||||
| 007 | HY00000007 | 4.80 | 5.81 | |
| Protection AF-DW | ||||
| 008 | HY00000008 | 1.00 | 1.21 | |
| Compression Spring 7 | ||||
| 009 | HY00000009 | 1.00 | 1.21 | |
| O-ring 12 | ||||
| 010 | HY00000010 | 1.00 | 1.21 | |
| O-ring 33 | ||||
| 011 | HY00000011 | 1.00 | 1.21 | |
| MAIN VALVE | ||||
| 012 | HY00000012 | 3.60 | 4.36 | |
| O-Ring 29 | ||||
| 013 | HY00000013 | 1.00 | 1.21 | |
| Protection P | ||||
| 014 | HY00000014 | 1.00 | 1.21 | |
| Distributor | ||||
| 015 | HY00000015 | 3.60 | 4.36 | |
| O-ring 46 | ||||
| 016 | HY00000016 | 1.00 | 1.21 | |
| O-ring 24 | ||||
| 017 | HY00000017 | 1.00 | 1.21 | |
| Striking pin | ||||
| 018 | HY00000018 | 13.20 | 15.97 | |
| Cylinder | ||||
| 019 | HY00000019 | 8.40 | 10.16 | |
| O-ring 36 | ||||
| 020 | HY00000020 | 1.20 | 1.45 | |
| O-ring 31 | ||||
| 021 | HY00000021 | 1.00 | 1.21 | |
| Protection F | ||||
| 022 | HY00000022 | 2.40 | 2.90 | |
| Protection F | ||||
| 022-1 | HY00000022 | 2.40 | 2.90 | |
| Sealing plug | ||||
| 025 | HY00000023 | 1.00 | 1.21 | |
| Tension pin 3-26 | ||||
| 026 | HY00000024 | 1.00 | 1.21 | |
| Holder | ||||
| 027 | HY00000025 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 028 | HY00000026 | 1.00 | 1.21 | |
| Stopper | ||||
| 029 | HY00000027 | 1.20 | 1.45 | |
| Contact arm | ||||
| 030 | HY00000028 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 031 | HY00000029 | |||
| No information available, not orderable | ||||
| 032 | HY00000030 | |||
| Label "warning" | ||||
| 034 | HY00000032 | 2.40 | 2.90 | |
| Rubber ring 8mm | ||||
| 035 | HY00000033 | 1.00 | 1.21 | |
| Switch Valve Guide | ||||
| 036 | HY00000034 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 037 | HY00000035 | 1.00 | 1.21 | |
| Switch Valve Stem | ||||
| 038 | HY00000036 | 1.20 | 1.45 | |
| O-ring 3 | ||||
| 039 | HY00000037 | 1.00 | 1.21 | |
| Schakelklephuis | ||||
| 040 | HY00000038 | 2.40 | 2.90 | |
| O-ring 11 | ||||
| 041 | HY00000039 | 1.00 | 1.21 | |
| Compression spring 10 | ||||
| 042 | HY00000040 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 043 | HY00000041 | 1.00 | 1.21 | |
| Tension pin 2.5-17 | ||||
| 044 | HY00000042 | 1.00 | 1.21 | |
| Rubber washer 2mm | ||||
| 045 | HY00000043 | 1.00 | 1.21 | |
| Rotary knob ABB OHYS2AJ | ||||
| 046 | HY00000044 | 1.20 | 1.45 | |
| Pen 3 | ||||
| 047 | HY00000045 | 1.00 | 1.21 | |
| Pen 2 | ||||
| 048 | HY00000046 | 1.00 | 1.21 | |
| Strike pin guide | ||||
| 050 | HY00000047 | 10.80 | 13.07 | |
| Mounting Plate | ||||
| 051 | HY00000048 | 3.60 | 4.36 | |
| Allen screw M5 x 22 mm | ||||
| 052 | HY00000049 | 1.00 | 1.21 | |
| Door | ||||
| 053 | HY00000050 | 6.00 | 7.26 | |
| Baffle | ||||
| 054 | HY00000051 | 1.00 | 1.21 | |
| Clamping Lever | ||||
| 055 | HY00000052 | 1.00 | 1.21 | |
| Spring pin 2.5-16 | ||||
| 056 | HY00000053 | 1.00 | 1.21 | |
| Spring pin 2.5-18 | ||||
| 057 | HY00000054 | 1.00 | 1.21 | |
| Spring pin 1.5-18 | ||||
| 058 | HY00000055 | 1.00 | 1.21 | |
| Allen screw M4 x 16 mm | ||||
| 059 | HY00000056 | 1.20 | 1.45 | |
| Pressure Plate | ||||
| 061 | HY00000057 | 1.20 | 1.45 | |
| Pin 7 | ||||
| 062 | HY00000058 | 1.00 | 1.21 | |
| Compression Spring 6 | ||||
| 063 | HY00000059 | 2.40 | 2.90 | |
| Magazine Plate | ||||
| 064 | HY00000060 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 065 | HY00000061 | |||
| Hook | ||||
| 068 | HY00000062 | 2.40 | 2.90 | |
| Pen 3 | ||||
| 069 | HY00000063 | 1.00 | 1.21 | |
| Lock ring E-2.5 | ||||
| 070 | HY00000064 | 1.00 | 1.21 | |
| Torsion spring | ||||
| 071 | HY00000065 | 1.00 | 1.21 | |
| Lock Lever | ||||
| 072 | HY00000066 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 073 | HY00000068 | |||
| Rivet | ||||
| 075 | HY00000070 | 1.00 | 1.21 | |
| Allen screw M4 x 6 mm | ||||
| 076 | HY00000071 | 1.00 | 1.21 | |
| Coupling plate | ||||
| 077 | HY00000072 | 2.40 | 2.90 | |
| Nut M5 | ||||
| 078 | HY00000073 | 1.00 | 1.21 | |
| Allen screw M4 x 8 mm | ||||
| 079 | HY00000074 | 1.00 | 1.21 | |
| Allen screw M5 x 30 mm | ||||
| 080 | HY00000075 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 082 | HY00000078 | |||
| LUCHTNIPPEL ORION R1/4" | ||||
| 083 | HY00000081 | 1.00 | 1.21 | |
| SWITCH SET | ||||
| 084 | HY00000083 | 1.20 | 1.45 | |
| Magazine assy AF505N | ||||
| 085 | HY00000085 | 23.10 | 27.95 | |
| Housing assy AF505N | ||||
| 086 | HY00000088 | 30.80 | 37.27 | |
| O-ring 36 | ||||
| 087 | HY00000020 | 1.20 | 1.45 | |
| Allen screw M4 x 16 mm | ||||
| 088 | HY00000056 | 1.20 | 1.45 | |
