Here you will find all available parts and drawings of the 'Makita AF500HP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

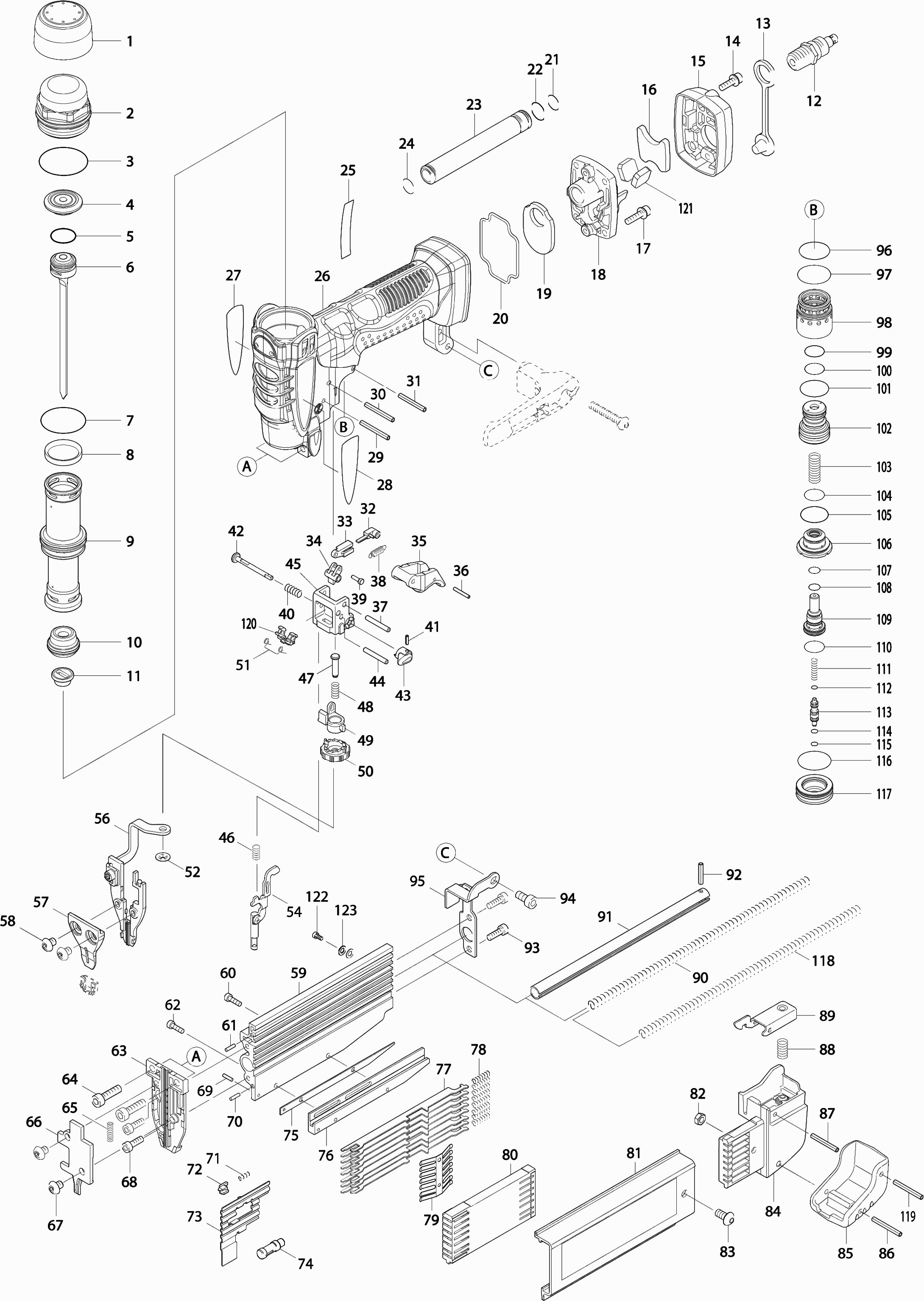

Technical drawing of model Makita AF500HP
Spare parts list of model Makita AF500HP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Covering hood | ||||
| 001 | 450628-8 | 2.40 | 2.90 | |
| Top cover | ||||
| 002 | 318284-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 003 | 213487-9 | |||
| Rear Bumper | ||||
| 004 | 424120-0 | 12.10 | 14.64 | |
| O-ring 14 | ||||
| 005 | 213190-2 | 9.60 | 11.62 | |
| Striking pin | ||||
| 006 | 158681-5 | 72.60 | 87.85 | |
| O-Ring 29 Af500Hp/Sr2600 | ||||
| 007 | 213412-0 | 1.20 | 1.45 | |
| D-ring | ||||
| 008 | 424116-1 | 2.40 | 2.90 | |
| Cylinder | ||||
| 009 | 331829-6 | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 010 | 424130-7 | |||
| Sealing plug A | ||||
| 011 | 424233-7 | 3.60 | 4.36 | |
| Insert nipple Orion | ||||
| 012 | 243105-5 | 16.50 | 19.96 | |
| Baffle | ||||
| 013 | 286280-4 | 2.40 | 2.90 | |
| Hexagon socket screw 4x12 | ||||
| 014 | 265353-6 | 1.20 | 1.45 | |
| Exhaust Cap | ||||
| 015 | 450632-7 | 4.80 | 5.81 | |
| Filter | ||||
| 016 | 413123-9 | 3.60 | 4.36 | |
| Hex bolt 4x16 | ||||
| 017 | 922127-5 | 1.00 | 1.21 | |
| Intake Cover Af500Hp | ||||
| 018 | 318287-3 | 6.00 | 7.26 | |
| Inlet filter | ||||
| 019 | 413122-1 | 3.60 | 4.36 | |
| Washer | ||||
| 020 | 424117-9 | 2.40 | 2.90 | |
| O-ring 9.5 | ||||
| 021 | 213194-4 | 2.40 | 2.90 | |
| O-ring 11 | ||||
| 022 | 213105-9 | 1.00 | 1.21 | |
| Pipe | ||||
| 023 | 331832-7 | 8.40 | 10.16 | |
| O-ring 9.5 | ||||
| 024 | 213194-4 | 2.40 | 2.90 | |
| Name Plate "af500hp" | ||||
| 025 | 865252-8 | 3.60 | 4.36 | |
| Housing | ||||
| 026 | 188601-5 | 105.60 | 127.78 | |
| Makita logo label R | ||||
| 027 | 819313-6 | 3.60 | 4.36 | |
| Makita logo label L | ||||
| 028 | 819314-4 | 2.40 | 2.90 | |
| Locking pin 3-28 | ||||
| 029 | 951075-1 | 1.00 | 1.21 | |
| Locking pin 3-28 | ||||
| 030 | 951075-1 | 1.00 | 1.21 | |
| Tension pin 3-26 | ||||
| 031 | 258037-3 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 032 | 310263-3 | 3.60 | 4.36 | |
| Lock pin guide | ||||
| 033 | 310296-8 | 3.60 | 4.36 | |
| Connection block | ||||
| 034 | 310312-6 | 3.60 | 4.36 | |
| Rotary knob ABB OHYS2AJ | ||||
| 035 | 450633-5 | 4.80 | 5.81 | |
| Spring pin 2-14 | ||||
| 036 | 951010-9 | 1.00 | 1.21 | |
| Pen 3 | ||||
| 037 | 256221-4 | 1.00 | 1.21 | |
| Compression Spring 4 | ||||
| 038 | 231856-2 | 1.20 | 1.45 | |
| Pen 2 | ||||
| 039 | 268218-1 | 4.80 | 5.81 | |
| Compression Spring 5 | ||||
| 040 | 231309-1 | 1.00 | 1.21 | |
| Cotter pin 2-8 | ||||
| 041 | 951001-0 | 1.00 | 1.21 | |
| Stopper Pin Ass'y Includ.94 | ||||
| 042 | 324948-5 | 4.80 | 5.81 | |
| Knob | ||||
| 043 | 450786-0 | 4.80 | 5.81 | |
| Pen 3 | ||||
| 044 | 256221-4 | 1.00 | 1.21 | |
| Switch mounting plate | ||||
| 045 | 451332-2 | 2.40 | 2.90 | |
| Compression Spring 5 | ||||
| 046 | 234067-8 | 1.00 | 1.21 | |
| Pen 4 | ||||
| 047 | 268243-2 | 1.20 | 1.45 | |
| Compression Spring 5 | ||||
| 048 | 234100-6 | 1.00 | 1.21 | |
| Stopper | ||||
| 049 | 310265-9 | 6.00 | 7.26 | |
| Adjuster | ||||
| 050 | 310286-1 | 13.20 | 15.97 | |
| Torsion Spring | ||||
| 051 | 233533-2 | 10.80 | 13.07 | |
| Pressure nut M3 | ||||
| 052 | 259009-1 | 1.00 | 1.21 | |
| Arm | ||||
| 054 | 165567-6 | 10.80 | 13.07 | |
| Contact arm | ||||
| 056 | 140582-1 | 36.30 | 43.92 | |
| Contact point cover | ||||
| 057 | 310261-7 | 20.90 | 25.29 | |
| Met.screw Ck Inb M5x6mm | ||||
| 058 | 266577-7 | 1.20 | 1.45 | |
| Magazine | ||||
| 059 | 331826-2 | 22.00 | 26.62 | |
| Allen Bolt M3x10 | ||||
| 060 | 266177-3 | 1.00 | 1.21 | |
| Cotter pin 2-8 | ||||
| 061 | 951001-0 | 1.00 | 1.21 | |
| Allen Bolt M3x10 | ||||
| 062 | 266177-3 | 1.00 | 1.21 | |
| Strike pin guide | ||||
| 063 | 310259-4 | 59.40 | 71.87 | |
| Hex socket head screw m5x18 | ||||
| 064 | 265853-6 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 065 | 234119-5 | 4.80 | 5.81 | |
| Guide rod cover | ||||
| 066 | 310260-9 | 34.10 | 41.26 | |
| Met.screw Ck Inb M5x6mm | ||||
| 067 | 266577-7 | 1.20 | 1.45 | |
| Hexagon socket screw 4x12 | ||||
| 068 | 265353-6 | 1.20 | 1.45 | |
| Cotter pin 2-8 | ||||
| 069 | 951001-0 | 1.00 | 1.21 | |
| Cotter pin 2-8 | ||||
| 070 | 951001-0 | 1.00 | 1.21 | |
| Compression Spring 3 | ||||
| 071 | 233018-8 | 1.00 | 1.21 | |
| Output Bpt350 | ||||
| 072 | 310176-8 | 3.60 | 4.36 | |
| Pressure Plate | ||||
| 073 | 345947-4 | 4.80 | 5.81 | |
| Collar pin 5-7 | ||||
| 074 | 450627-0 | 4.80 | 5.81 | |
| Distance support | ||||
| 075 | 345945-8 | 4.80 | 5.81 | |
| Lower Nail Guide | ||||
| 076 | 331827-0 | 9.60 | 11.62 | |
| Nail knockout | ||||
| 077 | 345946-6 | 4.80 | 5.81 | |
| Compression Spring 4 | ||||
| 078 | 233476-8 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 079 | 232243-8 | 4.80 | 5.81 | |
| Nail Guide Holder | ||||
| 080 | 450624-6 | 4.80 | 5.81 | |
| Upper nail guide | ||||
| 081 | 158749-7 | 36.30 | 43.92 | |
| Warning Label | ||||
| 081A | 810418-5 | 2.40 | 2.90 | |
| Hex nut M4 | ||||
| 082 | 931102-0 | 1.00 | 1.21 | |
| Hexagonal knob head bolt M4x8 | ||||
| 083 | 266430-7 | 4.80 | 5.81 | |
| Sliding cover cap | ||||
| 084 | 450625-4 | 6.00 | 7.26 | |
| Magazine bumper | ||||
| 085 | 424113-7 | 4.80 | 5.81 | |
| Locking pin 3-28 | ||||
| 086 | 951075-1 | 1.00 | 1.21 | |
| Expansion pin 3-24 | ||||
| 087 | 951072-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 088 | 233097-6 | |||
| Lock Lever | ||||
| 089 | 345954-7 | 4.80 | 5.81 | |
| Compression Spring 6 | ||||
| 090 | 234066-0 | 2.40 | 2.90 | |
| Guide Bushing | ||||
| 091 | 345948-2 | 4.80 | 5.81 | |
| Expansion pin 3-16 | ||||
| 092 | 951063-8 | 1.00 | 1.21 | |
| Hexagon socket screw 4x12 | ||||
| 093 | 265353-6 | 1.20 | 1.45 | |
| Hex bolt m5x14 | ||||
| 094 | 265909-5 | 2.40 | 2.90 | |
| Coupling plate | ||||
| 095 | 345949-0 | 4.80 | 5.81 | |
| O-ring 20 | ||||
| 096 | 213310-8 | 1.20 | 1.45 | |
| O-ring 22 | ||||
| 097 | 213373-4 | 1.20 | 1.45 | |
| Switch Valve Guide | ||||
| 098 | 331831-9 | 8.40 | 10.16 | |
| O-ring 11.2 | ||||
| 099 | 213137-6 | 2.40 | 2.90 | |
| O-ring 12.5 | ||||
| 100 | 213191-0 | 2.40 | 2.90 | |
| O-ring 18 | ||||
| 101 | 213262-3 | 1.20 | 1.45 | |
| MAIN VALVE | ||||
| 102 | 412091-3 | 39.60 | 47.92 | |
| Compression Spring 7 | ||||
| 103 | 234070-9 | 1.20 | 1.45 | |
| O-ring 14 | ||||
| 104 | 213162-7 | 1.00 | 1.21 | |
| O-ring 18 | ||||
| 105 | 213275-4 | 1.00 | 1.21 | |
| Switch Valve Guide | ||||
| 106 | 324912-6 | 9.60 | 11.62 | |
| O-ring 6 | ||||
| 107 | 213998-4 | 2.40 | 2.90 | |
| O-ring 6 | ||||
| 108 | 213998-4 | 2.40 | 2.90 | |
| Control valve | ||||
| 109 | 451204-1 | 34.10 | 41.26 | |
| O-ring 14 | ||||
| 110 | 213162-7 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 111 | 234068-6 | |||
| O-ring 3 | ||||
| 112 | 213979-8 | 2.40 | 2.90 | |
| Switch Valve Stem | ||||
| 113 | 325691-9 | 6.00 | 7.26 | |
| O-ring 3 | ||||
| 114 | 213979-8 | 2.40 | 2.90 | |
| O-ring 3 | ||||
| 115 | 213979-8 | 2.40 | 2.90 | |
| O-ring 22 | ||||
| 116 | 213373-4 | 1.20 | 1.45 | |
| Schakelklephuis | ||||
| 117 | 325633-3 | 13.20 | 15.97 | |
| Compression Spring 5 | ||||
| 118 | 234110-3 | 2.40 | 2.90 | |
| Locking pin 3-28 | ||||
| 119 | 951075-1 | 1.00 | 1.21 | |
| Connecting link | ||||
| 120 | 310284-5 | 16.50 | 19.96 | |
| Filter | ||||
| 121 | 413125-5 | 2.40 | 2.90 | |
| Screw M3 | ||||
| 122 | 265591-0 | 6.00 | 7.26 | |
| Rivet 3 | ||||
| 123 | 941002-6 | 1.00 | 1.21 | |
