Here you will find all available parts and drawings of the 'Makita AF353'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

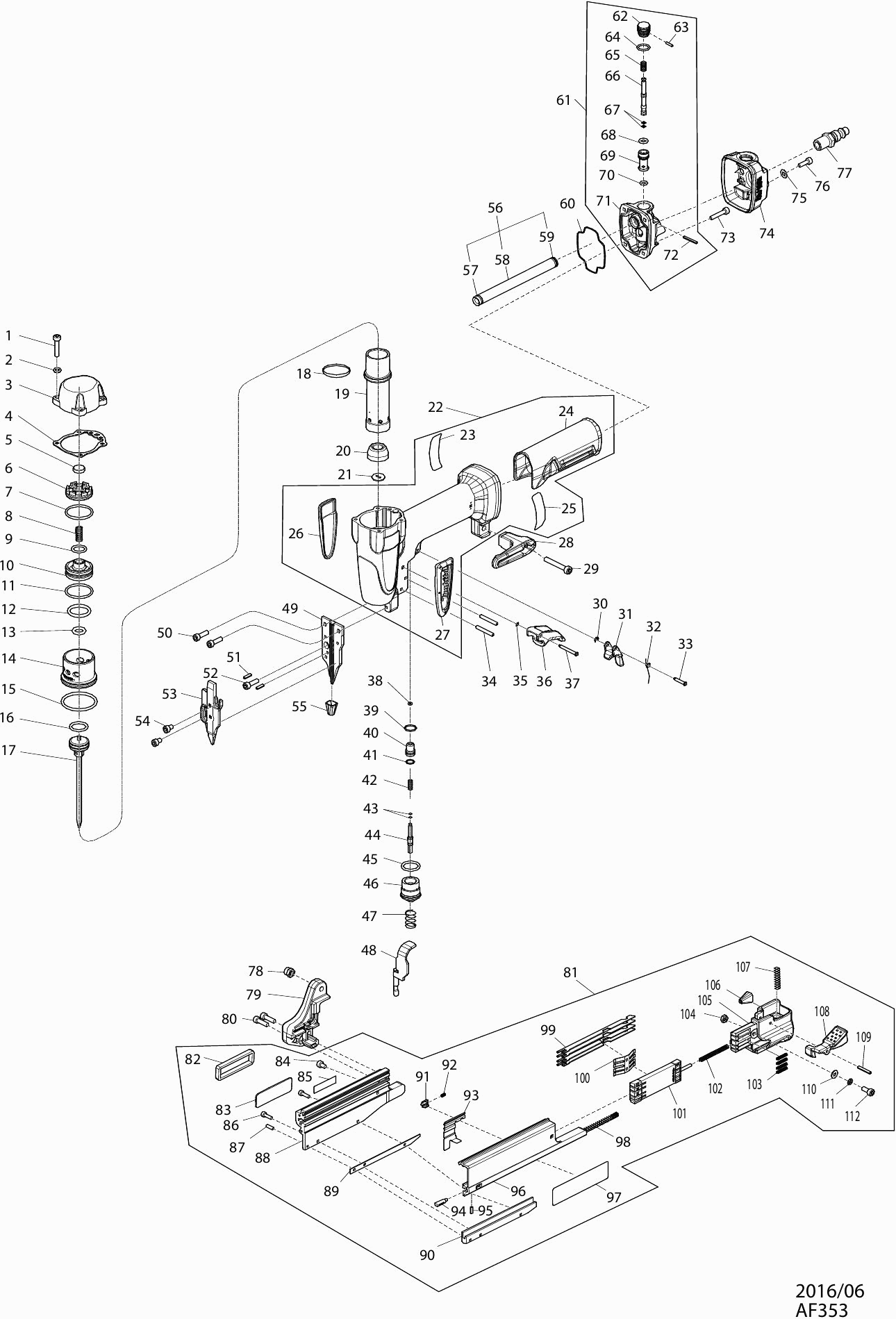

Technical drawing of model Makita AF353
Spare parts list of model Makita AF353
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Inbusbout M4x20mm | ||||
| 001 | HY00000530 | 1.00 | 1.21 | |
| Rivet | ||||
| 002 | HY00000070 | 1.00 | 1.21 | |
| Cylinder cap AF353 | ||||
| 003 | HY00000544 | 13.20 | 15.97 | |
| Cylinder head gasket AF353 | ||||
| 004 | HY00000578 | 1.20 | 1.45 | |
| Buffer AF353 | ||||
| 005 | HY00000581 | 1.20 | 1.45 | |
| Valve Guide AF353 | ||||
| 006 | HY00000594 | 3.60 | 4.36 | |
| O-ring 25mm AF353 | ||||
| 007 | HY00000417 | 1.00 | 1.21 | |
| Compression Spring 5mm AF353 | ||||
| 008 | HY00000626 | 1.00 | 1.21 | |
| O-ring 12 | ||||
| 009 | HY00000010 | 1.00 | 1.21 | |
| Main Valve AF353 | ||||
| 010 | HY00000593 | 6.00 | 7.26 | |
| O-ring 25mm AF353 | ||||
| 011 | HY00000417 | 1.00 | 1.21 | |
| O-ring 19mm AF353 | ||||
| 012 | HY00000406 | 1.00 | 1.21 | |
| O-ring 8.5mm AF353 | ||||
| 013 | HY00000415 | 1.00 | 1.21 | |
| Cylinder Spacer AF353 | ||||
| 014 | HY00000555 | 2.40 | 2.90 | |
| O-ring 32,5mm AF353 | ||||
| 015 | HY00000418 | 1.20 | 1.45 | |
| O-ring 15,5mm AF353 | ||||
| 016 | HY00000413 | 1.00 | 1.21 | |
| Strike pin AF353 | ||||
| 017 | HY00000549 | 8.40 | 10.16 | |
| O-ring 23,5mm AF353 | ||||
| 018 | HY00000416 | 1.00 | 1.21 | |
| Cylinder AF353 | ||||
| 019 | HY00000600 | 10.80 | 13.07 | |
| Bumper AF353 | ||||
| 020 | HY00000547 | 3.60 | 4.36 | |
| Seal AF353 | ||||
| 021 | HY00000484 | 1.20 | 1.45 | |
| Housing assy AF353 | ||||
| 022 | HY00000640 | 56.10 | 67.88 | |
| Nameplate AF353 | ||||
| 023 | HY00000586 | 3.60 | 4.36 | |
| Grip AF353 | ||||
| 024 | HY00000556 | 3.60 | 4.36 | |
| Warning label AF353 | ||||
| 025 | HY00000105 | 2.40 | 2.90 | |
| Cover cap R AF353 | ||||
| 026 | HY00000425 | 3.60 | 4.36 | |
| Cover cap L AF353 | ||||
| 027 | HY00000424 | 3.60 | 4.36 | |
| Hook | ||||
| 028 | HY00000062 | 2.40 | 2.90 | |
| Allen screw M5 x 30 mm | ||||
| 029 | HY00000075 | 1.00 | 1.21 | |
| Lock ring E-2.5 | ||||
| 030 | HY00000064 | 1.00 | 1.21 | |
| Lock button AF353 | ||||
| 031 | HY00000435 | 1.20 | 1.45 | |
| Torsion spring 3mm AF353 | ||||
| 032 | HY00000617 | 1.00 | 1.21 | |
| Pin 3mm AF353 | ||||
| 033 | HY00000638 | 1.00 | 1.21 | |
| Security pin 3mm AF353 | ||||
| 034 | HY00000682 | 1.00 | 1.21 | |
| O-ring 2mm AF353 | ||||
| 035 | HY00000411 | 1.00 | 1.21 | |
| Switch AF353 | ||||
| 036 | HY00000434 | 1.20 | 1.45 | |
| Pin 3mm AF353 | ||||
| 037 | HY00000595 | 1.00 | 1.21 | |
| O-ring 2mm AF353 | ||||
| 038 | HY00000411 | 1.00 | 1.21 | |
| O-ring AF353 | ||||
| 039 | HY00000420 | 1.00 | 1.21 | |
| Valve Guide AF353 | ||||
| 040 | HY00000598 | 3.60 | 4.36 | |
| O-ring AF353 | ||||
| 041 | HY00000419 | 1.00 | 1.21 | |
| Pressure spring 4mm AF353 | ||||
| 042 | HY00000548 | 1.00 | 1.21 | |
| O-ring 3 | ||||
| 043 | HY00000037 | 1.00 | 1.21 | |
| Valve reliever AF353 | ||||
| 044 | HY00000516 | 2.40 | 2.90 | |
| O-ring 12 | ||||
| 045 | HY00000010 | 1.00 | 1.21 | |
| Valve release case AF353 | ||||
| 046 | HY00000597 | 7.20 | 8.71 | |
| Compression spring 10mm AF353 | ||||
| 047 | HY00000705 | 1.00 | 1.21 | |
| Coupling AF353 | ||||
| 048 | HY00000438 | 4.80 | 5.81 | |
| Guide AF353 | ||||
| 049 | HY00000604 | 26.40 | 31.94 | |
| Hex socket bolt M4x14mm AF353 | ||||
| 050 | HY00000681 | 1.00 | 1.21 | |
| Security pin 2.5x10mm AF353 | ||||
| 051 | HY00000680 | 1.00 | 1.21 | |
| Hex socket bolt M4x14mm AF353 | ||||
| 052 | HY00000681 | 1.00 | 1.21 | |
| Guide house AF353 | ||||
| 053 | HY00000534 | 13.20 | 15.97 | |
| Allen screw M4 x 6 mm | ||||
| 054 | HY00000071 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 055 | HY00000561 | |||
| Pipe cpl AF353 | ||||
| 056 | HY00000568 | 4.80 | 5.81 | |
| O-ring 6.5mm AF353 | ||||
| 057 | HY00000398 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 058 | HY00000572 | |||
| O-ring 6.5mm AF353 | ||||
| 059 | HY00000398 | 1.00 | 1.21 | |
| Gasket ring AF353 | ||||
| 060 | HY00000579 | 1.20 | 1.45 | |
| Venting set assy AF353 | ||||
| 061 | HY00000496 | 17.60 | 21.30 | |
| No information available, not orderable | ||||
| 062 | HY00000573 | |||
| Pen 2 | ||||
| 063 | HY00000046 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 064 | HY00000414 | |||
| No information available, not orderable | ||||
| 065 | HY00000591 | |||
| No information available, not orderable | ||||
| 066 | HY00000513 | |||
| O-ring 3 | ||||
| 067 | HY00000037 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 068 | HY00000399 | |||
| No information available, not orderable | ||||
| 069 | HY00000599 | |||
| O-ring 5mm AF353 | ||||
| 070 | HY00000397 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 071 | HY00000497 | |||
| Spring pin 2.5-18 | ||||
| 072 | HY00000054 | 1.00 | 1.21 | |
| Inbusbout M4x20mm | ||||
| 073 | HY00000530 | 1.00 | 1.21 | |
| Inlet cover cap AF353 | ||||
| 074 | HY00000431 | 3.60 | 4.36 | |
| Washer 4mm AF353 | ||||
| 075 | HY00000532 | 1.20 | 1.45 | |
| Hex socket screw M4x12mm AF353 | ||||
| 076 | HY00000647 | 1.00 | 1.21 | |
| LUCHTNIPPEL ORION R1/4" | ||||
| 077 | HY00000081 | 1.00 | 1.21 | |
| Nut M5 | ||||
| 078 | HY00000073 | 1.00 | 1.21 | |
| Coupling AF353 | ||||
| 079 | HY00000542 | 4.80 | 5.81 | |
| Hex socket bolt M4x14mm AF353 | ||||
| 080 | HY00000681 | 1.00 | 1.21 | |
| Warehouse assembly AF353 | ||||
| 081 | HY00000474 | 69.30 | 83.85 | |
| Cap magazine AF353 | ||||
| 082 | HY00000574 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 083 | HY00000576 | |||
| Allen screw M4 x 6 mm | ||||
| 084 | HY00000071 | 1.00 | 1.21 | |
| Warning label AF353 | ||||
| 085 | HY00000662 | 2.40 | 2.90 | |
| Hex socket bolt M3x10mm AF353 | ||||
| 086 | HY00000683 | 1.00 | 1.21 | |
| Security pin 2.5x10mm AF353 | ||||
| 087 | HY00000680 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 088 | HY00000483 | |||
| Spacer AF353 | ||||
| 089 | HY00000620 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 090 | HY00000485 | |||
| No information available, not orderable | ||||
| 091 | HY00000571 | |||
| Pressure spring 3mm AF353 | ||||
| 092 | HY00000445 | 1.00 | 1.21 | |
| Pressure pin AF353 | ||||
| 093 | HY00000489 | 3.60 | 4.36 | |
| Pin 5mm AF353 | ||||
| 094 | HY00000492 | 1.20 | 1.45 | |
| Lock washer 2.5x8mm AF353 | ||||
| 095 | HY00000684 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 096 | HY00000478 | |||
| Safety label AF353 | ||||
| 097 | HY00000660 | 2.40 | 2.90 | |
| Pressure spring 4mm AF353 | ||||
| 098 | HY00000614 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 099 | HY00000623 | |||
| No information available, not orderable | ||||
| 100 | HY00000619 | |||
| No information available, not orderable | ||||
| 101 | HY00000622 | |||
| No information available, not orderable | ||||
| 102 | HY00000615 | |||
| Pressure spring 3mm AF353 | ||||
| 103 | HY00000613 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 104 | HY00000646 | |||
| No information available, not orderable | ||||
| 105 | HY00000501 | |||
| No information available, not orderable | ||||
| 106 | HY00000561 | |||
| No information available, not orderable | ||||
| 107 | HY00000612 | |||
| No information available, not orderable | ||||
| 108 | HY00000504 | |||
| No information available, not orderable | ||||
| 109 | HY00000685 | |||
| Washer 4mm AF353 | ||||
| 110 | HY00000532 | 1.20 | 1.45 | |
| Spring washer 4mm AF353 | ||||
| 111 | HY00000161 | 1.00 | 1.21 | |
| Allen Screw M4 x 10 mm | ||||
| 112 | HY00000001 | 1.00 | 1.21 | |
