Here you will find all available parts and drawings of the 'Makita ADP05'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

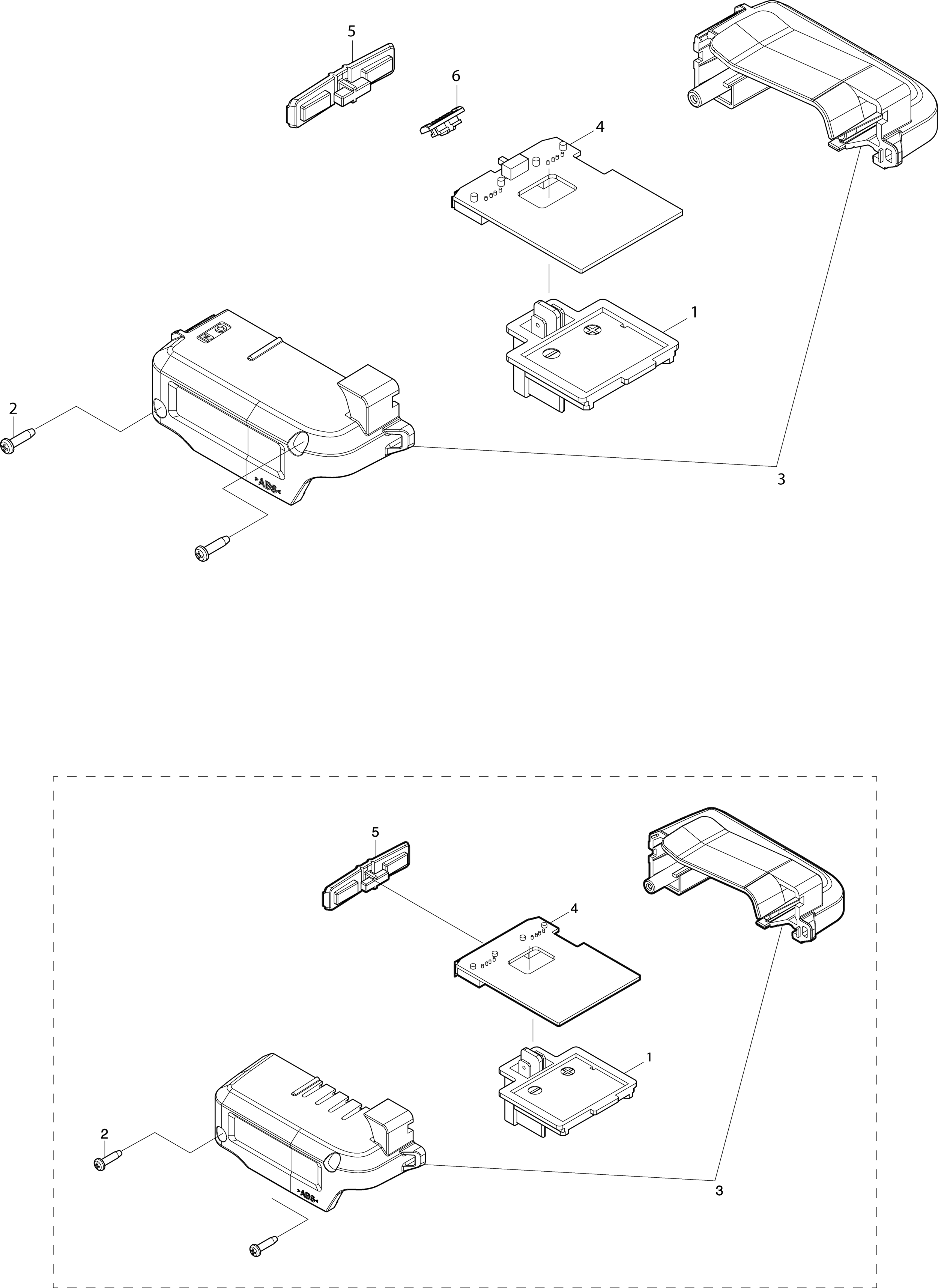

Technical drawing of model Makita ADP05
Spare parts list of model Makita ADP05
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| USB-KABEL MULTILIJNLASER 2,1MM | ||||
| F06 | 199010-3 | 7.00 | 8.47 | |
| USB-KABEL MULTILIJNLASER 2,1 MM | ||||
| F06-1 | 199006-4 | 5.00 | 6.05 | |
| USB-KABEL KRUISLIJNLASER 1,7MM | ||||
| F09 | 199178-5 | 7.00 | 8.47 | |
| Connection unit | ||||
| 001 | SE00000261 | 4.80 | 5.81 | |
| PARKER 3X12MM ADP05 | ||||
| 002 | SE00000451 | 1.00 | 1.21 | |
| KASTSET L+R ADP05 | ||||
| 003 | SE00000452 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 003-1 | SE00000493 | |||
| CIRCUIT A ADP05 | ||||
| 004 | SE00000454 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 004-1 | SE00000492 | |||
| AFDEKKAP USB ADP05 | ||||
| 005 | SE00000453 | 1.20 | 1.45 | |
| KNOP SCHUIF ADP05 | ||||
| 006 | SE00000495 | 1.20 | 1.45 | |
