Here you will find all available parts and drawings of the 'Makita ADP001G'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

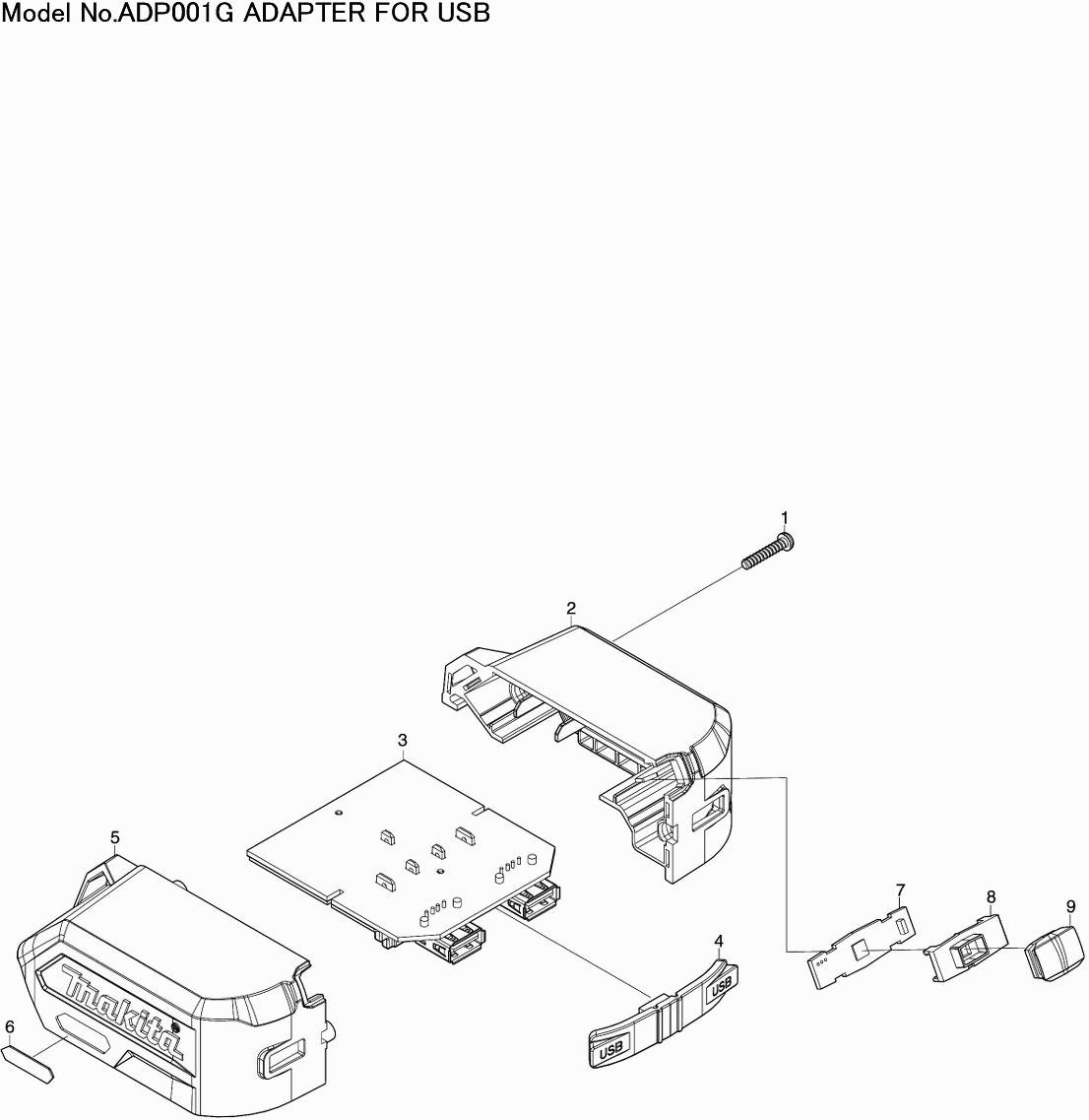

Technical drawing of model Makita ADP001G
Spare parts list of model Makita ADP001G
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw PT3x16mm ADP001G | ||||
| 001 | SE00000834 | 1.00 | 1.21 | |
| Housing ADP001G | ||||
| 002 | SE00000835 | 10.80 | 13.07 | |
| Circuit board A ADP001G | ||||
| 003 | SE00000836 | 41.80 | 50.58 | |
| USB cover ADP001G | ||||
| 004 | SE00000837 | 2.40 | 2.90 | |
| Housing ADP001G | ||||
| 005 | SE00000835 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 006 | SE00000838 | |||
| Printboard C ADP001G | ||||
| 007 | SE00000839 | 6.00 | 7.26 | |
| Ledlens ADP001G | ||||
| 008 | SE00000840 | 2.40 | 2.90 | |
| Switch button ADP001G | ||||
| 009 | SE00000841 | 1.20 | 1.45 | |
