Here you will find all available parts and drawings of the 'Makita AC310H'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

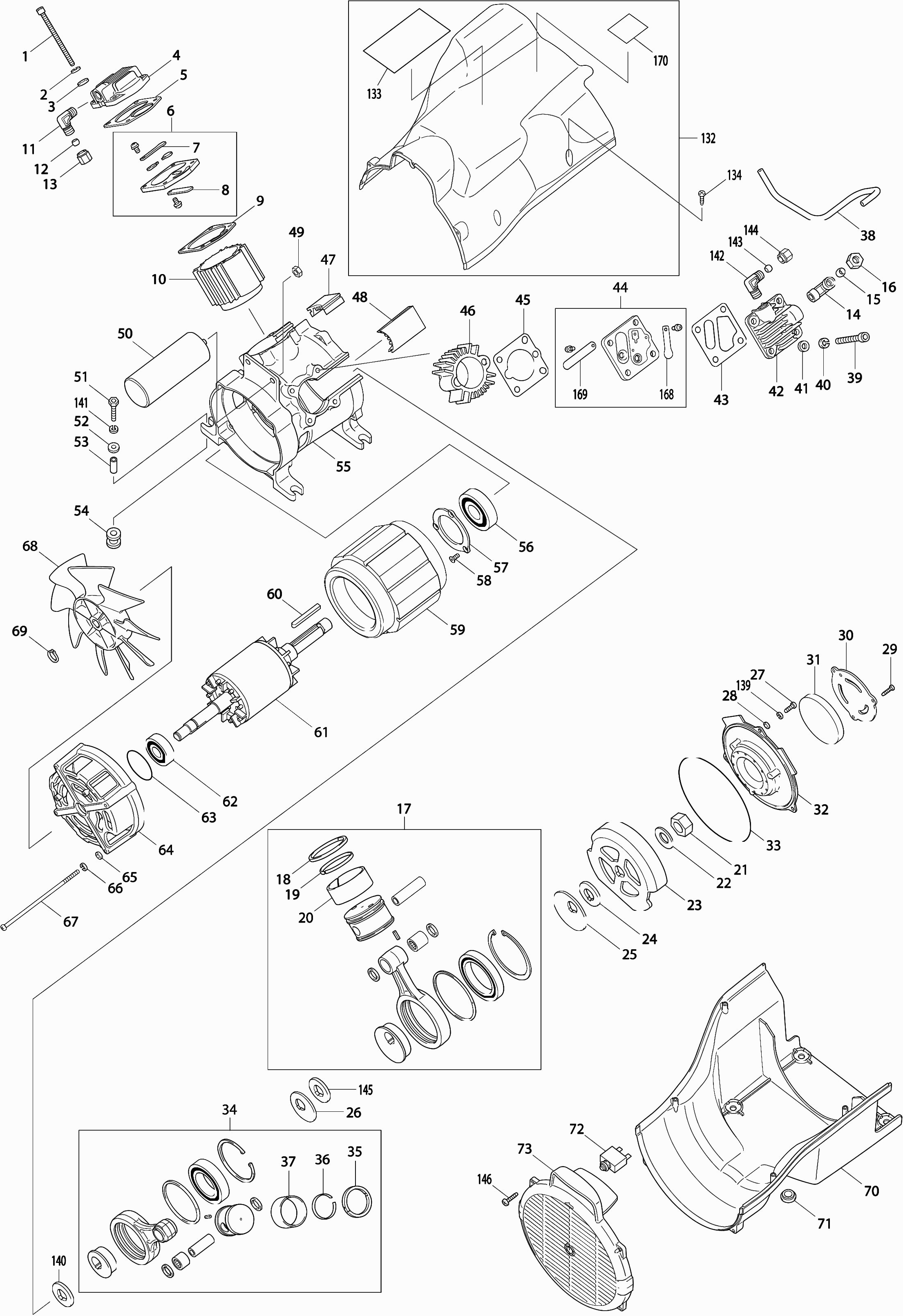

Technical drawing of model Makita AC310H
Spare parts list of model Makita AC310H
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Hex bolt M6x45 | ||||
| 001 | HY00000213 | 1.20 | 1.45 | |
| Spring Lock Washer M6 | ||||
| 002 | HY00000214 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 003 | HY00000215 | 1.00 | 1.21 | |
| Cylinder Head | ||||
| 004 | HY00000216 | 8.40 | 10.16 | |
| Gasket, Head- L Ac310H | ||||
| 005 | HY00000217 | 1.20 | 1.45 | |
| Plate, valve- L complete | ||||
| 006 | HY00000218 | 10.80 | 13.07 | |
| Valve, exhaust- | ||||
| 007 | HY00000219 | 2.40 | 2.90 | |
| Valve, intake- | ||||
| 008 | HY00000220 | 2.40 | 2.90 | |
| Gasket, Cylinder- L Ac310H | ||||
| 009 | HY00000221 | 1.20 | 1.45 | |
| Cylinder L (50Hz) | ||||
| 010 | HY00000223 | 11.00 | 13.31 | |
| Elbow 8-r1/4 | ||||
| 011 | HY00000224 | 4.80 | 5.81 | |
| Washer 8 | ||||
| 012 | HY00000225 | 1.00 | 1.21 | |
| Nut for washer 8 | ||||
| 013 | HY00000226 | 1.20 | 1.45 | |
| Elbow 10-r3/8 | ||||
| 014 | HY00000227 | 4.80 | 5.81 | |
| Ring 10 | ||||
| 015 | HY00000228 | 1.00 | 1.21 | |
| Nut for washer 10 | ||||
| 016 | HY00000229 | 1.00 | 1.21 | |
| Drive rod L set | ||||
| 017 | HY00000230 | 118.80 | 143.75 | |
| Washer L | ||||
| 018 | HY00000231 | 30.80 | 37.27 | |
| Leaf Spring | ||||
| 019 | HY00000232 | 1.00 | 1.21 | |
| Tread L (washer) | ||||
| 020 | HY00000233 | 17.60 | 21.30 | |
| Hex nut M18 | ||||
| 021 | HY00000234 | 1.00 | 1.21 | |
| Lock washer 18 | ||||
| 022 | HY00000235 | 1.00 | 1.21 | |
| Balance Weight (50hz) | ||||
| 023 | HY00000237 | 11.00 | 13.31 | |
| Spacer | ||||
| 024 | HY00000238 | 1.20 | 1.45 | |
| Crankshaft Spacer L | ||||
| 025 | HY00000239 | 2.40 | 2.90 | |
| Crankshaft Spacer H | ||||
| 026 | HY00000240 | 1.20 | 1.45 | |
| Screw M5X16 | ||||
| 027 | HY00000241 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 028 | HY00000242 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 029 | HY00000243 | 1.00 | 1.21 | |
| Filter Cover Ac310H | ||||
| 030 | HY00000244 | 2.40 | 2.90 | |
| Filter Ac310H | ||||
| 031 | HY00000245 | 2.40 | 2.90 | |
| Carter Housing Ac310H | ||||
| 032 | HY00000246 | 4.80 | 5.81 | |
| O-Ring 147 Ac310H | ||||
| 033 | HY00000247 | 1.20 | 1.45 | |
| Connecting Rod H set | ||||
| 034 | HY00000248 | 93.50 | 113.14 | |
| Washer H | ||||
| 035 | HY00000249 | 30.80 | 37.27 | |
| Leaf Spring | ||||
| 036 | HY00000250 | 1.20 | 1.45 | |
| Running Surface H (Washer) Ac310H | ||||
| 037 | HY00000251 | 16.50 | 19.96 | |
| Tube 8 Ac310h | ||||
| 038 | HY00000252 | 4.80 | 5.81 | |
| Allen bolt M8x70 | ||||
| 039 | HY00000253 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 040 | HY00000254 | 1.00 | 1.21 | |
| Washer 8 | ||||
| 041 | HY00000255 | 1.00 | 1.21 | |
| Cylinder head H | ||||
| 042 | HY00000256 | 8.40 | 10.16 | |
| Gasket, Head- H Ac310H | ||||
| 043 | HY00000257 | 1.20 | 1.45 | |
| Plate, valve- H complete | ||||
| 044 | HY00000258 | 10.80 | 13.07 | |
| Gasket, Cylinder- H Ac310H | ||||
| 045 | HY00000259 | 1.20 | 1.45 | |
| Cylinder H (50Hz) Ac310H | ||||
| 046 | HY00000261 | 9.60 | 11.62 | |
| Sealing Plate L | ||||
| 047 | HY00000262 | 1.20 | 1.45 | |
| Sealing Plate H | ||||
| 048 | HY00000263 | 1.20 | 1.45 | |
| Hex nut M8 | ||||
| 049 | HY00000264 | 1.00 | 1.21 | |
| Capacitor | ||||
| 050 | HY00000266 | 13.20 | 15.97 | |
| Allen bolt M6x40 | ||||
| 051 | HY00000267 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 052 | HY00000268 | 1.00 | 1.21 | |
| Bushing 6 | ||||
| 053 | HY00000269 | 1.20 | 1.45 | |
| PILLOW SG-TPE/RS 1 | ||||
| 054 | HY00000270 | 2.40 | 2.90 | |
| Crankcase | ||||
| 055 | HY00000271 | 48.40 | 58.56 | |
| Ball Bearing 6305llb | ||||
| 056 | HY00000272 | 13.20 | 15.97 | |
| Bearing Lock | ||||
| 057 | HY00000273 | 1.20 | 1.45 | |
| Countersunk screw 5x12 | ||||
| 058 | HY00000274 | 1.00 | 1.21 | |
| Field | ||||
| 059 | HY00000276 | 178.20 | 215.62 | |
| Wedge 6 | ||||
| 060 | HY00000277 | 1.00 | 1.21 | |
| Armature | ||||
| 061 | HY00000278 | 111.10 | 134.43 | |
| Ball bearing 6303llb | ||||
| 062 | HY00000279 | 8.40 | 10.16 | |
| O-ring 49 | ||||
| 063 | HY00000280 | 1.20 | 1.45 | |
| Rear Support | ||||
| 064 | HY00000281 | 13.20 | 15.97 | |
| Lock washer 5 | ||||
| 065 | HY00000242 | 1.00 | 1.21 | |
| Washer 5 | ||||
| 066 | HY00000282 | 1.00 | 1.21 | |
| Hexagon bolt M5x146 | ||||
| 067 | HY00000283 | 1.20 | 1.45 | |
| Fan 195 | ||||
| 068 | HY00000284 | 3.60 | 4.36 | |
| Spring retaining ring | ||||
| 069 | HY00000285 | 1.00 | 1.21 | |
| Motor Cover B | ||||
| 070 | HY00000286 | 16.50 | 19.96 | |
| Socket | ||||
| 071 | HY00000287 | 1.00 | 1.21 | |
| Overload Unit | ||||
| 072 | HY00000289 | 3.60 | 4.36 | |
| Motor Cover C | ||||
| 073 | HY00000290 | 7.20 | 8.71 | |
| Mains cable | ||||
| 074 | HY00000292 | 12.10 | 14.64 | |
| Cable | ||||
| 075 | HY00000295 | 3.60 | 4.36 | |
| Cable sleeve | ||||
| 076 | HY00000297 | 1.00 | 1.21 | |
| Complete Switch | ||||
| 077 | HY00000299 | 139.70 | 169.04 | |
| Nut 6 | ||||
| 078 | HY00000300 | 1.00 | 1.21 | |
| Tube 6 Ac310h | ||||
| 079 | HY00000301 | 3.60 | 4.36 | |
| Nipple for barrel | ||||
| 080 | HY00000302 | 1.20 | 1.45 | |
| Control valve | ||||
| 081 | HY00000303 | 10.80 | 13.07 | |
| Washer 6 | ||||
| 082 | HY00000304 | 1.00 | 1.21 | |
| Nut 6 | ||||
| 083 | HY00000305 | 1.00 | 1.21 | |
| Ring 10 | ||||
| 084 | HY00000228 | 1.00 | 1.21 | |
| Nut for washer 10 | ||||
| 085 | HY00000229 | 1.00 | 1.21 | |
| Tube 10 Ac310h | ||||
| 086 | HY00000306 | 11.00 | 13.31 | |
| End piece 1/2 | ||||
| 087 | HY00000307 | 1.20 | 1.45 | |
| Rubber Gasket | ||||
| 088 | HY00000308 | 1.00 | 1.21 | |
| TANK CPL | ||||
| 089 | HY00000310 | 1063.70 | 1287.08 | |
| Warning Label | ||||
| 090 | HY00000311 | 2.40 | 2.90 | |
| Drain fitting | ||||
| 091 | HY00000312 | 6.00 | 7.26 | |
| Screw M5X10 | ||||
| 092 | HY00000313 | 1.00 | 1.21 | |
| Washer 5 | ||||
| 093 | HY00000282 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 094 | HY00000242 | 1.00 | 1.21 | |
| Side panel lid | ||||
| 095 | HY00000314 | 3.60 | 4.36 | |
| Side panel | ||||
| 096 | HY00000315 | 11.00 | 13.31 | |
| Complete Frame | ||||
| 097 | HY00000316 | 147.40 | 178.35 | |
| Pedal | ||||
| 098 | HY00000317 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 099 | HY00000318 | |||
| Washer 6 | ||||
| 100 | HY00000319 | 1.00 | 1.21 | |
| Allen bolt M6x12 | ||||
| 101 | HY00000320 | 1.00 | 1.21 | |
| Washer 6 | ||||
| 102 | HY00000215 | 1.00 | 1.21 | |
| Hex Nut M6 | ||||
| 103 | HY00000321 | 1.00 | 1.21 | |
| Spring Lock Washer M6 | ||||
| 104 | HY00000214 | 1.00 | 1.21 | |
| Hex Nut M5 | ||||
| 105 | HY00000322 | 1.00 | 1.21 | |
| Tube 8 Ac310h | ||||
| 106 | HY00000323 | 6.00 | 7.26 | |
| Cover plate set | ||||
| 107 | HY00000325 | 401.50 | 485.82 | |
| Screw M5X16 | ||||
| 108 | HY00000241 | 1.00 | 1.21 | |
| Washer 5 | ||||
| 109 | HY00000282 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 110 | HY00000242 | 1.00 | 1.21 | |
| Front cover plate | ||||
| 111 | HY00000327 | 16.50 | 19.96 | |
| Pressure gauge cover | ||||
| 112 | HY00000328 | 2.40 | 2.90 | |
| Warning Label | ||||
| 113 | HY00000329 | 2.40 | 2.90 | |
| Safety valve cpl | ||||
| 114 | HY00000331 | 6.00 | 7.26 | |
| Manifold | ||||
| 115 | HY00000333 | 12.10 | 14.64 | |
| Nipple for barrel | ||||
| 116 | HY00000336 | 2.40 | 2.90 | |
| Quick Coupling L | ||||
| 117 | HY00000338 | 8.40 | 10.16 | |
| Plug (1) | ||||
| 118 | HY00000340 | 1.00 | 1.21 | |
| Controller | ||||
| 119 | HY00000341 | 36.30 | 43.92 | |
| Indication label | ||||
| 120 | HY00000342 | 2.40 | 2.90 | |
| Pressure gauge control knob | ||||
| 121 | HY00000343 | 2.40 | 2.90 | |
| Pressure gauge L | ||||
| 122 | HY00000344 | 8.40 | 10.16 | |
| Manifold A | ||||
| 123 | HY00000346 | 11.00 | 13.31 | |
| Pressure gauge H | ||||
| 124 | HY00000347 | 7.20 | 8.71 | |
| Controller H | ||||
| 125 | HY00000348 | 39.60 | 47.92 | |
| Indication label | ||||
| 126 | HY00000349 | 2.40 | 2.90 | |
| Manifold H | ||||
| 127 | HY00000350 | 11.00 | 13.31 | |
| Quick Coupling H | ||||
| 128 | HY00000351 | 10.80 | 13.07 | |
| Sleeve, rubber | ||||
| 129 | HY00000352 | 1.00 | 1.21 | |
| Safety valve 30 cpl | ||||
| 130 | HY00000354 | 184.80 | 223.61 | |
| Warning Label | ||||
| 131 | HY00000355 | 2.40 | 2.90 | |
| Motor cover A complete | ||||
| 132 | HY00000357 | 17.60 | 21.30 | |
| Warning Label | ||||
| 133 | HY00000360 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 134 | HY00000243 | 1.00 | 1.21 | |
| Control valve | ||||
| 135 | HY00000361 | 2.40 | 2.90 | |
| Relief valve | ||||
| 136 | HY00000362 | 10.80 | 13.07 | |
| O-ring 17 | ||||
| 137 | HY00000363 | 1.00 | 1.21 | |
| Washer 5 | ||||
| 139 | HY00000282 | 1.00 | 1.21 | |
| Spacer | ||||
| 140 | HY00000238 | 1.20 | 1.45 | |
| Spring Lock Washer M6 | ||||
| 141 | HY00000214 | 1.00 | 1.21 | |
| Elbow 8-r1/4 | ||||
| 142 | HY00000224 | 4.80 | 5.81 | |
| Washer 8 | ||||
| 143 | HY00000225 | 1.00 | 1.21 | |
| Nut for washer 8 | ||||
| 144 | HY00000226 | 1.20 | 1.45 | |
| Spacer | ||||
| 145 | HY00000238 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 146 | HY00000243 | 1.00 | 1.21 | |
| Allen bolt M6x40 | ||||
| 147 | HY00000267 | 1.00 | 1.21 | |
| Elbow 8-r1/4 | ||||
| 148 | HY00000224 | 4.80 | 5.81 | |
| Washer 8 | ||||
| 149 | HY00000225 | 1.00 | 1.21 | |
| Nut for washer 8 | ||||
| 150 | HY00000226 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 151 | HY00000225 | 1.00 | 1.21 | |
| Nut for washer 8 | ||||
| 152 | HY00000226 | 1.20 | 1.45 | |
| Plug (1) | ||||
| 153 | HY00000340 | 1.00 | 1.21 | |
| Nipple for barrel | ||||
| 154 | HY00000336 | 2.40 | 2.90 | |
| Nipple for barrel | ||||
| 155 | HY00000336 | 2.40 | 2.90 | |
| Plug (1) | ||||
| 156 | HY00000340 | 1.00 | 1.21 | |
| Nipple for barrel | ||||
| 157 | HY00000336 | 2.40 | 2.90 | |
| Plug (1) | ||||
| 158 | HY00000340 | 1.00 | 1.21 | |
| Nipple for barrel | ||||
| 159 | HY00000336 | 2.40 | 2.90 | |
| Pressure gauge control knob | ||||
| 160 | HY00000343 | 2.40 | 2.90 | |
| Pressure gauge H | ||||
| 161 | HY00000347 | 7.20 | 8.71 | |
| Nipple for barrel | ||||
| 162 | HY00000336 | 2.40 | 2.90 | |
| Plug (1) | ||||
| 163 | HY00000340 | 1.00 | 1.21 | |
| Screw M5X10 | ||||
| 164 | HY00000313 | 1.00 | 1.21 | |
| Washer 5 | ||||
| 165 | HY00000282 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 166 | HY00000242 | 1.00 | 1.21 | |
| Elbow 8-r1/4 | ||||
| 167 | HY00000224 | 4.80 | 5.81 | |
| Valve, exhaust- | ||||
| 168 | HY00000219 | 2.40 | 2.90 | |
| Valve, intake- | ||||
| 169 | HY00000220 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 172 | HY00000366 | |||
| Wheel | ||||
| 172A | HY00000369 | 36.30 | 43.92 | |
