Here you will find all available parts and drawings of the 'Makita 9924DB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

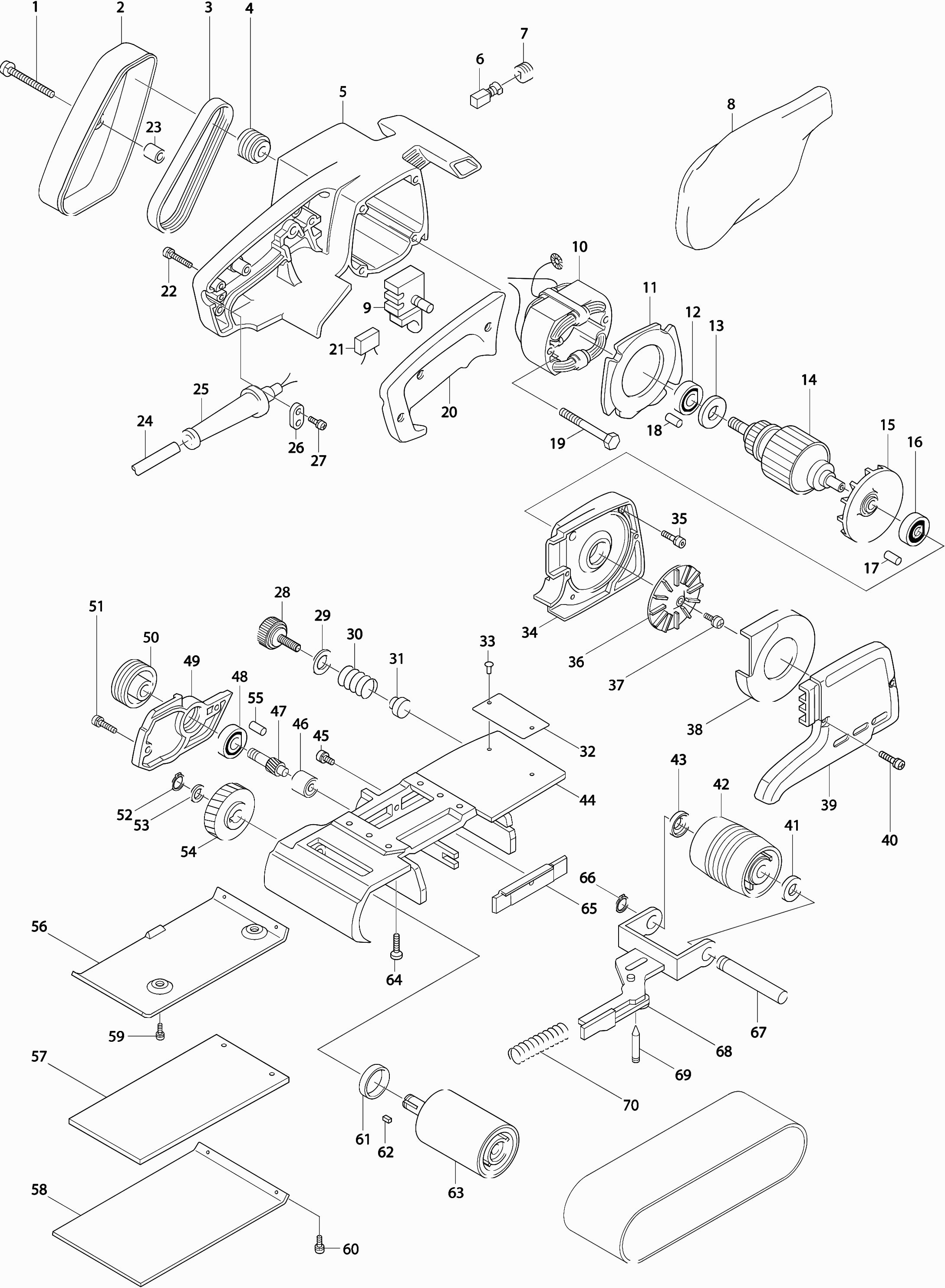

Technical drawing of model Makita 9924DB
Spare parts list of model Makita 9924DB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 5x40 | ||||
| 001 | 911263-2 | 1.00 | 1.21 | |
| Belt cover | ||||
| 002 | 343270-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 002-1 | 347B53-3 | |||
| V-belt 5-304 | ||||
| 003 | 225008-5 | 11.00 | 13.31 | |
| Belt pulley 5-25l | ||||
| 004 | 222010-9 | 6.00 | 7.26 | |
| Motor housing compl. | ||||
| 005 | 156490-6 | 39.60 | 47.92 | |
| Carbon Brush Set Cb-100 | ||||
| 006 | 181030-1 | 3.54 | 4.28 | |
| Carbon Brush CB100 | ||||
| 006 | 194974-6 | 3.54 | 4.28 | |
| Brush holder cap | ||||
| 007 | 643600-9 | 1.20 | 1.45 | |
| LINNEN STOFZAK BANDSCHUURMACHINE | ||||
| 008 | 122296-4 | 11.00 | 13.31 | |
| Switch | ||||
| 009 | 651225-5 | 10.80 | 13.07 | |
| Screw 3.5X7 | ||||
| 009A | 652008-6 | 1.00 | 1.21 | |
| Field | ||||
| 010 | 528353-0 | 63.80 | 77.20 | |
| Intermediate Plate | ||||
| 011 | 411322-7 | 2.40 | 2.90 | |
| Ball bearing 6200llb | ||||
| 012 | 211066-7 | 4.80 | 5.81 | |
| Insulation ring | ||||
| 013 | 681623-9 | 1.20 | 1.45 | |
| Armature | ||||
| 014 | 513294-3 | 78.10 | 94.50 | |
| Fan 75 | ||||
| 015 | 241809-3 | 4.80 | 5.81 | |
| Ball bearing 6200llb | ||||
| 016 | 211066-7 | 4.80 | 5.81 | |
| Rubber Pin 4 | ||||
| 017 | 263002-9 | 1.00 | 1.21 | |
| Rubber Pin 4 | ||||
| 018 | 263002-9 | 1.00 | 1.21 | |
| Screw 5X45 * | ||||
| 019 | 911266-6 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 020 | 411321-9 | 7.20 | 8.71 | |
| Capacitor | ||||
| 021 | 645253-0 | 4.80 | 5.81 | |
| Screw 4x30 | ||||
| 022 | 911156-3 | 1.00 | 1.21 | |
| Bushing 6 | ||||
| 023 | 257504-5 | 2.40 | 2.90 | |
| Power cord 2x1.50 4.0mtr | ||||
| 024 | 695123-3 | 22.00 | 26.62 | |
| Cable grommet 10-85 | ||||
| 025 | 682504-0 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 026 | 687001-1 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 027 | 911131-9 | 1.00 | 1.21 | |
| Set screw M6x25 | ||||
| 028 | 265763-7 | 1.20 | 1.45 | |
| Washer 16 A | ||||
| 029 | 267323-1 | 1.00 | 1.21 | |
| Compression spring 16 A | ||||
| 030 | 232573-7 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 031 | 411594-4 | 1.00 | 1.21 | |
| Label | ||||
| 032 | 862386-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 034 | 312810-6 | |||
| DUST OUTLET HOUSING 9900/24DB * | ||||
| 034-1 | 312E26-3 | 23.10 | 27.95 | |
| Screw 5x25 | ||||
| 035 | 911241-2 | 1.00 | 1.21 | |
| Impeller 74 | ||||
| 036 | 241611-4 | 6.00 | 7.26 | |
| Screw 5x12 | ||||
| 037 | 911215-3 | 1.00 | 1.21 | |
| Fan Guide | ||||
| 038 | 343271-9 | 3.60 | 4.36 | |
| No longer available, no replacement | ||||
| 039 | 312809-1 | |||
| No information available, not orderable | ||||
| 039-1 | 312E27-1 | |||
| Screw 4X18 | ||||
| 040 | 911131-9 | 1.00 | 1.21 | |
| Disk Washer M12 | ||||
| 041 | 253922-5 | 1.00 | 1.21 | |
| Tension roller | ||||
| 042 | 152104-5 | 24.20 | 29.28 | |
| Disk Washer M12 | ||||
| 043 | 253922-5 | 1.00 | 1.21 | |
| Frame | ||||
| 044 | 151189-8 | 112.20 | 135.76 | |
| No information available, not orderable | ||||
| 044-1 | 141R36-9 | |||
| Slide Bearing 12 | ||||
| 044A | 214101-0 | 3.60 | 4.36 | |
| Screw 5x12 | ||||
| 045 | 911215-3 | 1.00 | 1.21 | |
| Needle Bearing 810 | ||||
| 046 | 212003-4 | 4.80 | 5.81 | |
| Gear 10 | ||||
| 047 | 221193-2 | 13.20 | 15.97 | |
| Ball bearing 6200llb | ||||
| 048 | 211066-7 | 4.80 | 5.81 | |
| Inner Cover | ||||
| 049 | 152206-7 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 049-1 | 312E28-9 | |||
| Belt pulley 5-45 | ||||
| 050 | 222011-7 | 13.20 | 15.97 | |
| Screw 4X18 | ||||
| 051 | 911131-9 | 1.00 | 1.21 | |
| Lock washer S-12 | ||||
| 052 | 961052-5 | 1.00 | 1.21 | |
| Thin Washer 12 | ||||
| 053 | 253312-2 | 1.00 | 1.21 | |
| Gear 48 | ||||
| 054 | 221070-8 | 15.40 | 18.63 | |
| Rubber Pin 4 | ||||
| 055 | 263002-9 | 1.00 | 1.21 | |
| Foot pad | ||||
| 056 | 345164-6 | 13.20 | 15.97 | |
| Cork plate 98mm | ||||
| 057A | 423035-8 | 3.60 | 4.36 | |
| Cork sole plate | ||||
| 057B | 423021-9 | 3.60 | 4.36 | |
| Carbon plate 98mm | ||||
| 058A | 423036-6 | 4.80 | 5.81 | |
| Carbon plate 87mm | ||||
| 058B | 423028-5 | 3.60 | 4.36 | |
| Screw 4x12 | ||||
| 059 | 911116-5 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 060 | 911116-5 | 1.00 | 1.21 | |
| Disk Washer M12 | ||||
| 061 | 253922-5 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 062 | 254202-2 | 1.00 | 1.21 | |
| Drive roller | ||||
| 063 | 151113-1 | 28.60 | 34.61 | |
| Countersunk Screw 5x18 | ||||
| 064 | 912227-9 | 1.00 | 1.21 | |
| Wear strip | ||||
| 065 | 155326-6 | 4.80 | 5.81 | |
| Lock washer S-12 | ||||
| 066 | 961052-5 | 1.00 | 1.21 | |
| Tension roller | ||||
| 067 | 325458-5 | 6.00 | 7.26 | |
| Tension Roll Arm | ||||
| 068 | 163104-0 | 16.50 | 19.96 | |
| Support Pin | ||||
| 069 | 323634-5 | 2.40 | 2.90 | |
| Compression Spring 11 | ||||
| 070 | 231033-6 | 1.20 | 1.45 | |
