Here you will find all available parts and drawings of the 'Makita 9910'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

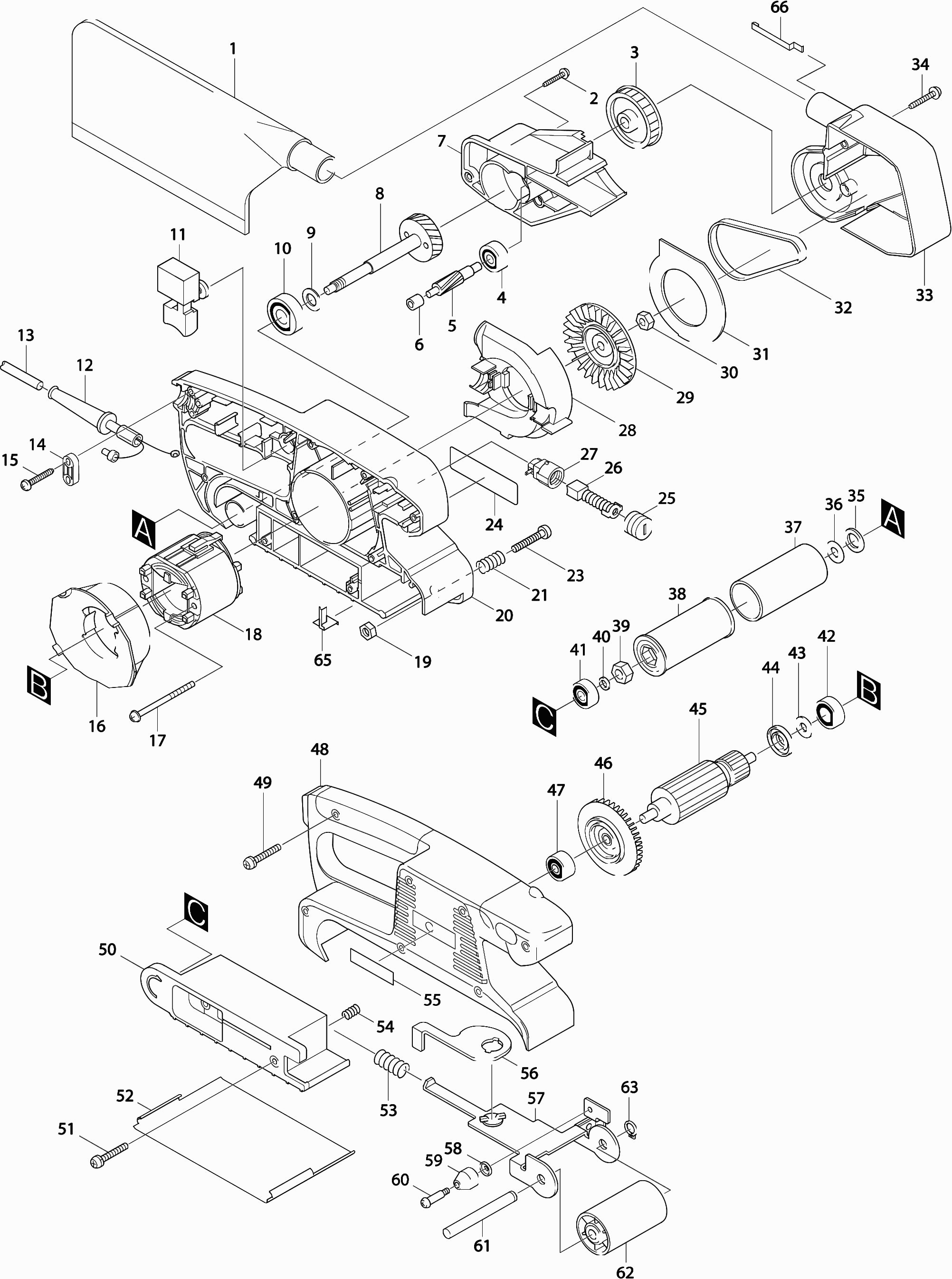

Technical drawing of model Makita 9910
Spare parts list of model Makita 9910
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| LINNEN STOFZAK BANDSCHUURMACHINE | ||||
| 001 | 122548-3 | 7.00 | 8.47 | |
| No information available, not orderable | ||||
| 002 | 265999-8 | |||
| Belt Pulley 8.5x45.1 | ||||
| 003 | 222144-8 | 9.60 | 11.62 | |
| Ball Bearing 608ddw | ||||
| 004 | 210005-4 | 4.80 | 5.81 | |
| Gear 6 | ||||
| 005 | 226494-3 | 8.40 | 10.16 | |
| Needle Bearing 509 | ||||
| 006 | 212009-2 | 3.60 | 4.36 | |
| Holder | ||||
| 007 | 416420-2 | 6.00 | 7.26 | |
| Gear 31 | ||||
| 008 | 153252-3 | 16.50 | 19.96 | |
| Washer 10 | ||||
| 009 | 253758-2 | 1.00 | 1.21 | |
| Ball bearing 6000ddw | ||||
| 010 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 010 | 210315-9 | 6.00 | 7.26 | |
| Switch | ||||
| 011 | 650232-5 | 6.00 | 7.26 | |
| Cable grommet 8-85 | ||||
| 012 | 682502-4 | 2.40 | 2.90 | |
| Power cord 2x1.00 2.2mtr | ||||
| 013 | 665383-1 | 10.80 | 13.07 | |
| Clamp Bracket | ||||
| 014 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 014 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 015 | 265A48-7 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 016 | 416418-9 | 2.40 | 2.90 | |
| Self Tapping Screw Pt4X60 * | ||||
| 017 | 266052-3 | 1.20 | 1.45 | |
| Field | ||||
| 018 | 633393-6 | 20.90 | 25.29 | |
| Hex Nut M5 | ||||
| 019 | 931202-6 | 1.00 | 1.21 | |
| Motor House 9910 Right * | ||||
| 020 | 182981-1 | 30.80 | 37.27 | |
| Earth support | ||||
| 020A | 344703-9 | 1.20 | 1.45 | |
| Compression Spring 6 | ||||
| 021 | 233219-8 | 1.00 | 1.21 | |
| Lock washer 5 | ||||
| 022 | 941102-2 | 1.00 | 1.21 | |
| Crosshead screw 5x30 | ||||
| 023 | 911252-7 | 1.00 | 1.21 | |
| Brush holder cap | ||||
| 025 | 643550-8 | 1.20 | 1.45 | |
| Brush Set CB411 RT0702C | ||||
| 026 | 195010-1 | 4.80 | 5.81 | |
| Brush Holder | ||||
| 027 | 643922-7 | 3.60 | 4.36 | |
| Scroll plate | ||||
| 028 | 416416-3 | 2.40 | 2.90 | |
| Fan 68 | ||||
| 029 | 241660-1 | 10.80 | 13.07 | |
| Hex nut 6x10 | ||||
| 030 | 252153-3 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 031 | 344584-1 | 2.40 | 2.90 | |
| Belt 6x300 | ||||
| 032 | 225079-2 | 3.60 | 4.36 | |
| Belt Cover Set New | ||||
| 033 | 183021-8 | 8.40 | 10.16 | |
| Earth plate | ||||
| 033A | 344701-3 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 034 | 265999-8 | |||
| Washer 12 | ||||
| 035 | 267177-6 | 1.20 | 1.45 | |
| Washer 8 | ||||
| 036 | 253865-1 | 1.20 | 1.45 | |
| Rubber bushing 29 | ||||
| 037 | 422032-1 | 1.20 | 1.45 | |
| Drive roller | ||||
| 038 | 316971-4 | 10.80 | 13.07 | |
| Hex nut 8x13 | ||||
| 039 | 252154-1 | 1.20 | 1.45 | |
| Washer 6 | ||||
| 040 | 253077-6 | 1.00 | 1.21 | |
| Ball bearing 626zz | ||||
| 041 | 210143-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 042 | 210045-2 | 3.60 | 4.36 | |
| SLUITRING 7 LF1000 A | ||||
| 043 | 267326-5 | 1.00 | 1.21 | |
| Insulating ring A | ||||
| 044 | 681658-0 | 2.40 | 2.90 | |
| Armature | ||||
| 045 | 517243-2 | 52.80 | 63.89 | |
| Fan 60 | ||||
| 046 | 240008-4 | 2.40 | 2.90 | |
| Ball bearing 607llb | ||||
| 047 | 211021-9 | 4.80 | 5.81 | |
| Motor housing left | ||||
| 048 | 150958-4 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 049 | 265999-8 | |||
| Guiding house 9910 | ||||
| 050 | 416419-7 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 051 | 265999-8 | |||
| Steel plate | ||||
| 052 | 344586-7 | 3.60 | 4.36 | |
| Compression spring 12 | ||||
| 053 | 233221-1 | 1.00 | 1.21 | |
| Compression Spring 5.5 | ||||
| 054 | 231038-6 | 1.00 | 1.21 | |
| Tension Handle | ||||
| 056 | 344585-9 | 3.60 | 4.36 | |
| Tension arm | ||||
| 057 | 150837-6 | 11.00 | 13.31 | |
| Cupring | ||||
| 058 | 267731-6 | 1.20 | 1.45 | |
| Guide Piece | ||||
| 059 | 416417-1 | 1.20 | 1.45 | |
| Brush screw M4 | ||||
| 060 | 265059-6 | 1.20 | 1.45 | |
| Front Axle | ||||
| 061 | 323776-5 | 3.60 | 4.36 | |
| Lead Roller Complete | ||||
| 062 | 152585-3 | 8.40 | 10.16 | |
| Lock ring S-8 | ||||
| 063 | 961004-6 | 1.00 | 1.21 | |
