Here you will find all available parts and drawings of the 'Makita 9903'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

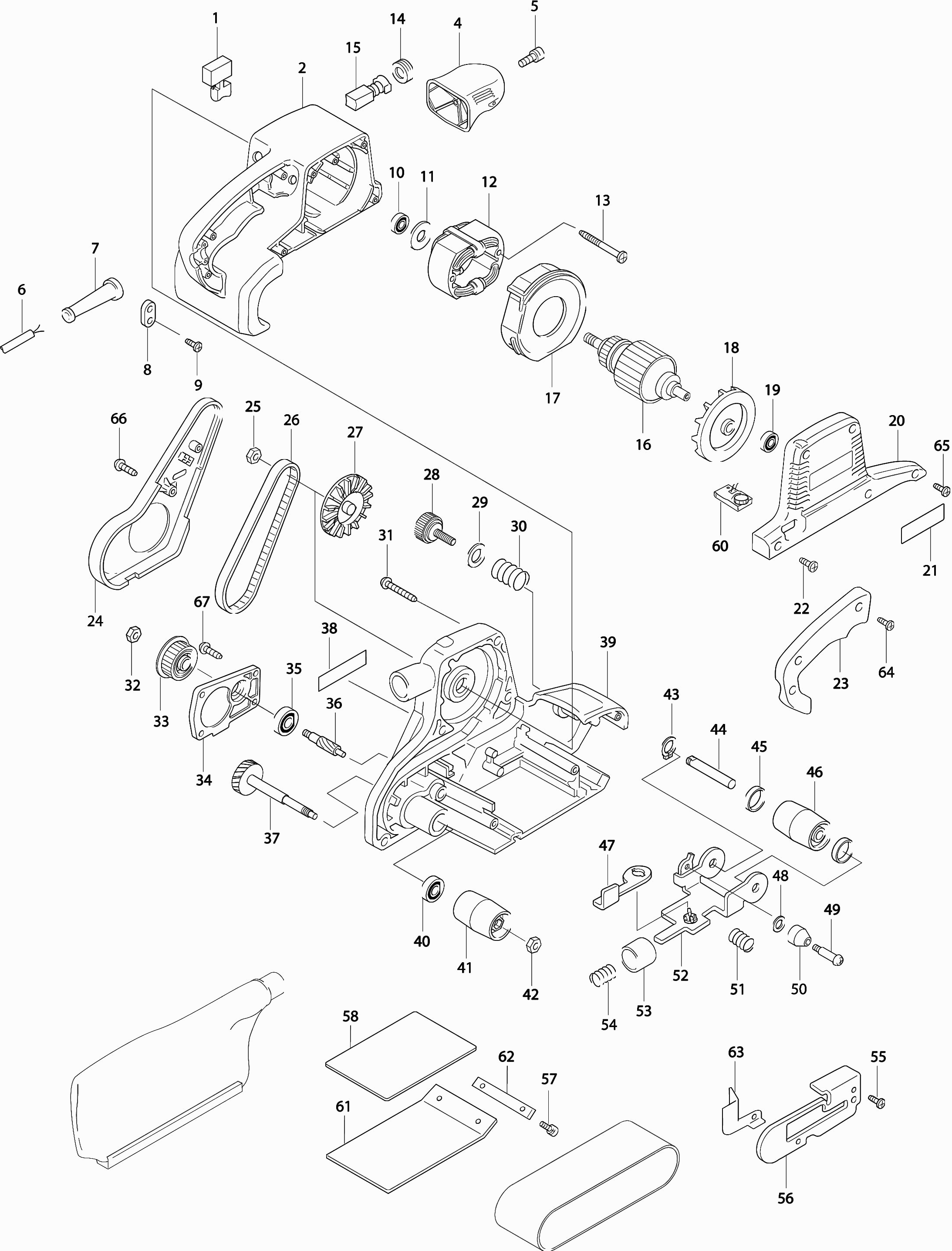

Technical drawing of model Makita 9903
Spare parts list of model Makita 9903
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 001 | 650230-9 | 9.60 | 11.62 | |
| Motor Housing | ||||
| 002 | 151743-8 | 34.10 | 41.26 | |
| Front Handle | ||||
| 004 | 417049-7 | 4.80 | 5.81 | |
| Tapping screw Pt 5x30 | ||||
| 005 | 266173-1 | 1.00 | 1.21 | |
| Power cord 2x1.50 4.0mtr | ||||
| 006 | 695123-3 | 22.00 | 26.62 | |
| Power cord 2x1.00 2.2mtr | ||||
| 006 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 006DB | 665890-4 | |||
| No information available, not orderable | ||||
| 006G1A | 665890-4 | |||
| No information available, not orderable | ||||
| 006GA | 666240-6 | |||
| Cable grommet 8-90 | ||||
| 007 | 682503-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 007A1A | 682540-6 | |||
| Cable grommet 8-90 | ||||
| 007AA | 682503-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 007BB | 682540-6 | |||
| Clamp Bracket | ||||
| 008 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 008 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008AB | 687052-4 | |||
| No information available, not orderable | ||||
| 008B1A | 687052-4 | |||
| No information available, not orderable | ||||
| 008BA | 687063-9 | |||
| Tap screw 4x18 | ||||
| 009 | 265A48-7 | 1.00 | 1.21 | |
| Ball bearing 6000ddw | ||||
| 010 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 010 | 210315-9 | 6.00 | 7.26 | |
| Insulation ring | ||||
| 011 | 681649-1 | 1.20 | 1.45 | |
| Field 9903 | ||||
| 012 | 523404-4 | 41.80 | 50.58 | |
| Field 9903 | ||||
| 012B | 523404-4 | 41.80 | 50.58 | |
| Metal Screw M5x45mm | ||||
| 013 | 266037-9 | 1.00 | 1.21 | |
| PARKER 5X45MM * | ||||
| 013 | 266056-5 | 1.00 | 1.21 | |
| Carbon brush cap | ||||
| 014 | 643515-0 | 1.00 | 1.21 | |
| Carbon brush cap | ||||
| 014-1 | 643515-0 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 015 | 194996-6 | 6.00 | 7.26 | |
| Armature | ||||
| 016 | 513339-7 | 72.60 | 87.85 | |
| Armature | ||||
| 016B | 513339-7 | 72.60 | 87.85 | |
| Intermediate Plate | ||||
| 017 | 417050-2 | 2.40 | 2.90 | |
| Fan 75 | ||||
| 018 | 240026-2 | 3.60 | 4.36 | |
| Ball bearing 627ddw | ||||
| 019 | 210045-2 | 3.60 | 4.36 | |
| Motor Housing Cover | ||||
| 020 | 417047-1 | 11.00 | 13.31 | |
| No longer available, no replacement | ||||
| 021 | 819001-5 | |||
| Tap screw 4x18 | ||||
| 022 | 265A48-7 | 1.00 | 1.21 | |
| Handle Cover | ||||
| 023 | 417051-0 | 6.00 | 7.26 | |
| Belt Cover | ||||
| 024 | 417052-8 | 3.60 | 4.36 | |
| Hex nut 6x10 | ||||
| 025 | 252153-3 | 1.00 | 1.21 | |
| V-belt 6-330 | ||||
| 026 | 225084-9 | 4.80 | 5.81 | |
| Impeller 76 | ||||
| 027 | 241663-5 | 22.00 | 26.62 | |
| Set screw M6x25 | ||||
| 028 | 265763-7 | 1.20 | 1.45 | |
| Washer 16 A | ||||
| 029 | 267323-1 | 1.00 | 1.21 | |
| Compression spring 16 A | ||||
| 030 | 232573-7 | 1.00 | 1.21 | |
| Self Tapping Screw Pt4x30 | ||||
| 031 | 266050-7 | 1.00 | 1.21 | |
| NUT M8 | ||||
| 032 | 931402-8 | 1.00 | 1.21 | |
| Belt Disc 9.5x46.0 | ||||
| 033 | 222156-1 | 8.40 | 10.16 | |
| Gear-box cover | ||||
| 034 | 317273-1 | 9.60 | 11.62 | |
| Ball bearing 629ddw | ||||
| 035 | 211092-6 | 4.80 | 5.81 | |
| Gear 10 | ||||
| 036 | 226520-8 | 11.00 | 13.31 | |
| Gear 39 | ||||
| 037 | 151755-1 | 16.50 | 19.96 | |
| No information available, not orderable | ||||
| 038 | 852044-4 | |||
| Frame 9903 | ||||
| 039 | 151746-2 | 111.10 | 134.43 | |
| Ball bearing 6000ddw | ||||
| 040 | 211088-7 | 10.00 | 12.10 | |
| Ball bearing 6000DDW A | ||||
| 040 | 210315-9 | 6.00 | 7.26 | |
| Drive roller | ||||
| 041 | 162217-4 | 20.90 | 25.29 | |
| Hex nut 8x13 | ||||
| 042 | 252154-1 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 043 | 961052-5 | 1.00 | 1.21 | |
| Front Axle | ||||
| 044 | 323931-9 | 3.60 | 4.36 | |
| Disk Washer M12 | ||||
| 045 | 253922-5 | 1.00 | 1.21 | |
| Lead roller | ||||
| 046 | 151753-5 | 22.00 | 26.62 | |
| Lever | ||||
| 047 | 344823-9 | 3.60 | 4.36 | |
| Cupring | ||||
| 048 | 267731-6 | 1.20 | 1.45 | |
| Brush screw M4 | ||||
| 049 | 265059-6 | 1.20 | 1.45 | |
| Guide Piece | ||||
| 050 | 416417-1 | 1.20 | 1.45 | |
| Compression Spring 7 | ||||
| 051 | 233249-9 | 1.00 | 1.21 | |
| Tension arm | ||||
| 052 | 151744-6 | 16.50 | 19.96 | |
| Cupring 17 | ||||
| 053 | 267746-3 | 2.40 | 2.90 | |
| Compression spring 12 | ||||
| 054 | 233250-4 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 055 | 266034-5 | 1.00 | 1.21 | |
| Screw 4x14 | ||||
| 055 | 911121-2 | 1.00 | 1.21 | |
| Protective Cover 9903 * | ||||
| 056 | 344821-3 | 9.60 | 11.62 | |
| Screw 4x12 | ||||
| 057 | 911116-5 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 057-1A | 911117-3 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 057-1B | 911117-3 | 1.00 | 1.21 | |
| Screw 4x12 | ||||
| 057A | 911116-5 | 1.00 | 1.21 | |
| Cork plate | ||||
| 058 | 423312-8 | 2.40 | 2.90 | |
| Speed control unit | ||||
| 060 | 631380-9 | 20.90 | 25.29 | |
| Speed control unit | ||||
| 060A | 631380-9 | 20.90 | 25.29 | |
| Carbon Plate | ||||
| 061 | 423315-2 | 4.80 | 5.81 | |
| Support strip | ||||
| 062 | 344848-3 | 1.00 | 1.21 | |
| Support Plate | ||||
| 063 | 344829-7 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 064 | 265A48-7 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 065 | 266034-5 | 1.00 | 1.21 | |
| Screw 4x14 | ||||
| 065 | 911121-2 | 1.00 | 1.21 | |
| Screw 4x14 | ||||
| 066 | 911121-2 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 066 | 266034-5 | 1.00 | 1.21 | |
| Tapping Screw Ct4x16 | ||||
| 067 | 266034-5 | 1.00 | 1.21 | |
| Screw 4x14 | ||||
| 067 | 911121-2 | 1.00 | 1.21 | |
