Here you will find all available parts and drawings of the 'Makita 9565CV'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

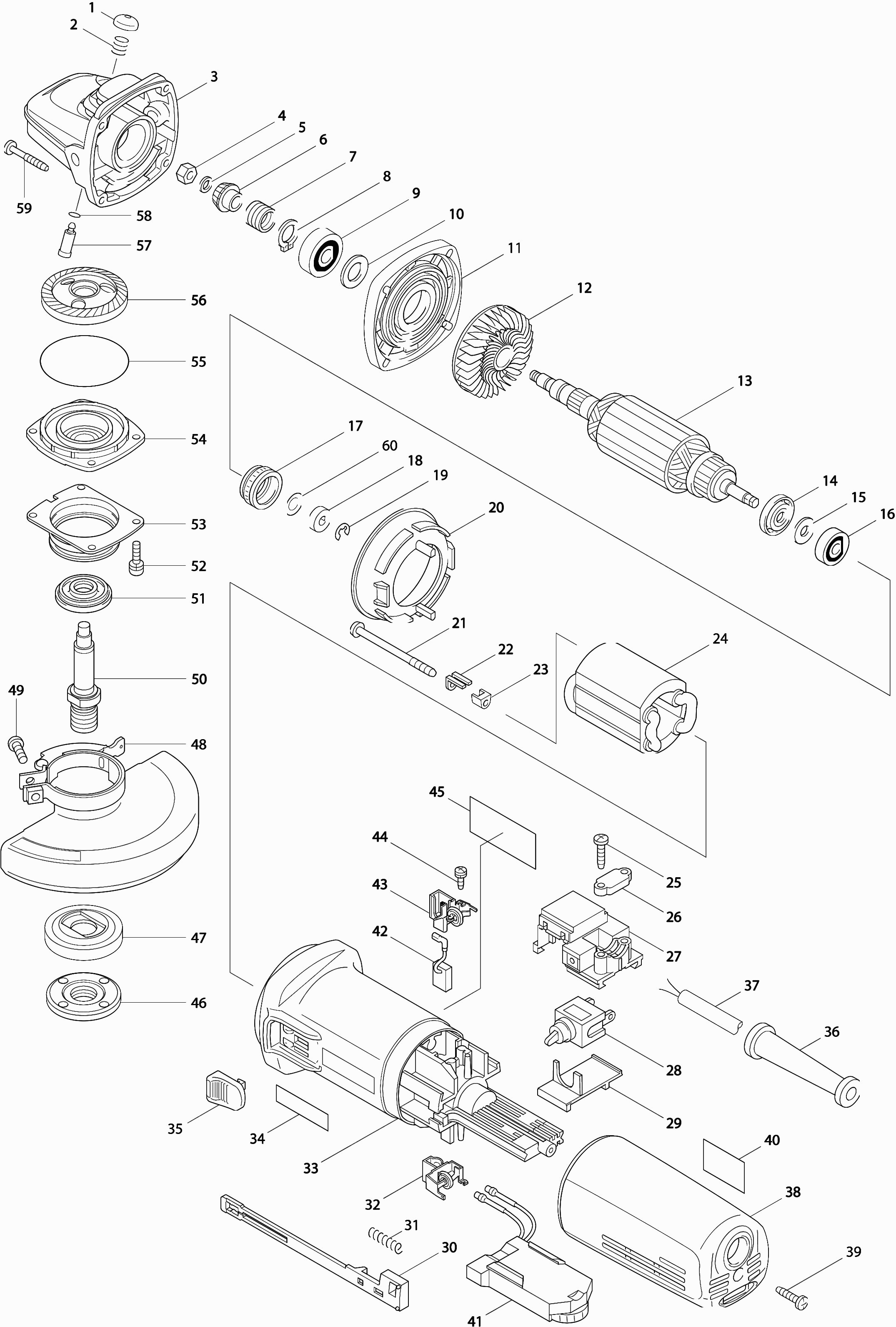

Technical drawing of model Makita 9565CV
Spare parts list of model Makita 9565CV
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lock Button Cap | ||||
| 001 | 417236-8 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 002 | 233376-2 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 003 | 153488-4 | 19.80 | 23.96 | |
| Ball Bearing 607Llb A | ||||
| 003A | 210169-4 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 004 | 931303-0 | |||
| Washer 6 | ||||
| 005 | 253077-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 226794-1 | |||
| Lock Spring 12 | ||||
| 007 | 233901-9 | 3.60 | 4.36 | |
| Lock washer S-12 | ||||
| 008 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6001zz | ||||
| 009 | 211148-5 | 8.40 | 10.16 | |
| Washer 12 | ||||
| 010 | 253084-9 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 011 | 317359-1 | 10.80 | 13.07 | |
| Fan 57 | ||||
| 012 | 240033-5 | 4.80 | 5.81 | |
| Armature | ||||
| 013 | 515228-2 | 68.20 | 82.52 | |
| Insulation ring | ||||
| 014 | 681656-4 | 1.00 | 1.21 | |
| SLUITRING 7 LF1000 A | ||||
| 015 | 267326-5 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 016 | 210045-2 | 3.60 | 4.36 | |
| Labyrinth ring GA5040C A | ||||
| 017 | 422750-1 | 2.40 | 2.90 | |
| Magnetic socket Rt0700 A | ||||
| 018 | 688117-5 | 3.60 | 4.36 | |
| Spring retaining ring | ||||
| 019 | 259039-2 | 1.00 | 1.21 | |
| Intermediate Plate | ||||
| 020 | 413076-2 | 2.40 | 2.90 | |
| Tapping Screw 4x70 | ||||
| 021 | 266258-3 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 022 | 344871-8 | 1.20 | 1.45 | |
| Insulating Cap | ||||
| 023 | 417237-6 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 024 | 626598-5 | |||
| VELD 9565CV A | ||||
| 024-1 | 621C19-0 | 36.30 | 43.92 | |
| Tap screw 4x18 | ||||
| 025 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687124-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687053-2 | 1.00 | 1.21 | |
| Switch Holder | ||||
| 027 | 632945-0 | 9.60 | 11.62 | |
| Switch Sw-126 A | ||||
| 028 | 651069-3 | 8.40 | 10.16 | |
| Switch cover | ||||
| 029 | 687113-0 | 1.20 | 1.45 | |
| Switch handle | ||||
| 030 | 417186-7 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 031 | 233071-4 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 032 | 643760-7 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 033 | 453276-2 | 14.30 | 17.30 | |
| Switch Button | ||||
| 035 | 417813-6 | 1.20 | 1.45 | |
| Cable gland 8-110 | ||||
| 036 | 682559-5 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 037 | 665383-1 | 10.80 | 13.07 | |
| Tail Cover | ||||
| 038 | 417185-9 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 039 | 265A48-7 | 1.00 | 1.21 | |
| Indicator plate | ||||
| 040B | 816504-0 | 3.60 | 4.36 | |
| Electronic regulator | ||||
| 041 | 631384-1 | 56.10 | 67.88 | |
| Carbon brush set CB-318 | ||||
| 042 | 191978-9 | 8.40 | 10.16 | |
| Brush Holder | ||||
| 043 | 643760-7 | 3.60 | 4.36 | |
| Self Tapper Pt 3x10 | ||||
| 044 | 266256-7 | 1.00 | 1.21 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 046 | 224554-5 | 3.00 | 3.63 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 047 | 224415-9 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 048A | 125268-8 | |||
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 048B | 141P36-7 | 7.00 | 8.47 | |
| O-ring 4 | ||||
| 048B1 | 213009-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 049A | 251391-4 | |||
| Screw 5x16 | ||||
| 049B | 265180-1 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 050 | 324035-0 | 9.60 | 11.62 | |
| Labyrinth ring | ||||
| 051 | 415300-9 | 1.20 | 1.45 | |
| Hex bolt 4x16 | ||||
| 052 | 266437-3 | 1.00 | 1.21 | |
| Aluminum bearing house | ||||
| 054 | 318334-0 | 22.00 | 26.62 | |
| Bearing lock ring 19-33 | ||||
| 054A | 285841-7 | 2.40 | 2.90 | |
| Ball Bearing 6201dw1 | ||||
| 054B | 211129-9 | 8.40 | 10.16 | |
| O-ring 52 | ||||
| 055 | 213673-2 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 056 | 227427-1 | |||
| Pin | ||||
| 057 | 256459-1 | 1.20 | 1.45 | |
| O-ring 6 | ||||
| 058 | 213048-5 | 1.00 | 1.21 | |
| Tapping Screw 4x28 | ||||
| 059 | 266257-5 | 1.00 | 1.21 | |
