Here you will find all available parts and drawings of the 'Makita 9565'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

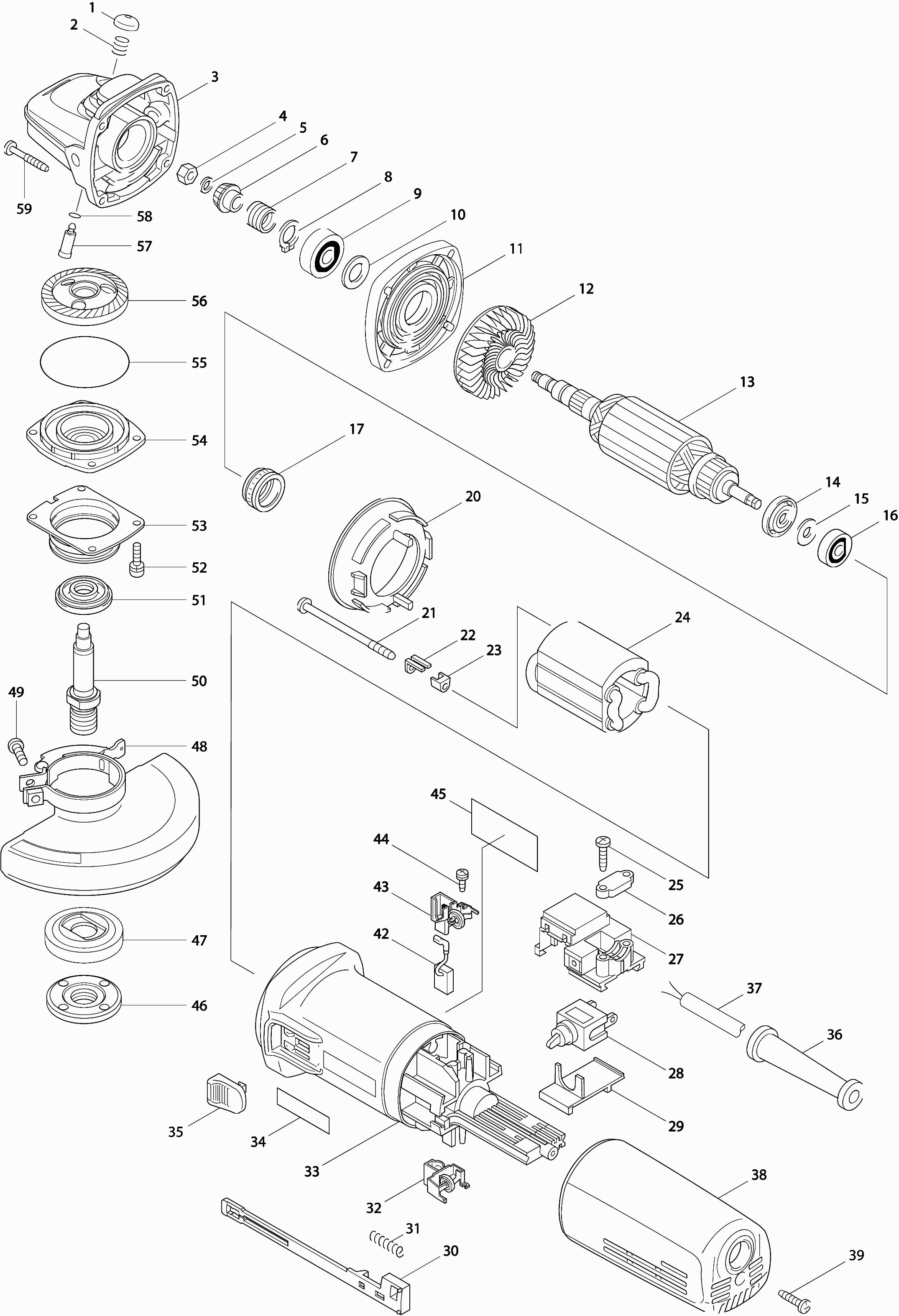

Technical drawing of model Makita 9565
Spare parts list of model Makita 9565
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Lock Button Cap | ||||
| 001 | 417236-8 | 1.20 | 1.45 | |
| Compression Spring 8 | ||||
| 002 | 233376-2 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 003 | 153488-4 | 19.80 | 23.96 | |
| No longer available, no replacement | ||||
| 004 | 931303-0 | |||
| Washer 6 | ||||
| 005 | 253077-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006 | 226794-1 | |||
| Lock Spring 12 | ||||
| 007 | 233901-9 | 3.60 | 4.36 | |
| Lock washer S-12 | ||||
| 008 | 961052-5 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 009 | 211131-2 | 9.60 | 11.62 | |
| Washer 12 | ||||
| 010 | 253084-9 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 011 | 317359-1 | 10.80 | 13.07 | |
| Fan 57 | ||||
| 012 | 240033-5 | 4.80 | 5.81 | |
| Armature | ||||
| 013 | 515234-7 | 63.80 | 77.20 | |
| Insulation ring | ||||
| 014 | 681656-4 | 1.00 | 1.21 | |
| SLUITRING 7 LF1000 A | ||||
| 015 | 267326-5 | 1.00 | 1.21 | |
| Ball bearing 627ddw | ||||
| 016 | 210045-2 | 3.60 | 4.36 | |
| Labyrinth ring GA5040C A | ||||
| 017 | 422750-1 | 2.40 | 2.90 | |
| Intermediate Plate | ||||
| 020 | 413076-2 | 2.40 | 2.90 | |
| Tapping Screw 4x70 | ||||
| 021 | 266258-3 | 1.20 | 1.45 | |
| Holding Plate | ||||
| 022 | 344871-8 | 1.20 | 1.45 | |
| Insulating Cap | ||||
| 023 | 417237-6 | 1.20 | 1.45 | |
| Field | ||||
| 024 | 626564-2 | 27.90 | 33.76 | |
| VELD 9564H A | ||||
| 024-1 | 621C09-3 | 27.50 | 33.28 | |
| Tap screw 4x18 | ||||
| 025 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687124-5 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687053-2 | 1.00 | 1.21 | |
| Switch Holder | ||||
| 027 | 632945-0 | 9.60 | 11.62 | |
| Switch Sw-126 A | ||||
| 028 | 651069-3 | 8.40 | 10.16 | |
| Switch cover | ||||
| 029 | 687113-0 | 1.20 | 1.45 | |
| Switch handle | ||||
| 030 | 417186-7 | 2.40 | 2.90 | |
| Compression Spring 4 | ||||
| 031 | 233071-4 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 032 | 643760-7 | 3.60 | 4.36 | |
| Motor Housing | ||||
| 033 | 418512-3 | 15.40 | 18.63 | |
| Switch Button | ||||
| 035 | 417813-6 | 1.20 | 1.45 | |
| Cable gland 8-110 | ||||
| 036 | 682559-5 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 037 | 665383-1 | 10.80 | 13.07 | |
| Tail Cover | ||||
| 038 | 417183-3 | 8.40 | 10.16 | |
| Tap screw 4x18 | ||||
| 039 | 265A48-7 | 1.00 | 1.21 | |
| Carbon brush set CB-318 | ||||
| 042 | 191978-9 | 8.40 | 10.16 | |
| Brush Holder | ||||
| 043 | 643760-7 | 3.60 | 4.36 | |
| Self Tapper Pt 3x10 | ||||
| 044 | 266256-7 | 1.00 | 1.21 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 046 | 224554-5 | 3.00 | 3.63 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 047 | 224415-9 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 048 | 125268-8 | |||
| No information available, not orderable | ||||
| 049 | 251391-4 | |||
| Spindle Ass'y | ||||
| 050 | 324035-0 | 9.60 | 11.62 | |
| Labyrinth ring | ||||
| 051 | 415300-9 | 1.20 | 1.45 | |
| Hex bolt 4x16 | ||||
| 052 | 266437-3 | 1.00 | 1.21 | |
| Aluminum bearing house | ||||
| 054 | 318334-0 | 22.00 | 26.62 | |
| Bearing lock ring 19-33 | ||||
| 054A | 285841-7 | 2.40 | 2.90 | |
| Ball Bearing 6201dw1 | ||||
| 054B | 211129-9 | 8.40 | 10.16 | |
| O-ring 52 | ||||
| 055 | 213673-2 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 056 | 227427-1 | |||
| Pin | ||||
| 057 | 256459-1 | 1.20 | 1.45 | |
| O-ring 6 | ||||
| 058 | 213048-5 | 1.00 | 1.21 | |
| Tapping Screw 4x28 | ||||
| 059 | 266257-5 | 1.00 | 1.21 | |
