Here you will find all available parts and drawings of the 'Makita 9558NB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

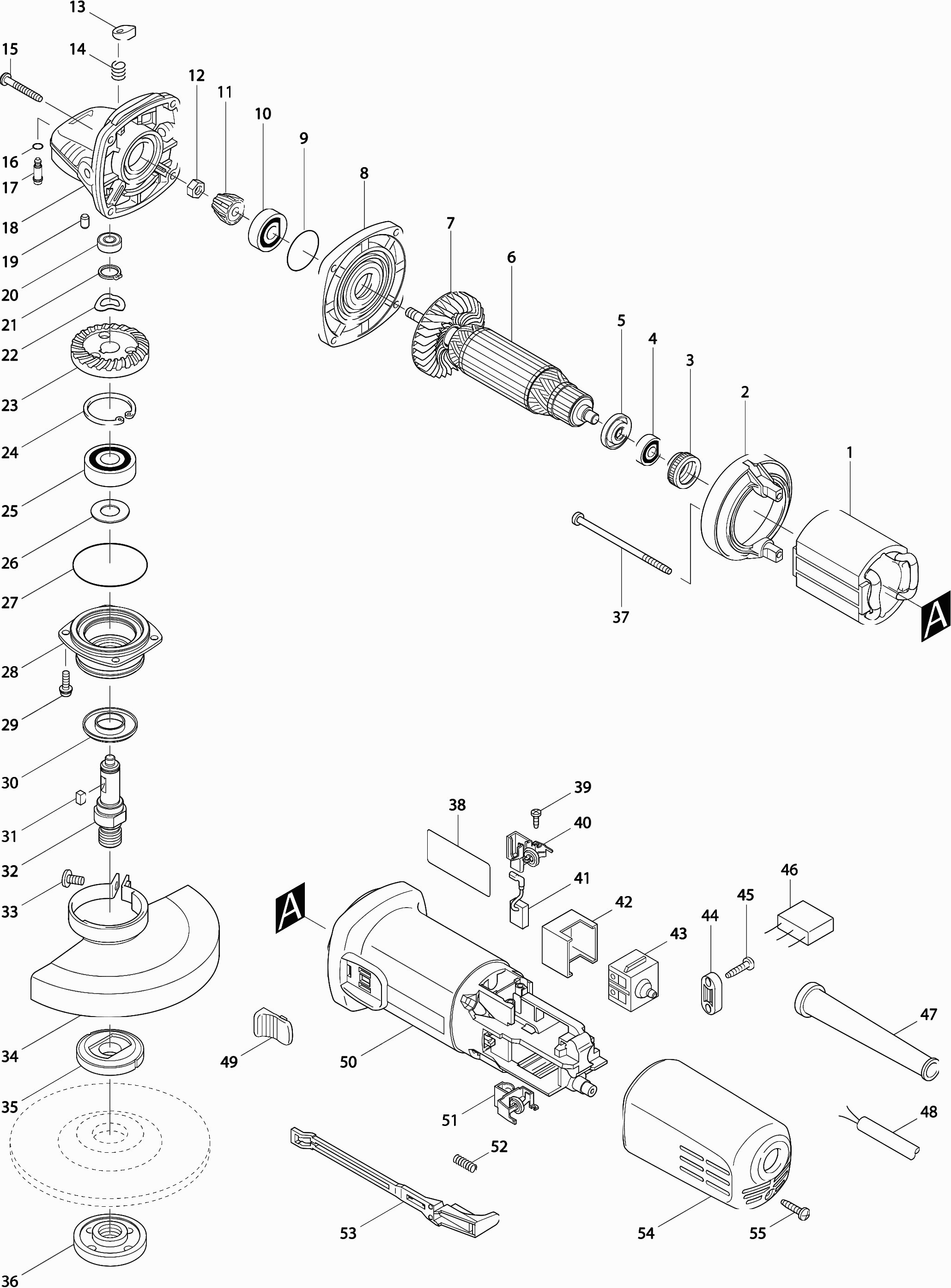

Technical drawing of model Makita 9558NB
Spare parts list of model Makita 9558NB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 001 | 621708-9 | 23.10 | 27.95 | |
| Separation plate 9558Nb A | ||||
| 002 | 457791-8 | 1.00 | 1.21 | |
| Intermediate ring 9554Nb A | ||||
| 003 | 422768-2 | 1.20 | 1.45 | |
| Ball Bearing 607Llb A | ||||
| 004 | 210169-4 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 005 | 681667-9 | |||
| Armature | ||||
| 006 | 515613-9 | 23.10 | 27.95 | |
| Fan | ||||
| 007 | 240076-7 | 1.20 | 1.45 | |
| Inner Cover | ||||
| 008 | 317821-6 | 3.60 | 4.36 | |
| O-ring 26 | ||||
| 009 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 010 | 210042-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 011 | 227541-3 | |||
| Nut M6 | ||||
| 012 | 252186-8 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 013 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 015 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 015-1 | 265B70-0 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4 | ||||
| 017 | 256486-8 | 1.00 | 1.21 | |
| Gearbox assembly (13 to 19) | ||||
| 018 | 141469-0 | 14.30 | 17.30 | |
| Rubber Pin 4 | ||||
| 019 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 020 | 210026-6 | 2.40 | 2.90 | |
| Lock washer S-12 | ||||
| 021 | 961052-5 | 1.00 | 1.21 | |
| Spring Washer 12 | ||||
| 022 | 267794-2 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 023 | 227542-1 | |||
| Lock washer r-32 | ||||
| 024 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 025 | 211129-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 026 | 267238-2 | |||
| O-ring 45 | ||||
| 027 | 213622-9 | 1.00 | 1.21 | |
| Bearing Housing < 2009 | ||||
| 028A | 317819-3 | 3.60 | 4.36 | |
| bearing house >2009 | ||||
| 028B | 318331-6 | 3.60 | 4.36 | |
| Screw M4x14mm | ||||
| 029 | 265099-4 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 030 | 345464-4 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 031 | 254011-9 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 032 | 324489-1 | 4.80 | 5.81 | |
| Screw 5x14 | ||||
| 033A | 265103-9 | 1.00 | 1.21 | |
| Screw 5x16 | ||||
| 033B | 265180-1 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 033B1 | 213009-5 | 1.00 | 1.21 | |
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 034A | 141P36-7 | 7.00 | 8.47 | |
| No longer available, no replacement | ||||
| 034B | 125268-8 | |||
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 035 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 036 | 224554-5 | 3.00 | 3.63 | |
| Tapping Screw 4x80 | ||||
| 037 | 266345-8 | 1.00 | 1.21 | |
| TAP SCHROEF 4X80MM | ||||
| 037-1 | 265B68-7 | 1.00 | 1.21 | |
| Nameplate 9558Nb | ||||
| 038 | 861258-4 | 3.60 | 4.36 | |
| Tapping screw Pt3x10 | ||||
| 039 | 266007-8 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 040 | 643760-7 | 3.60 | 4.36 | |
| Brush Set Cb-325 | ||||
| 041 | 194074-2 | 2.40 | 2.90 | |
| Distance support | ||||
| 042 | 418729-8 | 1.00 | 1.21 | |
| Switch | ||||
| 043 | 651947-7 | 3.60 | 4.36 | |
| Clamp Bracket | ||||
| 044 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 045 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 045-1 | 265B67-9 | 1.00 | 1.21 | |
| Capacitor | ||||
| 046 | 638740-6 | 3.60 | 4.36 | |
| Cable gland 8-110 | ||||
| 047 | 682559-5 | 1.20 | 1.45 | |
| Cable gland 10 | ||||
| 047A | 682566-8 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 048 | 665383-1 | 10.80 | 13.07 | |
| Rotary knob ABB OHYS2AJ | ||||
| 049 | 419566-3 | 1.00 | 1.21 | |
| Motor Housing 9558Nb A | ||||
| 050A | 451125-7 | 8.40 | 10.16 | |
| Motor Housing 9558Nb A | ||||
| 050B | 451125-7 | 8.40 | 10.16 | |
| Brush Holder | ||||
| 051 | 643760-7 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 052 | 233121-5 | 1.00 | 1.21 | |
| Switch handle | ||||
| 053 | 418728-0 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 054 | 418726-4 | 2.40 | 2.90 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 055 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 055-1 | 265B67-9 | 1.00 | 1.21 | |
