Here you will find all available parts and drawings of the 'Makita 9558HP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

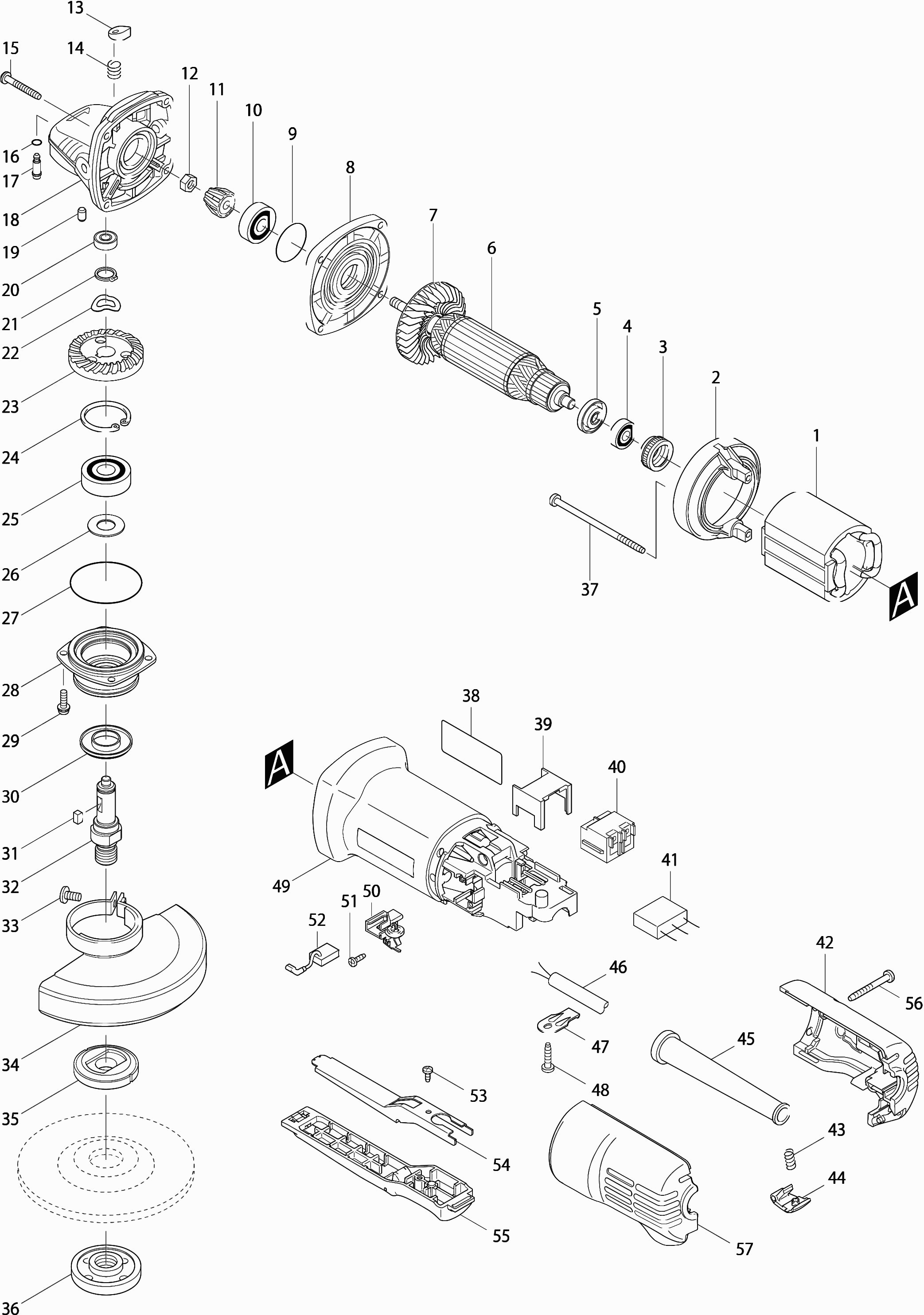

Technical drawing of model Makita 9558HP
Spare parts list of model Makita 9558HP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 001 | 621708-9 | 23.10 | 27.95 | |
| Separation plate 9558Nb A | ||||
| 002 | 457791-8 | 1.00 | 1.21 | |
| Separation plate 9558Nb A | ||||
| 002-1 | 457791-8 | 1.00 | 1.21 | |
| Intermediate ring 9554Nb A | ||||
| 003 | 422768-2 | 1.20 | 1.45 | |
| Intermediate ring 9554Nb A | ||||
| 003-1 | 422768-2 | 1.20 | 1.45 | |
| Ball Bearing 607Llb A | ||||
| 004 | 210169-4 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 005 | 681636-0 | 1.20 | 1.45 | |
| Armature | ||||
| 006 | 515613-9 | 23.10 | 27.95 | |
| Fan | ||||
| 007 | 240076-7 | 1.20 | 1.45 | |
| Inner Cover | ||||
| 008 | 317821-6 | 3.60 | 4.36 | |
| O-ring 26 | ||||
| 009 | 213407-3 | 1.20 | 1.45 | |
| O-ring 26 | ||||
| 009-1 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 010 | 210042-8 | 2.40 | 2.90 | |
| Gear 10 9554NB/DGA505 A | ||||
| 011 | 226861-2 | 2.40 | 2.90 | |
| Nut M6 | ||||
| 012 | 252186-8 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 013 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 1.00 | 1.21 | |
| Self Tapping Screw Pt4x30 | ||||
| 015 | 266050-7 | 1.00 | 1.21 | |
| Self Tapping Screw Pt4x30 | ||||
| 015-1 | 266050-7 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 015-1 | 265B70-0 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 015-2 | 265B70-0 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4 | ||||
| 017 | 256486-8 | 1.00 | 1.21 | |
| Collar Pin 4mm | ||||
| 017 | 256546-6 | 1.00 | 1.21 | |
| Gearbox assembly (13 to 19) | ||||
| 018 | 141469-0 | 14.30 | 17.30 | |
| Gear Cover | ||||
| 018 | 318941-9 | 7.20 | 8.71 | |
| Gear Cover | ||||
| 018-1 | 318051-2 | 7.20 | 8.71 | |
| Rubber Pin 4 | ||||
| 019 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 020 | 210026-6 | 2.40 | 2.90 | |
| Lock washer S-12 | ||||
| 021 | 961052-5 | 1.00 | 1.21 | |
| Spring Washer 12 | ||||
| 022 | 267794-2 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 023 | 227542-1 | |||
| Lock washer r-32 | ||||
| 024 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 025 | 211129-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 026 | 267238-2 | |||
| O-ring 45 | ||||
| 027 | 213622-9 | 1.00 | 1.21 | |
| bearing house >2009 | ||||
| 028 | 318331-6 | 3.60 | 4.36 | |
| bearing house >2009 | ||||
| 028-1 | 318331-6 | 3.60 | 4.36 | |
| Screw M4x14mm | ||||
| 029 | 265099-4 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 030 | 345464-4 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 031 | 254011-9 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 032 | 324489-1 | 4.80 | 5.81 | |
| Screw 5x16 | ||||
| 033 | 265180-1 | 1.00 | 1.21 | |
| Screw 5x16 | ||||
| 033-1 | 265180-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 034 | 122895-2 | |||
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 034-1 | 141P36-7 | 7.00 | 8.47 | |
| O-ring 4 | ||||
| 034-1AC1 | 213009-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 034-3C | 141P28-6 | |||
| LABEL WAARSCH GA5090 | ||||
| 034-3CC2 | 8050A1-8 | 2.40 | 2.90 | |
| O-ring 4 | ||||
| 034A | 213009-5 | 1.00 | 1.21 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 035 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 036 | 224554-5 | 3.00 | 3.63 | |
| Metal screw 4x80mm | ||||
| 037 | 266623-6 | 1.00 | 1.21 | |
| Metal screw 4x80mm | ||||
| 037-1 | 266623-6 | 1.00 | 1.21 | |
| TAP SCHROEF 4X80MM | ||||
| 037-1 | 265B68-7 | 1.00 | 1.21 | |
| TAP SCHROEF 4X80MM | ||||
| 037-2 | 265B68-7 | 1.00 | 1.21 | |
| Label | ||||
| 038 | 865898-0 | 3.60 | 4.36 | |
| Distance support | ||||
| 039 | 418729-8 | 1.00 | 1.21 | |
| Switch | ||||
| 040 | 651947-7 | 3.60 | 4.36 | |
| Capacitor | ||||
| 041 | 638740-6 | 3.60 | 4.36 | |
| Capacitor | ||||
| 041-1 | 638740-6 | 3.60 | 4.36 | |
| Tail Cover | ||||
| 042 | 183943-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 042-1 | 183U00-2 | |||
| Compression Spring 6 | ||||
| 043 | 231252-4 | 1.00 | 1.21 | |
| Lock button 9558Pb * | ||||
| 044 | 419057-4 | 1.20 | 1.45 | |
| Cable gland 8-110 | ||||
| 045 | 682559-5 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 046 | 665383-1 | 10.80 | 13.07 | |
| Strain reliever | ||||
| 047 | 687169-3 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 048 | 265A48-7 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 048-1 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 048-1 | 265B67-9 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 048-2 | 265B67-9 | 1.00 | 1.21 | |
| Motor Housing | ||||
| 049 | 418838-3 | 8.40 | 10.16 | |
| Brush Holder | ||||
| 050 | 643760-7 | 3.60 | 4.36 | |
| Tapping screw Pt3x10 | ||||
| 051 | 266007-8 | 1.00 | 1.21 | |
| Brush Set Cb-325 | ||||
| 052 | 194074-2 | 2.40 | 2.90 | |
| Self-tapping Screw Pt3X8 | ||||
| 053 | 265954-0 | 1.00 | 1.21 | |
| Shift Plate | ||||
| 054 | 345504-8 | 1.20 | 1.45 | |
| Switch Button | ||||
| 055 | 154584-1 | 2.40 | 2.90 | |
| Screw 4x35 | ||||
| 056 | 266351-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 056-1 | 266053-1 | |||
| No information available, not orderable | ||||
| 056-2 | 265B69-5 | |||
| Tail Cover | ||||
| 057 | 183943-2 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 057-1 | 183U00-2 | |||
| No information available, not orderable | ||||
| 058 | 892373-3 | |||
