Here you will find all available parts and drawings of the 'Makita 9558HN'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

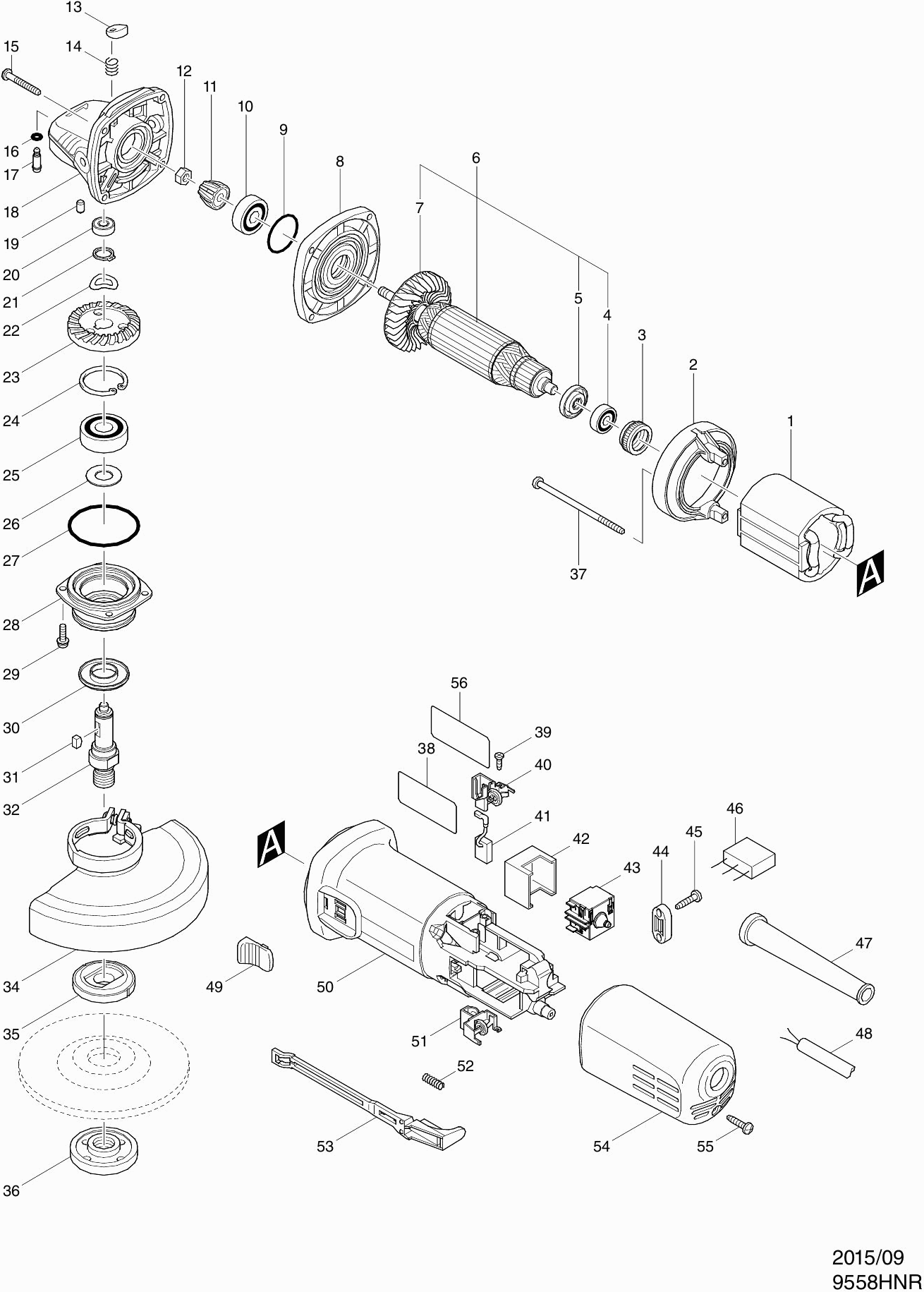

Technical drawing of model Makita 9558HN
Spare parts list of model Makita 9558HN
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 001 | 621708-9 | 23.10 | 27.95 | |
| Separation plate 9558Nb A | ||||
| 002 | 457791-8 | 1.00 | 1.21 | |
| Intermediate ring 9554Nb A | ||||
| 003 | 422768-2 | 1.20 | 1.45 | |
| Ball Bearing 607Llb A | ||||
| 004 | 210169-4 | 2.40 | 2.90 | |
| Insulation ring | ||||
| 005 | 681636-0 | 1.20 | 1.45 | |
| Armature | ||||
| 006 | 515613-9 | 23.10 | 27.95 | |
| Fan | ||||
| 007 | 240076-7 | 1.20 | 1.45 | |
| Inner Cover | ||||
| 008 | 317821-6 | 3.60 | 4.36 | |
| O-ring 26 | ||||
| 009 | 213407-3 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 010 | 210042-8 | 2.40 | 2.90 | |
| Gear 10 9554NB/DGA505 A | ||||
| 011 | 226861-2 | 2.40 | 2.90 | |
| Nut M6 | ||||
| 012 | 252186-8 | 1.00 | 1.21 | |
| Lock pin cap | ||||
| 013 | 417771-6 | 1.00 | 1.21 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 1.00 | 1.21 | |
| Self Tapping Screw Pt4x30 | ||||
| 015 | 266050-7 | 1.00 | 1.21 | |
| Tap screw 4x30mm DGA520 | ||||
| 015-1 | 265B70-0 | 1.00 | 1.21 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 1.00 | 1.21 | |
| Collar Pin 4 | ||||
| 017A | 256486-8 | 1.00 | 1.21 | |
| Collar Pin 4mm | ||||
| 017B | 256546-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 018A | 317814-3 | |||
| Gearbox assembly (13 to 19) | ||||
| 018B | 141469-0 | 14.30 | 17.30 | |
| Rubber Pin 4 | ||||
| 019 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 696ZZ A | ||||
| 020 | 210026-6 | 2.40 | 2.90 | |
| Lock washer S-12 | ||||
| 021 | 961052-5 | 1.00 | 1.21 | |
| Spring Washer 12 | ||||
| 022 | 267794-2 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 023 | 227542-1 | |||
| Lock washer r-32 | ||||
| 024 | 962151-6 | 1.00 | 1.21 | |
| Ball Bearing 6201dw1 | ||||
| 025 | 211129-9 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 026 | 267238-2 | |||
| O-ring 45 | ||||
| 027 | 213622-9 | 1.00 | 1.21 | |
| bearing house >2009 | ||||
| 028 | 318331-6 | 3.60 | 4.36 | |
| Screw M4x14mm | ||||
| 029 | 265099-4 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 030 | 345464-4 | 1.00 | 1.21 | |
| Feather Key 4 | ||||
| 031 | 254011-9 | 1.00 | 1.21 | |
| Spindle Ass'y | ||||
| 032 | 324489-1 | 4.80 | 5.81 | |
| Screw 5x16 | ||||
| 033 | 265180-1 | 1.00 | 1.21 | |
| BESCHERMKAP 125MM AFBRAMEN EN SCHUREN | ||||
| 034 | 141P36-7 | 7.00 | 8.47 | |
| O-ring 4 | ||||
| 034A | 213009-5 | 1.00 | 1.21 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 035 | 224415-9 | 3.00 | 3.63 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 036 | 224554-5 | 3.00 | 3.63 | |
| Metal screw 4x80mm | ||||
| 037 | 266623-6 | 1.00 | 1.21 | |
| TAP SCHROEF 4X80MM | ||||
| 037-1 | 265B68-7 | 1.00 | 1.21 | |
| Label | ||||
| 038 | 865808-7 | 3.60 | 4.36 | |
| Tapping screw Pt3x10 | ||||
| 039 | 266007-8 | 1.00 | 1.21 | |
| Brush Holder | ||||
| 040 | 643760-7 | 3.60 | 4.36 | |
| Brush Set Cb-325 | ||||
| 041 | 194074-2 | 2.40 | 2.90 | |
| Distance support | ||||
| 042 | 418729-8 | 1.00 | 1.21 | |
| Switch | ||||
| 043 | 651947-7 | 3.60 | 4.36 | |
| Clamp Bracket | ||||
| 044 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 045 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 045-1 | 265B67-9 | 1.00 | 1.21 | |
| Capacitor | ||||
| 046 | 638740-6 | 3.60 | 4.36 | |
| Cable gland 8-110 | ||||
| 047 | 682559-5 | 1.20 | 1.45 | |
| Power cord 2x1.00 2.2mtr | ||||
| 048 | 665383-1 | 10.80 | 13.07 | |
| Rotary knob ABB OHYS2AJ | ||||
| 049 | 419566-3 | 1.00 | 1.21 | |
| Motor Housing 9558Nb A | ||||
| 050 | 451125-7 | 8.40 | 10.16 | |
| Brush Holder | ||||
| 051 | 643760-7 | 3.60 | 4.36 | |
| Compression Spring 4 | ||||
| 052 | 233121-5 | 1.00 | 1.21 | |
| Switch handle | ||||
| 053 | 418728-0 | 1.20 | 1.45 | |
| Tail Cover | ||||
| 054 | 418726-4 | 2.40 | 2.90 | |
| Tap screw 4x18 | ||||
| 055 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 055-1 | 265B67-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 056 | 892295-7 | |||
