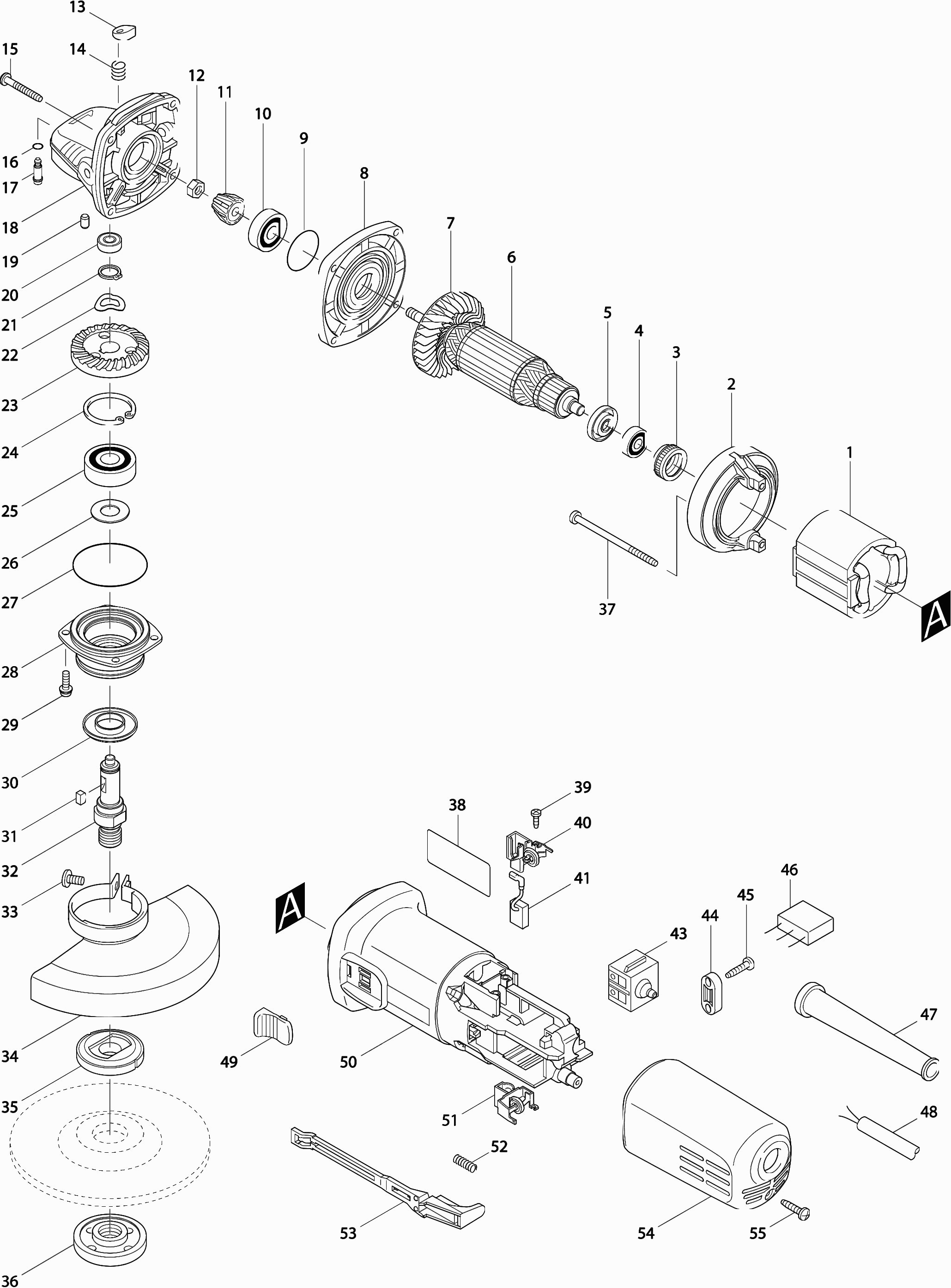

Technical drawing of model Makita 9555NB
Spare parts list of model Makita 9555NB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 9554Nb | ||||
| 001 | 621713-6 | 21.23 | 25.69 | |
| No information available, not orderable | ||||
| 002 | 418795-5 | |||
| Intermediate ring 9554Nb A | ||||
| 003 | 422768-2 | 0.83 | 1.00 | |
| Ball Bearing 607Llb A | ||||
| 004 | 210169-4 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 005 | 681667-9 | |||
| Insulation ring | ||||
| 005-1 | 681636-0 | 1.18 | 1.43 | |
| Armature | ||||
| 006 | 515619-7 | 19.29 | 23.34 | |
| Fan | ||||
| 007 | 240076-7 | 1.00 | 1.21 | |
| Inner Cover | ||||
| 008 | 317821-6 | 3.12 | 3.78 | |
| O-ring 26 | ||||
| 009 | 213407-3 | 1.18 | 1.43 | |
| Ball bearing 629llb | ||||
| 010 | 210042-8 | 2.36 | 2.86 | |
| Ball bearing 629llb | ||||
| 010-2 | 210042-8 | 2.36 | 2.86 | |
| No information available, not orderable | ||||
| 011 | 227541-3 | |||
| Nut M6 | ||||
| 012 | 252186-8 | 0.83 | 1.00 | |
| Lock pin cap | ||||
| 013 | 417771-6 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 014 | 233376-2 | 0.93 | 1.13 | |
| Tap screw 4x30mm DGA520 | ||||
| 015 | 265B70-0 | 0.83 | 1.00 | |
| Tap screw 4x30mm DGA520 | ||||
| 015-1 | 265B70-0 | 0.83 | 1.00 | |
| Self Tapping Screw Pt4x30 | ||||
| 015-1 | 266050-7 | 0.83 | 1.00 | |
| O-ring 4 | ||||
| 016 | 213032-0 | 0.83 | 1.00 | |
| Collar Pin 4 | ||||
| 017 | 256486-8 | 0.83 | 1.00 | |
| Gearbox assembly (13 to 19) | ||||
| 018 | 141469-0 | 13.82 | 16.72 | |
| Rubber Pin 4 | ||||
| 019 | 263002-9 | 0.83 | 1.00 | |
| Ball bearing 696ZZ A | ||||
| 020 | 210026-6 | 1.99 | 2.41 | |
| Lock washer S-12 | ||||
| 021 | 961052-5 | 0.83 | 1.00 | |
| Spring Washer 12 | ||||
| 022 | 267794-2 | 0.83 | 1.00 | |
| Gear 37 | ||||
| 023 | 227542-1 | 6.38 | 7.72 | |
| No information available, not orderable | ||||
| 023-1 | 227505-7 | |||
| Lock washer r-32 | ||||
| 024 | 962151-6 | 0.83 | 1.00 | |
| Ball Bearing 6201dw1 | ||||
| 025 | 211129-9 | 7.22 | 8.74 | |
| No information available, not orderable | ||||
| 026 | 267238-2 | |||
| O-ring 45 | ||||
| 027 | 213622-9 | 0.83 | 1.00 | |
| bearing house >2009 | ||||
| 028-1 | 318331-6 | 2.71 | 3.28 | |
| Bearing Housing < 2009 | ||||
| 028A | 317819-3 | 3.11 | 3.76 | |
| bearing house >2009 | ||||
| 028B | 318331-6 | 2.71 | 3.28 | |
| Screw M4x14mm | ||||
| 029 | 265099-4 | 0.83 | 1.00 | |
| Intermediate Ring | ||||
| 030 | 345464-4 | 0.83 | 1.00 | |
| Feather Key 4 | ||||
| 031 | 254011-9 | 0.83 | 1.00 | |
| Spindle Ass'y | ||||
| 032 | 324489-1 | 3.96 | 4.79 | |
| Spindle Ass'y | ||||
| 032-1 | 324489-1 | 3.96 | 4.79 | |
| Screw 5x16 | ||||
| 033-1 | 265180-1 | 0.83 | 1.00 | |
| Screw 5x14 | ||||
| 033A | 265103-9 | 0.83 | 1.00 | |
| Screw 5x16 | ||||
| 033B | 265180-1 | 0.83 | 1.00 | |
| O-ring 4 | ||||
| 033B1 | 213009-5 | 0.83 | 1.00 | |
| Protective Cover < 2009 | ||||
| 034A | 125268-8 | 3.54 | 4.28 | |
| No information available, not orderable | ||||
| 034B | 122887-1 | |||
| Binnenflens haakse slijper en sleuvenzaag | ||||
| 035 | 224415-9 | 4.00 | 4.84 | |
| Sluitmoer haakse slijper | ||||
| 036 | 224554-5 | 4.00 | 4.84 | |
| Tapping Screw 4x70 | ||||
| 037 | 266325-4 | 0.83 | 1.00 | |
| Tapping Screw 4x70 | ||||
| 037-1 | 266325-4 | 0.83 | 1.00 | |
| Label | ||||
| 038 | 861248-7 | 2.71 | 3.28 | |
| Tapping screw Pt3x10 | ||||
| 039 | 266007-8 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 040 | 643760-7 | 3.12 | 3.78 | |
| Brush Set Cb-325 | ||||
| 041 | 194074-2 | 2.02 | 2.44 | |
| Switch | ||||
| 043 | 651947-7 | 2.71 | 3.28 | |
| Clamp Bracket | ||||
| 044 | 687053-2 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 044-1 | 687124-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 045 | 266326-2 | |||
| Tap screw 4x18 | ||||
| 045-1 | 265A48-7 | 0.83 | 1.00 | |
| Tapschr 4x18mm DGA520 A | ||||
| 045-1 | 265B67-9 | 0.83 | 1.00 | |
| Capacitor | ||||
| 046 | 638740-6 | 2.71 | 3.28 | |
| Capacitor | ||||
| 046-1 | 638740-6 | 2.71 | 3.28 | |
| Cable gland 8-110 | ||||
| 047 | 682559-5 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 048 | 665383-1 | 10.50 | 12.70 | |
| No information available, not orderable | ||||
| 048-1 | 665394-6 | |||
| Rotary knob ABB OHYS2AJ | ||||
| 049 | 419566-3 | 0.83 | 1.00 | |
| Rotary knob ABB OHYS2AJ | ||||
| 049-1 | 419566-3 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 050 | 418794-7 | |||
| Motor Housing | ||||
| 050-2 | 451126-5 | 8.21 | 9.93 | |
| Brush Holder | ||||
| 051 | 643760-7 | 3.12 | 3.78 | |
| Compression Spring 4 | ||||
| 052 | 233121-5 | 0.83 | 1.00 | |
| Shifter Rod | ||||
| 053 | 418796-3 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 054 | 418726-4 | 2.02 | 2.44 | |
| No information available, not orderable | ||||
| 055 | 266326-2 | |||
| Tap screw 4x18 | ||||
| 055-1 | 265A48-7 | 0.83 | 1.00 | |
| Tapschr 4x18mm DGA520 A | ||||
| 055-1 | 265B67-9 | 0.83 | 1.00 | |
| Tapping screw Pt3x10 | ||||
| 0398 | 266007-8 | 0.83 | 1.00 | |
