Here you will find all available parts and drawings of the 'Makita 9542'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

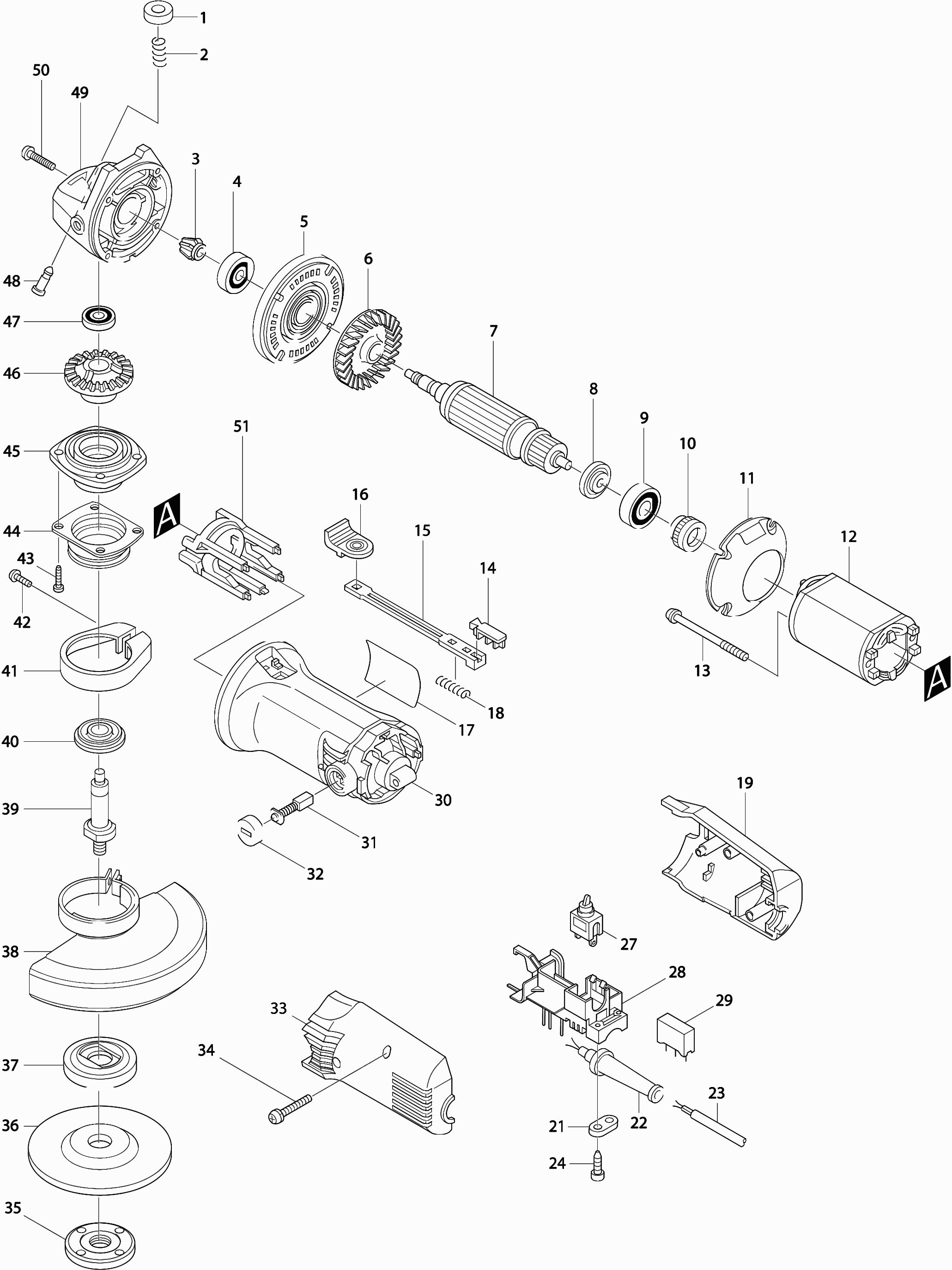

Technical drawing of model Makita 9542
Spare parts list of model Makita 9542
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 001 | 415301-7 | 4.94 | 5.98 | |
| Compression Spring 8 | ||||
| 002 | 233376-2 | 0.93 | 1.13 | |
| Gear 10 | ||||
| 003 | 226712-9 | 24.16 | 29.23 | |
| Ball bearing 629llb | ||||
| 004 | 210042-8 | 2.36 | 2.86 | |
| No longer available, no replacement | ||||
| 005 | 415302-5 | |||
| Fan 57 | ||||
| 006 | 241867-9 | 5.71 | 6.91 | |
| No longer available, no replacement | ||||
| 007 | 517053-7 | |||
| Insulation ring | ||||
| 008 | 681632-8 | 1.24 | 1.50 | |
| Ball bearing 607llb | ||||
| 009 | 211021-9 | 4.45 | 5.38 | |
| Rubber Ring for Bearing | ||||
| 010 | 421479-6 | 4.45 | 5.38 | |
| Intermediate Plate | ||||
| 011 | 415296-4 | 2.71 | 3.28 | |
| Field | ||||
| 012 | 633248-5 | 15.65 | 18.94 | |
| Tapping screw Pt4x70 | ||||
| 013 | 266004-4 | 1.18 | 1.43 | |
| Switch handle | ||||
| 014 | 415305-9 | 0.98 | 1.19 | |
| Control rod | ||||
| 015 | 415304-1 | 1.24 | 1.50 | |
| Switch Button | ||||
| 016 | 415303-3 | 1.18 | 1.43 | |
| Compression Spring 4 | ||||
| 018 | 233071-4 | 0.83 | 1.00 | |
| Rear Housing L + R | ||||
| 019 | 182705-5 | 11.84 | 14.33 | |
| Clamp Bracket | ||||
| 021 | 687053-2 | 0.83 | 1.00 | |
| Cable grommet 8-85 | ||||
| 022 | 682502-4 | 1.67 | 2.02 | |
| Power cord 2x1.00 2.2mtr | ||||
| 023 | 665383-1 | 10.50 | 12.70 | |
| Tap screw 4x18 | ||||
| 024 | 265A48-7 | 0.83 | 1.00 | |
| Connection cover 9541-9542 * | ||||
| 025 | 655206-1 | 0.83 | 1.00 | |
| Connection house 9541-9542 * | ||||
| 026 | 655205-3 | 0.98 | 1.19 | |
| No information available, not orderable | ||||
| 027 | 651428-1 | |||
| Carrier 9541/42 A | ||||
| 028A | 687073-6 | 2.71 | 3.28 | |
| Spring 9542 * | ||||
| 028B | 654133-9 | 1.67 | 2.02 | |
| Terminal block | ||||
| 028C | 654531-7 | 2.10 | 2.54 | |
| Plug | ||||
| 028D | 654164-8 | 0.83 | 1.00 | |
| Plug | ||||
| 028E | 654164-8 | 0.83 | 1.00 | |
| Capacitor | ||||
| 028F | 645253-0 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 030 | 183555-1 | |||
| Carbon brush set Cb-302 | ||||
| 031 | 191959-3 | 8.21 | 9.93 | |
| No information available, not orderable | ||||
| 032 | 643753-4 | |||
| Rear Housing L + R | ||||
| 033 | 182705-5 | 11.84 | 14.33 | |
| No information available, not orderable | ||||
| 034 | 265999-8 | |||
| Guard | ||||
| 038 | 165055-3 | 5.70 | 6.90 | |
| Shaft 9541-9542 * | ||||
| 039 | 322606-7 | 12.19 | 14.75 | |
| Labyrinth ring | ||||
| 040 | 415300-9 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 041 | 415320-3 | |||
| No information available, not orderable | ||||
| 042 | 251391-4 | |||
| Tapping Screw Ct4x16 | ||||
| 043 | 266034-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 044 | 344053-2 | |||
| Bearing Housing | ||||
| 045 | 161120-6 | 16.35 | 19.78 | |
| Gear 38 | ||||
| 046 | 226713-7 | 14.48 | 17.52 | |
| Ball bearing 607llb | ||||
| 047 | 211021-9 | 4.45 | 5.38 | |
| Pen 5 | ||||
| 048 | 256435-5 | 1.24 | 1.50 | |
| No information available, not orderable | ||||
| 049 | 316500-3 | |||
| Tapping screw Pt 5x30 | ||||
| 050 | 266173-1 | 0.83 | 1.00 | |
| Terminal Block | ||||
| 051 | 632454-9 | 7.22 | 8.74 | |
