Here you will find all available parts and drawings of the 'Makita 9527PB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

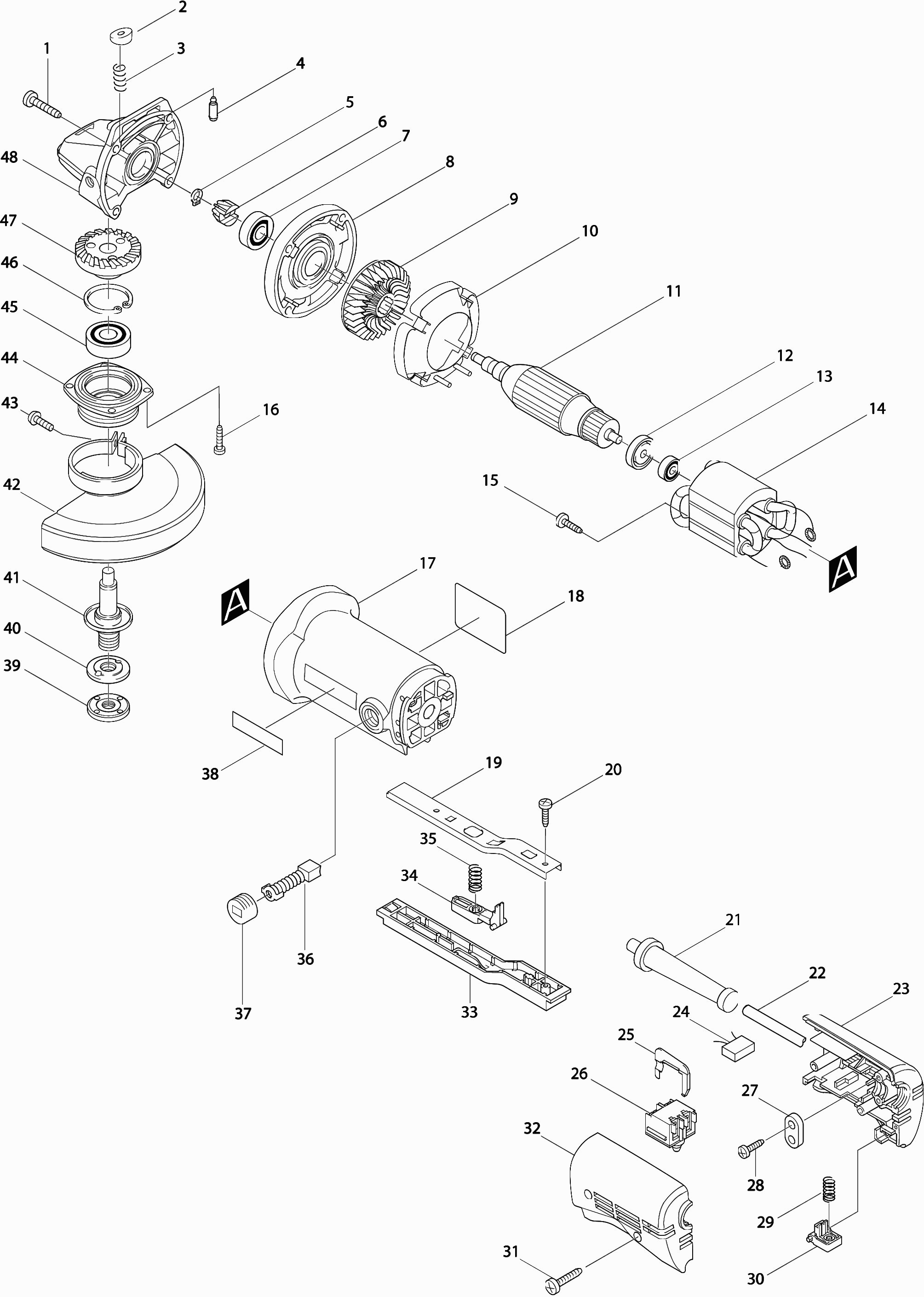

Technical drawing of model Makita 9527PB
Spare parts list of model Makita 9527PB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping screw 5x30 | ||||
| 001 | 266142-2 | 0.83 | 1.00 | |
| Pushing Button | ||||
| 002 | 415491-6 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 003 | 233376-2 | 0.93 | 1.13 | |
| Pin 4 | ||||
| 004 | 256437-1 | 1.18 | 1.43 | |
| Lock ring S-6 | ||||
| 005 | 961002-0 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 006 | 226735-7 | |||
| Ball bearing 6000ddw | ||||
| 007 | 211088-7 | 5.06 | 6.12 | |
| Gearbox cover 9527Pb * | ||||
| 008 | 316807-7 | 8.21 | 9.93 | |
| Fan 57 9527Pb * | ||||
| 009 | 241891-2 | 3.12 | 3.78 | |
| Intermediate plate 9527Pb * | ||||
| 010 | 415971-2 | 2.48 | 3.00 | |
| No longer available, no replacement | ||||
| 011 | 517308-0 | |||
| Insulation ring | ||||
| 012 | 681638-6 | 0.83 | 1.00 | |
| Ball bearing 606Zz A | ||||
| 013 | 210137-7 | 0.98 | 1.19 | |
| Field | ||||
| 014 | 521628-6 | 22.09 | 26.73 | |
| Stator spring | ||||
| 014A | 654100-4 | 1.24 | 1.50 | |
| Tapping screw Pt3x10 | ||||
| 015 | 266007-8 | 0.83 | 1.00 | |
| Tapping Screw Ct4x16 | ||||
| 016 | 266034-5 | 0.83 | 1.00 | |
| Motor Housing 9527Pb * | ||||
| 017 | 159875-5 | 11.82 | 14.30 | |
| Carbon brush holder 9524Nb+25N * | ||||
| 017A | 643927-7 | 5.30 | 6.41 | |
| Plate 9527Pb * | ||||
| 019 | 344357-2 | 2.02 | 2.44 | |
| Self-tapping Screw Pt3X8 | ||||
| 020 | 265954-0 | 0.83 | 1.00 | |
| Cable grommet 8-85 | ||||
| 021 | 682502-4 | 1.67 | 2.02 | |
| Power cord 2x1.00 2.2mtr | ||||
| 022 | 665383-1 | 10.50 | 12.70 | |
| Rear Cover 9527Pb * | ||||
| 023 | 182825-5 | 10.50 | 12.70 | |
| Capacitor 0.22uF | ||||
| 024 | 645190-8 | 2.36 | 2.86 | |
| Splitter 9527Pb * | ||||
| 025 | 652186-2 | 0.98 | 1.19 | |
| Switch | ||||
| 026 | 651947-7 | 2.71 | 3.28 | |
| Clamp Bracket | ||||
| 027 | 687053-2 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 028 | 265A48-7 | 0.83 | 1.00 | |
| Compression Spring 6 | ||||
| 029 | 231252-4 | 0.83 | 1.00 | |
| Lock button 9527Pb * | ||||
| 030 | 415973-8 | 1.39 | 1.68 | |
| No information available, not orderable | ||||
| 031 | 265999-8 | |||
| Rear Cover 9527Pb * | ||||
| 032 | 182825-5 | 10.50 | 12.70 | |
| Switch handle 9527Pb * | ||||
| 033 | 415972-0 | 3.12 | 3.78 | |
| Unlock button 9527Pb * | ||||
| 034 | 415974-6 | 2.36 | 2.86 | |
| Compression Spring 7 | ||||
| 035 | 233127-3 | 0.83 | 1.00 | |
| Brush Set CB411 RT0702C | ||||
| 036 | 195010-1 | 4.45 | 5.38 | |
| Brush Cap | ||||
| 037 | 643928-5 | 0.83 | 1.00 | |
| Sluitmoer haakse slijper | ||||
| 039 | 224554-5 | 4.00 | 4.84 | |
| Binnenflens haakse slijper en sleuvenzaag | ||||
| 040 | 224415-9 | 4.00 | 4.84 | |
| No information available, not orderable | ||||
| 041 | 152516-2 | |||
| Labyrinth ring | ||||
| 041A | 344347-5 | 0.83 | 1.00 | |
| Protective Cover 115mm 'toolless' | ||||
| 042 | 123144-0 | 9.24 | 11.18 | |
| No information available, not orderable | ||||
| 043 | 251391-4 | |||
| No information available, not orderable | ||||
| 044 | 316800-1 | |||
| Ball Bearing 6201dw1 | ||||
| 045 | 211129-9 | 7.22 | 8.74 | |
| Lock washer r-32 | ||||
| 046 | 962151-6 | 0.83 | 1.00 | |
| Gear 10 | ||||
| 047 | 227408-5 | 10.99 | 13.30 | |
| Gear Cover | ||||
| 048 | 159874-7 | 10.00 | 12.10 | |
