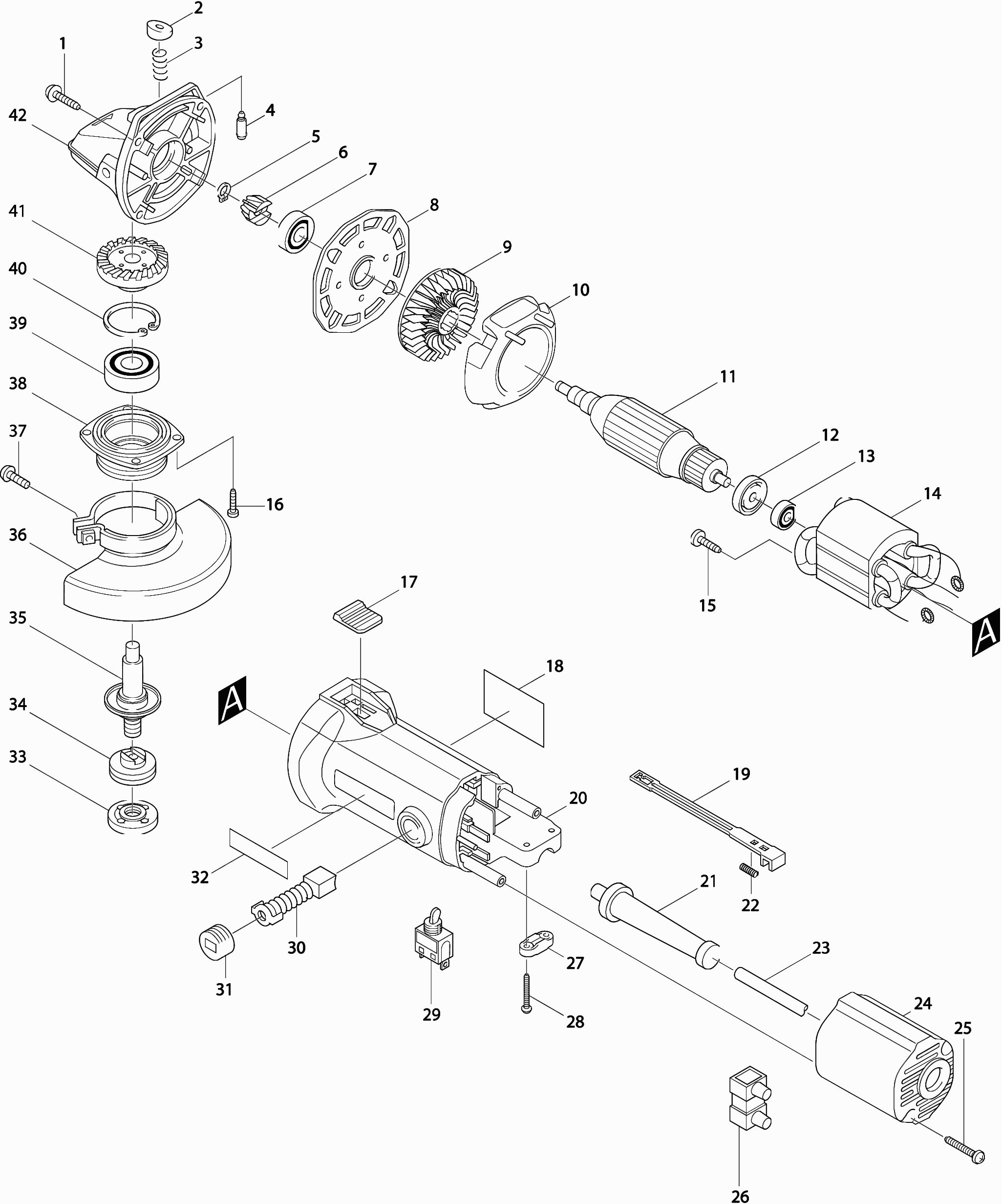

Technical drawing of model Makita 9524NB
Spare parts list of model Makita 9524NB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tap Screw 5X25 | ||||
| 001 | 266041-8 | 0.83 | 1.00 | |
| Pushing Button | ||||
| 002 | 415491-6 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 003 | 233376-2 | 0.93 | 1.13 | |
| Pin 4 | ||||
| 004 | 256437-1 | 1.18 | 1.43 | |
| Lock ring S-6 | ||||
| 005 | 961002-0 | 0.83 | 1.00 | |
| Gear 11 9524Nb A | ||||
| 006 | 226799-1 | 5.98 | 7.24 | |
| Ball bearing 6000ddw | ||||
| 007 | 211088-7 | 5.06 | 6.12 | |
| Bearing Lock 52 9524Nb+9525N * | ||||
| 008 | 285684-7 | 2.71 | 3.28 | |
| Fan 57 9524Nb+25Nb * | ||||
| 009 | 241890-4 | 4.67 | 5.65 | |
| Intermediate Plate | ||||
| 010 | 415954-2 | 2.02 | 2.44 | |
| Armature | ||||
| 011 | 517303-0 | 25.36 | 30.69 | |
| Insulation ring | ||||
| 012 | 681638-6 | 0.83 | 1.00 | |
| Ball bearing 606Zz A | ||||
| 013 | 210137-7 | 0.98 | 1.19 | |
| Field | ||||
| 014 | 521623-6 | 25.06 | 30.32 | |
| Tapping screw Pt3x10 | ||||
| 015 | 266007-8 | 0.83 | 1.00 | |
| Tapping Screw Ct4x16 | ||||
| 016 | 266034-5 | 0.83 | 1.00 | |
| Switch Button | ||||
| 017 | 415952-6 | 1.39 | 1.68 | |
| Control rod | ||||
| 019 | 417352-6 | 1.75 | 2.12 | |
| Motor Housing | ||||
| 020 | 159866-6 | 14.48 | 17.52 | |
| Carbon brush holder 9524Nb+25N * | ||||
| 020A | 643927-7 | 5.30 | 6.41 | |
| Cable grommet 8-85 | ||||
| 021 | 682502-4 | 1.67 | 2.02 | |
| Compression Spring 4 | ||||
| 022 | E00884-2 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 023 | 665383-1 | 10.50 | 12.70 | |
| Tail Cover | ||||
| 024 | 415955-0 | 7.22 | 8.74 | |
| Tap screw 4x18 | ||||
| 025 | 265A48-7 | 0.83 | 1.00 | |
| Terminal block Bo4553-Bo4554 A | ||||
| 026 | 654475-1 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 027 | 687124-5 | 0.83 | 1.00 | |
| Tap screw 4x18 | ||||
| 028 | 265A48-7 | 0.83 | 1.00 | |
| Switch Sw-62 | ||||
| 029 | 651433-8 | 4.45 | 5.38 | |
| Brush Set CB411 RT0702C | ||||
| 030 | 195010-1 | 4.45 | 5.38 | |
| Brush Cap | ||||
| 031 | 643928-5 | 0.83 | 1.00 | |
| Sluitmoer haakse slijper | ||||
| 033 | 224554-5 | 4.00 | 4.84 | |
| Binnenflens haakse slijper en sleuvenzaag | ||||
| 034 | 224415-9 | 4.00 | 4.84 | |
| No longer available, no replacement | ||||
| 035 | 152522-7 | |||
| Labyrinth ring | ||||
| 035A | 344347-5 | 0.83 | 1.00 | |
| Protective Cover 115mm 'toolless' | ||||
| 036 | 123144-0 | 9.24 | 11.18 | |
| No information available, not orderable | ||||
| 037 | 251391-4 | |||
| No information available, not orderable | ||||
| 038 | 316800-1 | |||
| Ball Bearing 6201dw1 | ||||
| 039 | 211129-9 | 7.22 | 8.74 | |
| Lock washer r-32 | ||||
| 040 | 962151-6 | 0.83 | 1.00 | |
| Gear 36 9524Nb A | ||||
| 041 | 226798-3 | 5.30 | 6.41 | |
| No information available, not orderable | ||||
| 042 | 159867-4 | |||
