Here you will find all available parts and drawings of the 'Makita 9521NB'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

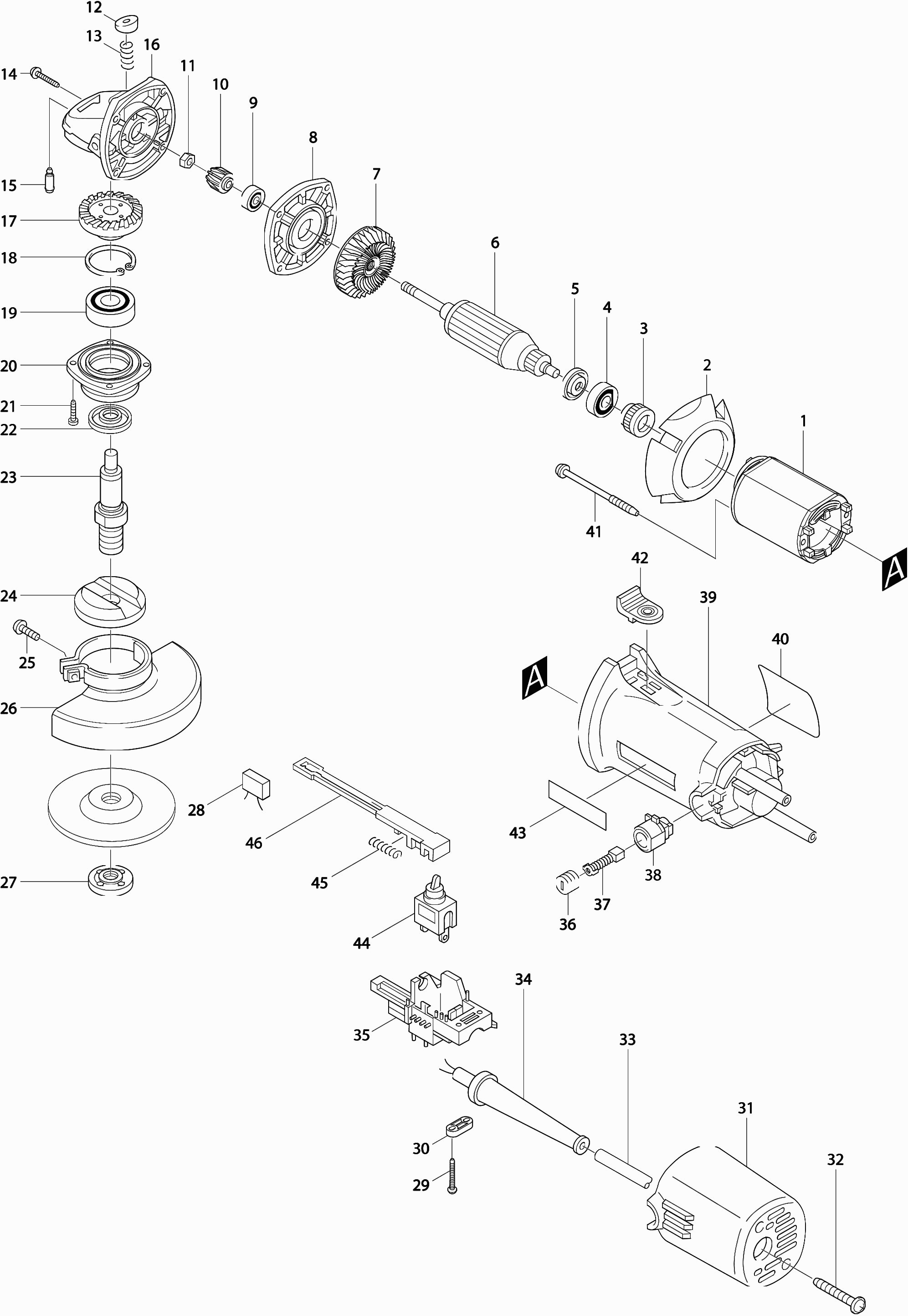

Technical drawing of model Makita 9521NB
Spare parts list of model Makita 9521NB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 001 | 635003-1 | 28.02 | 33.90 | |
| Intermediate Plate | ||||
| 002 | 415490-8 | 0.83 | 1.00 | |
| Rubber Ring 19 | ||||
| 003 | 421494-0 | 3.96 | 4.79 | |
| Ball bearing 607llb | ||||
| 004 | 211021-9 | 4.45 | 5.38 | |
| Insulation ring | ||||
| 005 | 681636-0 | 1.18 | 1.43 | |
| Armature 9521Nb * | ||||
| 006 | 517503-2 | 47.10 | 56.99 | |
| Impeller 54 | ||||
| 007 | 240039-3 | 2.84 | 3.44 | |
| No information available, not orderable | ||||
| 008 | 316601-7 | |||
| Ball bearing 608llb | ||||
| 009 | 210043-6 | 1.67 | 2.02 | |
| No information available, not orderable | ||||
| 010 | 226716-1 | |||
| Nut M5-8 | ||||
| 011 | 252137-1 | 0.83 | 1.00 | |
| Pushing Button | ||||
| 012 | 415491-6 | 0.83 | 1.00 | |
| Compression Spring 8 | ||||
| 013 | 233376-2 | 0.93 | 1.13 | |
| No information available, not orderable | ||||
| 014 | 265999-8 | |||
| Pin 4 | ||||
| 015 | 256437-1 | 1.18 | 1.43 | |
| Gearbox 9521Nb New * | ||||
| 016 | 151742-0 | 30.69 | 37.13 | |
| No information available, not orderable | ||||
| 017 | 226717-9 | |||
| Lock washer r-32 | ||||
| 018 | 962151-6 | 0.83 | 1.00 | |
| Ball Bearing 6201dw1 | ||||
| 019 | 211129-9 | 7.22 | 8.74 | |
| Bearing Housing 9521Nb * | ||||
| 020 | 316600-9 | 9.24 | 11.18 | |
| Tapping Screw Ct4x16 | ||||
| 021 | 266034-5 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 022 | 415492-4 | |||
| No information available, not orderable | ||||
| 023 | 322756-8 | |||
| No information available, not orderable | ||||
| 025 | 251391-4 | |||
| Protective Cover 115mm 'toolless' | ||||
| 026 | 123144-0 | 9.24 | 11.18 | |
| Capacitor 0,1uf | ||||
| 028 | 645105-5 | 2.71 | 3.28 | |
| Tap screw 4x18 | ||||
| 029 | 265A48-7 | 0.83 | 1.00 | |
| Clamp Bracket | ||||
| 030 | 687124-5 | 0.83 | 1.00 | |
| Tail Cover | ||||
| 031 | 415540-9 | 8.59 | 10.39 | |
| Screw 4x35 | ||||
| 032 | 266351-3 | 0.83 | 1.00 | |
| Power cord 2x1.00 2.2mtr | ||||
| 033 | 665383-1 | 10.50 | 12.70 | |
| Cable grommet 8-85 | ||||
| 034 | 682502-4 | 1.67 | 2.02 | |
| Support | ||||
| 035 | 687069-7 | 2.48 | 3.00 | |
| Brush holder cap | ||||
| 036 | 643550-8 | 0.83 | 1.00 | |
| Brush Set CB411 RT0702C | ||||
| 037 | 195010-1 | 4.45 | 5.38 | |
| Brush Holder | ||||
| 038 | 643922-7 | 2.71 | 3.28 | |
| Motor Housing | ||||
| 039 | 159755-5 | 16.35 | 19.78 | |
| Connection unit | ||||
| 039A | 654125-8 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 041 | 266049-2 | |||
| Switch Button | ||||
| 042 | 415303-3 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 044 | 651428-1 | |||
| Compression Spring 4 | ||||
| 045 | 233071-4 | 0.83 | 1.00 | |
| Control rod | ||||
| 046 | 415541-7 | 1.67 | 2.02 | |
