Here you will find all available parts and drawings of the 'Makita 910'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

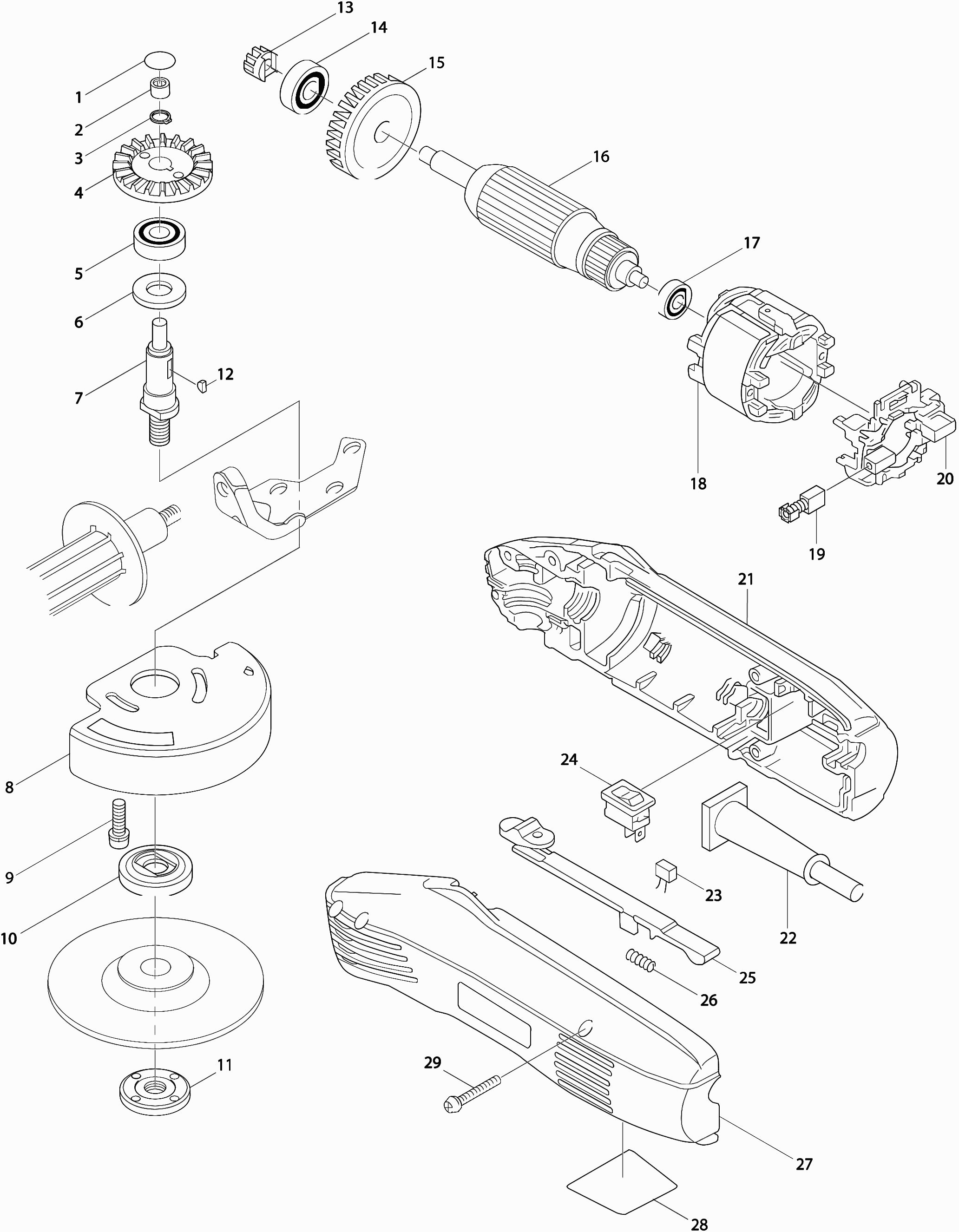

Technical drawing of model Makita 910
Spare parts list of model Makita 910
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| O-Ring 13 * | ||||
| 001 | 213114-8 | 1.00 | 1.21 | |
| Glijlager 8 | ||||
| 002 | 214001-4 | 1.20 | 1.45 | |
| Lock washer S-12 | ||||
| 003 | 961052-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 004 | 221375-6 | |||
| Ball Bearing 6201dw1 | ||||
| 005 | 211129-9 | 8.40 | 10.16 | |
| Washer 12 * | ||||
| 006 | 253055-6 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 007 | 322440-5 | |||
| Guard 910-N910 * | ||||
| 008 | 343745-0 | 12.10 | 14.64 | |
| Screw 5x20 | ||||
| 009 | 911234-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 224267-8 | |||
| SLUITMOER HAAKSE SLIJPER | ||||
| 011 | 224554-5 | 3.00 | 3.63 | |
| Inlegspie 3 | ||||
| 012 | 254002-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 013 | 226708-0 | |||
| Ball bearing 6000llb | ||||
| 014 | 211061-7 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 015 | 241849-1 | |||
| No information available, not orderable | ||||
| 016 | 517013-9 | |||
| Ball bearing 627llb | ||||
| 017 | 210025-8 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 018 | 633188-7 | |||
| Brush Set CB-419 | ||||
| 019 | 195015-1 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 020 | 632098-5 | |||
| No information available, not orderable | ||||
| 021 | 182261-5 | |||
| Power cord 2x1.00 2.2mtr | ||||
| 022 | 665383-1 | 10.80 | 13.07 | |
| Capacitor | ||||
| 023 | 645173-8 | 8.40 | 10.16 | |
| Switch Sw-86 | ||||
| 024 | 651514-8 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 025 | 414557-9 | |||
| Compression Spring 6 * | ||||
| 026 | 231496-6 | 1.00 | 1.21 | |
| Screw 4x30 | ||||
| 029 | 911156-3 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 030 | 781014-5 | |||
| No information available, not orderable | ||||
| 031 | 782407-9 | |||
