Here you will find all available parts and drawings of the 'Makita 9036'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

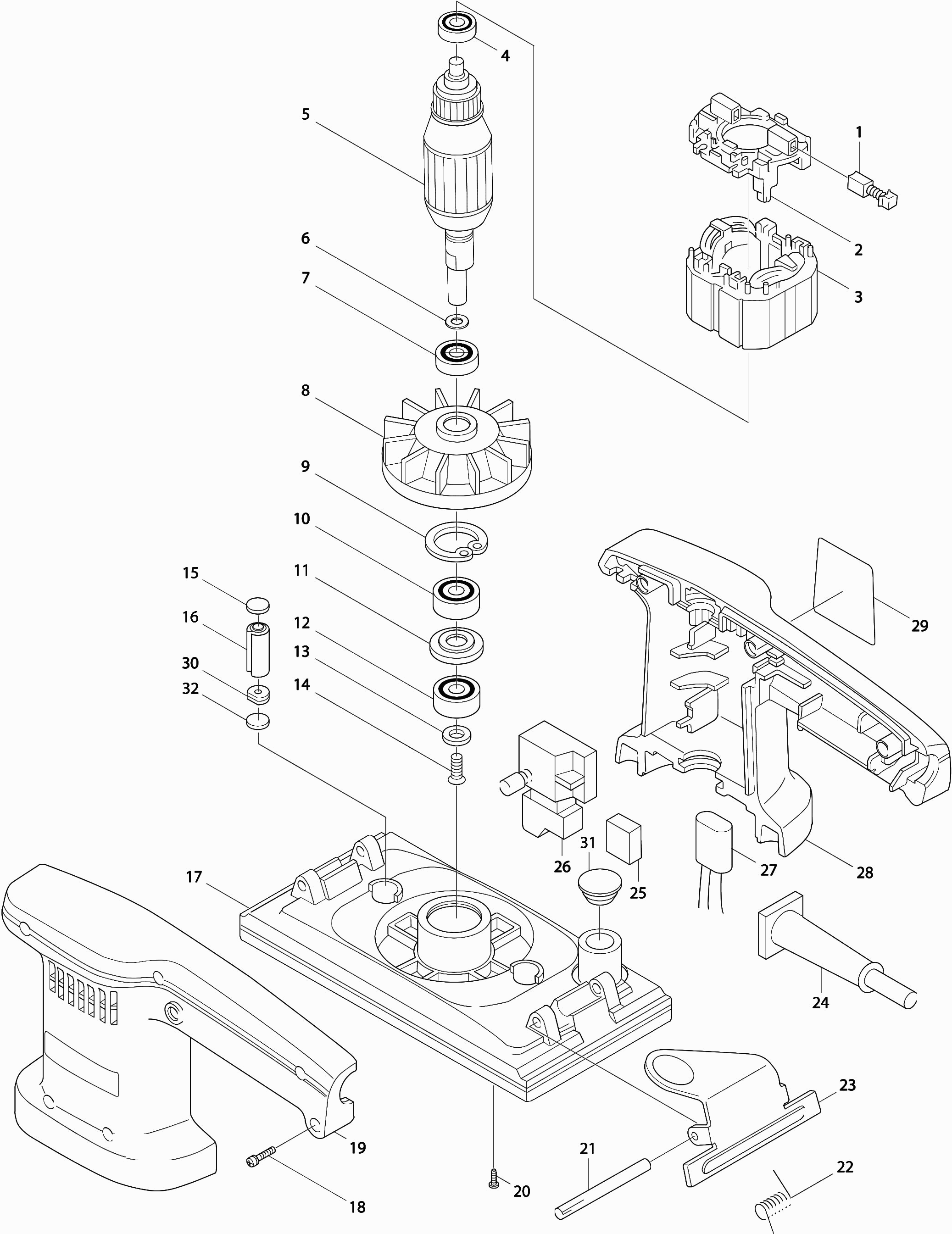

Technical drawing of model Makita 9036
Spare parts list of model Makita 9036
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 001 | 191913-7 | |||
| No information available, not orderable | ||||
| 002 | 632107-0 | |||
| Field | ||||
| 003 | 633073-4 | 19.80 | 23.96 | |
| Ball bearing 627llb | ||||
| 004 | 210025-8 | 3.60 | 4.36 | |
| Armature 9036 * | ||||
| 005 | 511848-0 | 52.80 | 63.89 | |
| Retaining Ring E-10 | ||||
| 006 | 961016-9 | 1.00 | 1.21 | |
| Ball Bearing 6001dw | ||||
| 007 | 211131-2 | 9.60 | 11.62 | |
| Fan 68 * | ||||
| 008 | 241654-6 | 10.80 | 13.07 | |
| Lock ring R-26 DTWA series | ||||
| 009 | 962115-0 | 1.20 | 1.45 | |
| Ball bearing 629ddw | ||||
| 010 | 211092-6 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 011 | 257154-6 | |||
| Ball bearing 629ddw | ||||
| 012 | 211092-6 | 4.80 | 5.81 | |
| Washer 6 | ||||
| 013 | 253825-3 | 1.20 | 1.45 | |
| Screw14X12 | ||||
| 014 | 251304-5 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 015 | 343650-1 | |||
| No longer available, no replacement | ||||
| 016 | 421538-6 | |||
| Soleplate | ||||
| 017 | 122442-9 | 72.60 | 87.85 | |
| No longer available, no replacement | ||||
| 017A | 415612-0 | |||
| No longer available, no replacement | ||||
| 017C | 423272-4 | |||
| O-ring 16 | ||||
| 017D | 213223-3 | 1.00 | 1.21 | |
| Screw 4x30 | ||||
| 018 | 911158-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 019 | 182232-2 | |||
| Screw 4X10 | ||||
| 020 | 911113-1 | 1.00 | 1.21 | |
| Pen 4-55 | ||||
| 021 | 256739-5 | 2.40 | 2.90 | |
| Torsion spring 4 | ||||
| 022 | 231586-5 | 1.00 | 1.21 | |
| Pressure spring | ||||
| 023 | 343539-3 | 2.40 | 2.90 | |
| Cable grommet 10-85 | ||||
| 024 | 682504-0 | 2.40 | 2.90 | |
| Switch SW-97 651233* | ||||
| 026 | 651233-6 | 6.00 | 7.26 | |
| Foot holder | ||||
| 030 | 421539-4 | 1.00 | 1.21 | |
| Power cord 2x1.00 2.2mtr | ||||
| 031 | 665383-1 | 10.80 | 13.07 | |
| No longer available, no replacement | ||||
| 032 | 343650-1 | |||
