Here you will find all available parts and drawings of the 'Makita 9035KB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

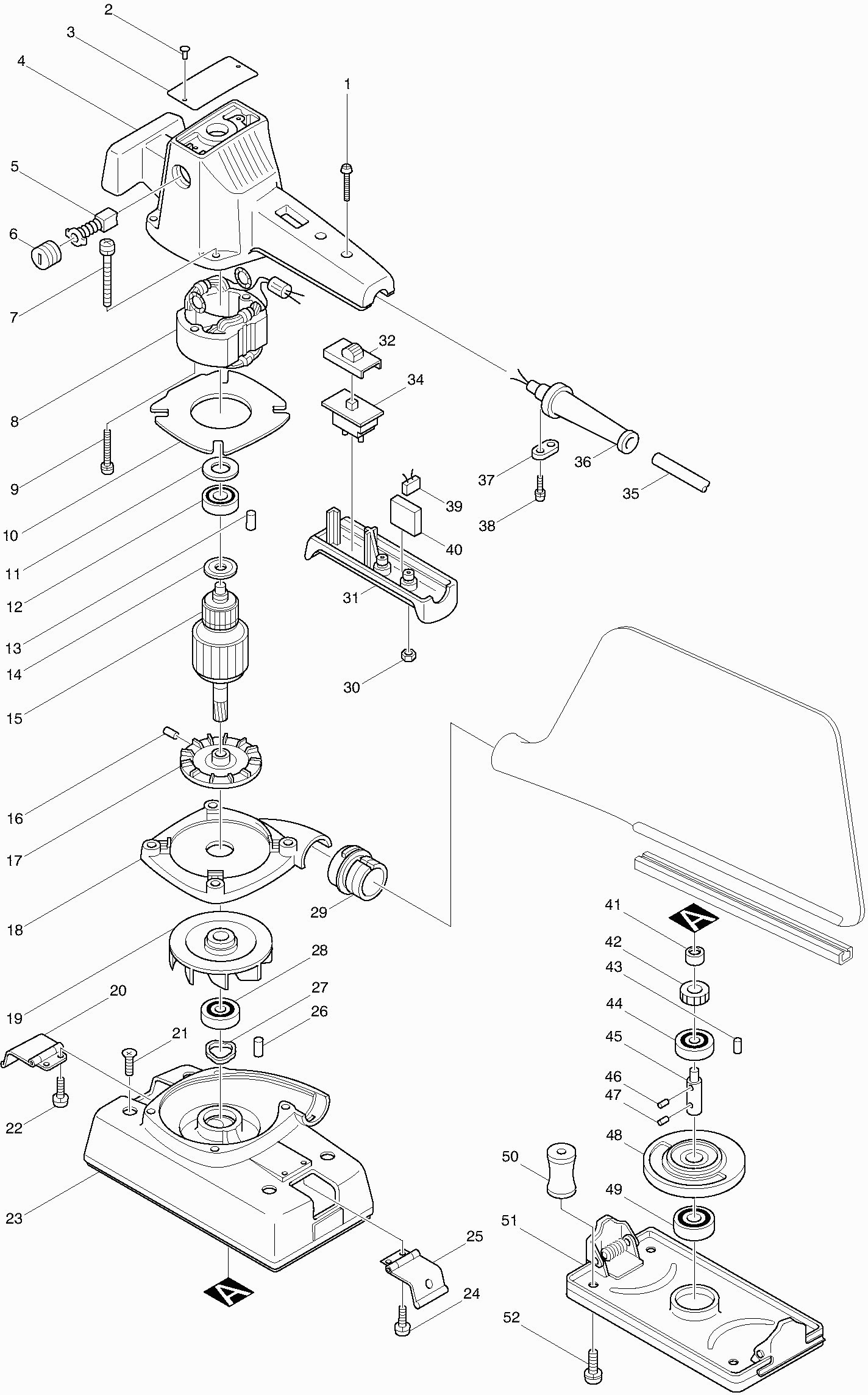

Technical drawing of model Makita 9035KB
Spare parts list of model Makita 9035KB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw 4x35 | ||||
| 001 | 911163-6 | 1.00 | 1.21 | |
| Motor Housing 9035Kb * | ||||
| 004 | 156362-5 | 39.60 | 47.92 | |
| KOOLBORSTEL SET CB-65 A | ||||
| 005 | 194969-9 | 4.80 | 5.81 | |
| Brush holder cap | ||||
| 006 | 643550-8 | 1.20 | 1.45 | |
| Screw 5x35 | ||||
| 007 | 911256-9 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 008 | 528299-0 | |||
| Screw 5x40 | ||||
| 009 | 911263-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 010 | 411340-5 | |||
| Washer 14 | ||||
| 011 | 253192-6 | 1.00 | 1.21 | |
| Ball bearing 608llb | ||||
| 012 | 210043-6 | 2.40 | 2.90 | |
| Rubber Pin 4 | ||||
| 013 | 263002-9 | 1.00 | 1.21 | |
| Insulation ring | ||||
| 014 | 681613-2 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 015 | 512359-8 | |||
| Pen 4 | ||||
| 016 | 256074-1 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 017 | 241810-8 | |||
| No information available, not orderable | ||||
| 018 | 411337-4 | |||
| Impeller 80 * | ||||
| 019 | 241617-2 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 020 | 154241-1 | |||
| No information available, not orderable | ||||
| 021 | 912211-4 | |||
| Screw 4x8 | ||||
| 022 | 911106-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 023 | 155190-5 | |||
| Screw 4x8 | ||||
| 024 | 911106-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 025 | 154241-1 | |||
| Rubber Pin 4 | ||||
| 026 | 263002-9 | 1.00 | 1.21 | |
| Washer 18 | ||||
| 027 | 253946-1 | 1.20 | 1.45 | |
| Ball bearing 629llb | ||||
| 028 | 210042-8 | 2.40 | 2.90 | |
| Connector | ||||
| 029 | 154277-0 | 4.80 | 5.81 | |
| Hex nut M4 | ||||
| 030 | 931102-0 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 031 | 411338-2 | |||
| Slide plate 9035Kb 9045N * | ||||
| 032 | 652191-9 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 033 | 685710-6 | |||
| Switch | ||||
| 034 | 651656-8 | 12.10 | 14.64 | |
| Power cord 2x1.00 2.2mtr | ||||
| 035 | 665383-1 | 10.80 | 13.07 | |
| Cable grommet 10-85 | ||||
| 036 | 682504-0 | 2.40 | 2.90 | |
| Clamp Bracket | ||||
| 037 | 687001-1 | 1.00 | 1.21 | |
| Screw 4X18 | ||||
| 038 | 911131-9 | 1.00 | 1.21 | |
| Sponge rubber | ||||
| 040 | 685700-9 | 1.00 | 1.21 | |
| Needle Bearing 609 | ||||
| 041 | 212011-5 | 9.60 | 11.62 | |
| Gear 24 | ||||
| 042 | 221617-8 | 10.80 | 13.07 | |
| Rubber Pin 4 | ||||
| 043 | 263002-9 | 1.00 | 1.21 | |
| Ball bearing 629llb | ||||
| 044 | 210042-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 045 | 323640-0 | |||
| Pen 4 | ||||
| 046 | 256074-1 | 1.00 | 1.21 | |
| Pen 4 | ||||
| 047 | 256074-1 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 048 | 312830-0 | |||
| No information available, not orderable | ||||
| 049 | 211268-5 | |||
| No longer available, no replacement | ||||
| 050 | 421139-0 | |||
| No longer available, no replacement | ||||
| 051 | 155173-5 | |||
| Screw 5x10 | ||||
| 052 | 911209-8 | 1.00 | 1.21 | |
