Here you will find all available parts and drawings of the 'Makita 9027S'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

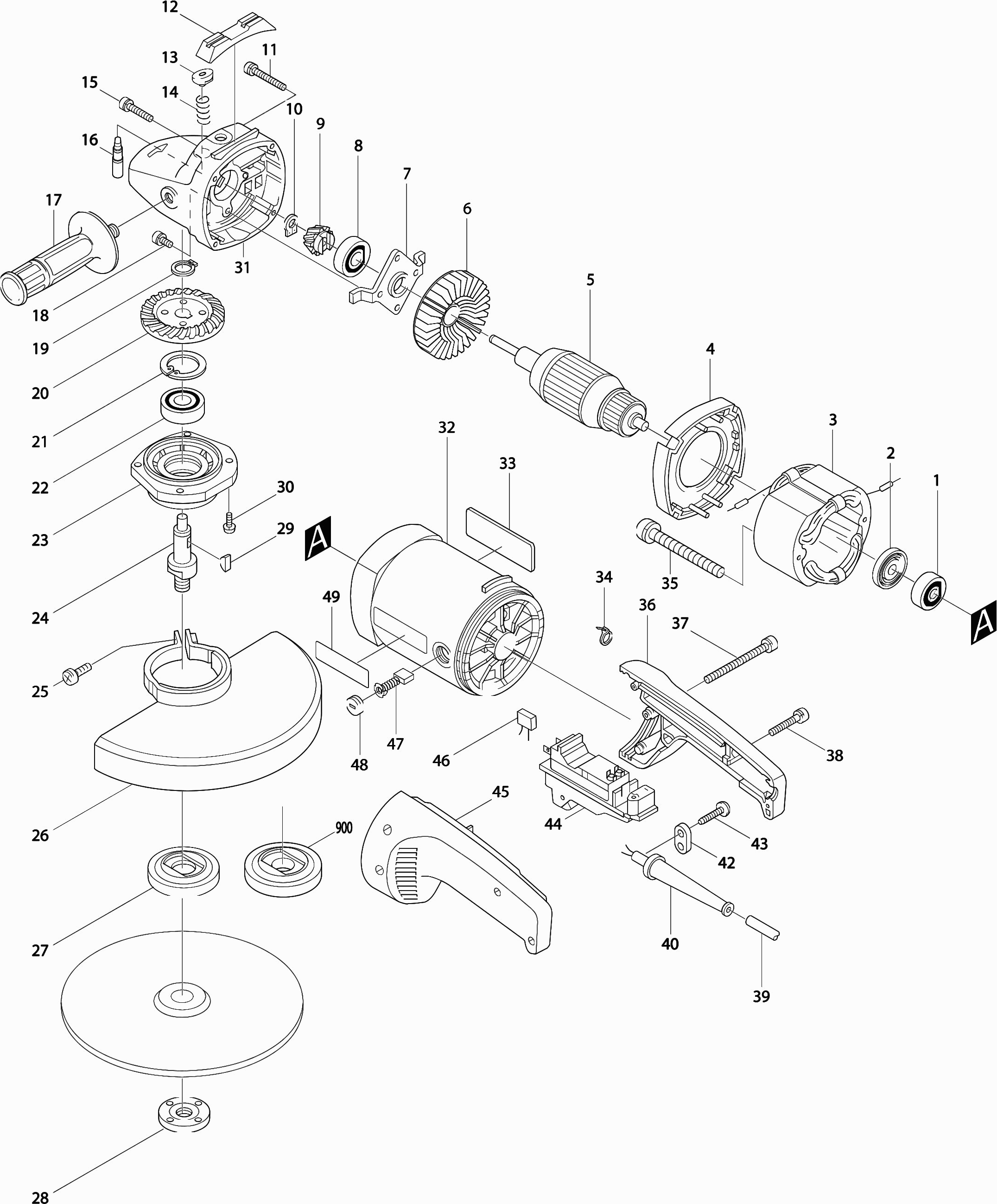

Technical drawing of model Makita 9027S
Spare parts list of model Makita 9027S
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ball bearing 6200llb | ||||
| 001 | 211066-7 | 4.80 | 5.81 | |
| Insulation ring | ||||
| 002 | 681630-2 | 2.40 | 2.90 | |
| Field | ||||
| 003 | 526013-8 | 78.10 | 94.50 | |
| Wiring Harness 9027+9029 Purple * | ||||
| 003A | 536012-2 | 2.40 | 2.90 | |
| Wiring Harness 9027+9029 Orange * | ||||
| 003B | 536011-4 | 2.40 | 2.90 | |
| Intermediate plate 9029-9029S * | ||||
| 004 | 415647-1 | 3.60 | 4.36 | |
| Armature | ||||
| 005 | 516593-2 | 111.10 | 134.43 | |
| Impeller 80 * | ||||
| 006 | 241859-8 | 10.80 | 13.07 | |
| Bearing Lock 57 * | ||||
| 007 | 285672-4 | 8.40 | 10.16 | |
| Ball Bearing 6301llb | ||||
| 008 | 211132-0 | 9.60 | 11.62 | |
| Gear 15 9027 9037 New * | ||||
| 009 | 226701-4 | 16.50 | 19.96 | |
| Lock ring S-9 | ||||
| 010 | 961005-4 | 1.00 | 1.21 | |
| Screw 5x40 | ||||
| 011 | 911263-2 | 1.00 | 1.21 | |
| Tool support 9029-9029S * | ||||
| 012 | 421421-7 | 2.40 | 2.90 | |
| Lock pin cap | ||||
| 013 | 414990-5 | 3.60 | 4.36 | |
| Compression spring 12 | ||||
| 014 | 233031-6 | 1.00 | 1.21 | |
| Hexagon Socket Bolt M5X20 * | ||||
| 015 | 265977-8 | 1.20 | 1.45 | |
| Lock Pin 6 | ||||
| 016 | 256431-3 | 2.40 | 2.90 | |
| Hexagon Socket Bolt 5x10 | ||||
| 018 | 265976-0 | 1.20 | 1.45 | |
| Lock ring S-17 | ||||
| 019 | 961057-5 | 1.00 | 1.21 | |
| Gear 50 9027 9037 New * | ||||
| 020 | 221389-5 | 26.40 | 31.94 | |
| Spring retaining ring | ||||
| 021 | 257998-4 | 1.20 | 1.45 | |
| Ball bearing 6203dw | ||||
| 022 | 211278-2 | 9.60 | 11.62 | |
| Bearing Housing | ||||
| 023 | 316399-6 | 27.50 | 33.28 | |
| No information available, not orderable | ||||
| 024 | 322512-6 | |||
| Screw 8x30 | ||||
| 025 | 251383-3 | 1.00 | 1.21 | |
| Protective Cover 180mm | ||||
| 026 | 165215-7 | 8.40 | 10.16 | |
| Feather Key 4 | ||||
| 029 | 254001-2 | 1.00 | 1.21 | |
| Screw 5x18 | ||||
| 030 | 911230-7 | 1.20 | 1.45 | |
| Gear House 9029-9029S * | ||||
| 031 | 159469-6 | 81.40 | 98.49 | |
| Motor Housing 9027+9029 New * | ||||
| 032 | 182815-8 | 36.30 | 43.92 | |
| Hose Band | ||||
| 034 | 687010-0 | 1.00 | 1.21 | |
| Screw 5X70 * | ||||
| 035 | 911691-1 | 1.20 | 1.45 | |
| Handle set | ||||
| 036 | 182824-7 | 22.00 | 26.62 | |
| Screw 6x85 | ||||
| 037 | 265016-4 | 3.60 | 4.36 | |
| No information available, not orderable | ||||
| 038 | 265999-8 | |||
| Power cord 2x1.50 4.0mtr | ||||
| 039 | 695123-3 | 22.00 | 26.62 | |
| No longer available, no replacement | ||||
| 040 | 682505-8 | |||
| Clamp Bracket | ||||
| 042 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 042 | 687124-5 | 1.00 | 1.21 | |
| Tap screw 4x18 | ||||
| 043 | 265A48-7 | 1.00 | 1.21 | |
| Safety switch | ||||
| 044 | 651179-6 | 41.80 | 50.58 | |
| Capacitor | ||||
| 044A | 645088-9 | 1.00 | 1.21 | |
| Capacitor | ||||
| 046 | 645088-9 | 1.00 | 1.21 | |
| Carbon brush set Cb-204 | ||||
| 047 | 194992-4 | 11.00 | 13.31 | |
| Brush holder cap | ||||
| 048 | 643700-5 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 051 | 539100-4 | |||
| BINNENFLENS HAAKSE SLIJPER "SUPER" | ||||
| 900 | 192227-7 | 15.00 | 18.15 | |
