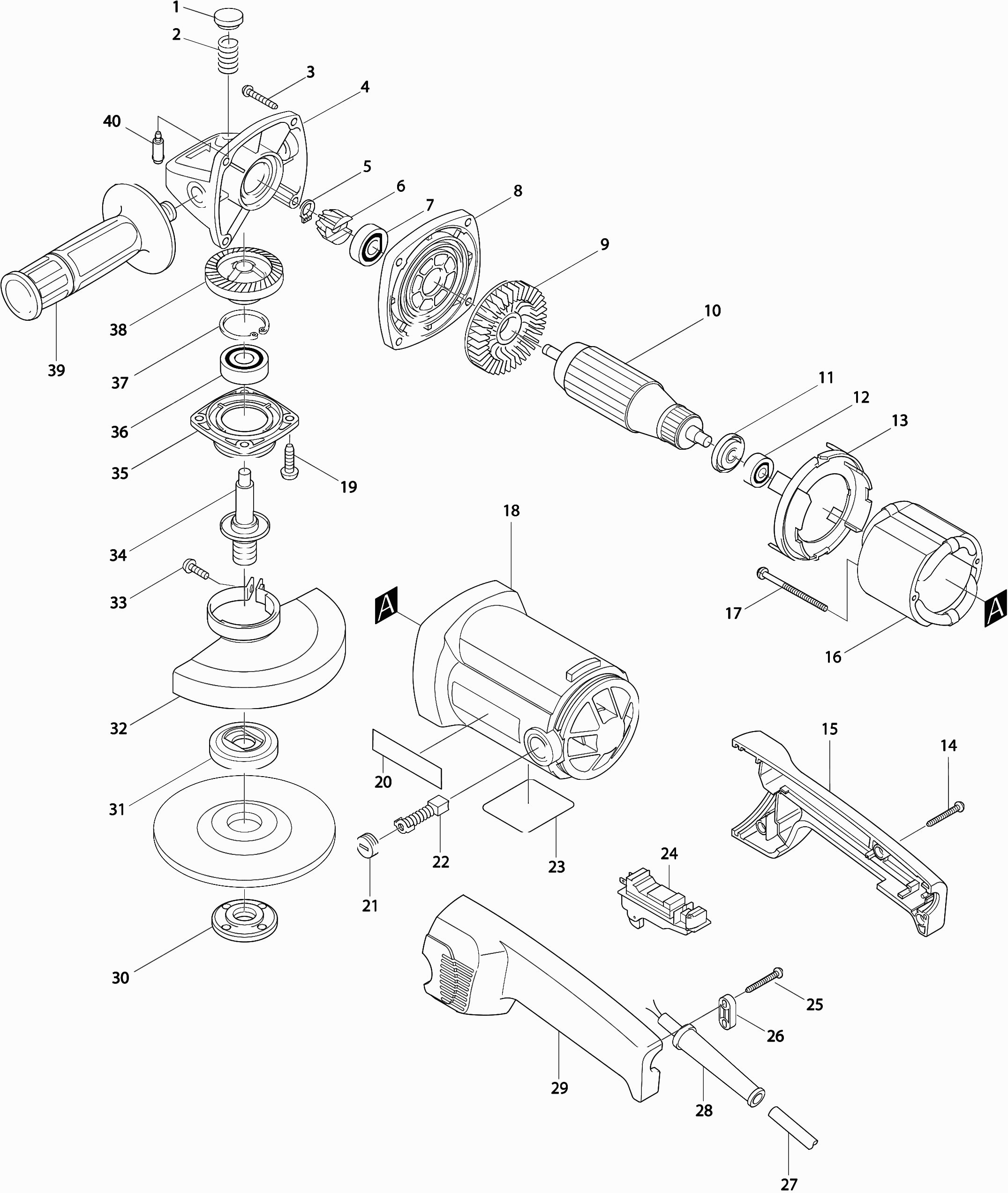

Technical drawing of model Makita 9015B
Spare parts list of model Makita 9015B
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Unlocking cap | ||||
| 001 | 416449-8 | 1.00 | 1.21 | |
| Compression spring 12 | ||||
| 002 | 233089-5 | 1.00 | 1.21 | |
| Tapping screw Pt 5x30 | ||||
| 003 | 266173-1 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 004 | 153374-9 | 22.00 | 26.62 | |
| Gear Cover | ||||
| 004-1 | 153374-9 | 22.00 | 26.62 | |
| Lock ring S-7 | ||||
| 005 | 961003-8 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 006-2 | 183017-9 | |||
| Gear Set 33+12 9015B A | ||||
| 006-3 | 183053-5 | 18.70 | 22.63 | |
| Gear Set 33+12 9015B A | ||||
| 006-4 | 183053-5 | 18.70 | 22.63 | |
| Gear Set 33+12 9015B A | ||||
| 006-5 | 183053-5 | 18.70 | 22.63 | |
| Ball Bearing 6001dw | ||||
| 007 | 211131-2 | 9.60 | 11.62 | |
| Bearing plate 9015B New * | ||||
| 008 | 317323-2 | 13.20 | 15.97 | |
| Bearing plate 9015B New * | ||||
| 008-1 | 317323-2 | 13.20 | 15.97 | |
| Bearing plate 9015B New * | ||||
| 008A | 317323-2 | 13.20 | 15.97 | |
| Fan 70 | ||||
| 009 | 240010-7 | 3.60 | 4.36 | |
| Armature | ||||
| 010 | 516334-6 | 62.70 | 75.87 | |
| Armature | ||||
| 010C | 516334-6 | 62.70 | 75.87 | |
| Insulation ring | ||||
| 011 | 681644-1 | 1.00 | 1.21 | |
| Ball Bearing 608ddw | ||||
| 012 | 210005-4 | 4.80 | 5.81 | |
| Intermediate Plate | ||||
| 013 | 416448-0 | 1.20 | 1.45 | |
| Tap screw 4x18 | ||||
| 014 | 265A48-7 | 1.00 | 1.21 | |
| Handle set | ||||
| 015 | 182990-0 | 13.20 | 15.97 | |
| Field | ||||
| 016 | 522838-8 | 51.70 | 62.56 | |
| Stator spring Cb5 | ||||
| 016A | 654020-2 | 1.20 | 1.45 | |
| Field | ||||
| 016B | 522838-8 | 51.70 | 62.56 | |
| Clamping bushing for statorv. 1.25mm | ||||
| 016B | 654501-6 | 0.83 | 1.00 | |
| Field | ||||
| 016B1 | 522838-8 | 51.70 | 62.56 | |
| Tapping screw Pt 5x65 | ||||
| 017 | 266029-8 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 018 | 159996-3 | |||
| Motor Housing 9015B A | ||||
| 018-1 | 183159-9 | 22.00 | 26.62 | |
| Carbon Brush holder 5X11 A | ||||
| 018A | 644501-4 | 2.40 | 2.90 | |
| Screw 5x18 | ||||
| 019 | 911230-7 | 1.20 | 1.45 | |
| Phillips Screw 5x16 | ||||
| 019-1 | 265096-0 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 020 | 819001-5 | |||
| Carbon brush cap | ||||
| 021 | 643515-0 | 1.00 | 1.21 | |
| Carbon brush cap | ||||
| 021-1 | 643515-0 | 1.00 | 1.21 | |
| Carbon brush set Cb-303 | ||||
| 022 | 194996-6 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 023 | 859284-5 | |||
| Switch Tg08 | ||||
| 024 | 650100-2 | 23.10 | 27.95 | |
| Safety switch | ||||
| 024-1B | 650102-8 | 23.10 | 27.95 | |
| Capacitor | ||||
| 024A | 645088-9 | 1.00 | 1.21 | |
| Switch Tg08 | ||||
| 024A1A | 650100-2 | 23.10 | 27.95 | |
| No information available, not orderable | ||||
| 024AA | 651146-1 | |||
| No information available, not orderable | ||||
| 024B | 651149-5 | |||
| Tap screw 4x18 | ||||
| 025 | 265A48-7 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687053-2 | 1.00 | 1.21 | |
| Clamp Bracket | ||||
| 026 | 687124-5 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 026-1 | 687052-4 | |||
| Power cord 2x1.00 2.2mtr | ||||
| 027 | 665383-1 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 027A | 666066-6 | |||
| No information available, not orderable | ||||
| 027A1 | 665865-3 | |||
| Cable grommet 8-90 | ||||
| 028 | 682503-2 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 028-1 | 682540-6 | |||
| Handle set | ||||
| 029 | 182990-0 | 13.20 | 15.97 | |
| SLUITMOER HAAKSE SLIJPER | ||||
| 030 | 224554-5 | 3.00 | 3.63 | |
| BINNENFLENS HAAKSE SLIJPER EN SLEUVENZAAG | ||||
| 031 | 224415-9 | 3.00 | 3.63 | |
| Guard | ||||
| 032 | 165055-3 | 6.00 | 7.26 | |
| No information available, not orderable | ||||
| 032-1 | 125097-9 | |||
| Screw 5x16 | ||||
| 033 | 265180-1 | 1.00 | 1.21 | |
| Shaft 9015B | ||||
| 034 | 152572-2 | 13.20 | 15.97 | |
| Shaft 9015B | ||||
| 034A | 152572-2 | 13.20 | 15.97 | |
| Labyrinth ring | ||||
| 034A | 344347-5 | 1.20 | 1.45 | |
| Bearing Housing | ||||
| 035 | 316991-8 | 9.60 | 11.62 | |
| Ball Bearing 6201dw1 | ||||
| 036 | 211129-9 | 8.40 | 10.16 | |
| Ball Bearing 6201dw1 | ||||
| 036-2 | 211129-9 | 8.40 | 10.16 | |
| Lock washer r-32 | ||||
| 037 | 962151-6 | 1.00 | 1.21 | |
| Gear Set 33+12 9015B A | ||||
| 038 | 183053-5 | 18.70 | 22.63 | |
| No information available, not orderable | ||||
| 038-2 | 183017-9 | |||
| Gear Set 33+12 9015B A | ||||
| 038-3 | 183053-5 | 18.70 | 22.63 | |
| Gear Set 33+12 9015B A | ||||
| 038-4 | 183053-5 | 18.70 | 22.63 | |
| Gear Set 33+12 9015B A | ||||
| 038-5 | 183053-5 | 18.70 | 22.63 | |
| Pin 6 | ||||
| 040 | 256446-0 | 2.40 | 2.90 | |
| ZIJHANDGREEP KUNSTSTOF M12 | ||||
| 069 | 152492-0 | 3.00 | 3.63 | |
